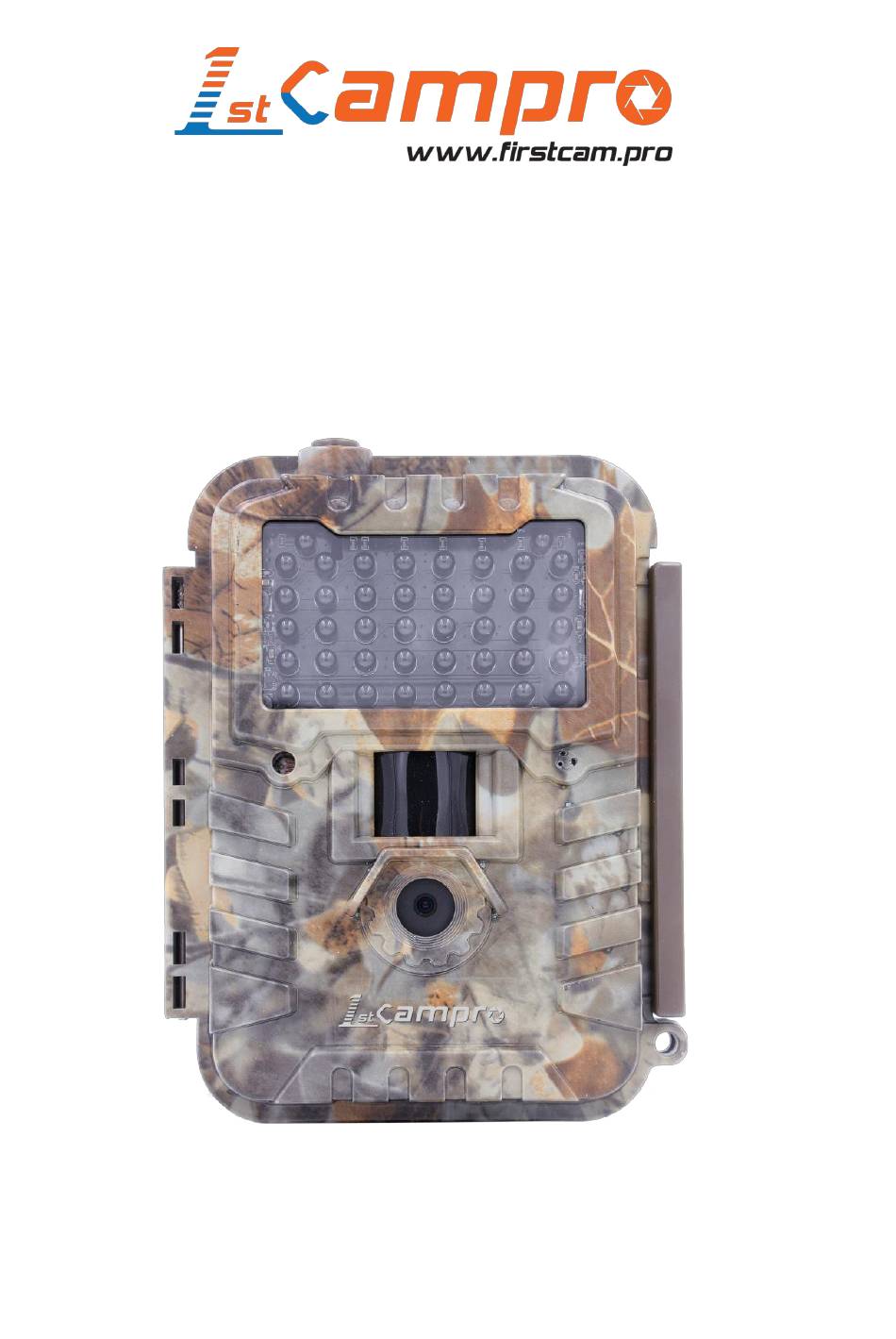

- Page 1 Trail Camera Swift Instruction Manual (For Model # 100-002）...
-
Page 2: Table Of Contents
Content 1: Camera Overview .............. 1 2: Quick Start Guide .............. 2 2.1: Installing The Batteries ..........2 2.2: Installing the SD Card ..........3 2.3: Understanding Main Screen Info ........4 2.4: Power Switch ............. 4 2.5: Settings Map ............. 5 3: Viewing Photos on the Color Display ........ -
Page 3: 1: Camera Overview
1: Camera Overview (Fig. 1 Front View) (Fig. 2 Bottom View) Page 1... -
Page 4: 2: Quick Start Guide
(Fig. 3 Inside View) (Fig. 4 Operation Panel) 2: Quick Start Guide 2.1: Installing the Batteries We suggest that you use high quality, 12pcs, AA 1.5V alkaline batteries to maximize camera performance and battery life. Please pay attention to the (+) or (-) molded into each sleeve Page 2... -
Page 5: Installing The Sd Card
to determine how to properly arrange the batteries. Negative battery terminals always contact the spring. Note: ·Do not mix different types of batteries ·Do not mix old and new batteries ·Recommend high-density and high-performance batteries, such as Alkaline ·Always remove batteries when not in use to prevent leakage 2.2: Installing the SD Card To enable power to the camera you must first install an SD Card in the designated slot at the bottom of the camera (see... -
Page 6: Understanding Main Screen Info
2.3: Understanding Main Screen Info (Fig. 5 Main Screen) 2.4: Power Switch Slide the power switch to the SETUP position. You can now start to customize your camera settings. (Fig. 6 Power Switch) Power Switch: OFF: Power off（Please remove batteries when not in use） Page 4... -
Page 7: Settings Map
SETUP: Customize Camera settings ON: Working mode (the display screen will power off). 2.5: Settings Map Page 5... - Page 8 Page 6...
-
Page 9: 3: Viewing Photos On The Color Display
3: Viewing Photos on the Color Display You can view your photos on the color display when in the field. If you would like to do this, make sure the Power Switch is set to the SETUP position. Press the PLAYBACK button (see Fig. -
Page 10: 4: Auxiliary Power
press the MENU button. You will see the screen as pictured below. (Fig 7 Playback) 4: Auxiliary Power Your camera comes with an Auxiliary power jack. If you want to hook up an external 6V battery to power the camera, you can. A standard 4mm jack is required to make the connection. - Page 11 an area with a backdrop to reflect the maximum amount of light. Note: The sun should not be shining directly on the face of the camera. (Fig. 8) Reflect with trees or other objects to add more light to your target. (Fig.
-
Page 12: Appendix Ⅰ: Technical Specifications
Appendix Ⅰ: Technical Specifications 12MP,8MP, Picture Resolution 5MP(Real), 3MP F/NO=3.0 FOV(Field of Lens View)=52° IR-Flash 45ft Display Screen 2” LCD Memory Card Up to 32GB Video Resolution QVGA,WVGA,720P,1080P PIR Sensor Multi Zone PIR Sensitivity Adjustable (High/Normal/Low) Trigger Time 0.9s Operation Temp. -4°F …. -
Page 13: Appendix Ⅱ: Parts List
Appendix Ⅱ: Parts List Part Name Quantity Digital Camera Belt User Manual WARRANTY FirstCam Outdoor Inc. provides 12 months of warranty service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 1 year, we will repair or replace the camera at no charge.
