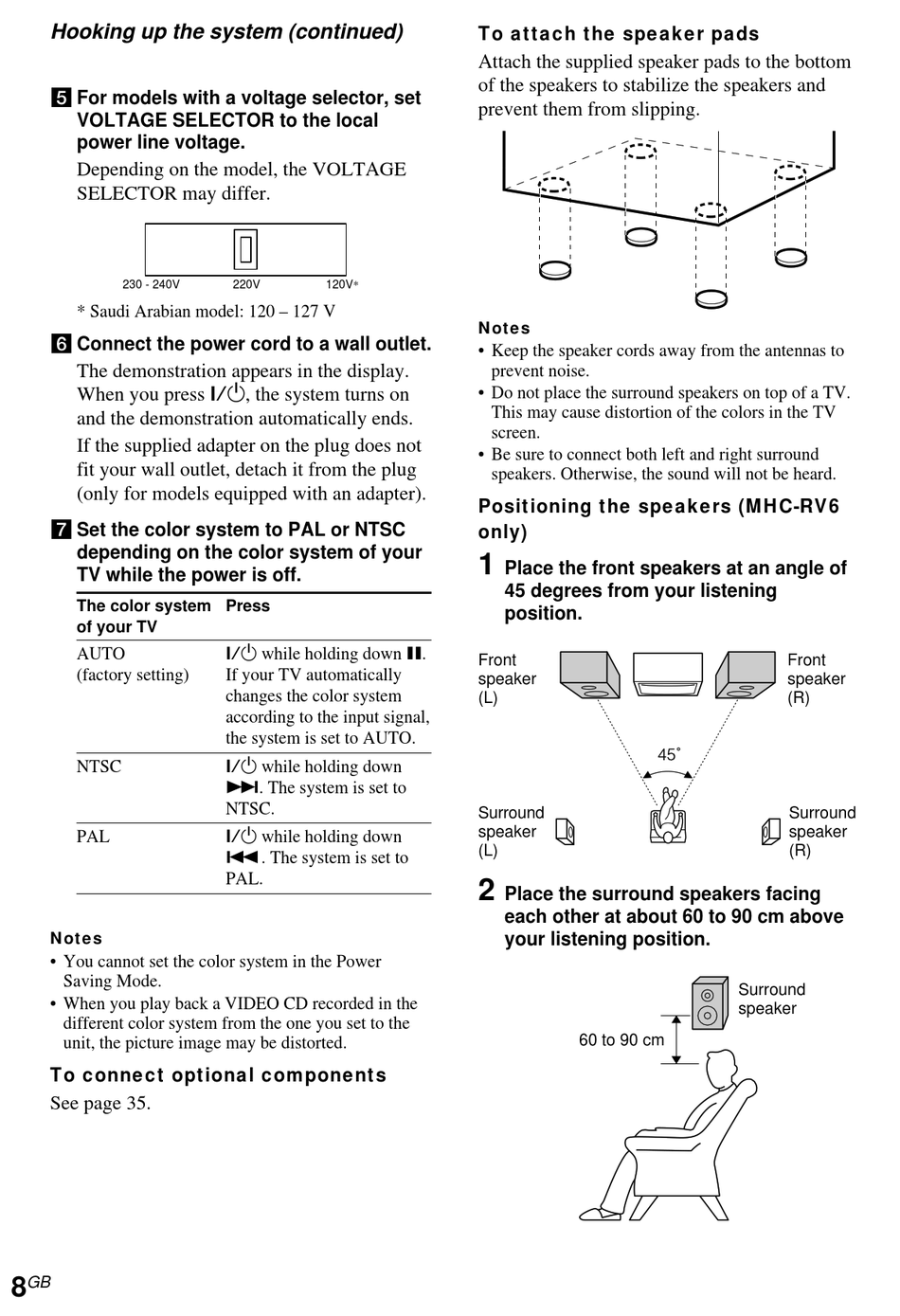

Hooking up the system (continued)
5 For models with a voltage selector, set
VOLTAGE SELECTOR to the local
power line voltage.
Depending on the model, the VOLTAGE
SELECTOR may differ.
230 - 240V
* Saudi Arabian model: 120 – 127 V
6 Connect the power cord to a wall outlet.
The demonstration appears in the display.
When you press ?/1, the system turns on
and the demonstration automatically ends.
If the supplied adapter on the plug does not
fit your wall outlet, detach it from the plug
(only for models equipped with an adapter).
7 Set the color system to PAL or NTSC
depending on the color system of your
TV while the power is off.
The color system
of your TV
AUTO
(factory setting)
NTSC
PAL
Notes
• You cannot set the color system in the Power
Saving Mode.
• When you play back a VIDEO CD recorded in the
different color system from the one you set to the
unit, the picture image may be distorted.
To connect optional components
See page 35.
GB
8
220V 120V*
Press
?/1 while holding down X.
If your TV automatically
changes the color system
according to the input signal,
the system is set to AUTO.
?/1 while holding down
>. The system is set to
NTSC.
?/1 while holding down
.. The system is set to
PAL.
To attach the speaker pads
Attach the supplied speaker pads to the bottom
of the speakers to stabilize the speakers and
prevent them from slipping.
Notes
• Keep the speaker cords away from the antennas to
prevent noise.
• Do not place the surround speakers on top of a TV.
This may cause distortion of the colors in the TV
screen.
• Be sure to connect both left and right surround
speakers. Otherwise, the sound will not be heard.
Positioning the speakers (MHC-RV6
only)
1
Place the front speakers at an angle of
45 degrees from your listening
position.
Front
speaker
(L)
Surround
speaker
(L)
2
Place the surround speakers facing
each other at about 60 to 90 cm above
your listening position.
60 to 90 cm
Front
speaker
(R)
Surround
speaker
(R)
Surround
speaker
