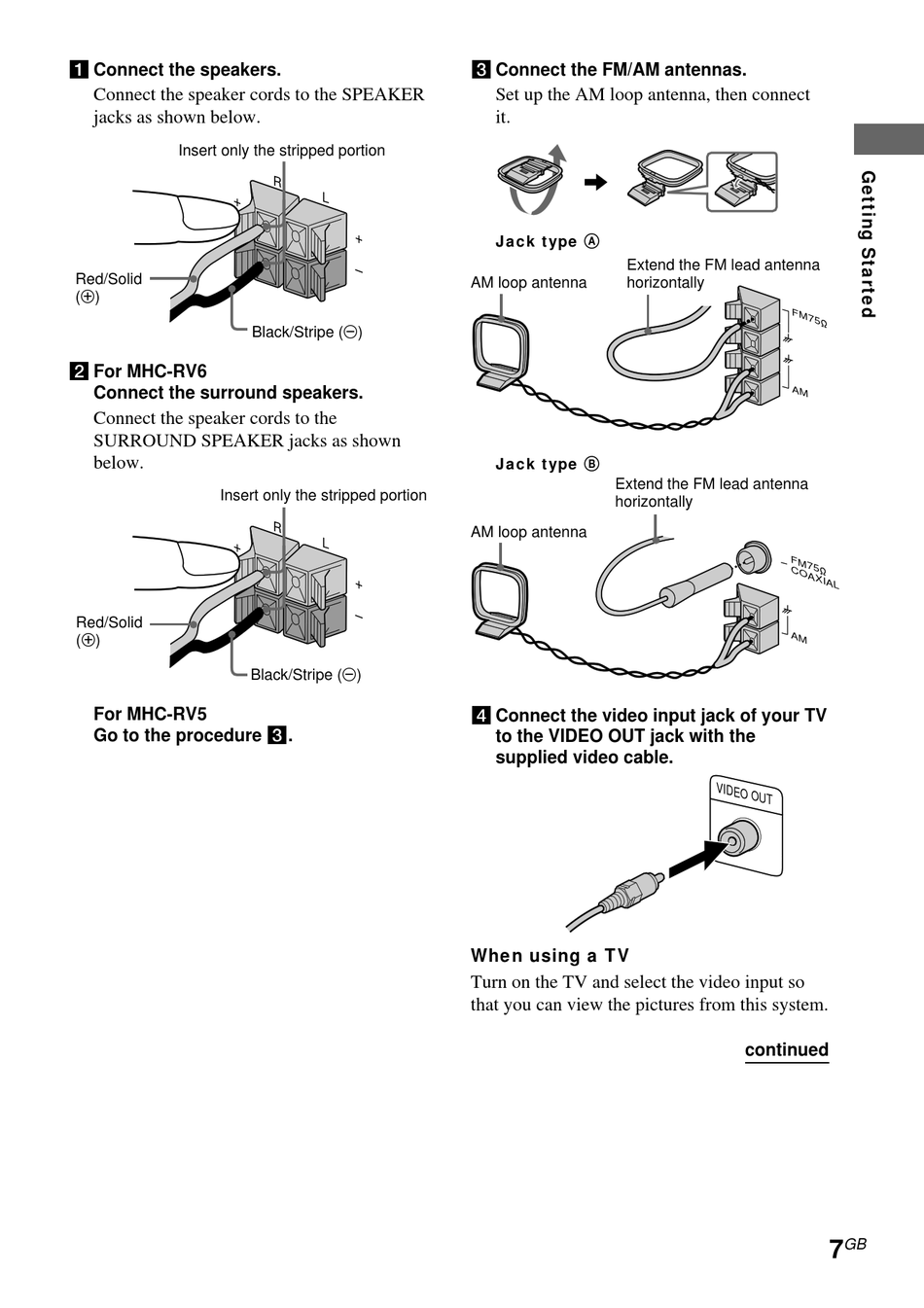

1 Connect the speakers.
Connect the speaker cords to the SPEAKER
jacks as shown below.
Insert only the stripped portion
Red/Solid
(3)
2 For MHC-RV6
Connect the surround speakers.
Connect the speaker cords to the
SURROUND SPEAKER jacks as shown
below.
Insert only the stripped portion
Red/Solid
(3)
For MHC-RV5
Go to the procedure 3.
R
L
Black/Stripe (#)
R
L
Black/Stripe (#)
3 Connect the FM/AM antennas.
Set up the AM loop antenna, then connect
it.
Jack type A
Extend the FM lead antenna
AM loop antenna
horizontally
Jack type B
Extend the FM lead antenna
horizontally
AM loop antenna
4 Connect the video input jack of your TV
to the VIDEO OUT jack with the
supplied video cable.
When using a TV
Turn on the TV and select the video input so
that you can view the pictures from this system.
V I D E O
O U T
continued
GB
7
