Summary of Contents for Vera Controls VeraEdge
- Page 2 (Z-Wave is a wireless com- munications system; check the package or specs to see if a device uses Z-Wave.) Before VeraEdge can control a device, it must be included into the Vera system. Vera Custom Device Wizards are available...
- Page 3 Select a device to include. After adding a new device, the VeraEdge Controller will ask you to name it and choose the room it is (or will be) located in. Note: If the device was previously included with a different Z-Wave system, you’ll need to it exclude it before adding with your VeraEdge.
- Page 4 “Generic Device” option. After adding a new device, the VeraEdge Controller will ask you to name it and choose the room it is (or will be) located in. Note: If the device was previously included with a different Z-Wave system, you’ll need to it exclude it before adding with your VeraEdge.
- Page 5 WPS Button Easy push button inclusion for Wi-Fi devices. (Figure 2-1) Figure 2-1: VeraEdge Left Side Reset Button The Vera Edge controllers can be reset to factory defaults by holding the reset button for 20 seconds and releasing it. This will reset the Z-Wave network and change it’s House ID, and clear your...
- Page 6 Z-Wave network, if you want to upgrade to a different model of Vera Controller, to enable another controller to operate your VeraEdge, or for other technical situations as described below.
- Page 7 This option is used when Vera is a secondary controller. Backup Z-Wave Network VeraEdge has the ability to back up its Z-Wave network and its configuration settings to be restored on another gateway. This procedure is explained on the page below: http://support.getvera.com/customer/portal/articles/2345058...
- Page 8 Support for Association Command Class To send a Z-Wave command you’ll need to add the node id of the VeraEdge has support for the Lifeline association command class. controlled Z-Wave device and the command class used. For example to control node 3 and send a BASIC_SET with a value...
-
Page 9: Detail Views

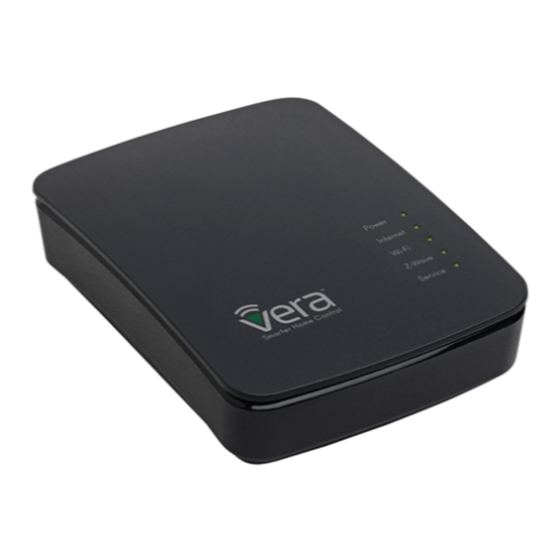

Congratulations! Detail Views Welcome to Vera Smarter Home Control. The VeraEdge Controller provides entry to a world of convenience & peace of mind. VeraEdge In this package you'll find: Home Controller Back Side Power Ethernet USB VeraEdge Controller AC Power Adapter... -
Page 10: Installation
Firmly connect the AC Power Adapter to VeraEdge “I have a new gateway to setup!” and plug in to an AC outlet. VeraEdge has no on/off switch, at the bottom of the screen. it will power up as soon as you plug in the AC adapter.
