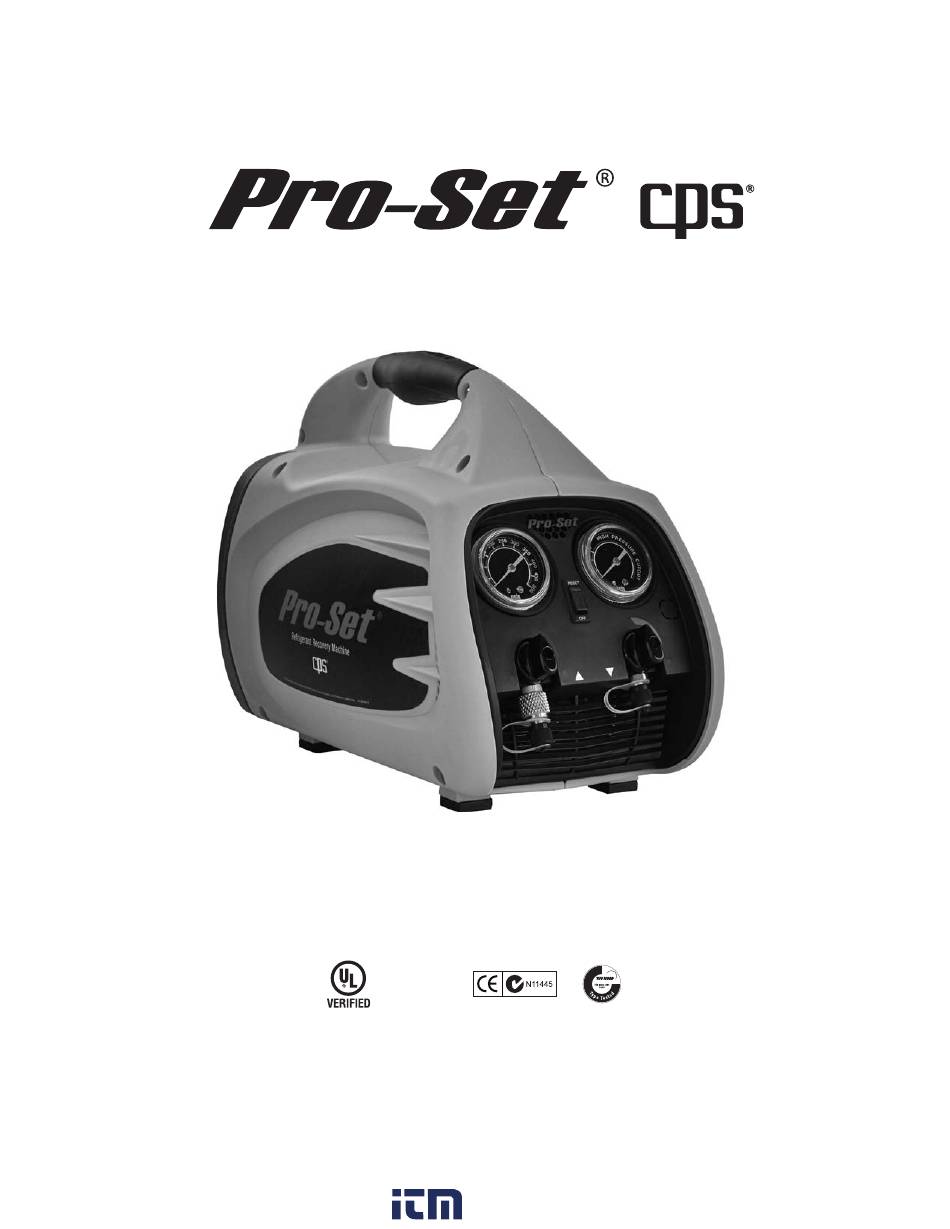

TR600 Series
Refrigerant Recovery Machines
OWNER'S MANUAL (English)
Series: TR600, TR610, TR600C, TR610C, TR600S, TR600K, TR600E
TO BE OPERATED BY QUALIFIED PERSONNEL ONLY
Evaluated for performance in
accordance with Sec. 608 of
the Clean Air Act (Feb 29, 1996)
using AHRI-740-98 test methods.
THIS EQUIPMENT HAS BEEN VERIFIED BY UNDERWRITERS LABORATORIES INC. TO MEET EPA'S MINIMUM REQUIREMENTS FOR RECOVERY
EQUIPMENT INTENDED FOR USE WITH ALL SYSTEMS CONTAINING REFRIGERANTS FROM ARI740-98 CATEGORIES III, IV, AND V. UL CONTROL
NUMBER 2HA5.
www.
information@itm.com
.com
Advertisement
Table of Contents
Related Manuals for CPS Pro-Set TR600 Series
Summary of Contents for CPS Pro-Set TR600 Series
- Page 1 TR600 Series Refrigerant Recovery Machines OWNER’S MANUAL (English) Series: TR600, TR610, TR600C, TR610C, TR600S, TR600K, TR600E TO BE OPERATED BY QUALIFIED PERSONNEL ONLY Evaluated for performance in accordance with Sec. 608 of the Clean Air Act (Feb 29, 1996) using AHRI-740-98 test methods. THIS EQUIPMENT HAS BEEN VERIFIED BY UNDERWRITERS LABORATORIES INC.
-
Page 2: Table Of Contents
CONTENTS Key Features............................2 General Safety Instructions......................... 3 Specifications............................. 4 Controls and Features ........................5 Direct Vapor or Liquid Recovery......................6 Push-Pull Liquid Recovery ........................ 7 Routine Maintenance.......................... 8 Warranty & Contact Information ......................8 KEY FEATURES • Powerful 2/3 HP oilless 2 cylinder reciprocating recovery compressor •... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Please read, follow and understand the contents of this entire manual, with special attention given to Danger, Warning and Caution statements. FOR USE BY PROFESSIONALLY TRAINED AND CERTIFIED OPERATORS ONLY. MOST STATES, COUNTRIES, ETC., MAY REQUIRE THE USER TO BE LICENSED. -
Page 4: Specifications
R-12, R-134A, R-401C, R-406A, R-500, R-22, R-401A/B, R-402A/B, R-404A, Refrigerants Class IV R-402B, R-407/C/D/E/F, R-408A, R-409A, R-411A/B, R-412A, R-407C/D/E/F, (See CPS website R-502, R-509A, R-402A, R-404A, R-407A/B, R-410A/B, R-507A R-408A, R-410A/B, for complete list R-500, R-502, of refrigerants) Class V... -
Page 5: Controls And Features

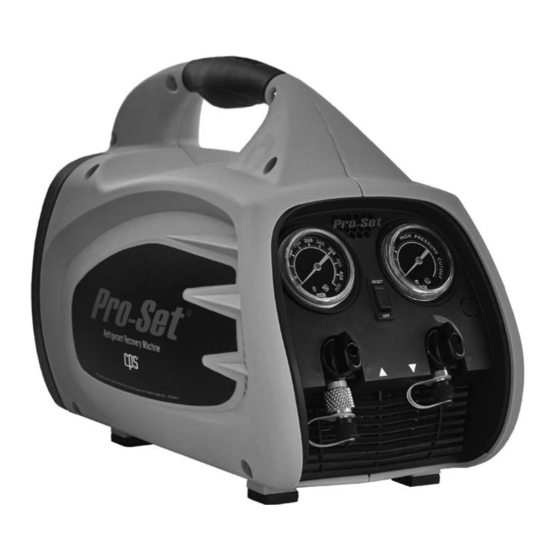

CONTROLS AND FEATURES Molded Rubber Grip Handle Durable Housing Low Side Gauge High Side Gauge Lighted ON / OFF Power Switch Discharge Shut-Off Valve Discharge Port (with protective cap) Air Exhaust Vents Suction Suction Port with Cleanable Shut-Off Valve 100 Mesh Filter (with protective cap) 220-240V 115V Plug... -
Page 6: Direct Vapor Or Liquid Recovery
F. When recovering large amounts of R410A, or if Recovering under very high ambient temperatures, we suggest using the CPS MT69 (Molecular Transformator) which will increase the recovery speed. 1. Connect unit as shown in Diagram 1. EU Note: The recovery tank must be rated for 38 bar. -
Page 7: Push-Pull Liquid Recovery
PUSH-PULL LIQUID RECOVERY TO MINIMIZE RECOVERY TIME: A. Use shortest length 3/8" (Inside Diameter) Refrigeration Hose on Suction Side of Recovery Unit to Vapor Port on Tank. B. Use 3/8" (Inside Diameter) Refrigerant Hoses from system Liquid Service Valve to LIQUID Port on Recovery Tank. -
Page 8: Routine Maintenance
Figure 2 WARRANTY CPS Products, Inc. guarantees that all products are free of manufacturing and material defects to the original owner for one year from the date of purchase. If the equipment should fail during the guarantee period it will be repaired or replaced (at our option) at no charge.
