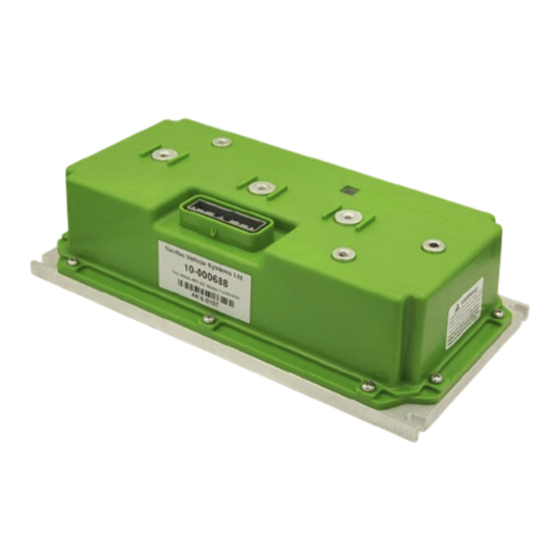

- Page 1 Navitas Vehicle Systems Ltd. NAVITAS TAC 1.0 600A 48V CONTROLLER AC INDUCTION MOTORS Installation/Service Manual INSTALLATION INSTRUCTIONS FOR YAMAHA ® G29 ® Conversion (MORIC®) NavitasVS.com 04/19...
-
Page 2: Installation Instructions
FAILURE to follow the WARNINGS below can damage the Vehicle and/or cause SERIOUS INJURY OR DEATH! Installation or Servicing of the NAVITAS 440A / 600A 48-72V Controller must be done by a trained golf car technician. Before installing or servicing of the NAVITAS Controller: •... -
Page 3: Parts Included
INSTALLATION/ SERVICE MANUAL INSTALLATION INSTRUCTIONS YAMAHA G29 DC to AC Conversion Disconnect all batteries before beginning installation. CAUTION If the car has a run/tow switch, you must place the switch in the TOW position first! PARTS INCLUDED • AC Controller •... - Page 4 • Align plate with existing holes (where OEM controller was fastened) and fasten with screws (Fig. 5) 5. Mount Controller • Install Navitas AC controller (Fig. 6). • Re-install solenoid to plate • Connect B- from battery, B+ from solenoid and motor phase cables to U, V, W (use new cable provided as Fig.
- Page 5 INSTALLATION/ SERVICE MANUAL INSTALLATION INSTRUCTIONS YAMAHA G29 DC to AC Conversion cont’d Pinout for Controller Motor W Motor V Motor U Battery Neg Brake Resistor Diagrams and other updates available at: NavitasVS.com/support...
-
Page 6: Motor Features
INSTALLATION/ SERVICE MANUAL APPENDIX A cont’d MAC Performance Motor 10-000816 For EZ-GO, YAMAHA, STAR EV, and COLUMBIA CAR PAR MAC-A High Performance AC Golf Car Motor (10-000816) MOTOR DATA MOTOR FEATURES Type of Motor AC Induction Hi Quality AC Induction motor Rated power 4 KW ...
