Recess Mounting - Robern Uplift Tech Installation Instructions Manual

STEP 1A - RECESS MOUNTING
These instructions are for recess mounting your cabinet into a 6" (152mm) deep opening.

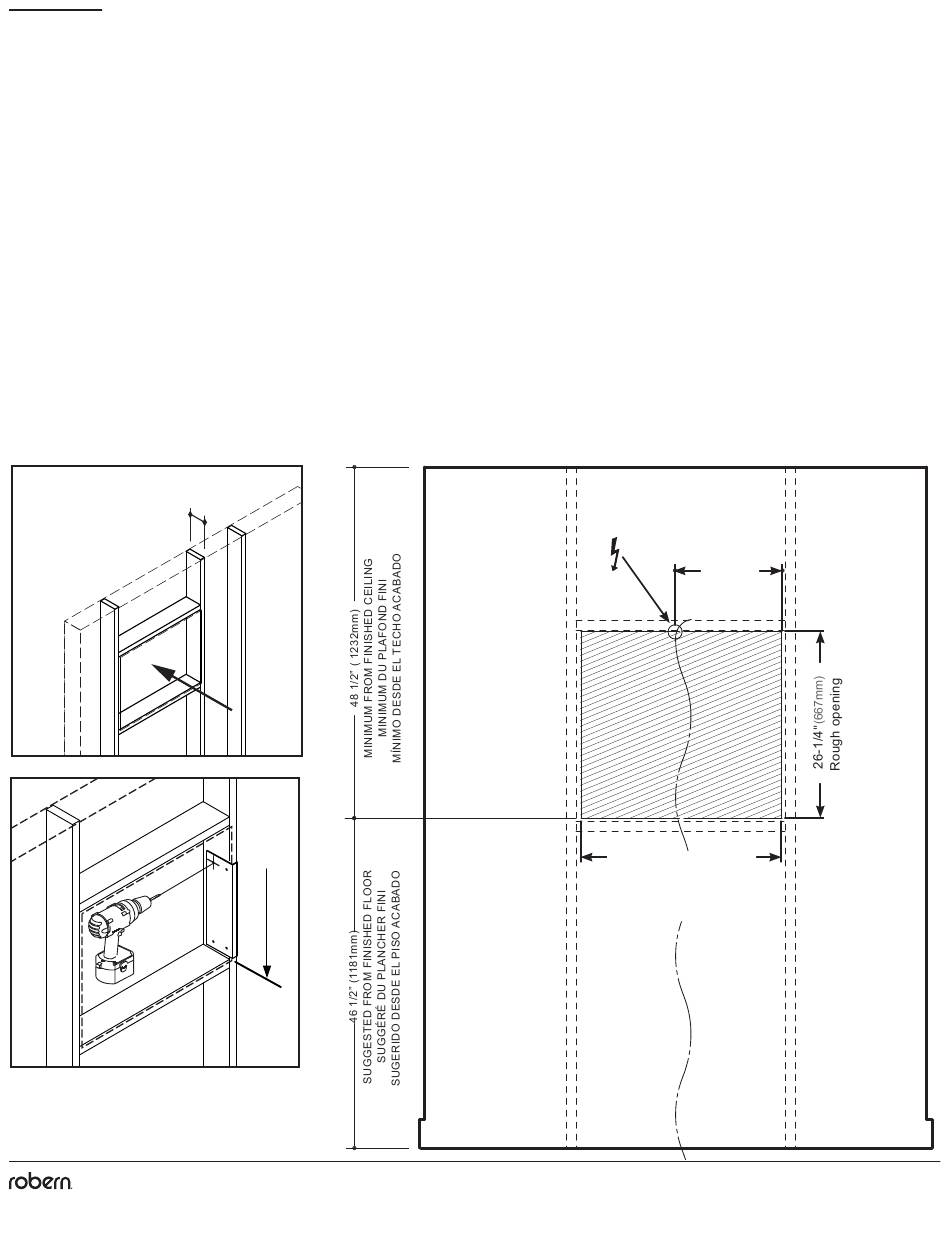

1. Make a rough opening and frame on all sides. Find the specific model dimensions in the diagram below to make the rough opening.
2. Allow 24" (610mm) of electric wire.
1
6" (153mm)
© 2019 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Field wiring
Rough opening
UC2748 = 47"
UC2736 = 35"
UC2730 = 29"
4
18-5/8"
(473mm)
(1194mm)
(889mm)
(737mm)
Part no. 209-1311-rA rev. 06/13/19
Uplift Tech Cabinet
