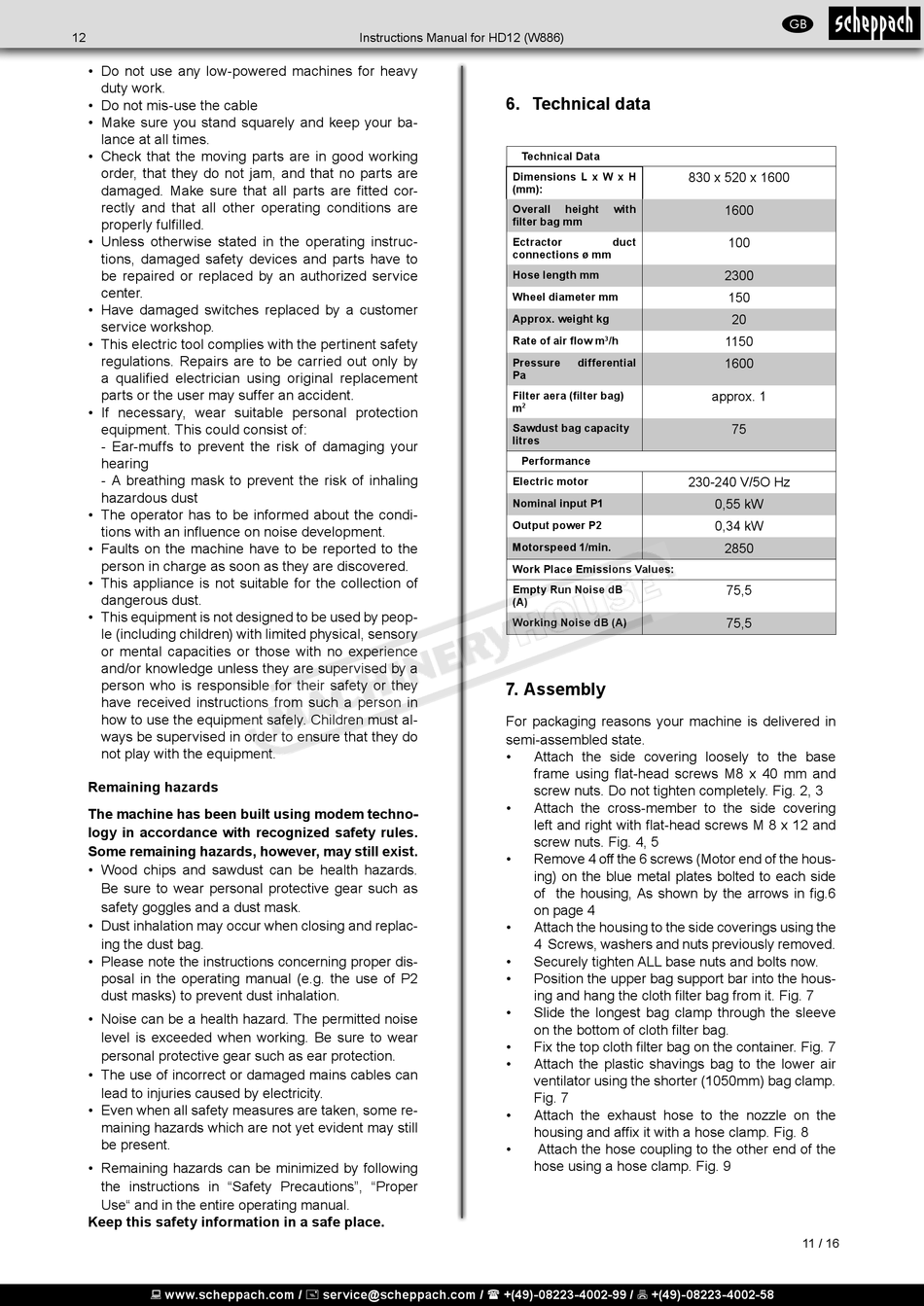

Technical Data; Assembly - Scheppach HD12 Instruction Manual

12
• Do not use any low-powered machines for heavy
duty work.
• Do not mis-use the cable
• Make sure you stand squarely and keep your ba-
lance at all times.
• Check that the moving parts are in good working
order, that they do not jam, and that no parts are
damaged. Make sure that all parts are fitted cor-
rectly and that all other operating conditions are
properly fulfilled.
• Unless otherwise stated in the operating instruc-
tions, damaged safety devices and parts have to
be repaired or replaced by an authorized service
center.
• Have damaged switches replaced by a customer
service workshop.
• This electric tool complies with the pertinent safety
regulations. Repairs are to be carried out only by
a qualified electrician using original replacement
parts or the user may suffer an accident.
• If necessary, wear suitable personal protection
equipment. This could consist of:
- Ear-muffs to prevent the risk of damaging your
hearing
- A breathing mask to prevent the risk of inhaling
hazardous dust
• The operator has to be informed about the condi-
tions with an influence on noise development.
• Faults on the machine have to be reported to the
person in charge as soon as they are discovered.
• This appliance is not suitable for the collection of
dangerous dust.
• This equipment is not designed to be used by peop-
le (including children) with limited physical, sensory
or mental capacities or those with no experience
and/or knowledge unless they are supervised by a
person who is responsible for their safety or they
have received instructions from such a person in
how to use the equipment safely. Children must al-
ways be supervised in order to ensure that they do
not play with the equipment.
Remaining hazards
The machine has been built using modem techno-
logy in accordance with recognized safety rules.
Some remaining hazards, however, may still exist.
• Wood chips and sawdust can be health hazards.
Be sure to wear personal protective gear such as
safety goggles and a dust mask.
• Dust inhalation may occur when closing and replac-
ing the dust bag.
• Please note the instructions concerning proper dis-
posal in the operating manual (e.g. the use of P2
dust masks) to prevent dust inhalation.
• Noise can be a health hazard. The permitted noise
level is exceeded when working. Be sure to wear
personal protective gear such as ear protection.
• The use of incorrect or damaged mains cables can
lead to injuries caused by electricity.
• Even when all safety measures are taken, some re-
maining hazards which are not yet evident may still
be present.
• Remaining hazards can be minimized by following
the instructions in "Safety Precautions", "Proper
Use" and in the entire operating manual.
Keep this safety information in a safe place.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Instructions Manual for HD12 (W886)

6. Technical data

Technical Data
Dimensions L x W x H
(mm):
Overall
filter bag mm
Ectractor
connections ø mm
Hose length mm
Wheel diameter mm
Approx. weight kg
Rate of air flow m
Pressure
Pa
Filter aera (filter bag)
m
2
Sawdust bag capacity
litres
Performance
Electric motor
Nominal input P1
Output power P2
Motorspeed 1/min.
Work Place Emissions Values:
Empty Run Noise dB
(A)
Working Noise dB (A)

7. Assembly

For packaging reasons your machine is delivered in
semi-assembled state.
• Attach the side covering loosely to the base
frame using flat-head screws M8 x 40 mm and
screw nuts. Do not tighten completely. Fig. 2, 3
• Attach the cross-member to the side covering
left and right with flat-head screws M 8 x 12 and
screw nuts. Fig. 4, 5
• Remove 4 off the 6 screws (Motor end of the hous-
ing) on the blue metal plates bolted to each side
of the housing, As shown by the arrows in fig.6
on page 4
• Attach the housing to the side coverings using the
4 Screws, washers and nuts previously removed.
• Securely tighten ALL base nuts and bolts now.
• Position the upper bag support bar into the hous-
ing and hang the cloth filter bag from it. Fig. 7
• Slide the longest bag clamp through the sleeve
on the bottom of cloth filter bag.
• Fix the top cloth filter bag on the container. Fig. 7
• Attach the plastic shavings bag to the lower air
ventilator using the shorter (1050mm) bag clamp.
Fig. 7
• Attach the exhaust hose to the nozzle on the
housing and affix it with a hose clamp. Fig. 8
•
hose using a hose clamp. Fig. 9
830 x 520 x 1600
height with
duct
/h
3
differential
approx. 1
230-240 V/5O Hz
Attach the hose coupling to the other end of the
GB
1600
100
2300
150
20
1150
1600
75
0,55 kW
0,34 kW
2850
75,5
75,5
