- Page 1 Pump Station High Level Alarm AlertMaxx Installation & Operating Instructions For Ground Water (DMS - 270) and Foul Water (DMS - 269) 01992 523532 info@deltamembranes.com www.deltamembranes.com...
- Page 2 AlertMaxx...
-
Page 3: Table Of Contents
AlertMaxx Contents AlertMaxx overview Box contents Cardboard box contents AlertMaxx unit contents Technical information Unit location Mounting instructions Mounting the AlertMaxx unit Connecting mains power to the AlertMaxx unit Installing the float switch in the chamber Installing a finger float into a ground or surface water chamber Installing a pendant float into a foul water chamber Connecting the float switch to the AlertMaxx unit Activating &... -
Page 4: Alertmaxx Overview

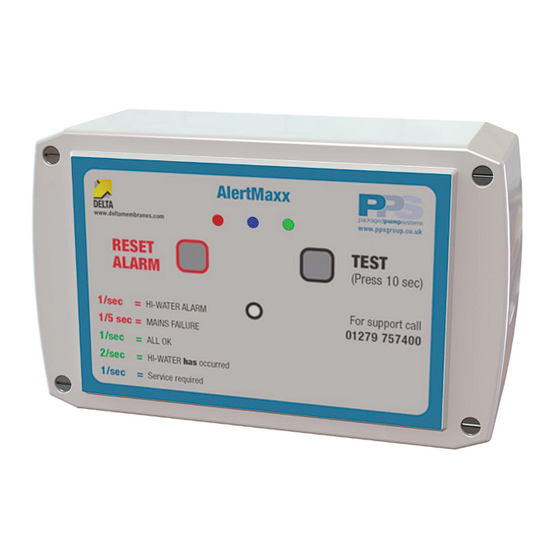

AlertMaxx AlertMaxx overview This high level alarm is designed to alert home owners when the water level in their pump chamber becomes too high. The unit will also inform home owners when a service is due on their pump station. Box contents Cardboard box contents •... -
Page 5: Technical Information
AlertMaxx Technical information AlertMaxx Specification Size (without cable glands) W: 115mm x D: 95mm x H: 60mm Weight 650g Mains Supply 200-250V AC (50Hz) Internal Battery Pb 6V - 1.2Ah Alarm Sound Level 81db Visual Display Red, Blue, Green LED Unit location The AlertMaxx must be positioned in an area where the alarm can be clearly heard and is permanently accessible. -
Page 6: Connecting Mains Power To The Alertmaxx Unit
AlertMaxx Connecting mains power to the AlertMaxx unit Replace the far right blanking plug (large) with a large cable gland. Feed the mains power cable through the right hand cable gland (large) and connect the power cable to the terminal strip (see figure 2). CAUTION! - Ensure mains power is isolated before connecting it to the AlertMaxx unit and seek advice from a qualified electrician. -
Page 7: Installing The Float Switch In The Chamber
AlertMaxx Installing the float switch in the chamber Installing a pendant float into a foul water chamber Option 1 - Free standing foul pump Using the cable tie provided, attach the float cable to the discharge arm allowing the bottom of the float switch to hang approximately 350mm above the base of the chamber (see figure 7). Option 2 - Guide rail mounted foul pump Pull the float cable through the float weight. Using a cable tie, secure the float weight to the float cable so there is 80mm of float cable between the top of the float switch and the bottom of the float weight. Drill a hole through the float bracket. Hang the pendant float from the float bracket so the bottom of the float switch hangs approximately 400mm from the base of the chamber. Once the pendant float is at the correct height, secure the float cable to the float bracket using a cable tie. PLEASE NOTE - The pendant float switch should be located in a position where the float can pivot with rising water levels and not become obstructed (see figure 8). - Page 8 AlertMaxx Installing the float switch in the chamber 300mm Figure 5. Ground Water Float Switch Figure 6. Ground Water Sump (DMS - 164) Figure 8. Foul Water Float Switch Figure 7. Foul Water Sump (DMS - 165) For technical support, please call 01279 757400...
-
Page 9: Connecting The Float Switch To The Alertmaxx Unit
AlertMaxx Connecting the float switch to the AlertMaxx unit Using a draw cord, pull the float cable through the cable duct. Pull the float cable through the cable gland on the AlertMaxx unit. When using the finger switch (figure 3), use the small cable gland. When using the pendant float switch (figure 4), use the large cable gland. Connect the float switch cable to the terminal strip. When using the finger float (figure 3), connect the blue and a brown cable, (see figure 9). When using the pendant float switch (figure 4), connect the blue and black cable to the alarm box (see figure 10). The BROWN cable should be disregarded and isolated. PLEASE NOTE - If the cable supplied with the float switch is too short, the cable can be extended using a cable with a minimum core cross sectional area of 1mm². BLACK BROWN Figure 9. Wiring a finger float switch... - Page 10 AlertMaxx Connecting the float switch to the AlertMaxx unit BLACK BLUE Figure 10. Wiring a pendant float switch For technical support, please call 01279 757400...
-
Page 11: Activating & Testing The Alertmaxx Unit
AlertMaxx Activating & testing the AlertMaxx unit Before going through the testing process, ensure the mains power to the AlertMaxx unit is switched off. Turning on the AlertMaxx unit for the first time Remove the battery from the AlertMaxx unit and connect the red and black leads to the battery, red to red and black to black. Re-secure the battery to the unit by pressing the Velcro on the battery hard against the Velcro on the unit until a ‘click’... -
Page 12: Connecting External Devices
AlertMaxx 10.0 Connecting external devices The AlertMaxx unit has volt free contacts to connect external devices such as an alarm or beacon. When the alarm is activated the relay sends a signal once every second. The volt free relay is designed to accept devices with a maximum load of 0.5A and voltage between +6 to 7V DC. -
Page 13: Servicing
AlertMaxx 11.0 Servicing The AlertMaxx unit will alert home owners when their pump station requires servicing. This is indicated by the blue LED flashing every second followed by one beep every minute. The beep can be muted by pressing the ‘RESET’ button. However, the beep will return 7 days from pressing the ‘RESET’ button until a service technician resets the alarm unit. The AlertMaxx unit has a factory default service interval of 12 months. -
Page 14: Led Codes
AlertMaxx 13.0 LED codes Beep Red LED Blue LED Green LED Fault 1/sec None 1/sec 3/sec High water level 3/sec High water level but has been reset 2/sec High water level has occurred 1/min 1/5sec 1/sec No mains power 1/min 1/sec 1/sec Pump station service required 1/sec Float or cabling error... - Page 15 AlertMaxx Figure 1. (Scale 1:1) Mounting hole positions For technical support, please call 01279 757400...
