3.4.2 Band Clear

During a Spill alarm, volume information sent from the transmitter is frozen at the Spill alarm level. It
will not increase with detected liquid level above this point.
The Spill alarm is cleared by unloading liquid below the spill alarm level while the TD100 system is
powered on.
The TD100 transmitter must detect a liquid level within the band clear region, shown as 1" below the
top of the Spill setting (8.1" from top of tank) and 16.5" below the top of tank, before clearing the Spill
alarm.

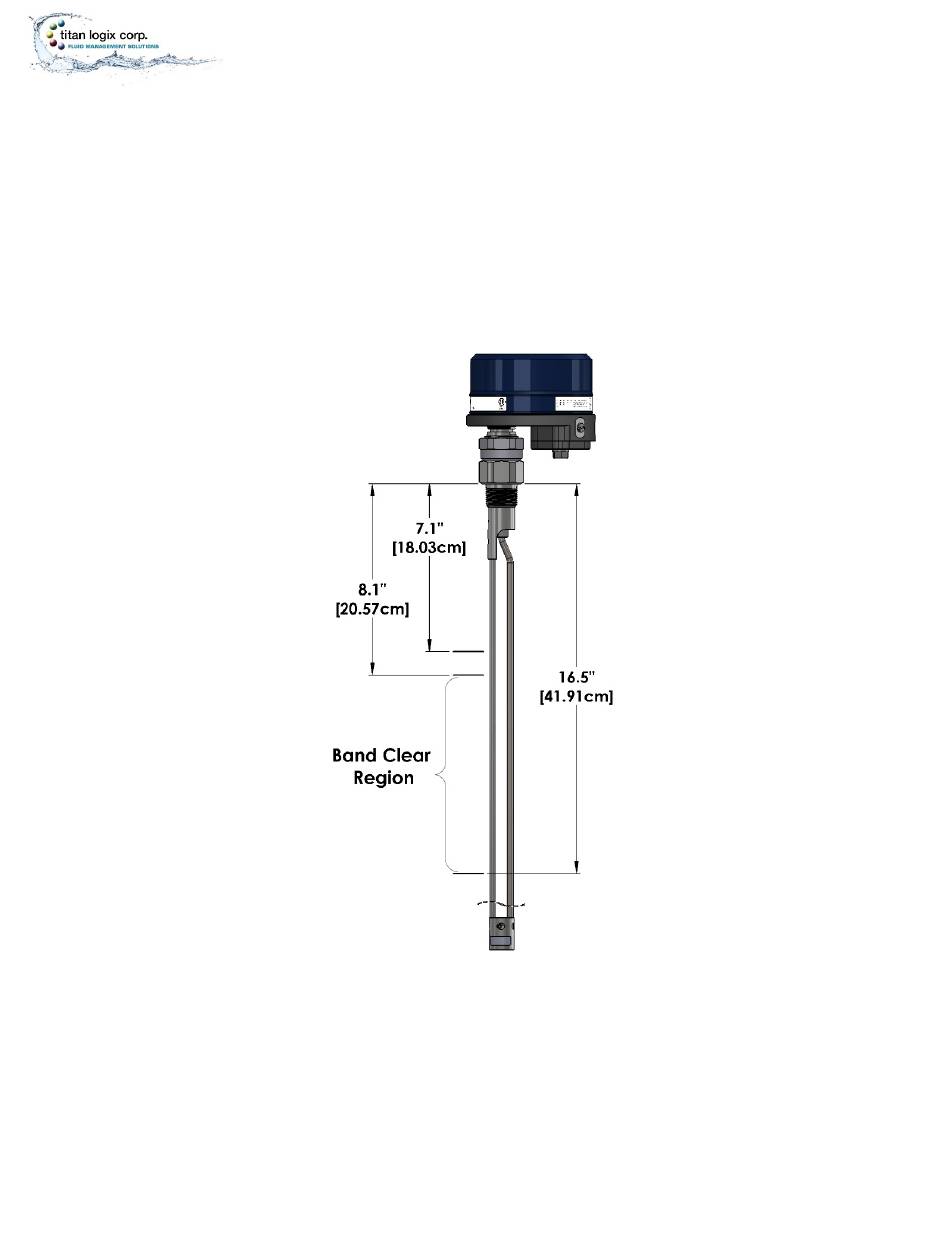

Figure 12 Band-Clear Region
