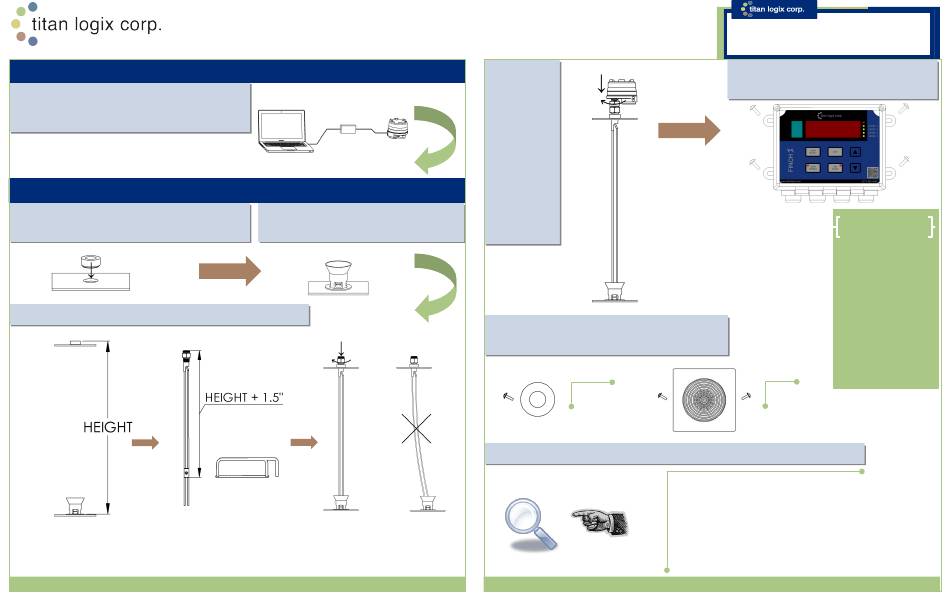

Titan Logix Corp TD80 Installation Quick Reference Sheet

NOTE:
with the TD80 Product Manual, TPM 001, and the FINCH II
Installation & Operation Manual, TPM 010 .
PROGRAMMING
STEP 1: Program the TD80 and Finch II Display.
See TPM 001 Section 6.3 and TPM 010 Sections 3
and 10 for Details.
MECHANICAL INSTALLATION
STEP 2: Align & Weld the 1" NPT Top
Fitting (Collar). See TPM 001, Section 2.4 for Details.
STEP 4: Install the Probe. See TPM 001 Section 2.4 for Details.
A.
B.
Measure Height from Top of 1"
Cut the Probe Length to
NPT Fitting to Bottom of Tank
Inside Anchor Cone.
Titan Logix Corp. | Titan Logix USA Corp. | Head Office: Edmonton, Alberta, Canada 780.462.4085
All installation steps are to be performed in accordance
STEP 3: Align & Weld the Anchor Cone.
See TPM 001, Section 2.4 for Details.
C.
Install the Probe without
Height + 1 1/2".
Twisting or Bending.
STEP 5:
Mount the
Transmitter.
Hand Tighten
the Transmitter
Nut down to
the O-Ring,
then Tighten
with a Wrench
until secure.
See TPM 001,
Section 2.4 for
Details.
STEP 7: Mount the Alarm Accessories (optional).
See TPM 001, Section 2.4 for Details.
Lights
STEP 8: Inspect the Mechanical Installation. See TPM 001, Section 2.4 for Details.
(TPM 019/ Rev 1.1/ October 8, 2014)
TD80™ and FINCH II Installation
Quick Reference Sheet
STEP 6: Mount the Finch Display. See
TPM 001, Section 2.4 for Details.
TITAN LOGIX TIPS
Probe
The probe has been
cut to the proper length
when it is fully threaded
into the top fitting with
a ½" gap between the
bottom of the tank and
end of the probe at the
shorting block, inside
the anchor cone.
Horn
1. All Welding
2. Components Mounted in Correct
Location
3. Component Damage
4. All Nuts and Bolts Securely Tightened
5. Clean All Debris
Toll Free 1.877.462.4085 | TSX-V: TLA www.titanlogix.com
Installation:
