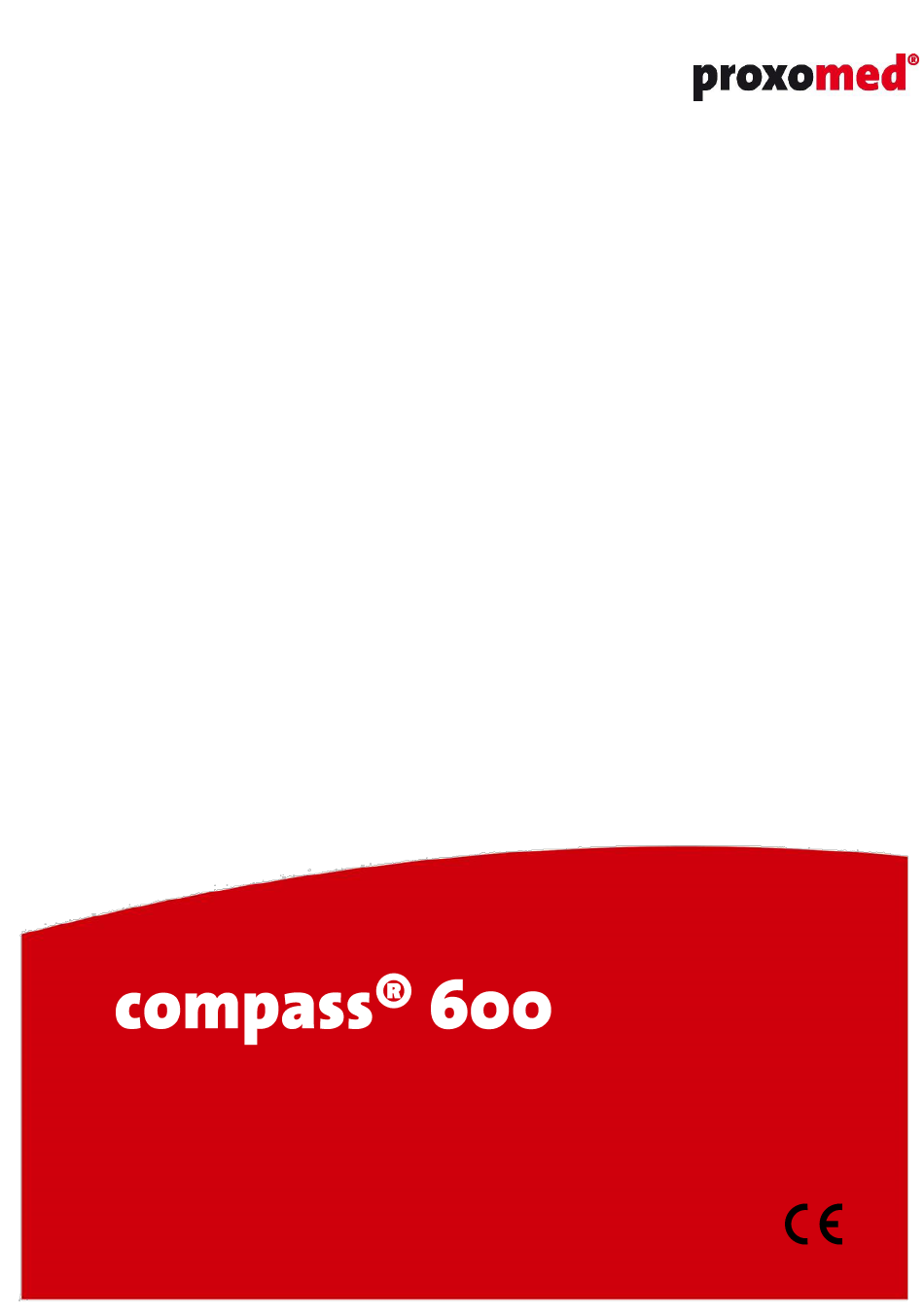

- Page 1 User Manual User Manual Page 1 of 22 Version 25...
- Page 2 User Manual Page 2 of 22 Version 25...
-
Page 3: Table Of Contents
600 Trunk Extension/Flexion ......................16 compass 600 Butterfly/Butterfly Revers ...................... 17 compass 600 Pulldown/Dip ........................18 compass 600 Chest Press/Rowing Machine ....................19 compass 600 Shoulderpress / Vertical Row ....................20 Warranty and Guarantee ........................21 User Manual Page 3 of 22... -
Page 4: General
600 Leg Extension/Curl 10609000 compass 600 Ab-/Adduction 10692100 compass 600 Trunk Extension/Flexion 10610700 compass 600 Butterfly/Butterfly Revers 10690500 compass 600 Pulldown/Dip 10645400 compass 600 Chest Press/Rowing Machine 10691500 compass 600 Shoulderpress / Vertical Row User Manual Page 4 of 22 Version 25... -
Page 5: Safety Information
Safety Information Secure installation of the machine Place the machine on a solid, level and non-slip surface and level the machine with supporting material so that it does not wobble. The area around the machine must be at least 1 metre larger that the movement range of the machine, to ensure that the machine can be approached and egressed from safely also in the event of an emergency. -
Page 6: Indications And Contra-Indications
Indications and contra-indications 3.3.1 Indicators Spinal column syndrome with significant symptoms: • Proven slipped disc (also after surgery) and considerable protrusions beyond the acute stage • Proven degenerative changes • Proven spondylolysis and spondylolisthesis • Spinal column injuries within the framework of conservative and postoperative treatment •... -
Page 7: Use And Area Of Application
User- Weight block Weight Dimensions weight Standard/Option Device CM (max.) (max) Lower Extremities 10610600 compass 600 Leg Press 250 kg 160 kg / 700 kg L 246 250 kg W 113 H 184 10689500 compass 600 Leg Extension/Curl 250 kg... -
Page 8: Maintenance And Care
We recommend that you use rubber cladding under the machine to dampen. Keep in mind, if you use PVC or laminate flooring the rubber sheets can react with the surface. Please use appropriate filling materials as addi- tional padding, because if there is damage due to a lack of padding this cannot be reimbursed by proxomed ®... -
Page 9: Before Use Check
Before use check Check prior to using, the proper condition of the following components: Flat belts for visible damage, particularly the respective end mount. Locking pins for correct functioning, the detent knob must engage on its own. Stability of the machine at the place of use. Undamaged protective cover. -
Page 10: Range Of Motion Limiter
10689500, 10609000, 10690800, 10645400 Article number • Lumbar Cushion for compass 600: No. 10692800 Function of the Lordosis cushion The lordosis cushion, can be infinitely adjusted. It is magnetically attached and therefore easily removable. If it is not needed, it can be easily removed and "parked"... -
Page 11: Foot Support For Untraining Leg For The Functional Press
Foot Support for untraining Leg for the functional press Correct usage In particular in neurological patients it may be necessary, to fix a leg or both legs against slipping from the base plate. Another possible application is the requirement to allow a possibly stiff leg or a leg that is restricted in movement to resonate with the machine so that the moveable leg can be trained over the entire range of movement. - Page 12 can be individually and precisely defined. If there is any discomfort the exercise should be stopped immediately and if necessary, a doctor is to be consulted. The machines allow a patient/client to exercise one or both legs, or one or both arms. The range of movement should be slow and controlled, while ensuring the correct execution of the movement.
-
Page 13: Compass 600 Leg Press / Calves
600 Leg Press / calves Correct usage The machine enables a functional training of the leg and the hip stretch muscles depending on patient positioning in the closed system. This machine trains the leg extension in a functional starting position. The movement takes place in a closed system, the entire muscle chain trained. -
Page 14: Compass 600 Leg Extension/Curl
600 Leg Extension/Curl Correct usage With this machine, the leg extension and the leg flexor muscles can be trained in the sitting posi- tion. One or both legs can be trained. It is possi- ble to train both concentrically and eccentrically. -
Page 15: Compass 600 Ab-/Adduction
600 Ab-/Adduction Correct usage With this machine, all muscle groups, responsible for the abduction and adduction of the legs on the body are effectively trained. These muscle groups have a stabilising function for the pelvis and hip and also for the knee-joint. -
Page 16: Compass 600 Trunk Extension/Flexion
600 Trunk Extension/Flexion Correct usage With this machine, the dorsal and the ventral trunk muscles can be trained. Specific positioning of the person training (order under the assumption that the person training does the adjustment) The training takes place in a closed system, i.e. the footrest is used to hold the body, in particular the pelvis in position during the exercise. -
Page 17: Compass 600 Butterfly/Butterfly Revers
600 Butterfly/Butterfly Revers Correct usage With this machine, all muscle groups of the back and of the thoracic spine that make sure the spinal column is kept upright and to stabilise the shoulder joint are trained. Likewise, all muscle groups are trained that are responsible for the ventral stabilisation of the pectoral girdle. -
Page 18: Compass 600 Pulldown/Dip
600 Pulldown/Dip Correct usage With this machine, the shoulder blade fixator muscles can be trained that are of particular im- portance for a spinal column friendly upright posture. With the second function, can also here the pectoral girdle muscles be trained, which are used for stabilising and supporting. -
Page 19: Compass 600 Chest Press/Rowing Machine
600 Chest Press/Rowing Machine Correct usage With this machine, and a rowing movement all of the dorsal muscle groups of the pectoral girdle muscles and the back muscles in the area of the thoracic spine are trained, which are responsible for a correct spinal column posture. -
Page 20: Compass 600 Shoulderpress / Vertical Row
600 Shoulderpress / Vertical Row Correct usage On this machine the shoulder and neck stabilising muscles can be trained. The aim is, through the interplay of the deltoid muscle, trapezius and triceps, an optimal guidance and stabilisation of the shoulder blade and the shoulder joint, as well as the extension and stabilisation of the cervical spine. -
Page 21: Warranty And Guarantee
Warranty and Guarantee The basis are the Terms and Conditions from proxomed for warranty, as far as no other agreement has been made. Our general Terms and Conditions of sale and terms of payment in the respective current version can be viewed on our website. - Page 22 Tel.: +41 52762 1300 Fax: +41 52762 1470 www.proxomed.ch info@proxomed.ch Changes: proxomed® reserves the right to change any product if this action, in our opinion, leads to improved quality and functionality. All images in these operating instructions are—due to printing—only similar.
