Micatrone MF-PFTT Operating And Installation Manual page 3

Scrolls start menus
in the opposite way
AB MICATRONE
dP 48,5Pa
Flow/dP
Auto
(PGM)
Current values
System settings
Temperature
(PGM)
Outputs
Output 1 dP
Outputs
0..10V
Signal 1
Outputs
Output 2 PI2
Outputs
Signal 2 4..20mA
Always note the programmed data beside the parameter
in the programming protocol for future documentation
Flow
Flow
PI2
Flow/dP
%

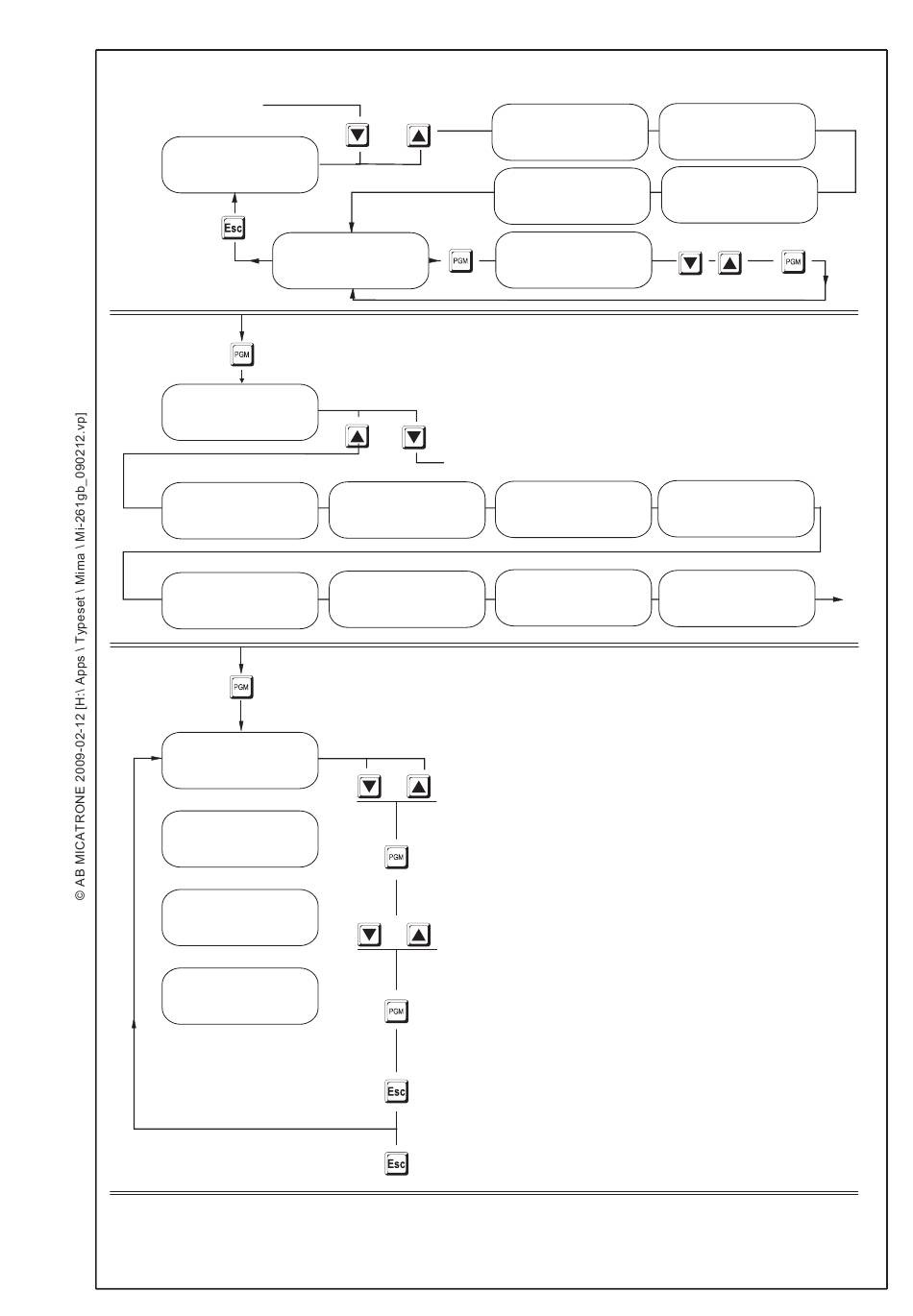

Press key until displayed text disappears.
Scrolls parameter group in the opposite way
Outputs Pressure
PI2 controler
Opens parameter group and allows the
parameters to be selected.
Changes between the parameters
according to the parameter list.
(PGM)
Programming position for Unit/Value (Flashes).
Selection of Unit/Value.
Programming of new value. Parameter Unit/Value is flashing.
(PGM)
When programming a number value, each digit is
programmed seperately, until all digits have stopped flashing.
(ESC)
Leaves parameters and returns to Parameter group.
(ESC)
Leaves the parameter group and returns to startmenu.
dP
AB MICATRONE
4,80m3/s Flow
dP
4,80m3/s
PI2
20,4%
Hand %
Flow
Purging unit
Internals
48,5Pa
4,80m3/s
48,5Pa
15,9%
Output %
3
