Oxygen (O2) transmitter with monitoring
Measuring
Out of range
Calibration
Relay 1
Relay 2
High O -content
2
Low O -content
2
Error

USE

MG-4000-R2 is designed to measure the O
tent in flue gases from oil burners, gas burners
and biomass-fired boilers. MG-4000-R2 can, to-
gether with a controller, optimize the air/fuel ratio.
The result is the highest possible firing efficiency
can be obtained and sustained over time indepen-
dent of changes in the fuel and combustion air.
The probe (MG-4000-R2/S) is installed in the flue
gas duct directly after the boiler. The tip of the pro-
be is easy to adjust so that it is positioned in the
centre of the flue gas zone. No special gas is re-
quired for calibration, this is done directly in the
surrounding air. Installation and use are as easy
as using a standard temperature sensor.
®
®
AB MICATRONE
O2-cont
O -transmitter
2
-con-
2

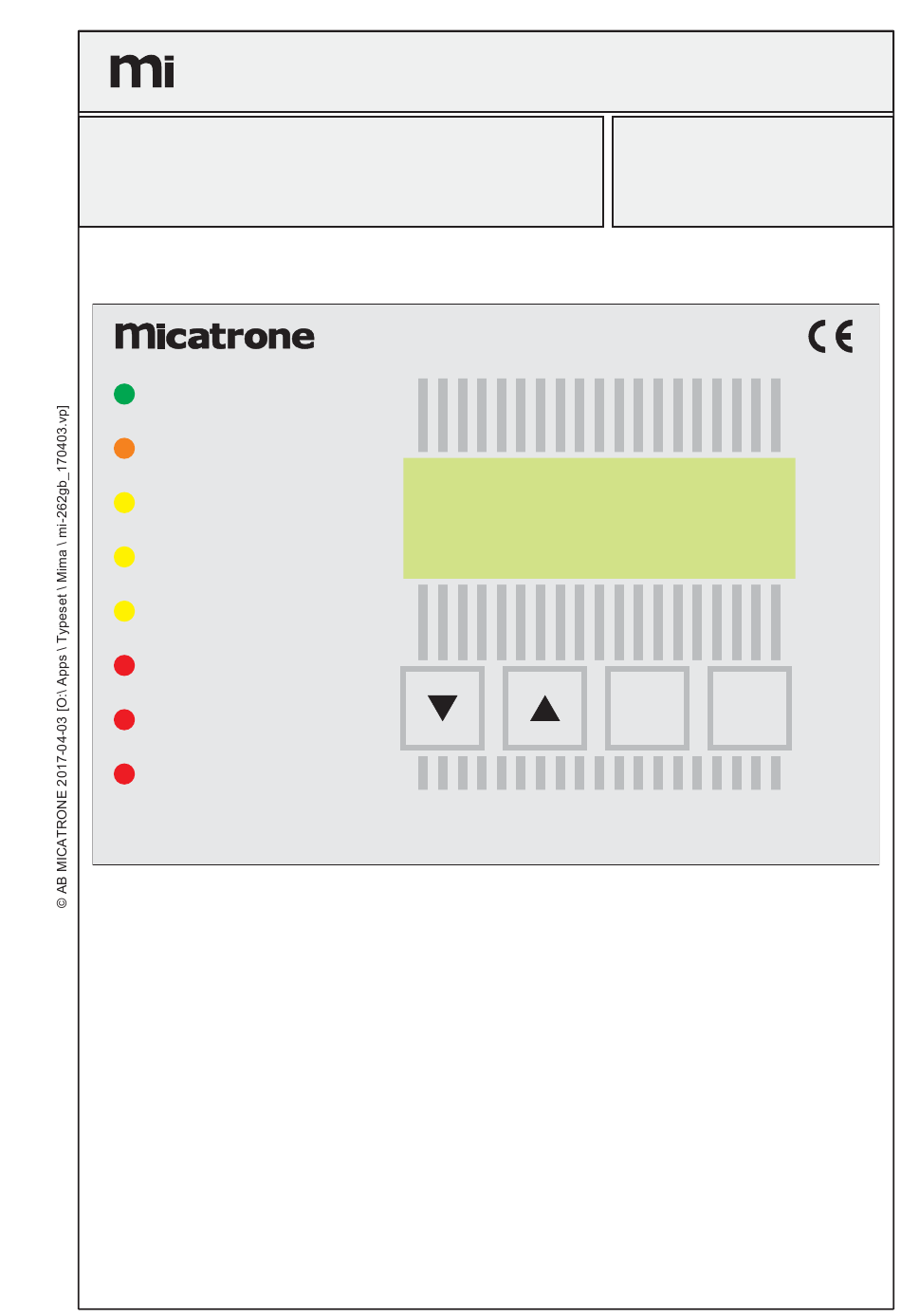

Operating and Installation manual
Mi-262gb / 2017-04-03
PGM
MG-4000-R2
The O
-transmitter consists of two parts: the probe
2
and the central unit. The probe houses a sensor of
zirconium dioxide (ZrO
amplifier and generator for the ion pump. The cen-
tral unit houses the electronics for measuring the
sensor signal, analogue outputs, relay contacts for
the alarm outputs, control panel and the power
supply. All functions in the central unit are mana-
ged and monitored by a microprocessor.
Current measurement values, error indications
and set parameters are all presented on the inte-
grated display.
8 LEDs provide a quick indication of the operating
status.
MG-4000-R2
Version 1.3x
3.1 %
ESC
), heating element, signal
2
