Note. If MICROgarde PC software is already running, disconnect the communications to the
MICROgarde controller by unplugging the 6-way connector.
04. 20.11.18

Final Installation Checks

The following tests will confirm that the controller, reader(s), lock(s) and exit buttons are
correctly connected. Testing any door sensors requires the software to be running and will
be checked as part of the software setup (see page Error! Bookmark not defined.).
17. Set the rotary switch of the unit to 0 (see below).

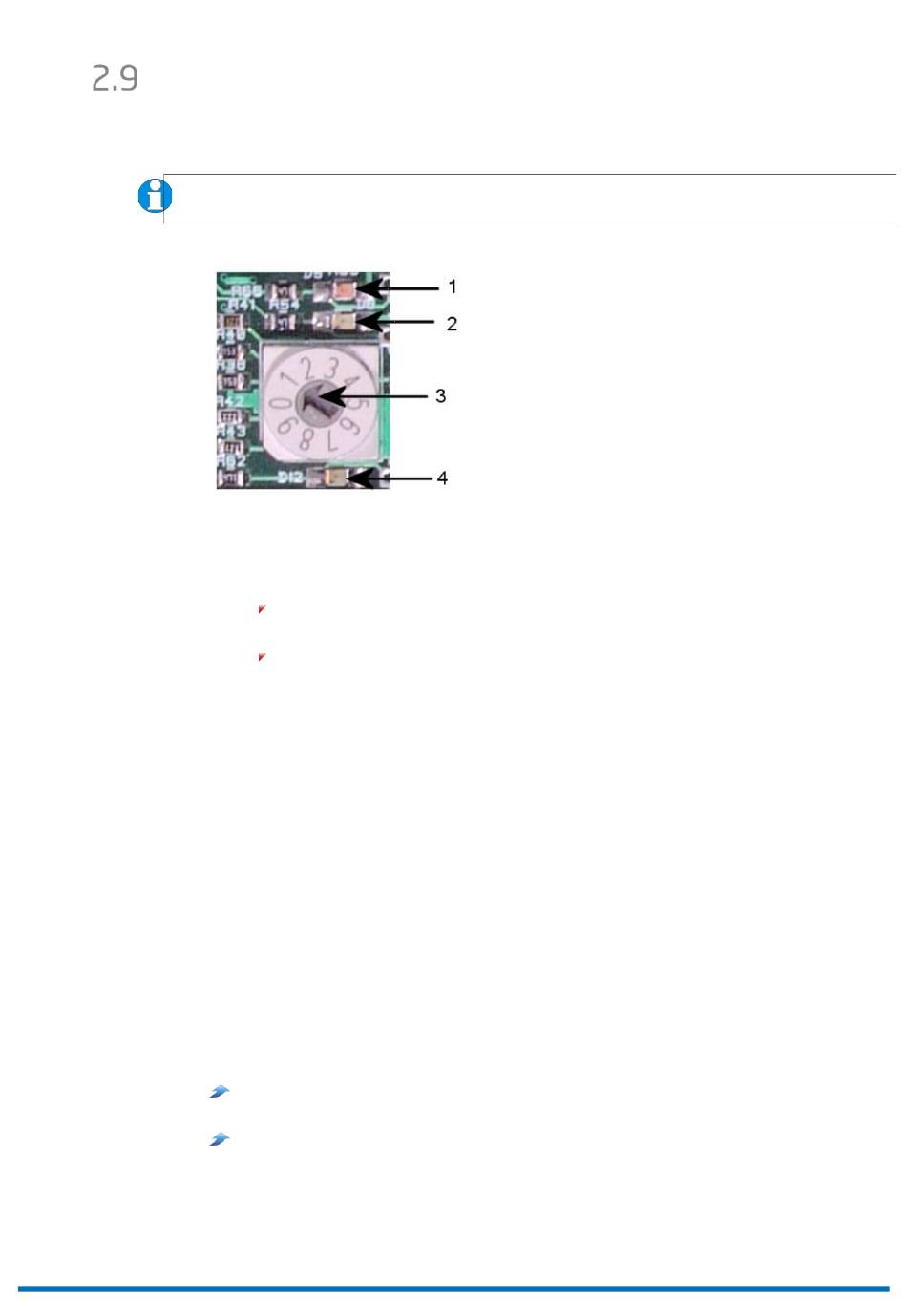

System checks and rotary dial switch setting
18. Power up the unit.
19. Set the rotary switch to the correct address: 1-8 or 9:
With EXgarde software, use 1-8 for the first eight units in a network. Set additional
units to 9.
With EXgarde PRO set all units to 9.
20. Check that the 5V On light (see 4 in Figure 19) illuminates and that the red LED on
each reader flashes continuously (2 flashes per second).
21. Present a card to any reader. The flashing rate of the red LED (on all readers)
changes to once every 2 seconds.
22. Put the unit into "installer mode":
a. Carry out a hardware reset (see page 26).
b. Press the tamper switch down for 5 seconds.
c. Release the tamper switch for 5 seconds.
d. Press the tamper switch again down for 5 seconds.
e. Release the tamper switch again for 5 seconds.
f. Press the tamper switch down again for 5 seconds.
g. Release the tamper switch again for 5 seconds.
During this action the relay 1 will activate for 5 seconds and D13 red LED will light up
for 5 seconds.
23. Present the card again to any reader:
Both Relays 1 and 2 operate for 5 seconds. Any locks connected to these relays are
unlocked for 5 seconds.
The Relay 1 and 2 red LED indicators (D13 and D14) illuminate for 5 seconds
(regardless of the number of doors the controller will be controlling).
24. Press any Exit button. The associated lock is unlocked for 5 seconds.
25. Tests are now complete. Change the rotary switch to the required number.
26. Re-connect the communications link if necessary. If MICROgarde PC software is
running, the Tx and Rx lights will start flashing rapidly.
MICROgarde controller I and II Page 25
