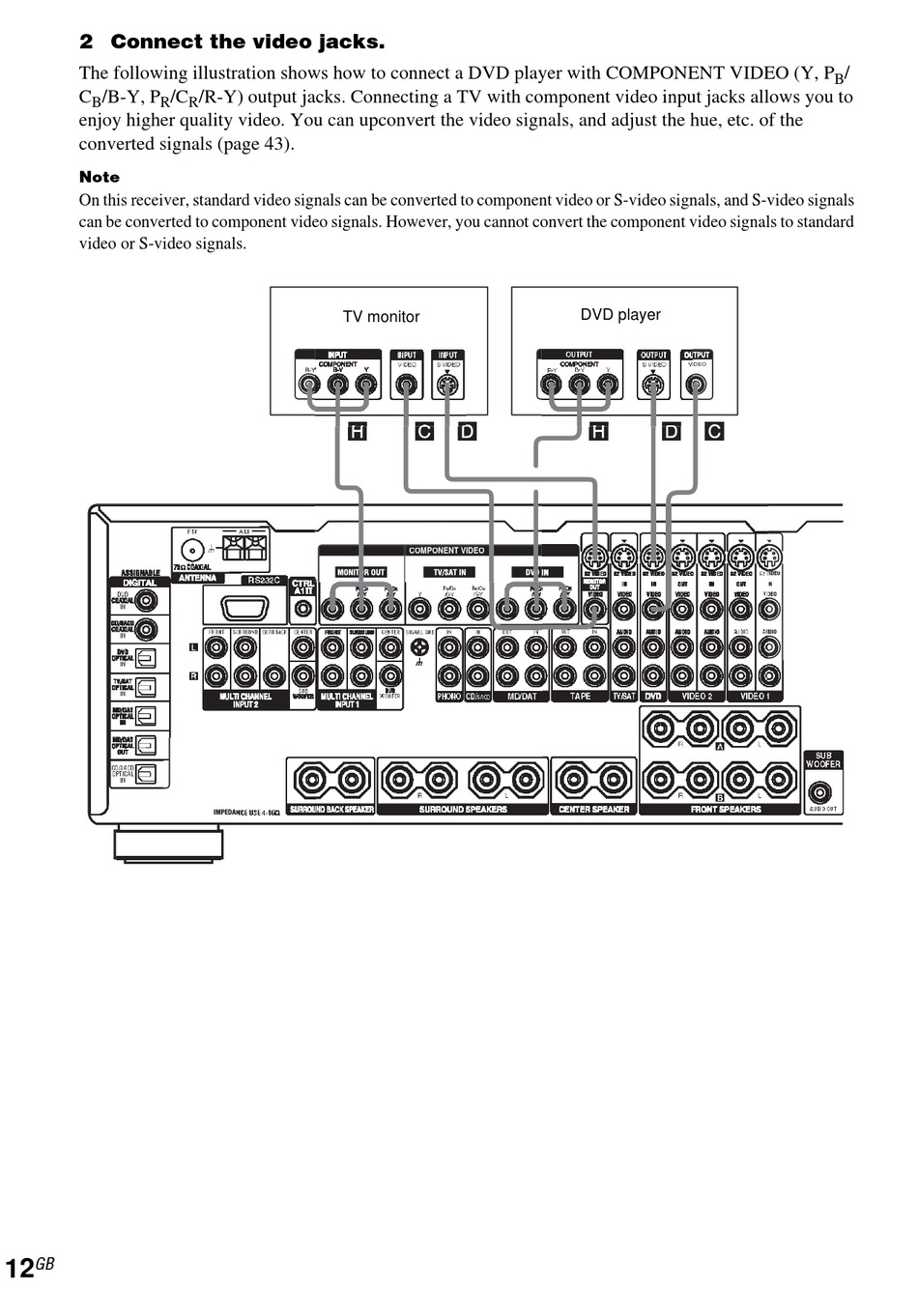

2 Connect the video jacks.
The following illustration shows how to connect a DVD player with COMPONENT VIDEO (Y, P
/
B
C
/B-Y, P
/C
/R-Y) output jacks. Connecting a TV with component video input jacks allows you to
B
R
R
enjoy higher quality video. You can upconvert the video signals, and adjust the hue, etc. of the
converted signals (page 43).
Note
On this receiver, standard video signals can be converted to component video or S-video signals, and S-video signals
can be converted to component video signals. However, you cannot convert the component video signals to standard
video or S-video signals.
DVD player
TV monitor
IDEO
H
C
D
H
D
C
COMPONENT VIDEO
VIDEO
IN
DEO
DIO
IMPEDAN
GB
12
