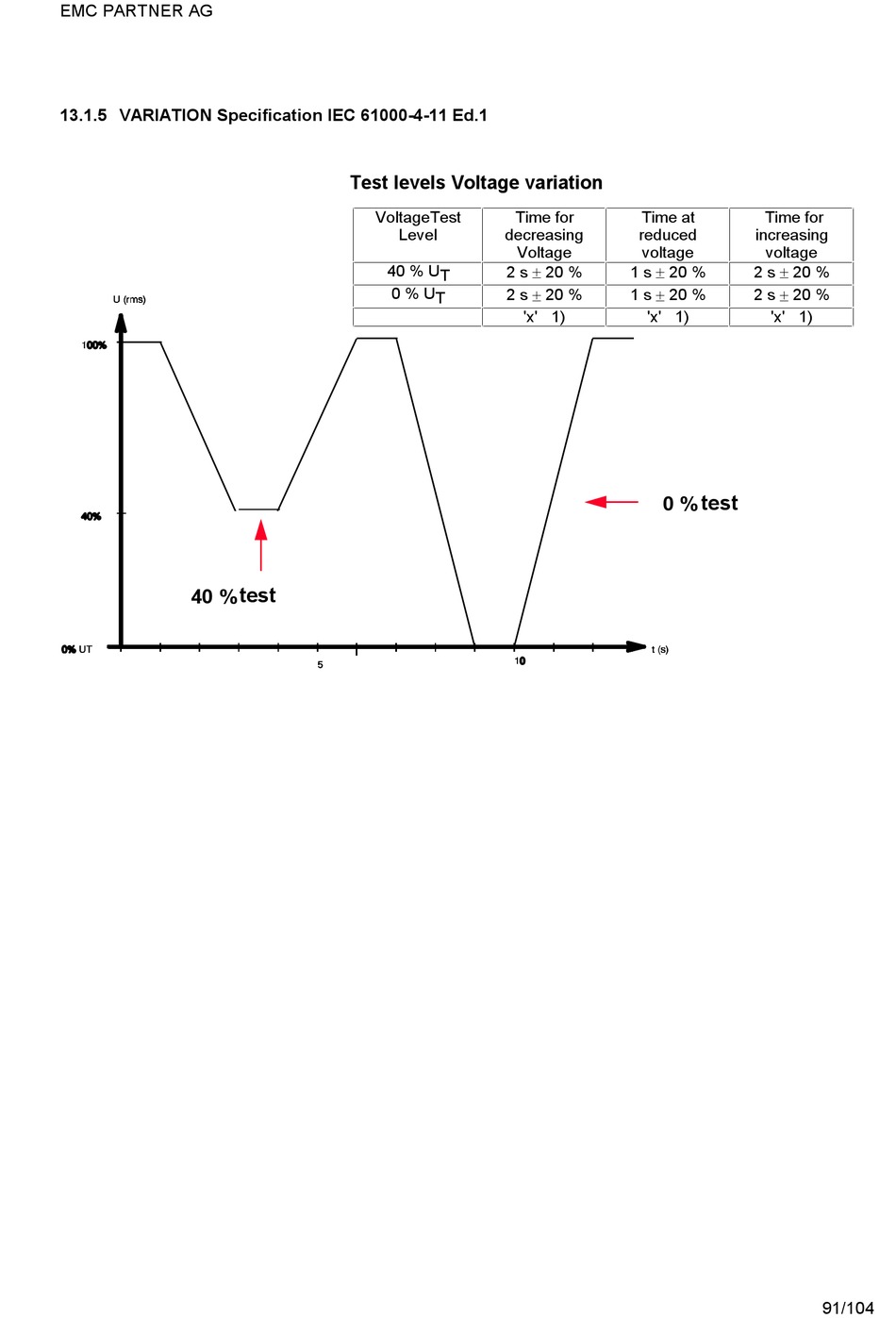

13.1.5 VARIATION Specification IEC 61000-4-11 Ed.1
40 % Prüfung
Prüflevel : Spannungsvariation
Test levels Voltage variation
VoltageTest
Level
40 % U T
0 % U T
test
Time for Time at
decreasing reduced
Voltage voltage
2 s  20 % 1 s  20 %
2 s  20 % 1 s  20 %
'x' 1) 'x' 1)
0 % Prüfung
Time for
increasing
voltage
2 s  20 %
2 s  20 %
'x' 1)
test
