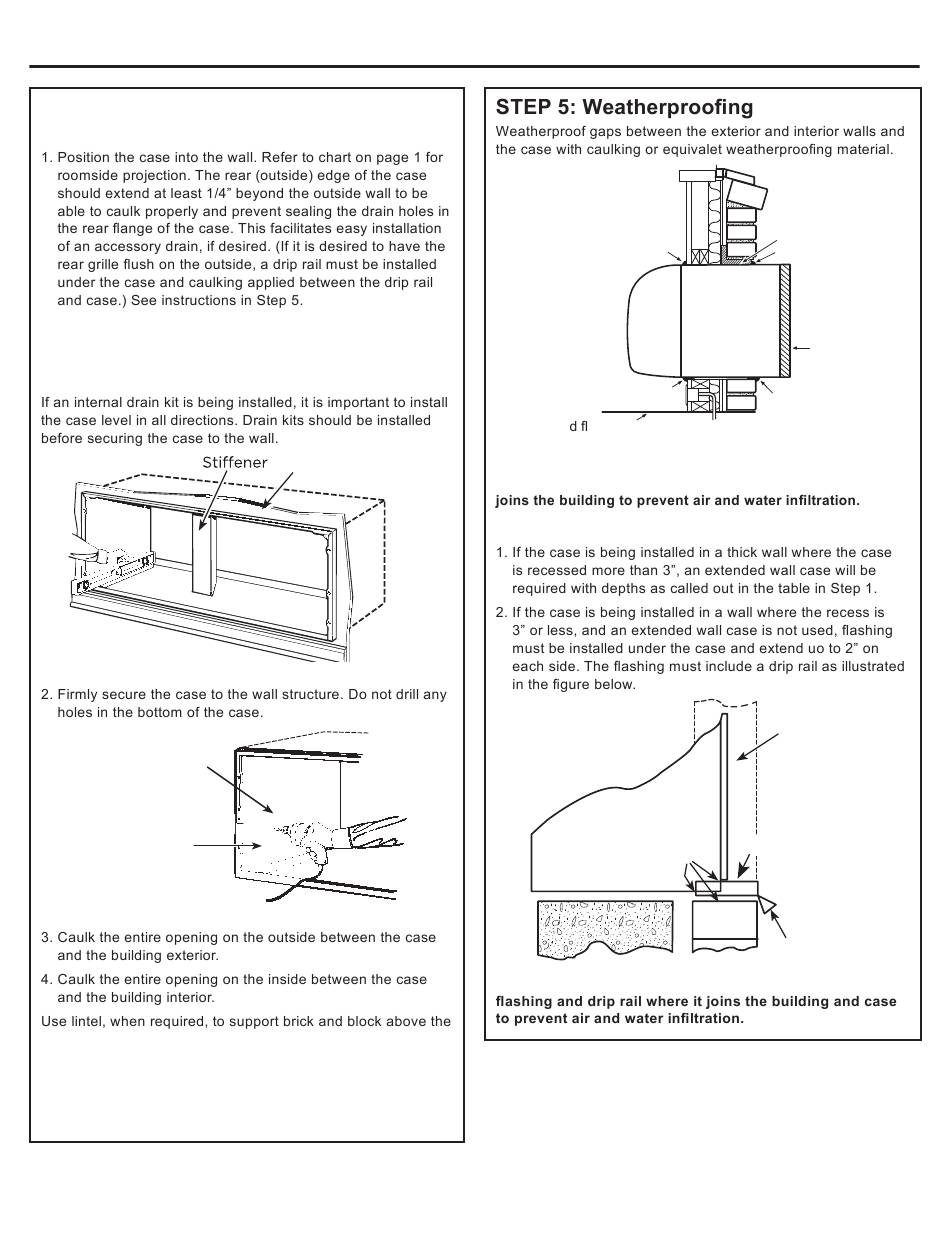

STEP 4: RAB81, RAB81B Installation of
the case in the wall opening
IMPORTANT:
Install case level from side to side and from front to rear.
Using a level, allowable tilt to the outside is maximum of
1/4 bubble. Never allow case to tilt to the inside.
Secure case through
side and/or top only
2" min. from
case bottom
case.
NOTE: Do not drill any holes in the case for electrical
connections. See the Zoneline Air Conditioner Owner's
Manual for instructions on how to connect the electrical
supply.
Installation Instructions
Inside wall
Caulk*
Room
cabinet
Caulk*
Finishe oor or top of carpet
NOTE: *It is critical to caulk around the perimeter of the wall
case on all four sides on the outside and roomside where it
FOR INSTALLTION IN EXTRA THICK WALLS
Case
Caulk**
NOTE: **It is critical to caulk around the perimeter of the
3
Steel lintel
Caulk*
Case
Outdoor
grille
Caulk*
Outdoor
grille
Flashing
Drip rail
