ITT ProSmart Installation & Operation Manual page 77

ProSmart Installation & Operation Guide
APPENDIX A-2 PROSMART DATA SHEETS

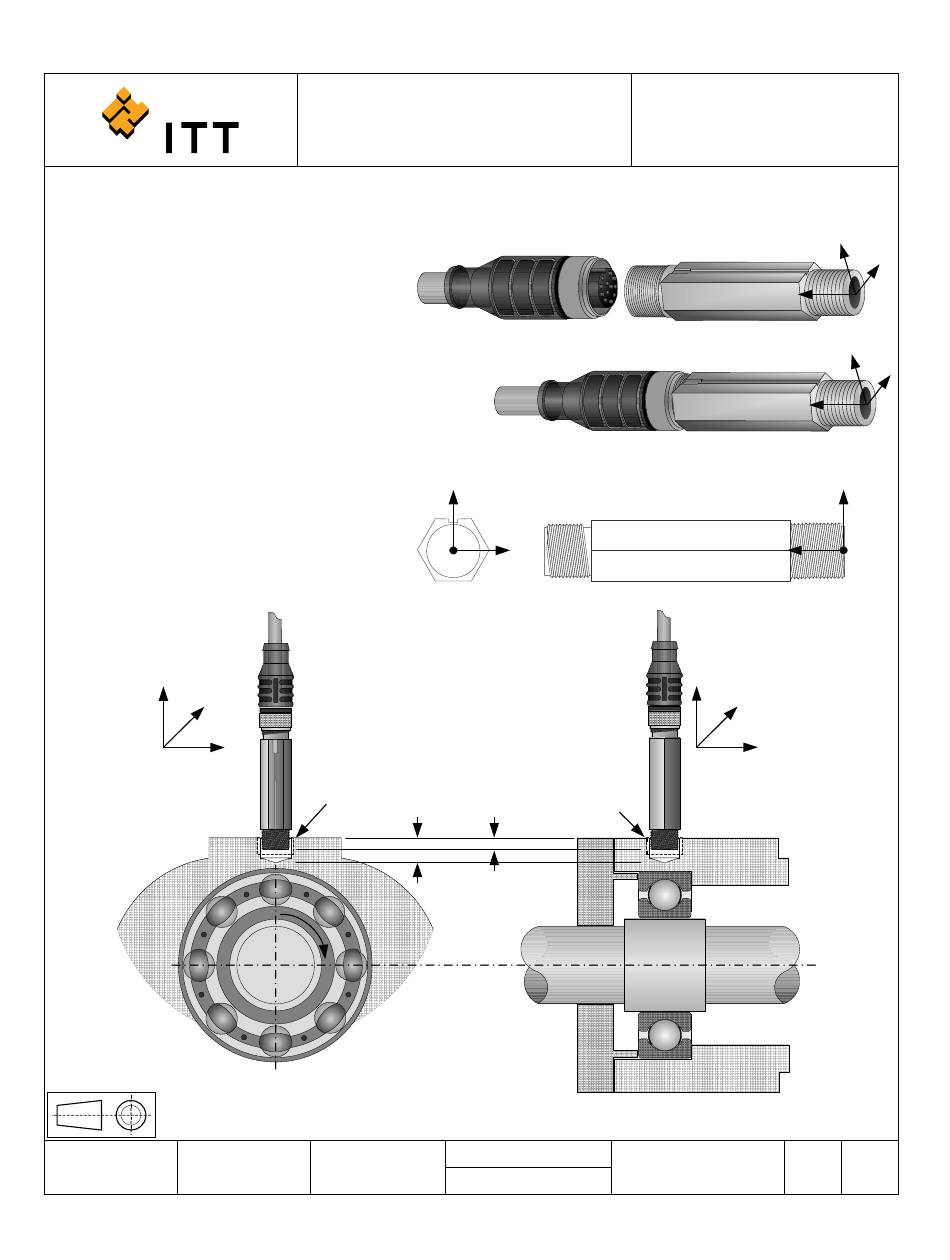

ProSmart VT-03
CERTIFICATIONS
RATINGS.................................CSA
SPECIFICATIONS
CABLE LENGTH.........................6.6ft (2m)
TECHNOLOGY..........................MEMS Accelerometer
FREQUENCY............................6-3500Hz (X, Y, and Z axis)
TEMPERATURE ACCURACY........+/-5°F
VIBRATION ACCURACY..............6-1500Hz: +/-10% or 0.02in/sec RMS
ENVIRONMENTAL LIMITS
ENCLOSURE RATING................NEMA 4X; IP67
ENCLOSURE MATERIAL............316 Stainless Steel
OPERATING TEMP. MAX...........185°F (85°C)
OPERATING TEMP. MIN............-40°F (-40°C)
STORAGE TEMP. MAX..............221°F (105°C)
STORAGE TEMP. MIN...............-40°F (-40°C)
Y
Z
Copyright 2011
Drawing is not to scale
ITT Corp.
Dimensions in inches
No reproduction without
permission
Page 77
Vibration / Temperature Sensor
Class I Division 2 Groups A B C D T4
1501-3500Hz: +/-3dB or 0.02in/sec RMS
(whichever is greater)
X
¼" NPT
1.00"
Axial View
ISSUE:
Data Sheet
Z
X
Y
¼" NPT
0.44" TYP
Drawn: J. Sullivan
Checked:
PROSMART
Y
Y
Y
X
Z
Side View
Drawing
B05966A
Z
X
Z
X
Y
Z
X
Revision Sheet
1 of 1
1
