ProSmart Installation & Operation Guide
SENSOR INSTALLATION

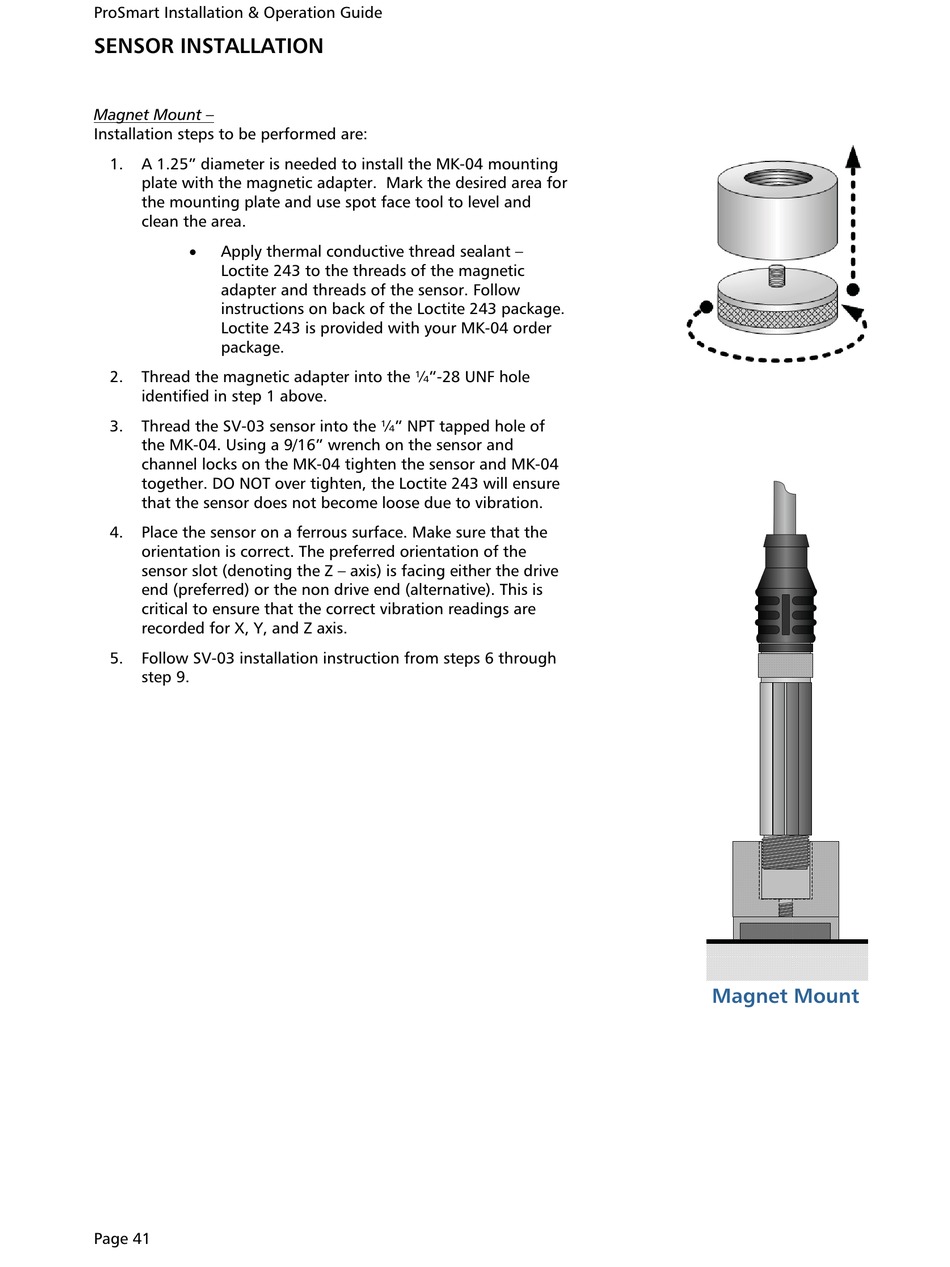

Magnet Mount –
Installation steps to be performed are:
1. A 1.25" diameter is needed to install the MK-04 mounting
plate with the magnetic adapter. Mark the desired area for
the mounting plate and use spot face tool to level and
clean the area.
x
Apply thermal conductive thread sealant –
Loctite 243 to the threads of the magnetic
adapter and threads of the sensor. Follow
instructions on back of the Loctite 243 package.
Loctite 243 is provided with your MK-04 order
package.
2. Thread the magnetic adapter into the ¼"-28 UNF hole
identified in step 1 above.
3. Thread the SV-03 sensor into the ¼" NPT tapped hole of
the MK-04. Using a 9/16" wrench on the sensor and
channel locks on the MK-04 tighten the sensor and MK-04
together. DO NOT over tighten, the Loctite 243 will ensure
that the sensor does not become loose due to vibration.
4. Place the sensor on a ferrous surface. Make sure that the
orientation is correct. The preferred orientation of the
sensor slot (denoting the Z – axis) is facing either the drive
end (preferred) or the non drive end (alternative). This is
critical to ensure that the correct vibration readings are
recorded for X, Y, and Z axis.
5. Follow SV-03 installation instruction from steps 6 through
step 9.
Page 41
Magnet Mount
