Operating Instructions
LEVEL SWITCH 8110
- contactless electronic switch

Advertisement

Table of Contents
loading

Summary of Contents for Burkert 8110

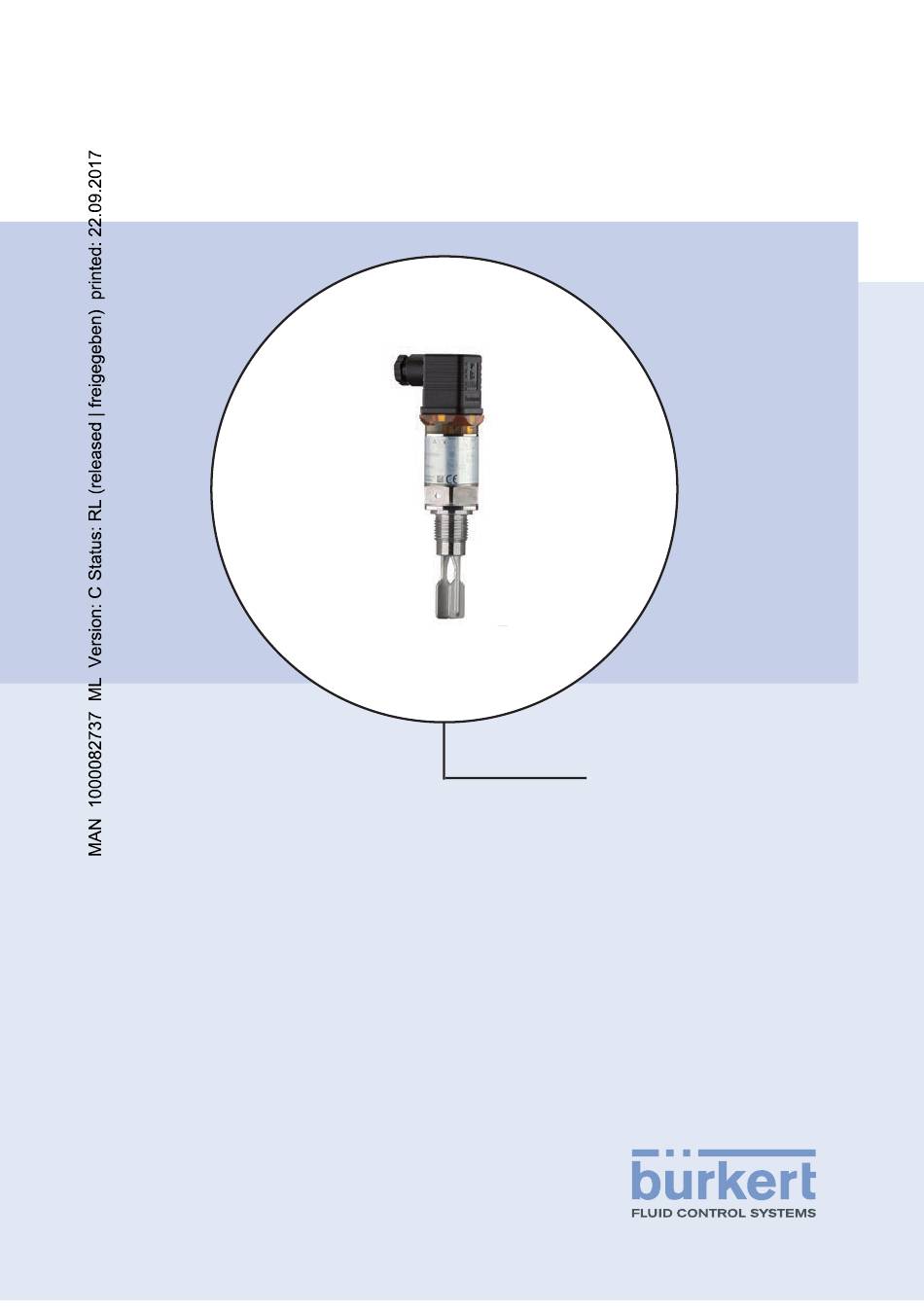

  • Page 1 Operating Instructions LEVEL SWITCH 8110 - contactless electronic switch...
  • Page 2: Table Of Contents

    Simulation ........................17 Function chart ........................ 18 7 Maintenance and fault rectification Maintenance ........................19 Rectify faults ........................19 Dismounting Dismounting steps......................20 Disposal ......................... 20 Supplement Technical data ........................ 21 Dimensions ........................24 Editing status: 2014-02-11 LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 3: About This Document

    This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 4: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use The LEVEL SWITCH 8110 is a sensor for point level detection. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.
  • Page 5: Safety Label On The Instrument

    2 For your safety Safety label on the instrument The safety approval markings and safety tips on the device must be observed. CE conformity The device fulfills the legal requirements of the applicable EC guide- lines. By affixing the CE marking, we confirm successful testing of the product. You can find the CE Certificate of Conformity in the download section of our homepage. LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 6: Product Description

    Article numbers, documentation Principle of operation Application area LEVEL SWITCH 8110 is a point level sensor with tuning fork for point level detection. It is designed for industrial use in all areas of process technology and can be used in liquids.
  • Page 7: Adjustment

    Voltage supply LEVEL SWITCH 8110 is a compact instrument, i.e. it can be oper- ated without external evaluation system. The integrated electronics evaluates the level signal and outputs a switching signal. With this switching signal, a connected device can be operated directly (e.g.
  • Page 8 Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter "Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 9: Mounting

    You can find the specifications in chapter "Technical data" and on the nameplate. Switching point In general, LEVEL SWITCH 8110 can be installed in any position. The instrument only has to be mounted in such a way that the tuning fork is at the height of the desired switching point.
  • Page 10 Use the recommended cables (see chapter "Connecting to power supply") and tighten the cable gland. You can give your LEVEL SWITCH 8110 additional protection against moisture penetration by leading the connection cable downward in front of the cable entry. Rain and condensation water can thus drain off. This applies mainly to outdoor mounting as well as installation in...
  • Page 11: Mounting Instructions

    For threaded versions of LEVEL SWITCH 8110 in combination with a mounting boss with O-ring in front and welding marking. LEVEL SWITCH 8110 with thread sizes ¾" and 1" have a defined thread runout. This means that every LEVEL SWITCH 8110 is in the same position after being screwed in. Remove therefore the supplied flat seal from the thread of LEVEL SWITCH 8110. This flat seal is not required when using a welded socket with front-flush seal.
  • Page 12 Fig. 6: Adhesive products Inflowing medium If LEVEL SWITCH 8110 is mounted in the filling stream, unwanted false measurement signals can be generated. For this reason, mount LEVEL SWITCH 8110 at a position in the vessel where no disturbanc- es, e.g. from filling openings, agitators, etc., can occur. To make sure the tuning fork of LEVEL SWITCH 8110 generates as Flows little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement.
  • Page 13: Connecting To Power Supply

    Wiring plan Housing overview Fig. 7: Overview of the connection versions Valve plug ISO 4400 Valve plug ISO 4400 with IDC method of termination LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 14 For this plug version you can use standard cable with round wire cross-section. The inner cables must not be dismantled. The plug connects the cables automatically when screwing in. Cable diameter 3.5 … 6.5 mm, protection IP 65. LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 15 Cable Seal ring Terminal insert Plug housing Contactless electronic We recommend connecting LEVEL SWITCH 8110 in such a way that switch the switching circuit is open when there is a level signal, line break or failure (safe condition). Warning: The instrument must not be operated without an intermediately connected load, because the electronics would be destroyed if con- nected directly to the mains.
  • Page 16 5 Connecting to power supply Max. Min. Fig. 10: Wiring plan, contactless electronic switch with valve plug ISO 4400 PE Protective ground RL Load resistance (contactor, relay, etc.) LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 17: Setup

    You can check the change on the signal lamp. Please note that all connected device are activated during the simulation. If LEVEL SWITCH 8110 does not switch over after several tests with the test magnet, you have to check the plug connection and the connection cable and try it again.
  • Page 18: Function Chart

    Control lamp Control lamp Control lamp Yellow - cov- Green - voltage Red - fault sig- erage indication Mode max. closed Mode max. open Mode min. closed Mode min. open Fault open LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 19: Maintenance And Fault Rectification

    Reaction after fault recti- Depending on the reason for the fault and the measures taken, the fication steps described in chapter "Set up" may have to be carried out again. LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 20: Dismounting

    Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 21: Supplement

    -40 … +80 °C (-40 … +176 °F) Process conditions Process pressure -1 … 64 bar/-100 … 6400 kPa (-14.5 … 928 psig) Process temperature - Standard -40 … +100 °C (-40 … +212 °F) LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 22 Density 0.7 … 2.5 g/cm³ (0.025 … 0.09 lbs/in³) Adjustment Plug connections Specification see "Connecting to power supply" Signal lamps (LED) Ʋ Green Voltage supply on Ʋ Yellow Vibrating element covered Ʋ Red Fault LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 23 10 x (on the same cross-section) Electrical protective measures Protection rating Ʋ Valve plug ISO 4400 IP 65 Ʋ Valve plug ISO 4400 with IDC method IP 67 of termination Overvoltage category Protection class LEVEL SWITCH 8110 • - contactless electronic switch...
  • Page 24: Dimensions

    ø 17 mm (0.67") Fig. 32: LEVEL SWITCH 8110, standard version - thread G½, ½ NPT Thread G½ (DIN ISO 228/1), ½ NPT (valve plug ISO 4400) Thread G½ (DIN ISO 228/1), ½ NPT (valve plug ISO 4400 with DC method of termination) Switching point Length with G½...
  • Page 25 21,3 mm (0,84") Fig. 33: LEVEL SWITCH 8110, standard version - thread G¾, G1 / ¾ NPT, 1 NPT Thread G¾, G1 (DIN ISO 228/1), ¾ NPT or 1 NPT (valve plug ISO 4400) Thread G¾, G1 (DIN ISO 228/1), ¾ NPT or 1 NPT (valve plug ISO 4400 with IDC crimping technology) Switching point Length with G¾...
  • Page 26 G1, 1 NPT ø 21,3 mm (0.84") Fig. 34: LEVEL SWITCH 8110, high temperature version Thread G½, G¾, G1 (DIN ISO 228/1), ½" NPT, ¾ NPT or 1 NPT (valve plug ISO 4400) Clamp (valve plug ISO 4400) Switching point Length with G½...
  • Page 27 9 Supplement ø21,3 mm (0.84") Fig. 35: LEVEL SWITCH 8110, high temperature version Bolting (valve plug ISO 4400) SMS 1145 (valve plug ISO 4400) Switching point Length with bolting: 53 mm (2.1 in) Length with SMS 1145: 53 mm (2.1 in)
  • Page 28 The smart choice of Fluid Control Systems www.burkert.com 41765-EN-140211...
  • Page 29 Bedienungsanleitung LEVEL SWITCH 8110 - kontaktloser Schalter...
  • Page 30 Simulation ........................18 Funktionstabelle ......................19 Instandhalten und Störungen beseitigen Wartung.......................... 20 Störungen beseitigen ..................... 20 Ausbauen Ausbauschritte ....................... 21 Entsorgen ........................21 Anhang Technische Daten ......................22 Maße ..........................25 Redaktionsstand: 2014-02-11 LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 31: Zu Diesem Dokument

    Der vorangestellte Punkt kennzeichnet eine Liste ohne zwingende Reihenfolge. → Handlungsschritt Dieser Pfeil kennzeichnet einen einzelnen Handlungsschritt. Handlungsfolge Vorangestellte Zahlen kennzeichnen aufeinander folgende Hand- lungsschritte. Batterieentsorgung Dieses Symbol kennzeichnet besondere Hinweise zur Entsorgung von Batterien und Akkus. LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 32: Zu Ihrer Sicherheit

    Bei Arbeiten am und mit dem Gerät ist immer die erforderliche per- sönliche Schutzausrüstung zu tragen. Bestimmungsgemäße Verwendung Der LEVEL SWITCH 8110 ist ein Sensor zur Grenzstanderfassung. Detaillierte Angaben zum Anwendungsbereich finden Sie im Kapitel "Produktbeschreibung". Die Betriebssicherheit des Gerätes ist nur bei bestimmungsgemäßer Verwendung entsprechend den Angaben in der Betriebsanleitung sowie in den evtl.
  • Page 33: Sicherheitskennzeichen Am Gerät

    Die auf dem Gerät angebrachten Sicherheitskennzeichen und -hin- weise sind zu beachten. CE-Konformität Das Gerät erfüllt die gesetzlichen Anforderungen der zutreffenden EG-Richtlinien. Mit dem CE-Zeichen bestätigen wir die erfolgreiche Prüfung. Die CE-Konformitätserklärung finden Sie im Downloadbereich unse- rer Homepage. LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 34: Produktbeschreibung

    Flüssigkeiten eingesetzt werden. Typische Anwendungen sind Überlauf- und Trockenlaufschutz. Mit der nur 38 mm langen Schwinggabel kann der LEVEL SWITCH 8110 z. B. auch in Rohrleitungen ab DN 25 montiert werden. Die kleine Schwinggabel gestattet den Einsatz in Behältern, Tanks und Rohren.
  • Page 35: Bedienung

    Änderung wird vom eingebauten Elektronikeinsatz erfasst und in einen Schaltbefehl umgewandelt. Spannungsversorgung Der LEVEL SWITCH 8110 ist ein Kompaktgerät, d. h. er kann ohne externe Auswertung betrieben werden. Die integrierte Elektronik wer- tet das Füllstandsignal aus und stellt ein Schaltsignal zur Verfügung.
  • Page 36 Keinen aggressiven Medien aussetzen • Vor Sonneneinstrahlung schützen • Mechanische Erschütterungen vermeiden • Lager- und Transporttem- Lager- und Transporttemperatur siehe Kapitel "Anhang - Techni- peratur sche Daten - Umgebungsbedingungen" • Relative Luftfeuchte 20 … 85 % LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 37: Montieren

    Eigenschaften der Medien. Die Angaben dazu finden Sie im Kapitel "Technische Daten" und auf dem Typschild. Grundsätzlich kann der LEVEL SWITCH 8110 in jeder beliebigen La- Schaltpunkt ge eingebaut werden. Das Gerät muss lediglich so montiert werden, dass sich die Schwinggabel auf Höhe des gewünschten Schaltpunk-...
  • Page 38 Behältern. Abb. 4: Maßnahmen gegen das Eindringen von Feuchtigkeit Transport Halten Sie den LEVEL SWITCH 8110 nicht an der Schwinggabel. Druck/Vakuum Bei Über- oder Unterdruck im Behälter müssen Sie den Prozessan- schluss abdichten. Prüfen Sie vor dem Einsatz, ob das Dichtungsma- terial gegenüber dem Füllgut und der Prozesstemperatur beständig...
  • Page 39: Montagehinweise

    Für Gewindeausführungen des LEVEL SWITCH 8110 in Kombina- tion mit einem Einschweißstutzen mit vornliegendem O-Ring und Einschweißmarkierung. LEVEL SWITCH 8110 mit den Gewindegrößen ¾" und 1" haben einen definierten Gewindeauslauf. Das bedeutet, dass sich jeder LEVEL SWITCH 8110 nach dem Einschrauben immer in derselben Stellung befindet.
  • Page 40 Wenn der LEVEL SWITCH 8110 im Befüllstrom eingebaut ist, kann Einströmendes Füllgut dies zu unerwünschten Fehlmessungen führen. Montieren Sie den LEVEL SWITCH 8110 deshalb an einer Stelle im Behälter, wo keine störenden Einflüsse, wie z. B. von Befüllöffnungen, Rührwerken etc. auftreten können.
  • Page 41: An Die Spannungsversorgung Anschließen

    Sie die Kabelverschraubung fest an. Bei Montage im Freien, an gekühlten Behältern oder in Bereichen mit Feuchtigkeitseinwirkung, in denen z. B. mit Dampf oder Hochdruck gereinigt wird, ist die Abdichung der Kabelverschraubung besonders wichtig. LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 42: Anschlussplan

    Ventilstecker ISO 4400 Ventilstecker ISO 4400 mit Schneidklemmtechnik Steckerausführungen Ventilstecker ISO 4400 Bei dieser Steckervariante können Sie ein handelsübliches Ka- bel mit rundem Kabelquerschnitt verwenden. Kabeldurchmesser 4,5 … 7 mm, Schutzart IP 65. LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 43 Bei dieser Steckervariante können Sie ein handelsübliches Kabel mit rundem Kabelquerschnitt verwenden. Die inneren Leitungen müssen nicht abisoliert werden. Der Stecker verbindet die Leitungen beim Verschrauben automatisch. Kabeldurchmesser 3,5 … 6,5 mm, Schutzart IP 65. LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 44 Kabel Dichtring Klemmeinsatz Steckergehäuse Kontaktloser Schalter Wir empfehlen den LEVEL SWITCH 8110 so anzuschließen, dass der Schaltstromkreis bei Grenzstandmeldung, Leitungsbruch oder Störung geöffnet ist (sicherer Zustand). Warnung: Das Gerät darf nicht ohne zwischengeschaltete Last betrieben werden, da der Elektronikeinsatz bei direktem Anschluss an das Netz zerstört wird.
  • Page 45 5 An die Spannungsversorgung anschließen Max. Min. Abb. 10: Anschlussplan, kontaktloser Schalter bei Ventilstecker ISO 4400 PE Schutzerde RL Lastwiderstand (Schütz, Relais etc.) LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 46: In Betrieb Nehmen

    • Rot blinkt - Fehler am Schwingelement oder an der Elektronik (Sensorausgang hochohmig) Simulation Der LEVEL SWITCH 8110 hat eine integrierte Funktion zur Simulation des Ausgangssignals, die magnetisch aktiviert werden kann. Gehen Sie folgendermaßen vor: → Prüfmagnet (Zubehör) an das Kreissymbol mit der Aufschrift "TEST"...
  • Page 47: Funktionstabelle

    Füllstand Schaltzustand Kontrollleuchte Kontrollleuchte Kontrollleuchte Gelb - Bede- Grün - Span- Rot - Störmel- ckungszustand nungsanzeige dung Betriebsart max. geschlossen Betriebsart max. offen Betriebsart min. geschlossen Betriebsart min. offen Störung beliebig offen beliebig LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 48: Instandhalten Und Störungen Beseitigen

    Es liegt in der Verantwortung des Anlagenbetreibers, geeignete Maß- nahmen zur Beseitigung aufgetretener Störungen zu ergreifen. Störungsursachen Der LEVEL SWITCH 8110 bietet Ihnen ein Höchstmaß an Funkti- onssicherheit. Dennoch können während des Betriebes Störungen auftreten. Diese können z. B. folgende Ursachen haben: •...
  • Page 49: Ausbauen

    Mensch und Umwelt und ermöglicht eine Wiederverwendung von wertvollen Rohstoffen. Werkstoffe: siehe Kapitel "Technische Daten" Sollten Sie keine Möglichkeit haben, das Altgerät fachgerecht zu ent- sorgen, so sprechen Sie mit uns über Rücknahme und Entsorgung. LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 50: Anhang

    Lager- und Transporttemperatur -40 … +80 °C (-40 … +176 °F) Prozessbedingungen Prozessdruck -1 … 64 bar/-100 … 6400 kPa (-14.5 … 928 psig) Prozesstemperatur - Standard -40 … +100 °C (-40 … +212 °F) LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 51 6 m/s (bei einer Viskosität von 10000 mPa s Dichte 0,7 … 2,5 g/cm³ (0.025 … 0.09 lbs/in³) Bedienung Steckeranschlüsse Spezifikation siehe "An die Spannungsversorgung anschließen" Kontrollleuchten (LED) Ʋ Grün Spannungsversorgung ein Ʋ Gelb Schwingelement bedeckt LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 52 5,5 … 8 mm (0.22 … 0.31 in) Ʋ Anschlusshäufigkeit 10 x (am gleichen Querschnitt) Elektrische Schutzmaßnahmen Schutzart Ʋ Ventilstecker ISO 4400 IP 65 Ʋ Ventilstecker ISO 4400 mit Schneid- IP 67 klemmtechnik Überspannungskategorie Schutzklasse LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 53: Maße

    SW 32 mm (1.26") ø 17 mm (0.67") Abb. 32: LEVEL SWITCH 8110, Standardausführung - Gewinde G½, ½ NPT Gewinde G½ (DIN ISO 228/1), ½ NPT (Ventilstecker ISO 4400) Gewinde G½ (DIN ISO 228/1), ½ NPT (Ventilstecker ISO 4400 mit Schneidklemmtechnik) Schaltpunkt Länge bei G½...
  • Page 54 21,3 mm (0,84") Abb. 33: LEVEL SWITCH 8110, Standardausführung - Gewinde G¾, G1 / ¾ NPT, 1 NPT Gewinde G¾, G1 (DIN ISO 228/1), ¾ NPT oder 1 NPT (Ventilstecker ISO 4400) Gewinde G¾, G1 (DIN ISO 228/1), ¾ NPT oder 1 NPT (Ventilstecker ISO 4400 mit Schneidklemmtechnik) Schaltpunkt Länge bei G¾...
  • Page 55 Länge bei G½ (DIN ISO 228/1), ½ NPT: 62 mm (2.44 in) Länge bei G¾ (DIN ISO 228/1), ¾ NPT: 64 mm (2.5 in) Länge bei G1 (DIN ISO 228/1), 1 NPT: 67 mm (2.64 in) Länge bei Clamp: 53 mm (2.1 in) LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 56 ø21,3 mm (0.84") Abb. 35: LEVEL SWITCH 8110, Hochtemperaturausführung Rohrverschraubung (Ventilstecker ISO 4400) SMS 1145 (Ventilstecker ISO 4400) Schaltpunkt Länge bei Rohrverschraubung: 53 mm (2.1 in) Länge bei SMS 1145: 53 mm (2.1 in) LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 57 Notizen LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 58 Notizen LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 59 Notizen LEVEL SWITCH 8110 • - kontaktloser Schalter...
  • Page 60 The smart choice of Fluid Control Systems www.buerkert.com 41765-DE-140211...
  • Page 61 Mise en service LEVEL SWITCH 8110 - sortie électronique statique...
  • Page 62 Maintenance et élimination des défauts Maintenance ........................19 Éliminer les défauts ......................19 Démonter Étapes de démontage ....................20 Recyclage ........................20 Annexe Caractéristiques techniques ................... 21 Dimensions ........................24 Date de rédaction : 2014-02-11 LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 63: À Propos De Ce Document

    Les étapes de la procédure sont numérotées dans leur ordre chrono- logique. Élimination des piles Vous trouverez à la suite de ce symbole des remarques particulières concernant l'élimination des piles et accumulateurs. LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 64: Pour Votre Sécurité

    Porter toujours l'équipement de protection personnel nécessaire en travaillant avec l'appareil. Utilisation appropriée Le LEVEL SWITCH 8110 est un appareil destiné à la détection de niveau. Vous trouverez des informations plus détaillées concernant le do- maine d'application au chapitre " Description du produit ".
  • Page 65: Caractéristiques De Sécurité Sur L'appareil

    à respecter. Conformité CE L'appareil satisfait aux exigences légales des directives respectives de la CE. Avec le marquage CE, nous confirmons que le contrôle a été effectué avec succès. Vous trouverez la déclaration de conformité CE dans la zone de télé- chargement sur notre site web. LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 66: Description Du Produit

    Numéros d'articles documentation Procédé de fonctionnement Domaine d'application Le LEVEL SWITCH 8110 est un détecteur de niveau à lames vibrantes destiné à la détection de niveau. Il est conçu pour les applications industrielles dans tous les secteurs de la technique des procédés et peut être utilisé dans les liquides.
  • Page 67: 3.3 Réglage Et Configuration

    Tension d'alimentation Le LEVEL SWITCH 8110 est un appareil compact, c'est à dire qu'il peut fonctionner sans exploitation externe. L'électronique intégrée exploite le signal niveau et délivre un signal de commutation qui vous permet d'enclencher directement un appareil asservi en aval (p.ex.
  • Page 68 Température de stockage Température de transport et de stockage voir au chapitre " Annexe et de transport - Caractéristiques techniques - Conditions ambiantes " • Humidité relative de l'air 20 … 85 % LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 69: Monter

    Vous trouverez de plus amples informations dans le chapitre " Carac- téristiques techniques " et sur la plaque signalétique. En général, le LEVEL SWITCH 8110 peut être installé dans n'importe Point de commutation quelle position. L'appareil doit seulement être monté de telle façon que les lames vibrantes soient à...
  • Page 70 à de l'humidité (due par exemple à des processus de nettoyage) ou encore dans des cuves réfrigérées ou chauffées. Fig. 4: Mesures prises contre l'infiltration d'humidité Ne tenez pas le détecteur LEVEL SWITCH 8110 par les lames Transport vibrantes. Pression/sous vide Vous aurez à...
  • Page 71: Consignes De Montage

    à souder avec joint torique situé à l'avant et repère à souder. Les détecteurs LEVEL SWITCH 8110 avec la taille de filetage ¾" et 1" possèdent un filet incomplet défini. Cela signifie qu'après avoir vissé le LEVEL SWITCH 8110, il se retrouve toujours dans la même position. Pour cela, il est nécessaire d'enlever le joint plat se trouvant sur le filetage du LEVEL SWITCH 8110. Ce joint plat n'est pas néces- saire si vous utilisez le raccord à souder avec joint arasant.
  • Page 72 (1.18") Fig. 6: Produits colmatants Flot de produit Si vous installez le LEVEL SWITCH 8110 dans le flot de remplissage, cela peut entraîner des mesures erronées. Pour l'éviter, nous vous recommandons d'installer le LEVEL SWITCH 8110 à un endroit de la cuve où il ne sera pas perturbé par des influences négatives telles que flots de remplissage ou agitateurs par exemple. Pour que les lames vibrantes du LEVEL SWITCH 8110 offrent le Écoulements moins de résistance possible en présence de surfaces agitées, la surface des lames doit être parallèle au sens d'écoulement du...
  • Page 73: Raccordement À L'alimentation En Tension

    à l'humidité dans lesquelles par ex., le nettoyage est effectué par vapeur ou par haute pression. Schéma de raccordement Aperçu des boîtiers Fig. 7: Aperçu des variantes de raccordement Connecteur type électrovanne ISO 4400 Connecteur type électrovanne ISO 4400 avec technique de borne guillotine LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 74 Il n'est pas nécessaire de dénuder les lignes internes. En vissant le connecteur, vous reliez en même temps les lignes. Diamètre du câble 3,5 … 6,5 mm, protection IP 65. LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 75 Sortie électronique Nous recommandons de raccorder le détecteur LEVEL SWITCH statique 8110 de telle façon que le circuit de commutation soit ouvert en cas de signalisation de seuil atteint, de rupture de ligne ou de panne (sécurité positive). Attention ! L'appareil ne doit pas fonctionner sans charge intermédiaire, un bran-...
  • Page 76 5 Raccordement à l'alimentation en tension Max. Min. Fig. 10: Schéma de raccordement, sortie électronique statique pour connecteur type électrovanne ISO 4400 PE Terre de protection RL Résistance de charge (contacteur électromagnétique, relais, etc.) LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 77: Mettre En Service

    Rouge clignote - Erreur à l'élément vibrant ou à l'électronique (sortie du capteur à haute impédance) Simulation Le LEVEL SWITCH 8110 a une fonction intégrée qui peut être activée magnétiquement pour la simulation du signal de sortie. Procédez comme suit : →...
  • Page 78: Tableau De Fonctionnement

    Mode de fonc- Fermé tionnement max. Mode de fonc- Ouvert tionnement max. Mode de fonc- Fermé tionnement min. Mode de fonc- Ouvert tionnement min. Anomalie Quelconque Ouvert Quelconque LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 79: Maintenance Et Élimination Des Défauts

    Comportement après Suivant la cause du défaut et les mesures prises pour l'éliminer, il élimination des défauts faudra le cas échéant recommencer les étapes décrites au chapitre " Mise en service ". LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 80: Démonter

    Matériaux : voir au chapitre " Caractéristiques techniques " Au cas où vous n'auriez pas la possibilité de faire recycler le vieil appareil par une entreprise spécialisée, contactez-nous. Nous vous conseillerons sur les possibilités de reprise et de recyclage. LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 81: Annexe

    Température de stockage et de transport -40 … +80 °C (-40 … +176 °F) Conditions de process Pression process -1 … 64 bar/-100 … 6400 kPa (-14.5 … 928 psig) Température process - standard -40 … +100 °C (-40 … +212 °F) LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 82 Max. 6 m/s (pour une viscosité de 10.000 mPa s) Densité 0,7 … 2,5 g/cm³ (0.025 … 0.09 lbs/in³) Réglage et configuration Raccordements par connecteur spécification voir "Raccordement à l'alimentation" Témoins de contrôle (LED) Ʋ Vert Tension d'alimentation connectée Ʋ Jaune Élément vibrant couvert Ʋ Rouge Anomalie LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 83 Mesures de protection électrique Type de protection Ʋ Connecteur type électrovanne IP 65 ISO 4400 Ʋ Connecteur type électrovanne IP 67 ISO 4400 avec technique de borne guillotine Catégorie de surtensions Classe de protection LEVEL SWITCH 8110 • - sortie électronique statique...
  • Page 84: Dimensions

    ø 17 mm (0.67") Fig. 32: LEVEL SWITCH 8110, version standard - Filetage G½ , ½ NPT Filetage G½ (DIN ISO 228/1), ½ NPT (connecteur type électrovanne ISO 4400) Filetage G½ (DIN ISO 228/1), ½ NPT (connecteur type électrovanne ISO 4400 avec technique à borne guillo-...
  • Page 85 21,3 mm (0,84") Fig. 33: LEVEL SWITCH 8110, version standard - Filetage G¾, G1 / ¾ NPT, 1 NPT Filetage G¾, G1 (DIN ISO 228/1), ¾ NPT ou 1 NPT (connecteur type électrovanne ISO 4400) Filetage G¾, G1 (DIN ISO 228/1), ¾ NPT ou 1 NPT (connecteur type électrovanne ISO 4400 avec technique à...
  • Page 86 G1, 1 NPT ø 21,3 mm (0.84") Fig. 34: LEVEL SWITCH 8110, version haute température Filetage G½, G¾, G1 (DIN ISO 228/1), ½" NPT, ¾ NPT ou 1 NPT (connecteur type électrovanne ISO 4400) Clamp (connecteur type électrovanne ISO 4400) Point de commutation Longueur avec G¾...
  • Page 87 9 Annexe ø21,3 mm (0.84") Fig. 35: LEVEL SWITCH 8110, version haute température Raccord union (connecteur type électrovanne ISO 4400) SMS 1145 (connecteur de type électrovanne ISO 4400) Point de commutation Longueur avec raccord union: 53 mm (2.1 in) Longueur avec SMS 1145: 53 mm (2.1 in)
  • Page 88 The smart choice of Fluid Control Systems www.burkert.com 41765-FR-140211...
