EN

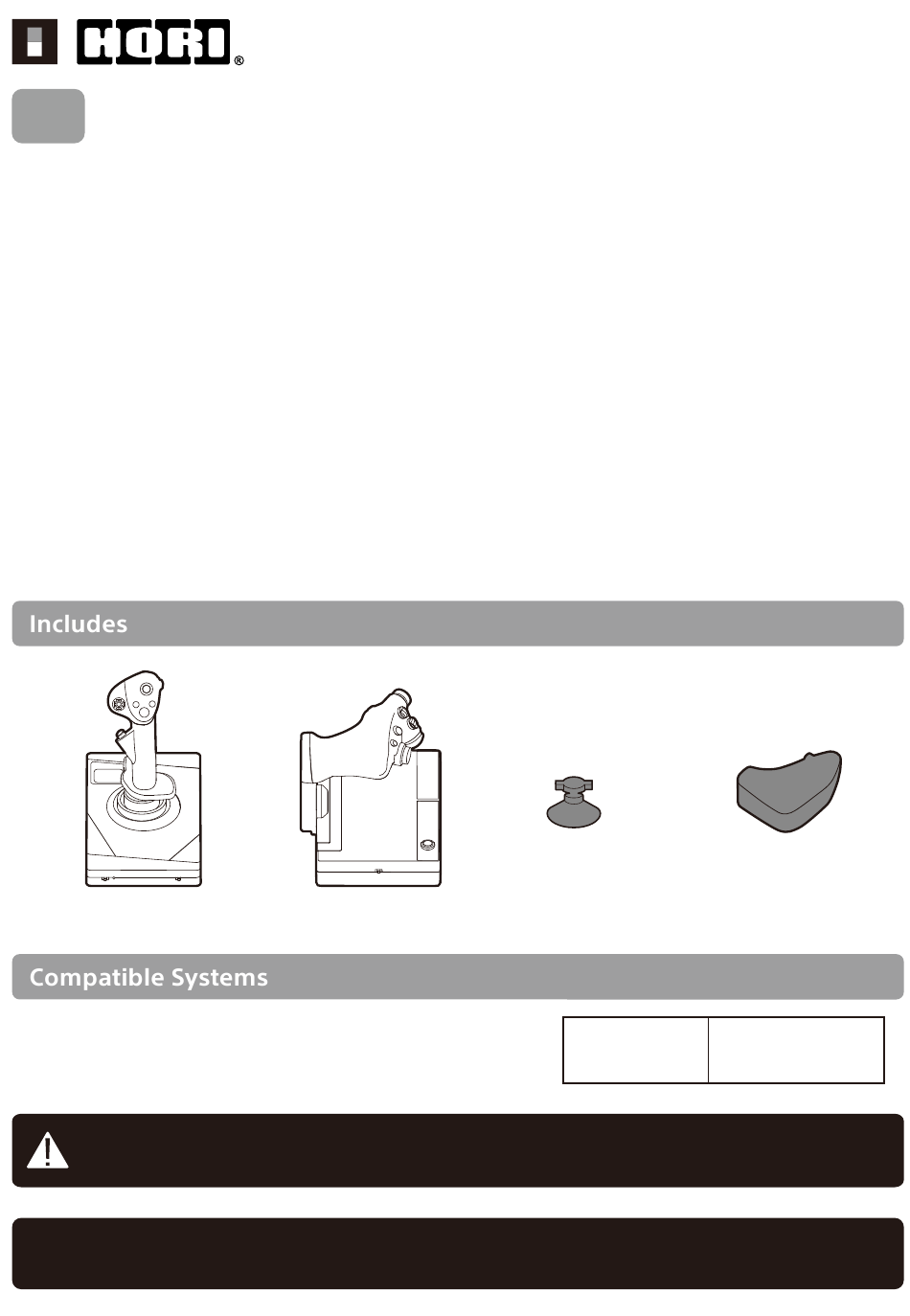

Instruction manual
Before using this product please read the instructions carefully.
After reading the instruction manual, please keep it for reference.

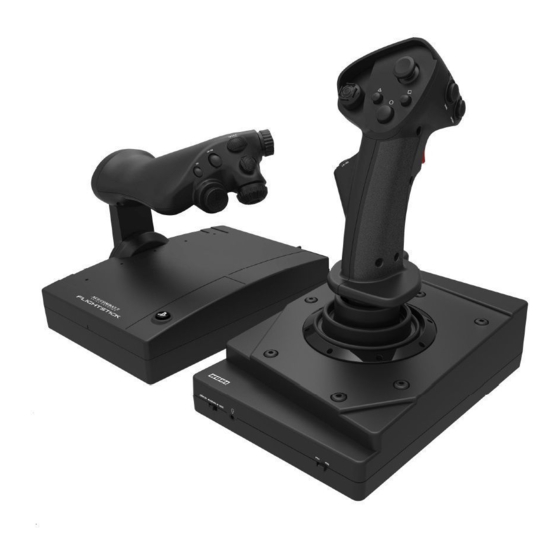

Joystick ・ ・ ・ ×１
PlayStation ® 4 / PlayStation ® 3 / PC
Please upgrade to the latest system software before use.
(PlayStation ® 4 ... Ver. 4.73 or later recommended, PlayStation ® 3 ... Ver.2.80 or later recommended)
This product does not feature light bar, motion sensors. In addition, this product does not support
features other than those described. Please note this product may not support some PlayStation ® 4 and
PlayStation ® 3 standard software. For details, please visit our website (http://www.hori.co.uk).
* This product is not a wireless controller.
Thank you for purchasing this product.
Throttle ・ ・ ・ ×１
Suction cups ・ ・ ・ ×８
System Requirements
* Functions as PC controller through XInput. This product does not support DirectInput.
Handrest
・ ・ ・ ×１
Extender
Windows®10 / 8.1 / 8 / 7
USB port、Internet Connection
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HORI DualShock 4
Summary of Contents for HORI DualShock 4
- Page 1 Joystick ・ ・ ・ ×１ Throttle ・ ・ ・ ×１ Suction cups ・ ・ ・ ×８ ・ ・ ・ ×１ Extender PlayStation ® 4 / PlayStation ® 3 / PC Windows®10 / 8.1 / 8 / 7 System Requirements USB port、Internet Connection * Functions as PC controller through XInput. This product does not support DirectInput. Please upgrade to the latest system software before use. (PlayStation ® 4 ... Ver. 4.73 or later recommended, PlayStation ® 3 ... Ver.2.80 or later recommended) This product does not feature light bar, motion sensors. In addition, this product does not support features other than those described. Please note this product may not support some PlayStation ® 4 and PlayStation ® 3 standard software. For details, please visit our website (http://www.hori.co.uk). * This product is not a wireless controller.
- Page 2 Layout Joystick Back Front Right analog stick / R3 Button (PC : RSB) SHARE Button □ Button (PlayStation ® 3 : SELECT Button) (PC : X) (PC : BACK) ○ Button OPTIONS Button (PC : B) (PlayStation ® 3 : START Button) △ Button (PC : START) (PC : Y) ×Button (PC : A) D-Pad L3 + R3 Button (PC : LSB + RSB) Touch Pad L1 + R1 Button (PC : LB + RB) Left analog stick Modular Jack System Toggle Switch (To connect Throttle unit) Controller cable Stereo Headset / Microphone Port USB Connector Joystick Sensitivity Toggle Switch Throttle Back Front...
- Page 3 Platform Toggle Switch The Platform Toggle Switch toggles between PlayStation ® 4 and PlayStation ® 3 compatibility. *Toggle the switch before connecting. How to connect ①Insert the modular connector to the joystick modular jack. Console USB ports ②Insert the USB connector to the console USB port. ② *Plugging and unplugging during gameplay may cause a malfunction. USB Connector *Reconnect the connector if any malfunction occurs. Modular Connector ① Joystick Throttle Attaching the Suction Cups ①Insert the suction cups into the holes located on the bottom side of joystick and throttle. ②Rotate the suction cups 90 degrees to lock in place. *Please attach to smooth, flat, stable surface. Hole ② 90° ① Throttle Bottom Side...
- Page 4 Attaching the Handrest Extender If you feel the joystick does not fit for your hands, try attaching the Handrest Extender to the armrest. Peel off the sheet on the backside of the Handrest Extender and affix onto the main stick's arm rest as shown in the diagram. Handrest Extender Armrest *Make sure to remove any dust or dirt from the armrest prior to affixing the Handrest Extender. Expansion port (PlayStation ® 4 only) Connect the headset / microphone into the expansion port to use. Joystick Before placing a headset onto your ears, make sure to lower the volume to avoid hearing damage. Expansion port Touch Pad (PlayStation ® 4 only) This product features DUALSHOCK ® 4 wireless controller touch pad functionality. *Touch pad is only for PlayStation ® 4. Not compatible with PlayStation ® 3 / Windows PC. LEFT LEFT RIGHT RIGHT DOWN DOWN 下 下 Joystick Adjusting throttle resistance The resistance can be adjusted by turning the screw located on the bottom side of the throttle. Throttle Bottom Side...
- Page 5 Adjusting joystick sensitivity The joystick sensitivity toggle switch can be set to 3 different levels of sensitivity. Joystick Joystick Sensitivity Toggle Switch Narrow Mode Normal Mode Wide Mode More sensitive Normal joystick Less sensitive than normal mode sensitivity level than normal mode Throttle / Rudder Toggle Switch The throttle / rudder sensitivity toggle switch can be set to 3 different settings as shown in the diagram. Throttle / Rudder Toggle Switch Switch position R2 (UP) / R1 (UP) / Right Analog Stick Throttle vertical control L2 (DOWN) L1 (DOWN) R1 (RIGHT) / R2 (RIGHT) / Right Analog Stick Rudder horizontal control L1 (LEFT) L2 (LEFT) Right analog stick will not function during Setting 3 (R3 will function).
- Page 6 ④The controller will not respond upon pressing the PS button You must first pair this controller with the PlayStation ® 4 system using a wireless controller (DUALSHOCK ® 4). THE FCC WANTS YOU TO KNOW This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual (How to connect). In case the function dose not resume, please relocate to an area which does not have electro-magnetic interference to use the product. The wires are not to be inserted into socket-outlets. Please retain contact information for future reference. PRODUCT DISPOSAL INFORMATION Where you see this symbol on any of our electrical products or packaging, it indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose of them in accordance with any applicable local laws or requirements for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste. Applicable to EU countries only. Warranty For all warranty claims made within the first 30 days after purchase, please check with the retailer where the original purchase was made for details. If the warranty claim cannot be processed through the original retailer or for any other inquiries pertaining to our products, please address directly to HORI at infoeu@hori.jp. The image on the packaging may differ from the actual product. The manufacturer reserves the right to change the product design or specifications without notice. HORI and HORI logo are registered trademarks of HORI. “ ”, ”PlayStation”, “DUALSHOCK”, “ ” and “ ” are registered trademarks of Sony Interactive Entertainment Inc. All rights reserved. Licensed for sale in Europe, Africa, Middle East, Russia, India and Oceania. For use exclusively with PlayStation ® 4.
