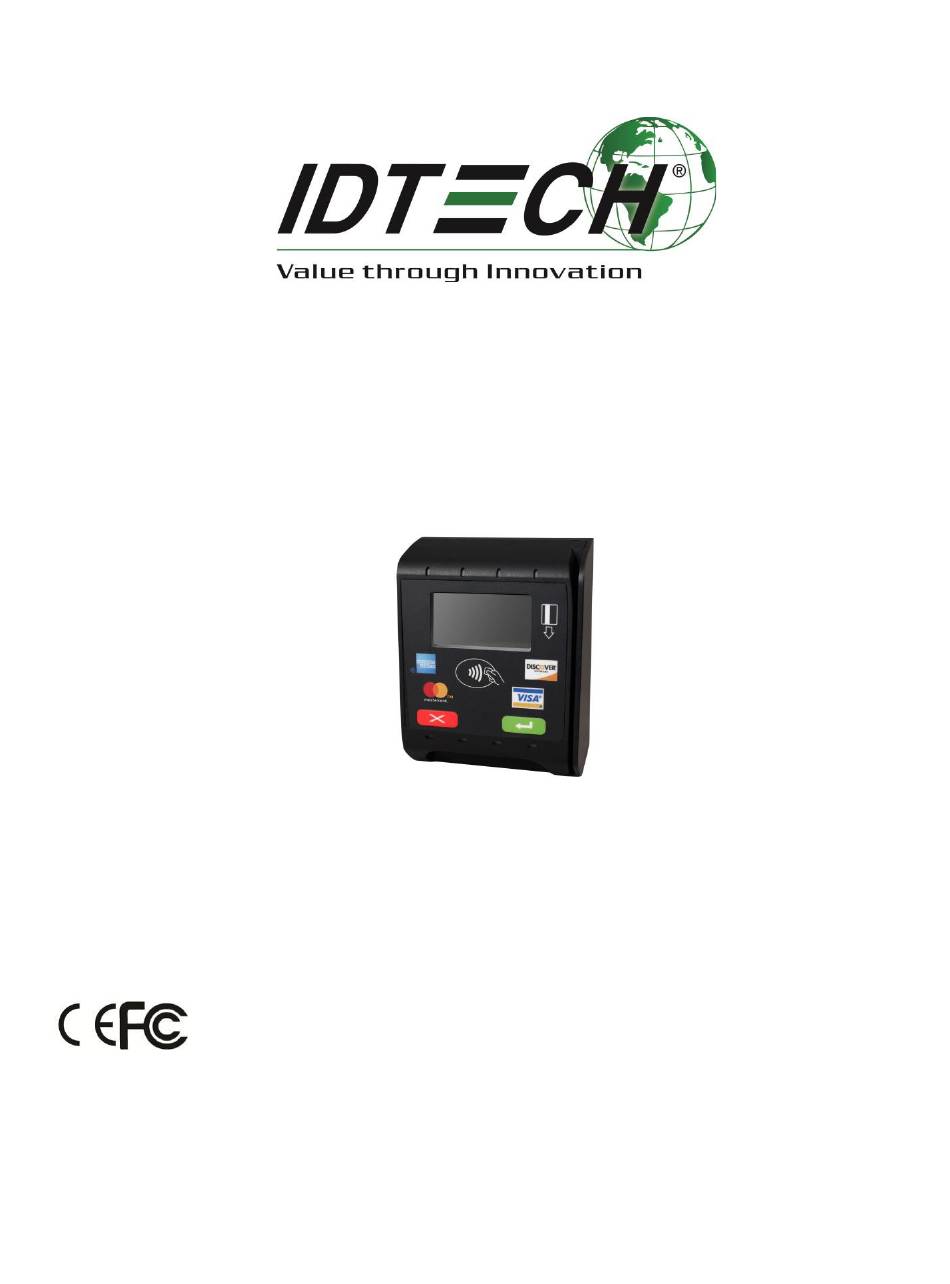

ViVOpay
VP6300
™
User Manual
80154502-001 Rev. D
July 8, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ViVOpay VP6300 and is the answer not in the manual?

Questions and answers

Related Manuals for IDTECH ViVOpay VP6300

Summary of Contents for IDTECH ViVOpay VP6300

  • Page 1 ViVOpay VP6300 ™ User Manual 80154502-001 Rev. D July 8, 2019...
  • Page 2 ViVOpay VP6300 User Manual Copyright© 2019 International Technologies and Systems Corporation. All rights reserved. ID TECH 10721 Walker Street Cypress, CA 90630 USA This document, as well as the hardware and software it describes, is furnished under license and may only be used in accordance with the terms of such license.
  • Page 3 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. • Changes or modifications to the ViVOpay VP6300 not expressly approved by ID TECH could void the user's authority to operate the ViVOpay VP6300. FCC Compliance Warning...

  • Page 4: Table Of Contents

    3.5 Connecting to Power ............................. 16 4. INSTALLATION POINTERS ............................. 16 5. DECOMMISSIONING SRED DEVICES ........................17 6. USING THE VIVOPAY VP6300 TO MAKE A PURCHASE ................... 17 6.1 Presenting Cards or NFC Phones ........................... 17 7. RF INTERFERENCE ..............................17 7.1 Q.

  • Page 5: Overview

    ViVOpay VP6300 User Manual 1. Overview ID TECH's ViVOpay VP6300 is a compact 3-in-1 credit card reader designed to support MSR (magstripe), contact EMV, and contactless card reading (using NFC and/or RFID). The ViVOpay VP6300 is designed to deliver MSR, EMV, and contactless payment acceptance in unattended payment scenarios, such as Parking, Ticketing, and Payment Kiosks.

  • Page 6: Pci/Emv Certified 3-In-1 Reader

    ViVOpay VP6300 User Manual rich, Windows-based Universal SDK is available to aid in rapid development of applications that need to communicate with the VP6300. Be sure to check the Downloads link on the ID TECH public Knowledge Base at https://atlassian.idtechproducts.com/confluence/display/KB/Knowledge+Base+-+Home...

  • Page 7: Features

    ViVOpay VP6300 User Manual 1.2 Features The ViVOpay VP6300 supports the following: • Contactless: ISO/IEC 14443 Type A and B • ISO 18092 peer-to-peer communication • LEDs: o 4 green LEDs at the top o 1 tri-color LED indicator for MSR o LED indicator for Contact Chip at the Bottom •...

  • Page 8: Approvals

    ViVOpay VP6300 User Manual 1.3 Approvals Item Regulation & Class EN55032/EN55035, Class- B Part 15, Class-B RoHS 2002/95/EC Compliance with UL regulations REACH Compliance with REACH regulations USB IF Compliance with USB IF regulations Contact L1 & L2 / Contactless L1 & L2 American Express American Express®...
  • Page 9 ViVOpay VP6300 User Manual IRWIN listed Visa Transit extensions MasterCard: M/Chip 3.1 or later American Express: ExpressPay 3.1 Discover: DPAS 1.0 Interac: Flash version 1.5d PBOC: level 1 and 2 MiFare: Classic, Ultralight C, DESFire, DESFire EV1 Google Pay Support Google Smart Tap 2.1...

  • Page 10: Physical/Mechanical Characteristics

    ViVOpay VP6300 User Manual Memory QSPI Flash for code storage and SDRAM for memory Multiple hosts Stores multiple sets of keys for different hosts LEDs LEDs – Green NFC Certification LED Audio Beeper for contactless transaction and other functions Logs Keep logs for firmware/application download, secure events 1.5 Physical/Mechanical Characteristics...

  • Page 11: Electrical Power Characteristics

    ViVOpay VP6300 User Manual Magnetic Head 1,000,000 swipes minimum 1.7 Electrical Power Characteristics Item Specification Note Power Input: Vin DC +7.5V~ +45V Normal operating input range DC +6.5V Absolute minimum input voltage DC +47V Absolute maximum input voltage Power Consumption <...

  • Page 12: Contact Emv Specifications

    ViVOpay VP6300 User Manual Typical Read Range 4-6 cm (1.5 to 2.3 inches) Electrical Working Current <500mA(@7.5VDCIN) Rated power <3.8W Maximum field strength 2.6 dBuA/m at 3 m 1.10 Contact EMV Specifications Item Specification Slot width 0.9mm min Media Thickness 0.76mm (tolerance ±0.08mm)

  • Page 13: Overall Layout

    USB DATA+ signal USB_DATA- USB DATA- signal Power input: 7.5 ~ 45 VDC Power ground 2. Overall Layout 3. Installation This section provides information needed for installing the ViVOpay VP6300 on a mounting surface. The drill template is as follows.

  • Page 14: Custom Wiring

    ViVOpay VP6300 User Manual 3.1 Custom Wiring If there is a need to fabricate custom wiring for the unit, refer to the wire connection layout below.

  • Page 15: Cables

    ViVOpay VP6300 User Manual 3.2 Cables If you are not using custom cables, verify that you have ID TECH cables and adapters as shown above, including: • P/N 140-2035-00-E power supply • P/N 80154227-001 cable with power-input and RJ-45 ports...

  • Page 16: Parts List

    ViVOpay VP6300 User Manual 3.3 Parts List Verify that you have the following hardware for the installation of the ViVOpay VP6300: • ViVOpay VP6300 P/N IDVV-580801-A, or IDVV-581821P (SRED). • USB cable P/N 80154220-001, or RS-232 cable P/N 80154211-001. • Power supply P/N 140-2035-00-E.

  • Page 17: Decommissioning Sred Devices

    6. Using the ViVOpay VP6300 to Make a Purchase 6.1 Presenting Cards or NFC Phones The ViVOpay VP6300 allows for credit/debit card purchases using Contactless technology. Present the card/phone in close proximity to the front portion of the module. Present the card/phone so that maximum surface area is parallel to the front.
  • Page 18 ViVOpay VP6300 User Manual Microwaves Electromechanical switches...

  • Page 19: What Should I Do If I Suspect Rf Interference Exists In My Environment

    ViVOpay VP6300 User Manual Wireless Routers 7.4 Q. What should I do if I suspect RF interference exists in my environment? A. Begin by inspecting your environment for possible sources of RF interference. 7.5 Q. Do equipment manufacturers test their devices for RF interference? A.

  • Page 20: Serial Interface

    ViVOpay VP6300 User Manual 8.2 Serial Interface:...
  • Page 21 ViVOpay VP6300 User Manual...
  • Page 22 ViVOpay VP6300 User Manual USB interface:...

  • Page 23: Troubleshooting

    ViVOpay VP6300 User Manual 9. 8. Troubleshooting The ViVOpay VP6300 reader is designed to be reliable and easy to troubleshoot. The components that may require troubleshooting include the power module (if applicable), the reader, and the serial cable. Symptom Possible Cause...
  • Page 24 ViVOpay VP6300 User Manual Symptom Possible Cause Remedy • Replace the device with a known-good device to verify that the power supply and wiring in the installation are sound. Reading Cards/Phones LEDs do not light and • Card/fob/phone not • Present card/fob/phone closer to the device, beeper is not audible properly presented.
  • Page 25 ViVOpay VP6300 User Manual Some cards/fobs read, • Possible bad • Check to see if card/fob is damaged. but not all. card/fob. • Verify that correct firmware is loaded on reader • Unsupported card (local support representative only). used. • Card readers must contain the latest versions •...
