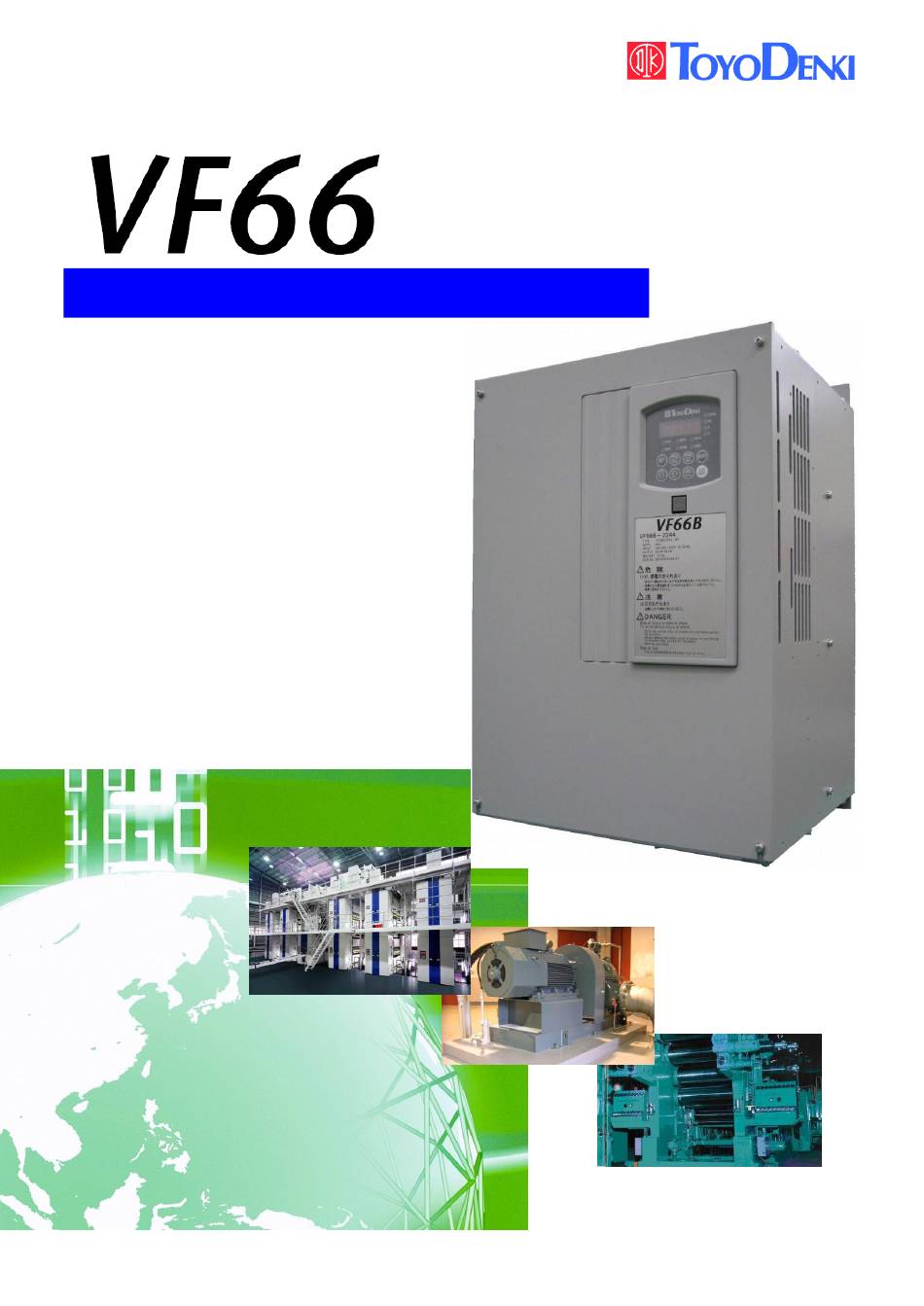

TOYO INTELLIGENT INVERTER
EIP66-Z Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VF66 EIP66-Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TOYODenki VF66 EIP66-Z

Summary of Contents for TOYODenki VF66 EIP66-Z

  • Page 1 TOYO INTELLIGENT INVERTER EIP66-Z Operating Manual...
  • Page 3 Preface Thank you very much for choosing our inverter optional board. This manual describes handling of the optional board EIP66-Z designed for VF66 inverter. Please read this manual thoroughly to use EIP66-Z properly. This manual describes the terminal block functions of EIP66-Z board, wiring, switch settings and VF66 inverter settings.

  • Page 4: Be Sure To Read This Before Use

    Be Sure To Read This Before Use Safety Notice To use the EIP66-Z correctly, be sure to completely read this manual and all other attached documents before installation, operation, maintenance, and inspection. You need to have a good knowledge of equipment, safety information, and all notices before using the EIP66-Z.
  • Page 5 CAUTION [Wiring] ⚫ Be sure to attach and lock the communication cable and connector. Otherwise, failure/malfunction may result. WARNING [Operation] ⚫ Be sure to attach the inverter front cover before turning on the input power. Do not remove the cover while the inverter is energized. Ignoring this may cause electric shock.

  • Page 6: Table Of Contents

    Contents Be Sure To Read This Before Use ............................ 4 Safety Notice................................4 CHAPTER 1 Function Overview ............................7 CHAPTER 2 Basic Specifications ............................8 2. 1 Multifunction Input Terminal Specifications ..................8 2. 2 Analog Input/Output Terminal Specifications ..................9 2.

  • Page 7: Chapter 1 Function Overview

    CHAPTER 1 Function Overview EIP66-Z is attached to the connector of the board (VFC66-Z) inside the VF66 inverter to use. EIP66-Z is equipped with the EtherNet/IP adapter function (slave station), analog input/output function, multifunction input and PG input/output function. EtherNet/IP is a public network standard, and the specification and protocol are made public by ODVA (Open DeviceNet Vendor Association, Inc.) to provide mutual compatibility between the devices of the same type by multiple vendors.

  • Page 8: Chapter 2 Basic Specifications

    CHAPTER 2 Basic Specifications 2. 1 Multifunction Input Terminal Specifications Multifunction input Terminal name Usage Description PS (2 terminals) +12 V power supply terminal Outputs a direct voltage of +12 V. Do not connect G terminal to the ground terminal. G (2 terminals) GND terminal Do not bring PS and G terminals into contact or connect them.

  • Page 9: Analog Input/Output Terminal Specifications

    2. 2 Analog Input/Output Terminal Specifications Analog input/output function Terminal name Usage Description ･ For the analog input (2) terminal, the input range can be selected from 0 to ±10 V, 0 to 10 V, and 4 to 20 mA by switching of SW1 and changing of VF66 inverter setting parameter.

  • Page 10: Ethernet/Ip Communication Function Connector/Terminal Specifications

    2. 4 EtherNet/IP Communication Function Connector/Terminal Specifications Communication function connector specifications (RJ-45 8 poles) Pin No. Usage Description Transmission signal line (+) Transmission signal line (-) Reception signal line (+) Unused Reception signal line (-) Unused Communication function terminal specifications Terminal Usage Description...

  • Page 11: Others

    2. 6 Others Other standard specifications conform to the VF66 inverter. For more information, refer to the operating instructions of VF66 inverter main unit. WARNING [Wiring] ⚫ Check that the input power is turned off before wiring. Otherwise, electric shock/fire may result. ⚫...

  • Page 12: Chapter 3 Board Description

    CHAPTER 3 Board Description 3. 1 Part Names ⑧ ① ② ③ ④ ⑨ ⑩ ⑭ LED3 LED5 LED6 ⑪ LINK0 LINK1 ⑫ TxRx0 TxRx1 LED1 LED2 EIP66-Z ⑮ LED10 RDY LED11 RUN ⑦ ⑯ Port0 Port1 AIN2 AOT2 ⑬ ⑤...

  • Page 13: Eip66-Z Switches

    3. 2 EIP66-Z Switches Various EIP66-Z functions can be changed using switches. EIP66-Z switch functions Switch name Usage Description Changes the input signal characteristics of analog input (2) terminal. ･ 0 to 10 V or 0 to ±10 V input is available with the switch OFF. Analog input (2) signal characteristics ･...

  • Page 14: How To Mount

    3. 3 How to Mount VFC66-Z SET66-Z board board Connector Optional board Support Figure 3. 2 Optional board mounting position (VF66B-2R222) * For opening/closing of the inverter front cover, refer to the operating instructions of inverter main unit. （１） Before starting to work, check that the inverter power is turned off. （２）...
  • Page 15 support and remove the optional board. Optional board VFC66-Z board (a) Fixed connector (b) Connector tab Figure 3. 4 Connector Figure 3. 5 Pawl part of support （６） Align the four holes on the EIP66-Z board with the support positions encircled in Figure 3.2, and push the board until the pawl part of the support is hooked to the top of the board as shown in Figure 3.5.

  • Page 16: Led

    WARNING [Attachment/removal] ⚫ Be sure to turn off the inverter power before attaching or removing a board. Otherwise, electric shock/injury/failure/malfunction may result. CAUTION [Attachment/removal] ⚫ Do not attach/remove the connector repeatedly. Loosened connection part of the connector may cause problems such as connection failure. ⚫...
  • Page 17 ･ LED6 (NS) operation The network status LED lights up in two colors (green/red) to indicate the communication link status. The following table shows the status of network status LED. Status Description Not powered, no IP No IP address exists in the device. Or power is not supplied to the address device.

  • Page 18: Chapter 4 Multifunction Input

    CHAPTER 4 Multifunction Input 4. 1 Multifunction Input EIP66-Z EIP66-Z Internal power CN-SI CN-SI supply (12V) 4.7kΩ 4.7kΩ Multi function Multi function input 6 input 6 4.7kΩ 4.7kΩ Multi function Multi function input 7 input 7 4.7kΩ 4.7kΩ Multi function Multi function input 8 input 8...
  • Page 19 Multifunction input related inverter parameters Display Description Selection Default Unit Multifunction input place 0: Terminal block c-00 0: Terminal block selection 1: Digital communication option Multifunction input terminal 0: Preset frequency selection 1 (V/f mode) 0: Preset frequency c-06 (6) function selection Preset speed selection 1 (induction motor/ED motor vector mode) selection 1 1: Preset frequency selection 2 (V/f mode)
  • Page 20 The EIP66-Z multifunction input signal can also be used as an input relay of the internal PLC function of the VF66 inverter. For more information, refer to "EIP66-Z Communication Protocol Manual," operating instructions of VF66 inverter main unit and VF66 PC Tool manual. WARNING [Wiring] ⚫...

  • Page 21: Chapter 5 Analog Input/Output Function

    CHAPTER 5 Analog Input/Output Function 5. 1 Analog Input (2) Using the analog input (2) function, an analog signal input to the EIP66-Z board terminal can be used as a speed (or frequency) command, torque command or input value to the internal PLC function. To use the analog input (2) function, the setting parameter of VF66 inverter main unit shown in the following table needs to be set appropriately.

  • Page 22: Analog Input (2) Gain/Offset Adjustment

    5. 2 Analog Input (2) Gain/Offset Adjustment Before using the analog input (2), adjust gain and offset. Perform the adjustment at room temperature (25 ℃). Before adjusting gain and offset for the analog input (2), adjust gain and offset for the analog input (1) of VF66 inverter main unit.
  • Page 23 (1) Input characteristics "0 to ±10 V" and "0 to 10 V" Press the [MONI/FNC] key to enter the FNC (function selection) mode (LED-FNC lights up). Select "G-03" with the [↑]/[↓] key and confirm it with the [SET] key. Move the operating digit to the right with the [JOG/→] key and change the value to "0" using the [↑]/[↓] key.

  • Page 24: How To Use Analog Input (2)

    (2) Input characteristic "4 to 20 mA" * Perform adjustment after the adjustment of "(1) Input characteristics "0 to ±10 V" and "0 to 10 V"" described previously. Press the [MONI/FNC] key to enter the FNC (function selection) mode (LED-FNC lights up). Select "G-03"...
  • Page 25 Analog input speed command related settings Display Description Setting band (selection item) Default Unit 0: Coupled with b-09 1: Analog input (1) [VFC66-Z terminal block AIN1] 2: Console [SET66-Z] 3: Digital communication option b-10 Speed commanding place selection 4: Analog input (2) [optional terminal block AIN2] 5: BCD66-Z 6: Analog input (3) [optional terminal block AIN3] 7: Internal PLC function output...
  • Page 26 the analog input (2) lower limit speed (G-05), it will be limited to 0 (see the following figure). If the minimum speed (A-01) is not 0, the absolute value of speed command is limited so as to avoid falling below it. Only the forward operation is available for the speed command.

  • Page 27: Analog Output (2)

    * Torque command is unavailable in the V/f mode. * The current input characteristic of 4 to 20 mA cannot be used as a torque command. Only the 0 to ±10 V input characteristic can be used. Inverter setting parameters related to analog input torque command Display Description Setting band (selection item)

  • Page 28: Analog Output (2) Gain/Offset Adjustment

    Analog output selected by G-09 G-09 Selection item Output voltage 7.5 V/200 V （200 V class) Output voltage 7.5 V/400 V (400 V class) Output current 5 V/inverter rated current Torque command (induction motor/ED motor vector mode) 5 V/100 % Torque output (V/f mode) Motor speed (induction motor/ED motor vector mode) 10 V/maximum speed (A-00)
  • Page 29 Inverter setting parameters related to analog output (2) gain/offset adjustment Display Description Setting band (selection item) Default Unit L-09 Analog output (2) gain 50.0 to 150.0 L-10 Analog output (2) offset -50.0 to 50.0 1: Analog output (2) offset adjustment S-09 Analog output (2) adjustment 2: Analog output (2) gain adjustment...
  • Page 30 ･ Analog output (2) gain/offset adjustment procedure Turn off the inverter power, open the front cover and then make a short-circuit Printed board Printed board between the terminal block [AOT2] of printed board <EIP66-Z> and terminal block <VFC66-Z> <EIP66-Z> [AIN1] of printed board <VFC66-Z>. terminal block terminal block Make a short-circuit between terminal block [G] and [G2] of printed board...

  • Page 31: Chapter 6 Pg Input/Output Function

    CHAPTER 6 PG Input/Output Function The PG input/output function is used to drive the inverter based on the signals of motor rotor magnetic pole position or speed detected by the sensor (PG). The PG input/output function is used in the VF66 inverter induction motor vector mode and ED motor vector mode.
  • Page 32 (1) Induction motor vector mode Set the setting parameter A-10 shown in the above table to 1 and connect a PG wire to the terminal on the EIP66-Z board terminal block TB2 as shown in the following figure (because the terminals U/Z, V and W on TB2 are unused, do not connect to these terminals).

  • Page 33: Pg Output Signal

    WARNING [Wiring] ⚫ Be sure to turn off the inverter power before performing PG wiring. Otherwise, electric shock/injury/failure/malfunction may result. ⚫ Never connect the G terminal to a ground. Otherwise, failure/damage may result. ⚫ To connect PG, be sure to connect the ground terminal of PG to a ground. Otherwise, failure/damage may result.

  • Page 34: Chapter 7 Ethernet/Ip Communication Function

    CHAPTER 7 EtherNet/IP Communication Function 7. 1 EtherNet/IP Connection To connect EIP66-Z to the EtherNet/IP network, star connection using a switching hub and daisy chain connection using the EIP66-Z CN3 and CN4 are available. To use daisy chain connection, EIP66-Z (A or B in Figure 7.1), which works as a relay node in daisy chain, needs to be powered on.

  • Page 35: Ethernet/Ip Communication Function Setting

    7. 2 EtherNet/IP Communication Function Setting The EIP66-Z EtherNet/IP communication function allows users to input a command related to operation, speed, torque, etc. or make a multifunction input to the VF66 inverter, or monitor the situations including the inverter operation/protection status, current and voltage. In addition, reading/rewriting of inverter settings and reading of traceback data, protection history and monitoring data are available.
  • Page 36 Blank Page...
  • Page 38 HEAD OFFICE： Tokyo Tatemono Yaesu Bldg, 1-4-16 Yaesu, Chuo-ku, Tokyo, Japan ZIP CODE 103-0028 TEL： +81-3-5202-8132 - 6 FAX： +81-3-5202-8150 In addition, the contents of this the "operating manual" may be changed without a preliminary announcement by specification change of a product etc. Please understand that it may differ from the contents of the "operating manual" enclosed by the model of purchase, and the contents of the "operating manual"...
