- Page 1 Heidelberg Wallbox Home Eco Operating manual 00.999.3018/01...
- Page 3 Main chapter overview Operating manual Operating manual ......................... A.1.1 Operating manual ........................A.1.1 Safety ..........................A.1.1 Cleaning the Wallbox ..................... A.1.1 Specifications ......................... A.1.1 Operation ........................A.1.2 Diagnostics ........................A.1.3 Contact address/Customer Sales Representative ............A.1.4 Environment ........................A.1.4 A. 1 00.999.3018/01...
- Page 4 Main chapter overview A. 2 00.999.3018/01...
- Page 5 Operating manual Operating manual Safety Before installing and starting up the Wallbox, please carefully read the enclosed safety instructions. Cleaning the Wallbox Do not use any aggressive cleaners (e.g. benzine sol‐ vents, acetone, ethanol, spirit glass cleaner) to clean the Wallbox and especially the plastic panel. These can attack/damage the surface.

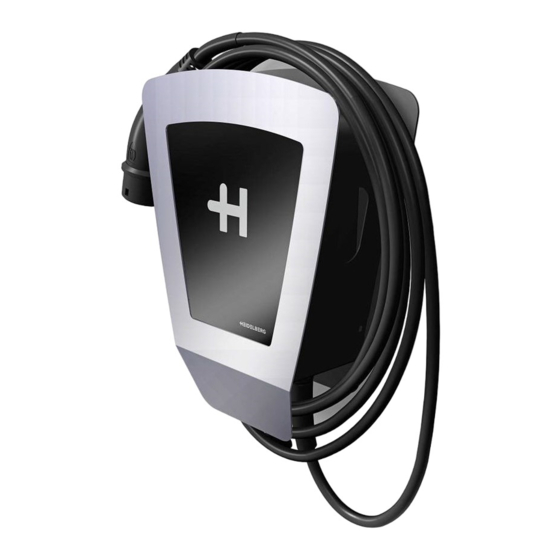

- Page 6 Wake up option 2: ● When the button is pressed (without connected Fig. 1 Heidelberg Wallbox Home Eco vehicle), the Wallbox changes from the standby mode to the ready mode. The LED lights up green and the charging cable can now be plugged into the vehicle.
- Page 7 Operating manual Note If the charging cable is not wound up and lies loosely on the ground, someone may trip over it. When winding the cable, make sure you do not pull it too hard or wind it too tightly. Repeatedly pulling too hard or winding too tightly can lead to cable breakages.
- Page 8 Troubleshooting If the above malfunctions continue, please contact our hotline. Contact address/Customer Sales Representative Hotline: +496222 82 2266 E-mail Wallbox@heidelberg.com Contact language: German and English. Website: https://wallbox.heidelberg.com/ Environment This device is used for charging electrically powered vehicles and is thus regulated by EU Directive 2012/19/EU on waste electrical and electronic equip‐...
