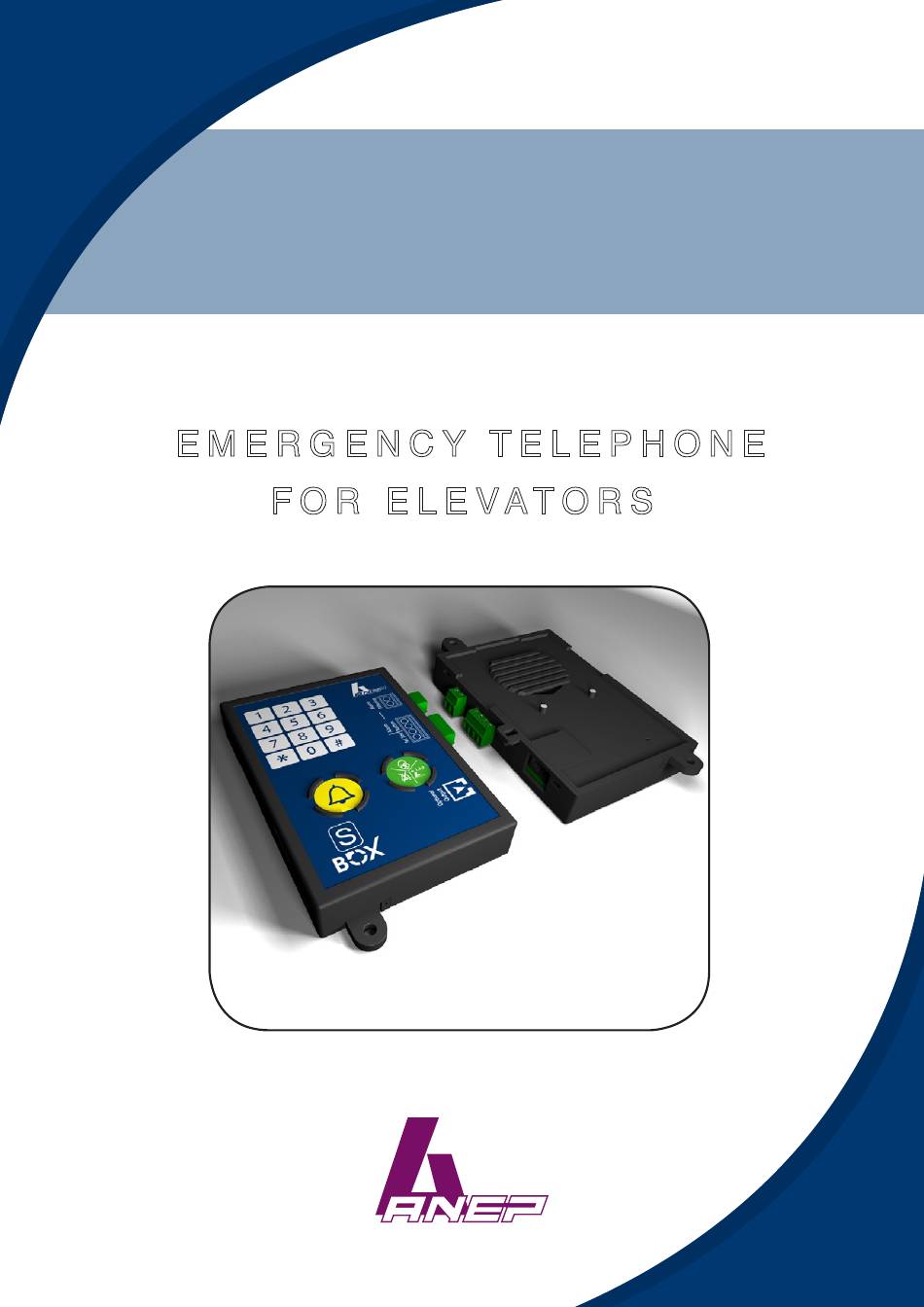

- Page 1 ANEP S-BOX E M E R G E N C Y T E L E P H O N E F O R E L E V A T O R S www.anepanywhere.com...
-
Page 2: Table Of Contents
1 - TECHNICAL CHARACTERISTICS Page 4 1.1 - Technical characteristics 1.2 - Machine room Intercom and firefighter until functionnality 1.3 - Factory settings 1.4 - Connecting ANEP S-BOX modules 2 - RECOMMENDATIONS Page 6 2.1 - Powering up 2.2 - Travelling cable... - Page 3 6.3 - Automatic hang-up ( audio mode ) 6.4 - Call sequence 6.5 - Car speaker and microphone test 6.6 - Remote call end 7 - KEYPAD PROGRAMMING Page 22 7.1 - Recap of programming sequences ANEP S-BOX Modification N° 2 29/11/2013 Page 3...
-
Page 4: Technical Characteristics
* Specification EN81-28 Emergency alarm for new lifts since october 2003. Specification EN 81-70 security rules for the constructions and installation of lifts Part 70 ; accessibility to lifts for all people including the handicapped ANEP S-BOX Modification N° 2 29/11/2013... - Page 5 • Emergency elevator telephone Button • Call Filtering Telephone line Optional external device ANEP S-BOX Modification N° 2 29/11/2013 Page 5...
-
Page 6: Recommendations
2 - RECOMMANDATIONS before handling any ANEP products, ensure the equipement has been disconnected from all power supplies. 2.1 - Installation / Powering up The performance of telephone line equipement depends largely upon the characteristics of the telephone line. Particular care must be taken when cabling the phone line to avoid damaging the standard line characteristics. -
Page 7: Alarm Filtering
15 minute period. To force alarm, there must be at least three seconds between each press. The button must also be held for an amount of time that is longer than the programmed "time-out." ANEP S-BOX Modification N° 2 29/11/2013 Page 7... -
Page 8: Addressing
4 - ADDRESSING Several S-BOX / F modules may be installed on the same telephone line (max 8). The address of EVERY module must be configured. After entering the acces code to enter programming mode, enter the following sequences : # 303 then 1 # if module 1 ( lift 1 ) # 303 then 2 # if module 2 ( lift 2) or ... -
Page 9: Programming Mode
• Access to the programming mode is only possible if the phone line is hung up. ( Beware if several modules share the same line ) • The S-BOX keypad is used to program all the parameters. • To avoid unwanted modifications, the programming mode is protected by an access... -
Page 10: Exit Programming Mode
5.1.3 - Simplified programming S-BOX automatically detects wheter the call button is NO or NC. It is therefore necessary to connect the call button BEFORE connecting inputs and the telephone line. SEQUENCE COMMENTS KEYS (Factory default : 123) Access code to enter programming mode... -
Page 11: Gsm Mode
5.2 GSM MODE The GSM mode should be activated when S-BOX is connected to a GSM gateway. To activate this mode: In programming mode: Enter #405# To come back to normal mode (PSTN) In programming mode: Enter #406# 5.2.1 - Managing Battery default on GSM PG1 gateway... -
Page 12: Memory Attributions
5.4 - Memory attribution 5.4.1 - Transfer method The S-BOX may be programmed to interface with the call center, utilizing the available software and specifications. To communicate with call centers, ANEP unit can transfer its ID information and establish a two-way... -
Page 13: Acknowledgement Of A Trapped Passenger (En 81.28)
5.5.2 - Acknowledgement of a trapped passenger ( EN81-28 ) When this function is enabled, a call dialed by S-BOX must be acknowledged by the operator by entering the sequence " # " then " 1 " on his telephone keypad during the conversation. -
Page 14: Adjusting Speaker Volume In Car
Press the key « # » A site file should have been created previously in the ANEPCENTER ® (refer to ANEPCENTER ® instructions for details.) NOTE : During a periodic call, the real time clock in S-BOX is updated. ANEP S-BOX Modification N° 2... - Page 15 The speaker is activated during the call, so the technician is aware of the communication. 5.5.7 - Transmission of call identification code during a call During dialing and call identification, it is possible to listen to the tone sequences sent by S-BOX in order to inform the technician present that S-BOX is transmitting information.
- Page 16 In addition, if the function " Acknowledgement of a trapped passenger call " is enabled, the caretaker will have to acknowledge the call by entering the sequence " #1 " on his phone keypad. Without this acknowledgment, S-BOX will call back to the call center up to 6 times.
- Page 17 (see page 13). 6.3 - Call sequence If the called number is busy or doesn't answer after 10 rings, S-BOX calls the secondary phone number. Each phone number is called alternately a maximum of six times. Direct call to an ordinary phone : The microphone is enabled 6 seconds after the telephone answers.
- Page 18 The test sequence is: • When only one S-BOX is connected to the telephone line • Dial the number of the line where the S-BOX is connected • Wait for the box to answer • Wait 3 seconds until a beep is heard ...
- Page 19 The cabin alarm must be reinitiated by an end of alarm which can be triggered either locally or remotely. Until the cabin alarm is not reset (closed), the filtering function is shorted. 6.6.1 - Locally • A ) By pressing the green button • B ) Passage of a magnet close to the S-BOX Magnet passage zone ANEP S-BOX Modification N°...
- Page 20 This function is not possible if the telephone line of the BOX is outgoing only. After receiving the order to end the call, S-BOX generates a new call, the event label is “call end requested remotely”.
-
Page 21: Test Call Period
Alarm button recognition time (10 to 64 in 1/10 s) #303...# Module address (1 to 8) #305...# #4... Configuration #403...# Line voltage low ( > = 20V) #404...# Line voltage normal ( > = 28V) #405...# GSM enabled #405...# GSM disabled ANEP S-BOX Modification N° 2 29/11/2013 Page 21... - Page 22 NOTES ANEP S-BOX Modification N° 2 29/11/2013 Page 22...
- Page 23 NOTES ANEP S-BOX Modification N° 2 29/11/2013 Page 23...
- Page 24 PROG : ANEP S-BOX DATE : AFTER SALE S E RVIC E 4 bis rue de Paris 94470 Boissy-Saint-Léger Tel : +33 1 45 98 34 44 Fax : + 33 1 45 69 75 45 Website : www.anepanywhere.com www.anepanywhere.com...
