Cooper S800-64-1 Installation Instructions

OEM Equipment
Sectionalizing Switch
Installation Instructions
CONTENTS
GENERAL......................................................................1
ELECTRICAL RATINGS ...............................................1
INSTALLATION.............................................................2
Step 1 Mount Switch ...............................................2
Step 2 Lead Training ...............................................3
Step 3 Index Plate....................................................3
Step 4 Markings .......................................................4
OPERATING INSTRUCTIONS......................................4
CAUTION: Sectionalizing Switch should
!
be installed only by personnel familiar
with good safety practice and the handling of
high-voltage electrical equipment.
GENERAL
Cooper Power Systems' RTE
are used in underground residential applications with
loop feed, and in three-phase commercial industrial
installations where the ability to use an alternative source
of power is necessary. They can also be used to switch
on and off a primary cable tap on a transformer.
RTE sectionalizing switches rotate 360° in either
direction for alternate source selection. A spring-loaded
activating mechanism ensures quick loadbreak action
and positive contact engagement through all positions.
The under-oil switch can be installed near the
transformer core/coil assembly, thus minimizing cable
capacitance. With cable capacitance minimized and all
three phases switched simultaneously, the likelihood of
ferroresonance is greatly reduced. Sidewall or cover
mounted switches are hotstick operable and available in
six different blade configurations for one, two or three
pole connections.
ELECTRICAL RATINGS
TABLE 1
Voltage Ratings and Characteristics
Description
Standard Voltage Class
Maximum Rating Phase-to-Phase
Maximum Rating Phase-to-Ground
ac 60 Hz 1 Minute Withstand
BIL and Full Wave Crest
These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide
directions for meeting every contingency during installation, operation, or maintenance. When additional information is desired to
satisfy a problem not covered sufficiently for the user's purpose, please contact your Cooper Power Systems sales engineer.
January 1994 • New Issue • © 1993 Cooper Power Systems, Inc.
Printed in U.S.A.
®
sectionalizing switches
15 kV 25 kV 35 kV
15 25 35
15 25 35
8.3 15.2 21.1
34 40 50
95 125 150
S800-64-1
TANK WALL

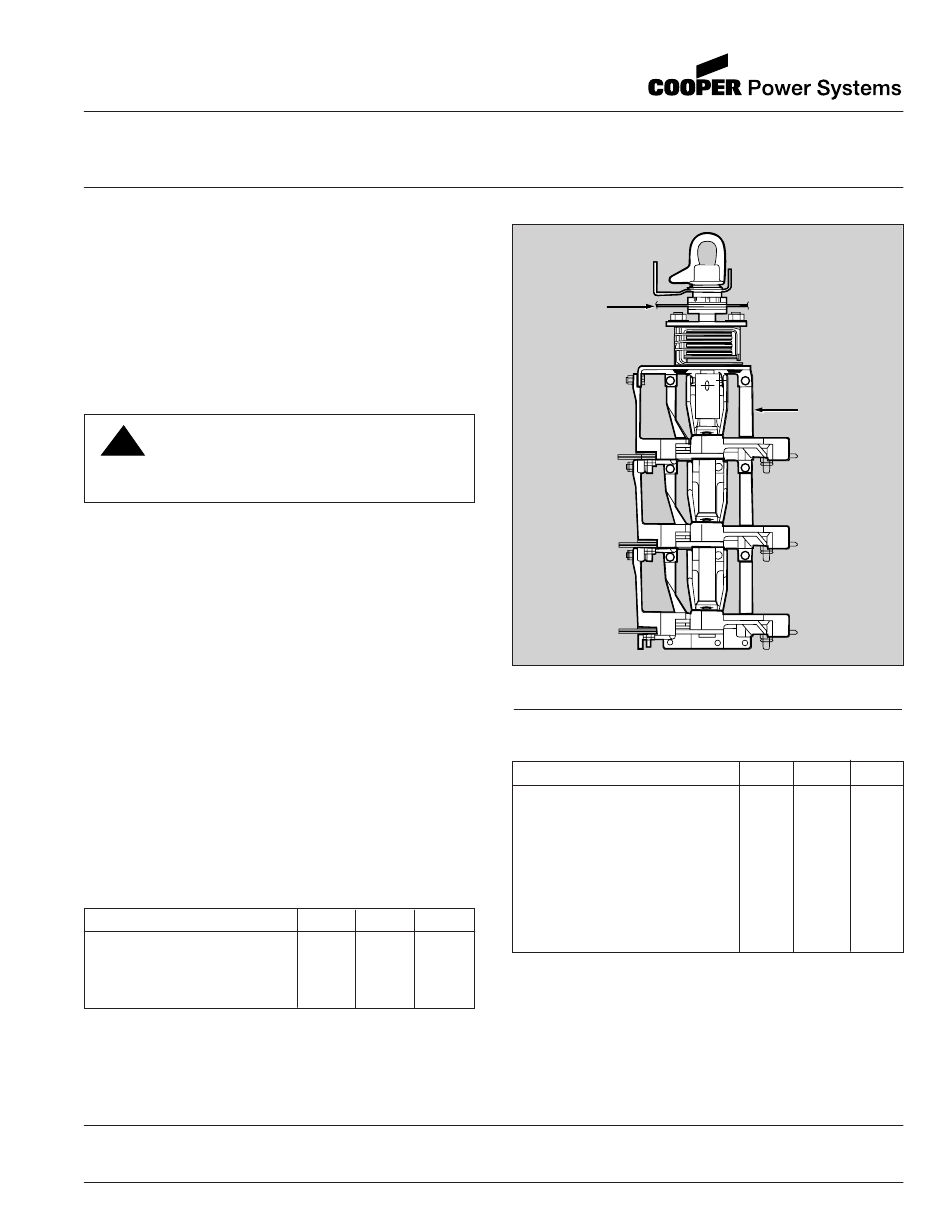

Figure 1.
Line illustration of Sectionalizing Switch.
TABLE 2
Current Ratings and Characteristics
Description
Continuous
Momentary, 10 Cyc. Symmetrical
Two Second, Symmetrical
3-Shot Make and Latch, Symmetrical
Loadbreak/Loadmake
20 operations
30 operations
10 operations
No. Mechanical Switching Operations
Loadbreak/Loadmake tested per ANSI/IEEE C37.71.
Service Information
SWITCH
15 kV 25 kV 35 kV
600 300 200
10,000 10,000 10,000
10,000 10,000 10,000
10,000 10,000 6,000
600 300 200
300 150 100
100 50 25
Over Over Over
1000 1000 1000
1
