Summary of Contents for InWin A1 PLUS

  • Page 1 User Manual...

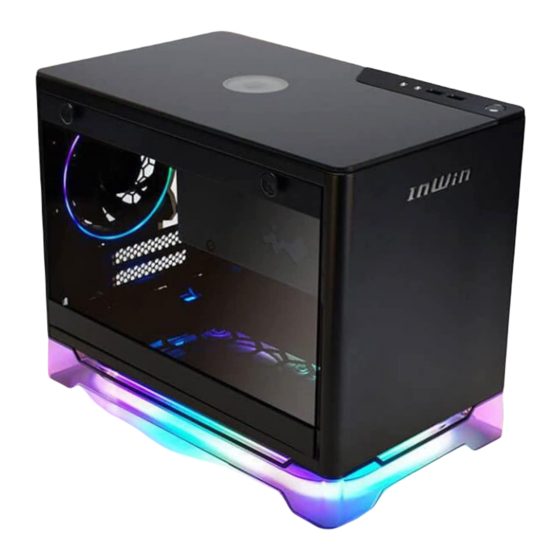

  • Page 2 Product Story The A1 PLUS offers upgrades to the beloved A1 chassis. The A1 PLUS retains its distinguished classy aesthetics with the return of quality materials such as: tempered glass, aluminium and steel. Minimalism never looked so exquisite! The A1 PLUS features addressable RGB lighting, that offers diversified color schemes by customizing...

  • Page 3: Specifications

    1 x 120mm Side Fan Compatibility 1 x 120mm Rear Fan / 120mm Radiator 2 x 120mm Bottom Fans Power Supply InWin 650W PSU Included ATX12V V2.4 Compatibility 273 x 224 x 357mm Product Dimensions (H x W x D) with screw &...
  • Page 4 Dimensions(L x W x H) 140 x 150 x 86 mm Warranty 5 Years Connectors Motherboard 24-pin CPU 4+4-pin PCIE 6+2 pin Peripherals SATA Floppy Power ■ InWin products comply with RoHS regulation. ■ Specifications may vary based on different regions.
  • Page 5 Air Flow 50 CFM Air Pressure 1.67mm/ H2O Connector 4-Pin Noise Level 27 dB(A) Max. Bearing Type Long Lifespan Sleeve Bearing Life Expectancy >30,000 hrs ■ InWin products comply with RoHS regulation. ■ Specifications may vary based on different regions.

  • Page 6: Package Content

    Package Content A1 PLUS Chassis InWin 650W 80PLUS Gold PSU InWin Sirius Loop fans x 2 Fan RGB One-Click Controller x 1 QR Code Card Accessory Bag...

  • Page 7: Accessories Bag

    Accessories Bag Hexagon Head Screws X 8 2.5” HDD Screws X 10 Graphic Card Holder X 1 Cable Ties X 5 Anti-Slip Strips X 4 LED 3-Pin Header X 3 Fan RGB One-Click Controller X 1...
  • Page 8 Case Structure Tempered Glass Logo SECC Front/ Side Panel Power Button HDD/Power LED indicator USB 3.0 Ports Audio Ports (Earphone and Microphone)
  • Page 9 a. 2.5 Drive Bay b. Side Fan Mounting Area c. Rear Fan/ Radiator Mounting Area d. Bottom Fan Mounting Area e. Motherboard Mounting Area f . CPU Cooler Installation Cut-Out Hole g. PCI-E Expansion Slot h. Extra PCI-E Supporting Mounting Hole i.

  • Page 10: Opening The Chassis

    Installation Guide Please follow the related chapters to assemble Opening the Chassis For the side panel, please pull the two tool-less tabs and lift up. Motherboard Installation Parts Required: Hexagon Head Screws Expansion Card Installation Parts Required: Hexagon Head Screws, Graphics Card Holder...
  • Page 11 I/O Wires Installation Switch/LED Connector Blue(P_LED) 1 2 Red (HDD) White(P_LED) 3 4 White (HDD) Brown(P_SW) 5 6 NC White(P_SW) 7 8 NC Key 9 10 NC...
  • Page 12 2.5” Drive Bays Installation Parts Required: 2.5” HDD Screws Fan/ Liquid Cooling Radiator Installation...
  • Page 13 Addressable RGB-Cable Installation If your motherboard supports the addressable RGB effect, please follow the direction of sign and connect as followed:  Connect the case’s addressable RGB Y-Cable to a motherboard’s addressable RGB header.  Please install the 3-pin header to the available addressable RGB header of the case. ...
  • Page 14 Two-Tone Ring LED-Blue Light at the end of the Tunnel LED-White Rotating LED Trio *InWin reserves the right to change the lighting modes. Anti-Slip Strips Installation Parts Require: Anti-Slip Strips Remove the strip covers and place them under each corner.

  • Page 15: Completing Installation

    Completing Installation Parts Required: Cable Ties...

  • Page 16: Warranty

    ■ Warranty * For more detailed warranty information, please visit the InWin retail website at www.in-win.com. * The actual product is subject to change without prior notice. InWin Development Inc. reserves the right to make final modifications.
  • Page 17 InWin IW-WT02 Wireless Charger User Manual...
  • Page 18 Specifications Input 5V/2A or 12V/1.8A Output Support Qi 5V/1A (OUTPUT:5V/2A), 7.5W / 10W Fast Charging (OUTPUT :12V/1.8A) Power Transfer Efficiency Product Dimensions (HxWxD) 72 x 49 x 8mm Warranty 1-year limited warranty (Effective date based on the purchasing date from consumers) User Guide 1.
  • Page 19 ■ Note to use 1. To avoid any computer and computer-related component damage, please use IW-WT02 on InWin approved products. 2. To indicate that the mobile device battery is at a full charge, the platform will continuously beep. To cease the beeping sounds, simply remove the device.
  • Page 20 Copyright © 2019 InWin Development Inc. All Rights Reserved.
