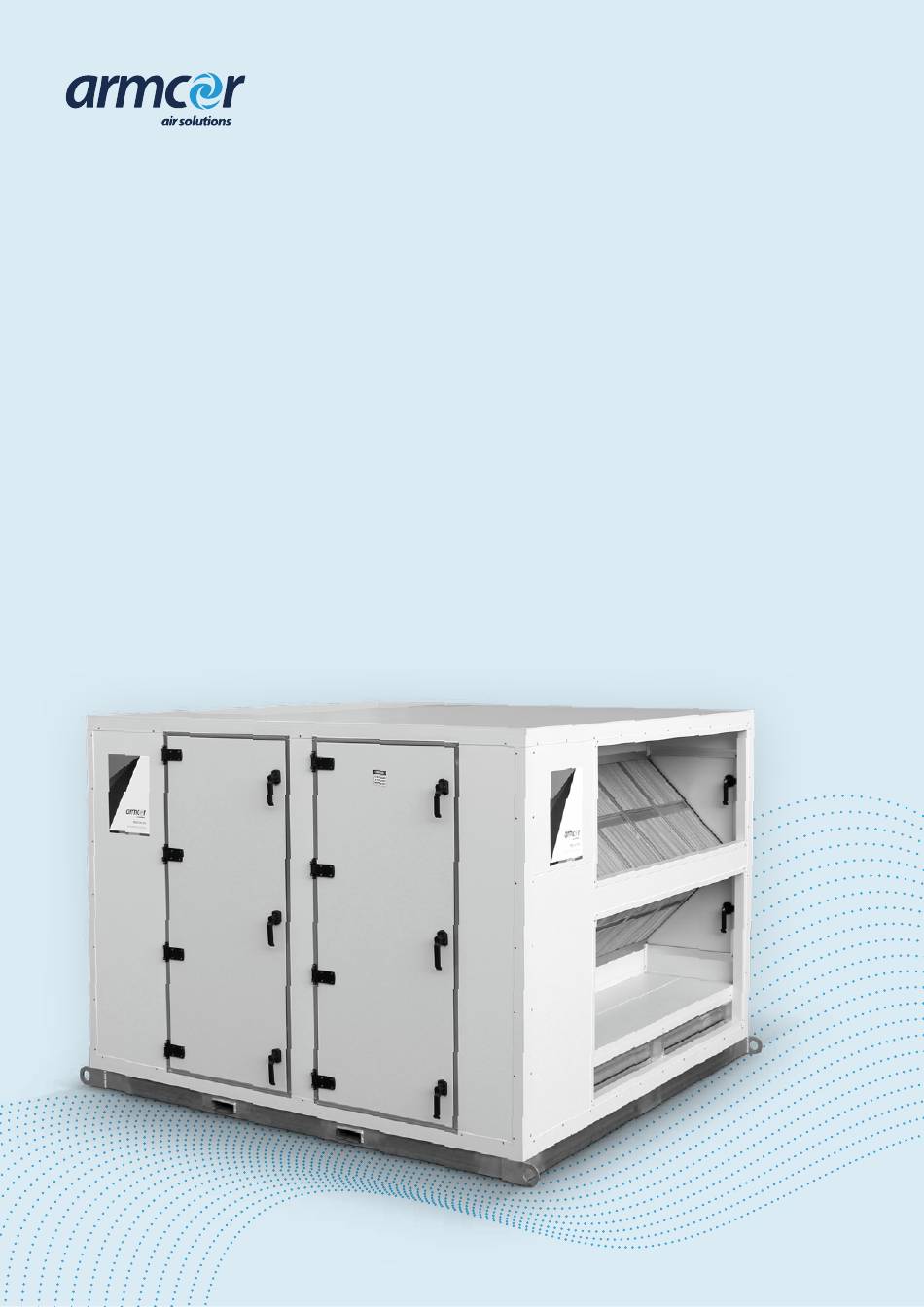

- Page 1 Installation and Operation Manual XEP – Packaged Airconditioning Unit XEP 500 – XEP 8000 Armcor XEP Installation Manual...
- Page 2 Fans, and the option of enthalpy or sensible heat exchange media. Every proposed installation must be subject to an engineered design by a mechanical services consultant. Armcor Air Solutions is not responsible for performance of equipment in applications for which the equipment was not designed or specified. Armcor XEP Installation Manual / 1.
- Page 3 Check with Armcor Air Solutions for any information required on this equipment. Danger Electrical shock can cause personal injury or death.
-
Page 4: Location Of Equipment
– Every proposed installation must be subject to an engineered design by a mechanical services consultant. Armcor Air Solutions is not responsible for installation of equipment in situations for which the equipment was not designed or specified. - Page 5 — When a drain is exposed to freezing temperatures or subject to the formation of condensation, the drain should be insulated. IMPORTANT: ALL UNITS LOCATED IN PLANT ROOMS MUST HAVE DRAIN TRAYS UNDER THE COMPLETE UNIT. Armcor XEP Installation Manual / 3. Location of Equipment...
-
Page 6: Installation Instructions
If damage is evident it should be noted on the freight docket and contact is to be made with the Armcor Air Solutions sales office. A claim should be lodged with the shipping company within 3 days if goods are damaged or incomplete. -
Page 7: Lifting With A Crane
Equipment is supplied with brackets to support the unit. — We recommend that all ceiling mounted units be suspended or supported with suitable mounting springs to eliminate the transmission of vibration. Armcor XEP Installation Manual / 4. Installation Instructions... -
Page 8: Equipment Connections
The unit should be situated as close as possible to the point of use to prevent unnecessary long runs of ductwork. — Sheetmetal ductwork is recommended for use with all Armcor Air Solutions equipment. — Ducts should be insulated in accordance with BCA Section J-5. - Page 9 SAA Wiring Rules. — All wiring is to be independently colour coded. — Single phase fan motors are internally protected and there is no need for external overloads. Armcor XEP Installation Manual / 5. Equipment Connections...
- Page 10 Exhaust Air Air discharged to outdoors. Fresh Air Use a fresh air cowl or grill to introduce fresh air. Supply Air Connect to the Airconditioning system or directly into the conditioned area. Armcor XEP Installation Manual / 6. Standard Equipment Layout...
- Page 11 Sight glass is not necessarily clear. Do not charge after the unit has stabilised. on sight glass with reverse cycle systems. Digital Compressor TX Valve Control Board All tx valves have adjustment for super heat settings. 8-11K is acceptable for r407c. Armcor XEP Installation Manual / 7. Features...
- Page 12 Do not remove compressor bracket, this bracket is Tighten all electrical connections before starting for transport and for the operation of the compressor. and commissioning unit. Pipe Clamps Tighten all pipe clamps before starting. These clamps may loosen in transport. Armcor XEP Installation Manual / 7. Features...
-
Page 13: Maintenance Schedule
— Preventative maintenance programs will vary according to actual operating conditions and location and hours of usage by the client. — Armcor Air Solutions are pleased to provide expert advice on special service maintenance requirements for particular installations. IMPORTANT: Failure to carry out regular maintenance with a licensed and reputable service company may render warranty claims invalid, if faults have been caused by lack of proper maintenance. - Page 14 — Check and record the available voltage and amperage of each phase. — Check and record the amperage of each motor against nameplate details. — Check and record refrigerant gas pressures (if applicable). Armcor XEP Installation Manual / 8. Maintenance Schedule...
-
Page 15: Warranty
– www.armcor.com.au. What The Warranty Policy Covers The standard Armcor warranty policy is a parts only warranty for a 12 month period. If any defect in your Armcor equipment is caused by FAULTY MATERIALS within the warranty period, starting from the date of original purchase it will be rectified or replaced without cost. -
Page 16: How To Make A Warranty Claim
The Warranty Will Not Apply If; — Any appliance plate is altered or removed. — Armcor Air Solutions has not be notified within 48 hours of any fault occurring which may require warranty work. — Any unauthorized modification has been made to the equipment or any part has be substituted or replaced with non-original items. -
Page 17: Pre-Start Checklist
Record all amp readings Superheat should be between 8-11°C on Cooling (R407C) Is superheat is high add refrigerant slowly using liquid into the suction line. Do not flood liquid into the suction line Armcor XEP Installation Manual / 10. Pre-start Checklist... -
Page 18: Commissioning Checklist
(where units are allowed beyond this length) Superheat setting (ºC) (refer Installation Instructions) Refrigerant Discharge Pressure on Cooling (kPa) Suction: Discharge: Refrigerant Pressure on Heating (kPa) Suction: Discharge: Refrigerant Leak Check Y / N Armcor XEP Installation Manual / 11. Commissioning Checklist... - Page 19 Fresh Air Indoors For more information : armcor.com.au : sales@armcor.com.au : (03) 8301 9200 109–111 Northcorp Blvd Broadmeadows Vic 3047...
