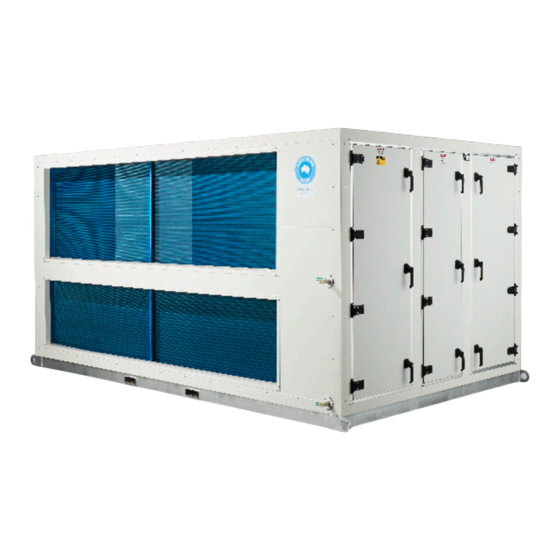

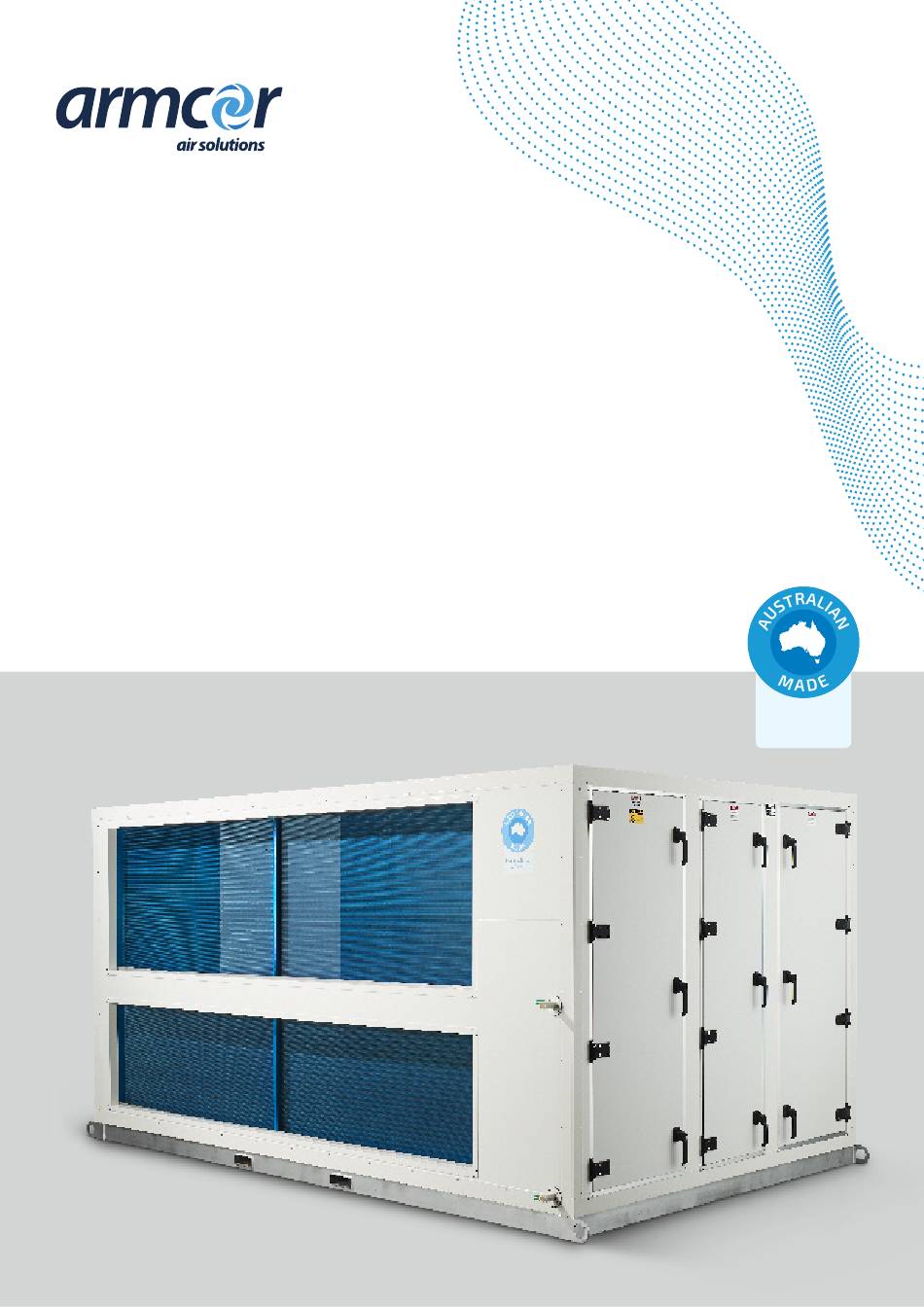

- Page 1 Installation and Operation Manual XEP – Packaged Airconditioning Unit XEP900 – XEP8000 Manufactured Manufactured by Armcor by Armcor...
-
Page 2: Table Of Contents
Contents Equipment Application Safety Location of Equipment Minimum Access Requirements for Maintenance Noise Levels Fresh Air Inlet and Exhaust Air Outlet Drainage Installation Instructions Unpacking and Inspection Unit Handling Lifting with a Crane Lifting with a Forklift Equipment Connections Ductwork Filters Electrical Requirements Mains Power Supply and Fusing... -
Page 3: Equipment Application
Every proposed installation must be subject to an engineered design by a mechanical services consultant. Armcor Air Solutions is not responsible for performance of equipment in applications for which the equipment was not designed or specified. XEP – Packaged Airconditioning Unit Installation and Operation Manual 2021... -
Page 4: Safety
Check with Armcor Air Solutions for any information required on this equipment. DANGER Electrical shock can cause personal injury or death. -
Page 5: Location Of Equipment
• Every proposed installation must be subject to an engineered design by a mechanical services consultant. Armcor Air Solutions is not responsible Drainage for installation of equipment in situations for which the equipment was not designed or specified. -
Page 6: Installation Instructions
If damage is evident, it should be noted on the freight • Wear safety goggles, work gloves, work boots and docket and contact is to be made with the Armcor protective clothing. Air Solutions sales office. A claim should be lodged •... -
Page 7: Equipment Connections
(available at levels. The unit should be situated as close as armcor.com.au) and are on the identification/serial possible to the point of use to prevent unnecessary number plate attached to each unit. -
Page 8: Standard Equipment Layout
Standard Equipment Layout Condensor Make-Up Air Exhaust & Condensor Air Fresh Air Supply Air Return Air Return Air Air that is drawn from conditioned area. Exhaust Air Air discharged to outdoors. Fresh Air Use a fresh air cowl or grill to introduce fresh air. Supply Air Connect to the airconditioning system or directly into the conditioned area. -
Page 9: Features
Features Oil Sight Glass TX Valve Oil should be visible during operation after the unit has All TX valves have adjustment for super heat settings. stabilised. 8-11K is acceptable for r407c. Compressor Filter Dryer (Biflow type) Control Board Must be replaced if the system is opened. XEP –... - Page 10 Drip Tray Drains Compressor Bracket All drains should be trapped externally Do not remove compressor bracket, this bracket is for to the unit. transport and for the operation of the compressor. Electrical Connection Pipe Clamps Tighten all electrical connections before starting and Tighten all pipe clamps before starting.
-
Page 11: General Maintenance
• Armcor Air Solutions are pleased to provide expert • Cleanable Filters. advice on special service maintenance requirements If filters are cleanable, they should be cleaned once a for particular installations. -
Page 12: Warranty
Warranty The Armcor Air Solutions Warranty Policy should be read in conjunction with the Terms and Conditions of Sale. These are available on our website armcor.com.au What The Warranty Policy Covers Solutions outside of Melbourne metro area will require the installing contractor to provide free of... -
Page 13: Pre-Start Checklist
Pre-start Checklist Unit Installation and Connections Check that equipment is fully installed in accordance with the installation instructions Visually check that air flows will not be obstructed Electrical Visually check all field wiring Tighten all electrical connections including all factory wiring connections Ensure supply cable is the correct size Check that required supply voltage is available on all phases Check overload settings are correct (if applicable) -
Page 14: Commissioning Checklist
Commissioning Checklist General Air Filters: Overall Size and Number Drainpipe Traps and Vents fitted to Indoor Unit as per Installation Instructions Y / N Drain is Clearing Water Properly Y / N Check Vibration of Unit OK / EXCESSIVE Paint Finish Checked and Repaired Y / N Ducting Total Return Air Flow (Total of all inlets) (L/s) - Page 15 Notes ........................................................................................................................................................................................................................................................XEP – Packaged Airconditioning Unit Installation and Operation Manual 2021...
- Page 16 E: sales@armcor.com.au P: (03) 8301 9200 109–111 Northcorp Blvd Broadmeadows Vic 3047 © 2023 Armcor Air Solutions reserves the right to alter products and specifications without notice and does not accept responsibility for possible errors and omissions in published documentation.
