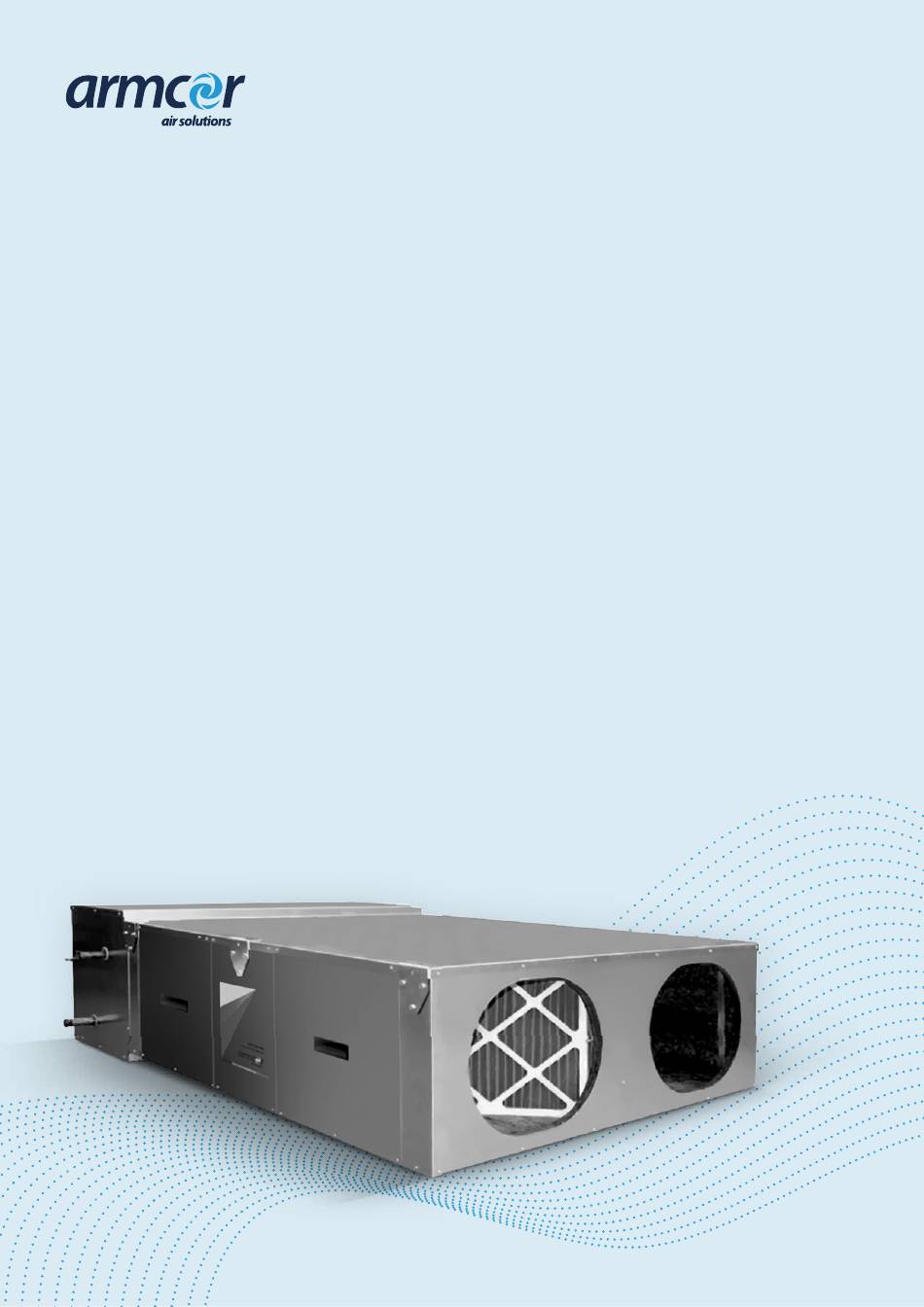

- Page 1 Installation and Operation Manual XCC – Ceiling Mount Fan Coil Unit XCC 300 – XCC 1200 Armcor XCC Installation Manual...
- Page 2 Equipment Application The XCC series is a low profile heat recovery unit with the addition of an add-on-coil. Designed for installation in a roof space, these ERV units utilize the Xchange plate heat exchanger with either enthalpy or sensible media. This series is available with hot water, chilled water or DX coils which are designed to match with standard commercially available condensors.
- Page 3 Check with Armcor Air Solutions for any information required on this equipment. Danger Electrical shock can cause personal injury or death.
- Page 4 — The fresh air inlet and exhaust air outlet should be fitted with a cowl or other suitable means of weatherproofing. — The exhaust discharge should be directed away from any openable windows. Armcor XCC Installation Manual / 3. Location of Equipment...
- Page 5 — When a drain is exposed to freezing temperatures or subject to the formation of condensation, the drain should be insulated. IMPORTANT: ALL UNITS LOCATED IN PLANT ROOMS MUST HAVE DRAIN TRAYS UNDER THE COMPLETE UNIT. Armcor XCC Installation Manual / 3. Location of Equipment...
- Page 6 If damage is evident it should be noted on the freight docket and contact is to be made with the Armcor Air Solutions sales office. A claim should be lodged with the shipping company within 3 days if goods are damaged or incomplete.
- Page 7 Equipment is supplied with brackets to support the unit. — We recommend that all ceiling mounted units be suspended or supported with suitable mounting springs to eliminate the transmission of vibration. Armcor XCC Installation Manual / 4. Installation Instructions...
- Page 8 The unit should be situated as close as possible to the point of use to prevent unnecessary long runs of ductwork. — Sheetmetal ductwork is recommended for use with all Armcor Air Solutions equipment. — Ducts should be insulated in accordance with BCA Section J-5.
- Page 9 SAA Wiring Rules. — All wiring is to be independently colour coded. — Single phase fan motors are internally protected and there is no need for external overloads. Armcor XCC Installation Manual / 5. Equipment Connections...
- Page 10 Exhaust Air Ducted to outside the building or into the roof space if adequate ventilation is available. Fresh Air Use a fresh air cowl or grill to introduce fresh air. Supply Air Connect to the Airconditioning system or directly into the conditioned area. Armcor XCC Installation Manual / 6. Equipment Layout...
- Page 11 Filter and Fan Access Armcor XCC Installation Manual / 6. Equipment Layout...
- Page 12 — Preventative maintenance programs will vary according to actual operating conditions and location and hours of usage by the client. — Armcor Air Solutions are pleased to provide expert advice on special service maintenance requirements for particular installations. IMPORTANT: Failure to carry out regular maintenance with a licensed and reputable service company may render warranty claims invalid, if faults have been caused by lack of proper maintenance.
- Page 13 — Check and record the available voltage and amperage of each phase. — Check and record the amperage of each motor against nameplate details. — Check and record refrigerant gas pressures (if applicable). Armcor XCC Installation Manual / 7. Maintenance Schedule...
- Page 14 – www.armcor.com.au. What The Warranty Policy Covers The standard Armcor warranty policy is a parts only warranty for a 12 month period. If any defect in your Armcor equipment is caused by FAULTY MATERIALS within the warranty period, starting from the date of original purchase it will be rectified or replaced without cost.
- Page 15 The Warranty Will Not Apply If; — Any appliance plate is altered or removed. — Armcor Air Solutions has not be notified within 48 hours of any fault occurring which may require warranty work. — Any unauthorized modification has been made to the equipment or any part has be substituted or replaced with non-original items.
- Page 16 Turn on supply fan, run and conduct an air balance (Fans do not require phase rotation) Turn on exhaust fan, run and conduct an air balance Check fan current draw for each fan individually Armcor XCC Installation Manual / 9. Pre-start Checklist...
- Page 17 Exhaust Fan Motor Amps Total Unit Amp Thermostat Settings (ºC) Thermostat Operating Correctly Y / N Contactors & Relays Operating Correctly Y / N All Terminals Checked for Tightness and Label signed Y / N Armcor XCC Installation Manual / 10. Commissioning Checklist...
- Page 18 Earth leakage or over Meggar and replace as heating cables due to necessary high load Power fluctuations Contact electricity supplier Lack Of Air Flow Blocked filters Clean or replace filters Fans stopped Check electrical Armcor XCC Installation Manual / 11. Trouble Shooting Guide...
