EM TEST VDS 200 Series Manual For Operation

the benchmark for emc

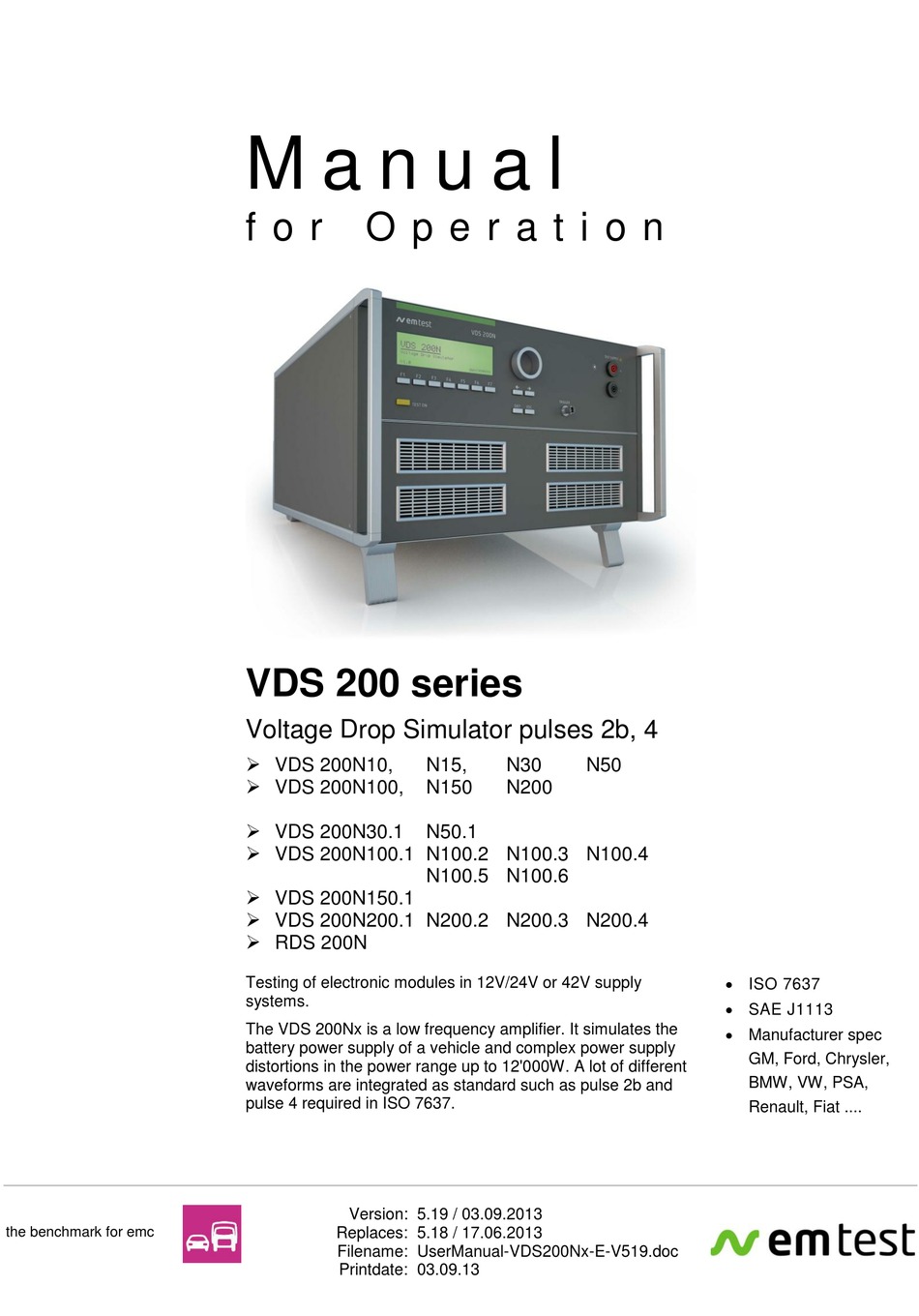

M a n u a l
f o r O p e r a t i o n
VDS 200 series
Voltage Drop Simulator pulses 2b, 4
 VDS 200N10,
 VDS 200N100,
 VDS 200N30.1
 VDS 200N100.1 N100.2 N100.3 N100.4
 VDS 200N150.1
 VDS 200N200.1 N200.2 N200.3 N200.4
 RDS 200N
Testing of electronic modules in 12V/24V or 42V supply
systems.
The VDS 200Nx is a low frequency amplifier. It simulates the
battery power supply of a vehicle and complex power supply
distortions in the power range up to 12'000W. A lot of different
waveforms are integrated as standard such as pulse 2b and
pulse 4 required in ISO 7637.
Version: 5.19 / 03.09.2013
Replaces: 5.18 / 17.06.2013
Filename: UserManual-VDS200Nx-E-V519.doc
Printdate: 03.09.13
N15, N30 N50
N150 N200
N50.1
N100.5 N100.6
 ISO 7637
 SAE J1113
 Manufacturer spec
GM, Ford, Chrysler,
BMW, VW, PSA,
Renault, Fiat ....
