Function description

1.2 Block diagram

1.3 Used signals

With each function module, the "Pulse counter" function uses four inputs (A to D) and one output (H).
Signal
name
Counter0_x+/-
Counter1_x+/-
Counter2_x+/-
Counter3_x+/-
DigOut0_x
x = Number of the function module (0-3)
* 24 V with 24 V board version
www.addi-data.com

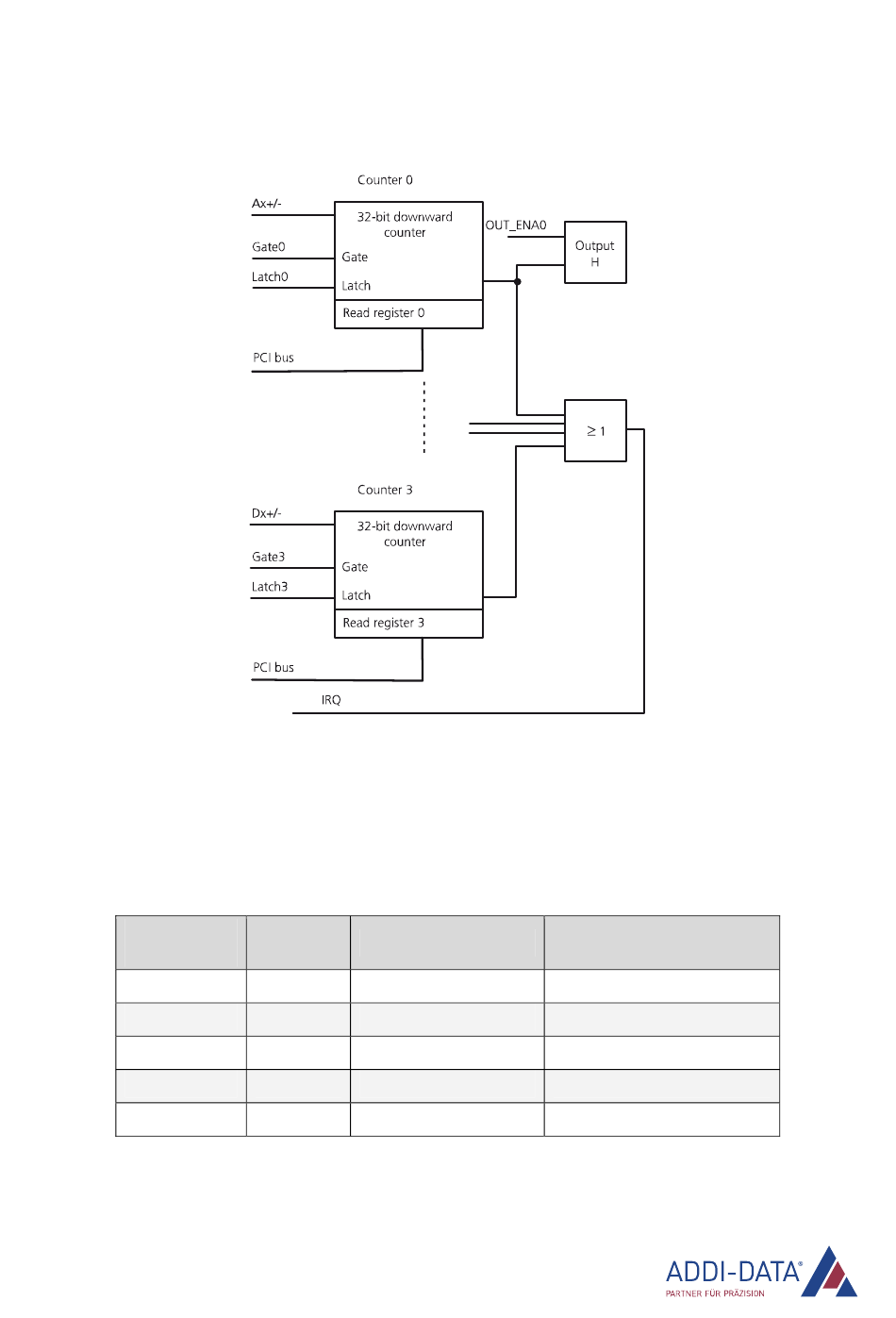

Fig. 1-1: Block diagram: "Pulse counter" function

Table 1-1: Used signals

Pin name Signal type
Ax+/- Differential/TTL/24 V*
Bx+/- Differential/TTL/24 V*
Cx+/- Differential/TTL/24 V*
Dx+/- Differential/TTL/24 V*
Hx 24 V / optional 5 V
Counter 0 input
Counter 1 input
Counter 2 input
Counter 3 input
Digital output of counter 0
7
PCI-1710: Pulse counter
Function
