Positioning the Projector and a Screen

The installation distance between the projector and a screen varies depending on the size
of the screen.
1

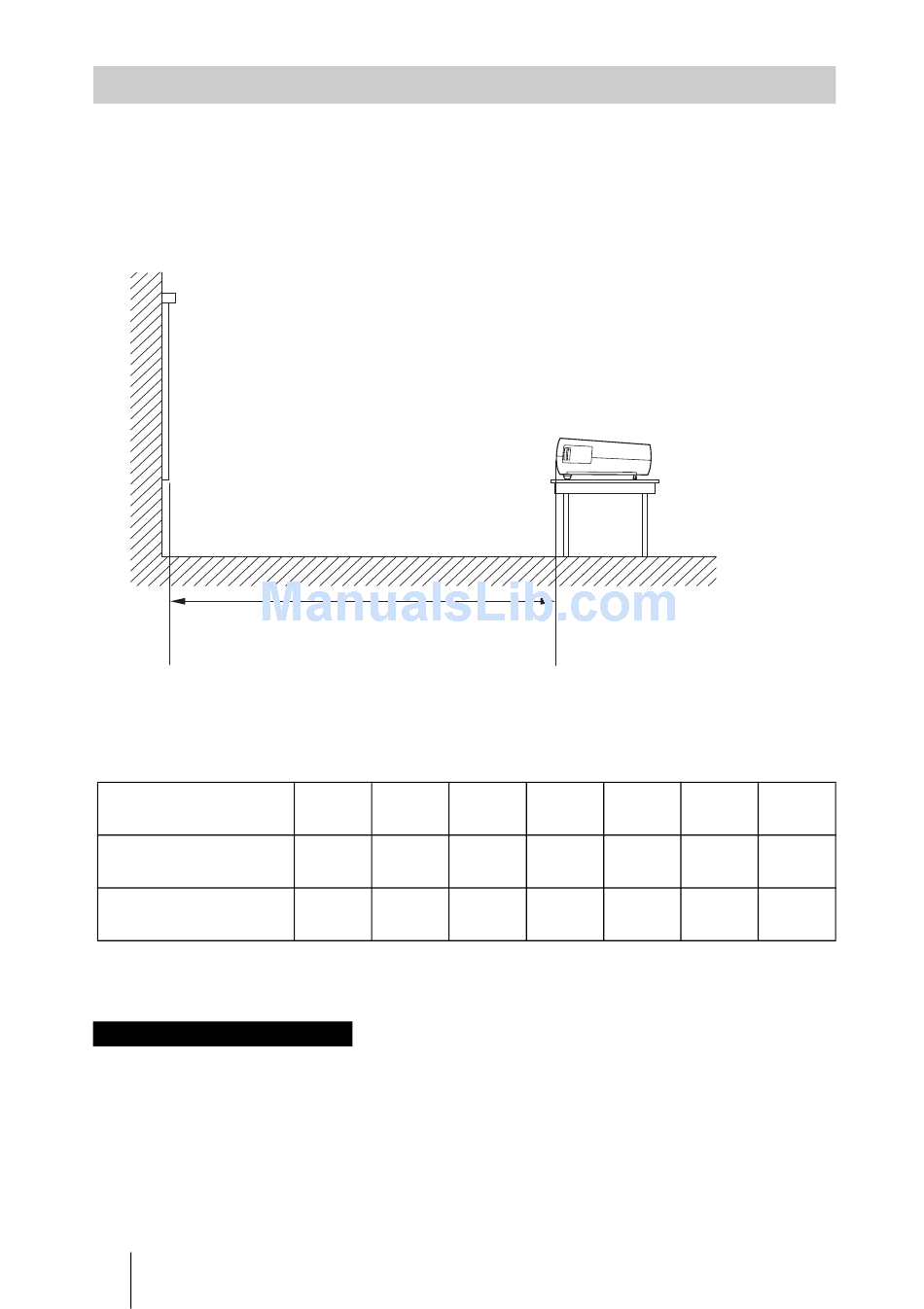

Determine the installation position of the projector and screen.
Side view
Screen
Distance between the screen and
the center of the lens
* Adjuster not stretched, and the V Keystone function has been done.
When "Wide Mode" in the INPUT SETTING menu is set to "Full 2"
Projected image size
(diagonal) (inches)
Minimum Distance
Maximum Distance
There may be a slight difference between the actual value and the design value shown in
the table above.
Notes on Wide Mode settings
• When "Wide Mode" in the INPUT SETTING menu is set to the mode other than "Full 2", black
bands may appear at the top and bottom or right and left of the screen.
• When "Wide Mode" in the INPUT SETTING menu is set to "4:3", the projected image size
(diagonal) will be approximately 88 % of "Full 2" size.
• When "Wide Mode" in the INPUT SETTING menu is set to "16:9", the projected image size
(diagonal) will be approximately 97 % of "Full 2" size.
For details on installation, see "Installation Diagram" on page 56.
16
40 80 100
1.2 2.5 3.1
(3.9) (8.2) (10.2)
1.5 2.9 3.7
(4.9) (9.5) (12.1)
150 200 250
4.6 6.2 7.7
(15.1) (20.3) (25.3)
5.6 7.4 9.3
(18.4) (24.3) (30.5)
Unit: m (feet)
300
9.3
(30.5)
11.1
(36.4)
