Operating Manual
SERIES GMIX1A
Magnetic Incremental Linear Encoder with adjustable Resolution
5 different resolutions up to 0.01 mm selectable
LED and signal output for speed monitoring (in compliance
with the prescribed max. 25 m/min for panel saws)
Output level switchable (HTL push/pull or TTL line driver)
Speed proportional square wave signal outputs
External metal box for evaluation and settings
Status LED for each channel (A, B and Z)
Small sensor with IP67 protection class
Advertisement
Table of Contents
Related Manuals for ELGO Electronic GMIX1A Series
Summary of Contents for ELGO Electronic GMIX1A Series

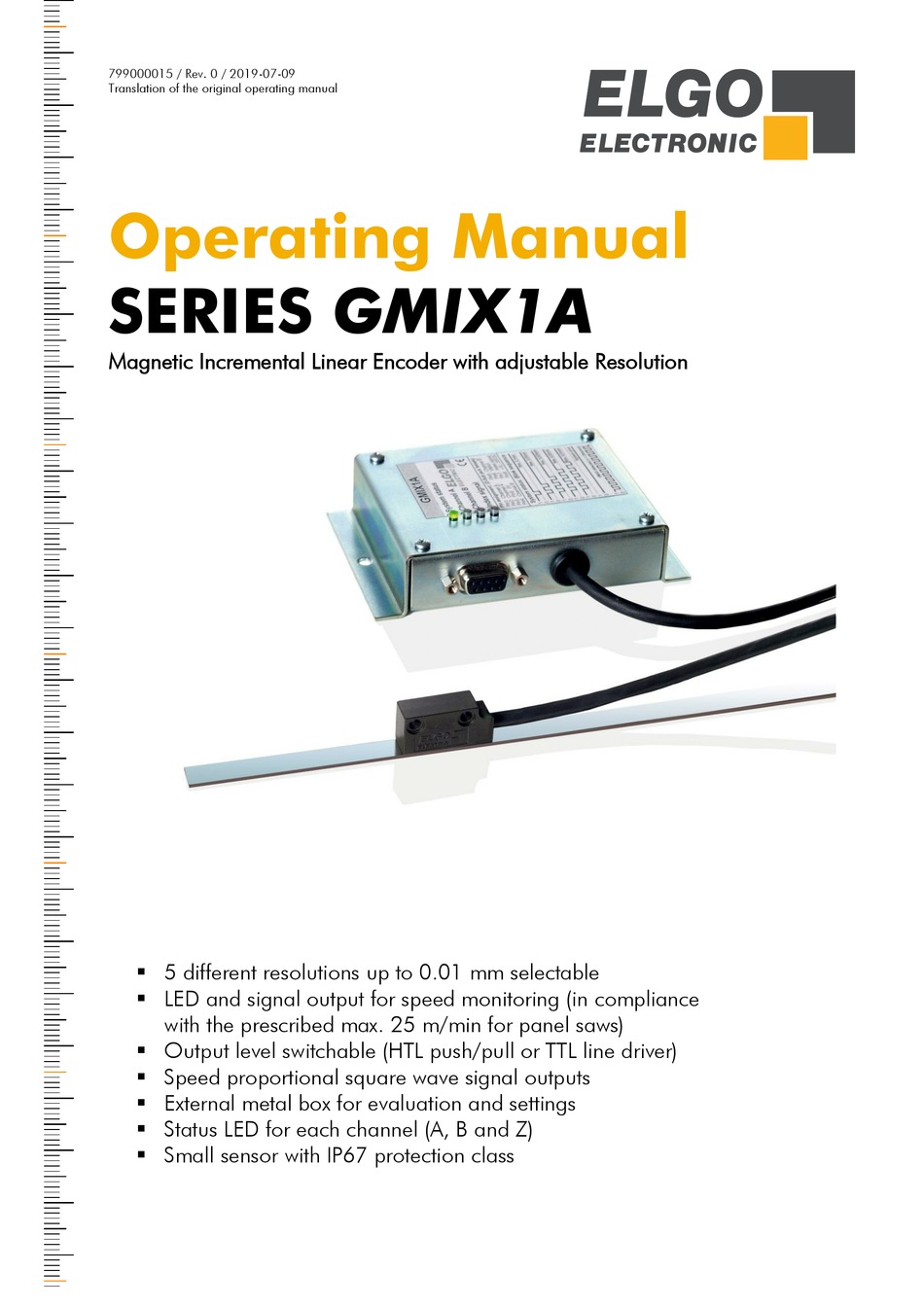

- Page 1 799000015 / Rev. 0 / 2019-07-09 Translation of the original operating manual Operating Manual SERIES GMIX1A Magnetic Incremental Linear Encoder with adjustable Resolution 5 different resolutions up to 0.01 mm selectable LED and signal output for speed monitoring (in compliance with the prescribed max.
- Page 2 +49 (0) 7731 9339 - 0 +49 (0) 7731 2 88 03 info@elgo.de Document- No. 799000015 Document- Name GMIX1A-000-MA-E_28-19 Document- Revision Rev. 0 Issue Date 2019-07-09 Copyright © 2019, ELGO Electronic GmbH & Co. KG - 2 -...
-
Page 3: Table Of Contents
Contents 1 Contents Contents ..................... 3 List of Figures ..................4 List of Tables ..................4 General, Safety, Transport and Storage ........... 5 Information Operating Manual ................5 Explanation of Symbols ..................5 Statement of Warranties ..................5 Demounting and Disposal ..................6 General Causes of Risk .................. -
Page 4: List Of Figures
Contents Disturbances, Maintenance, Cleaning ..........20 Fault Clearance ....................20 Re-start after Fault Clearance ................20 Maintenance ....................20 Cleaning ......................20 Type Designation ................21 10.1 Accessories ...................... 21 Index ....................23 2 List of Figures Figure 1: GMIX1A ............................ 8 Figure 2: Magnetic Tape ........................... -
Page 5: General, Safety, Transport And Storage
General, Safety, Transport and Storage 4 General, Safety, Transport and Storage 4.1 Information Operating Manual This manual contains important information regarding the handling of the device. For your own safety and operational safety, please ob- serve all safety warnings and instructions. Precondition for safe operation is the compliance with the specified safety and handling instruc- tions. -
Page 6: Demounting And Disposal
General, Safety, Transport and Storage Demounting and Disposal Unless acceptance and disposal of returned goods are agreed upon, demount the device considering the safety instructions of this manual and dispose it with respect to the environment. Before demounting, disconnect the power supply and secure against re-start. Then disconnect the supply lines physically and discharge remaining energy. -
Page 7: Conventional Use
General, Safety, Transport and Storage Conventional Use The ELGO-device is only conceived for the conventional use described in this manual. The magnetic linear encoder GMIX1A only serves to measure lengths. CAUTION! Danger through non-conventional use! Non-intended use and non-observance of this operating manual can lead to dangerous situations. Therefore: Only use the device as described ... -
Page 8: Product Features
Product Features 5 Product Features The GMIX1A is a magnetic, incremental linear encoder for meas- urement of lengths and distances. The evaluation electronics are housed in a separate box where the square wave output signals are indicated via LEDs. Another LED is used to indicate the operat- ing status. -
Page 9: Technical Data
Technical Data 6 Technical Data Identification The type label serves for the identification of the unit. It is located on the housing of the device and indicates the exact type designation (=order reference 10) with the corresponding part number. Furthermore, the type label contains a unique, traceable device number. -
Page 10: Technical Data Sensor
Technical Data Technical Data Sensor GMIX1A (standard version) Mechanical Data Measuring principle incremental Repeat accuracy ± 1 Increment System accuracy at 20°C ±(25 + 20 x L), L = measuring length in meter Distance sensor - magnetic tape 1.5 mm Housing material sensor head: zinc die cast... -
Page 11: Technical Data Magnetic Tape
Technical Data Technical Data Magnetic Tape The magnetic tape consists of two components: The actual magnetic tape which carries the position information A mechanical stainless steel back iron Magnetic Tape MB20-50-10-1-R Coding incremental, single track system Pole pitch 5 mm Operation temperature installed −20 …... -
Page 12: Installation And First Start-Up
Installation and First Start-Up 7 Installation and First Start-Up CAUTION Please read the operating manual carefully before using the device! Strictly observe the Installation instructions! In case of damage caused by failure to observe this operating manual, the warranty expires. ELGO is not liable for any secondary damage and for damage to persons, property or assets. -
Page 13: Mounting The Evaluation Box
Installation and First Start-Up Mounting the Evaluation Box The evaluation box has two lateral Ø 4.5 mm mounting holes for mounting the housing on a surface with two M4 screws. The drilling distance is 106 mm. see also section 6.3 Dimensions of Evaluation Box ... -
Page 14: Installation Of The Magnetic Tape
Installation and First Start-Up Installation of the Magnetic Tape NOTE: External Magnetic Fields The magnetic tape must not be influenced by external magnetic fields! The magnetic tape must not come into direct contact with other magnetic fields (e.g. permanent magnets, mag- netic clamps, electromagnets, magnetic stands)! This may cause irreparable damage, which will compromise the measuring accuracy or even the functioning. -
Page 15: Figure 8: Handling
Installation and First Start-Up 7.4.2 Handling In order to avoid tension in the tape, it must not be stretched, compressed or twisted. It should be stored with the magnetized plastic tape to the outside. The minimum bending radius is 150 mm. Magnetized plastic tape Steel tape... -
Page 16: Table 2: Resistance Against Chemical Influence
Installation and First Start-Up The tape must be glued smoothly on the surface. The measuring accuracy decreases if the tape is not even! Before gluing the magnetic tape and the cover tape onto the surface, they should be left lying on the mounting surface for ca. -
Page 17: Design And Functions
Design and Functions 8 Design and Functions DIL Switch Settings DIL switch In order to make settings or changes, the cover of the evaluation box must be removed. To do this, loosen the four Phillips screws on the upper side and then remove the housing cover. -
Page 18: Signal Leds
Design and Functions Signal LEDs The LEDs on the evaluation box have the following functions: Table 7: Signal LEDs Green Flashing sequences see section 8.2.1 ON if signal output channel A ON if signal output channel B ... -
Page 19: Connections
Design and Functions Connections On the housing of the evaluation box there is a female 9-pin D-SUB connector for the connections of the GMIX1A. The pin assignment for the matching (male) D-SUB counterpart is shown in the following table: Table 8: Pin assignment D-SUB connector Connector type Drawing Function... -
Page 20: Disturbances, Maintenance, Cleaning
Disturbances, Maintenance, Cleaning 9 Disturbances, Maintenance, Cleaning This chapter describes possible causes for disturbances and measures for their removal. In case of increased disturbances, please follow the measures for fault clearance in chapter 9.1. In case of disturbances that cannot be eliminated by following the advice and the fault clear- ance measures given here, please contact the manufacturer (see second page). -
Page 21: Type Designation
Type Designation 10 Type Designation GMIX1A 01.5 Series/Type: GMIX1A - Magnetic Linear Encoder Version: = standard version = 1. special version = 2. special version etc. Signal cable length: 01.5 = 1.5 m (standard length) others on request Resolution: = 0.1 mm = 0.05 mm = 0.025 mm = 0.02 mm... - Page 22 Notes: - 22 -...
-
Page 23: Index
