Alpha Technologies Blue Gate A Brave Installation Manual

Gsm gate
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
G
S
M
G
A T E
Blue Gate A
Brave
Installation guide V 2.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blue Gate A Brave and is the answer not in the manual?

Questions and answers

Related Manuals for Alpha Technologies Blue Gate A Brave

Summary of Contents for Alpha Technologies Blue Gate A Brave

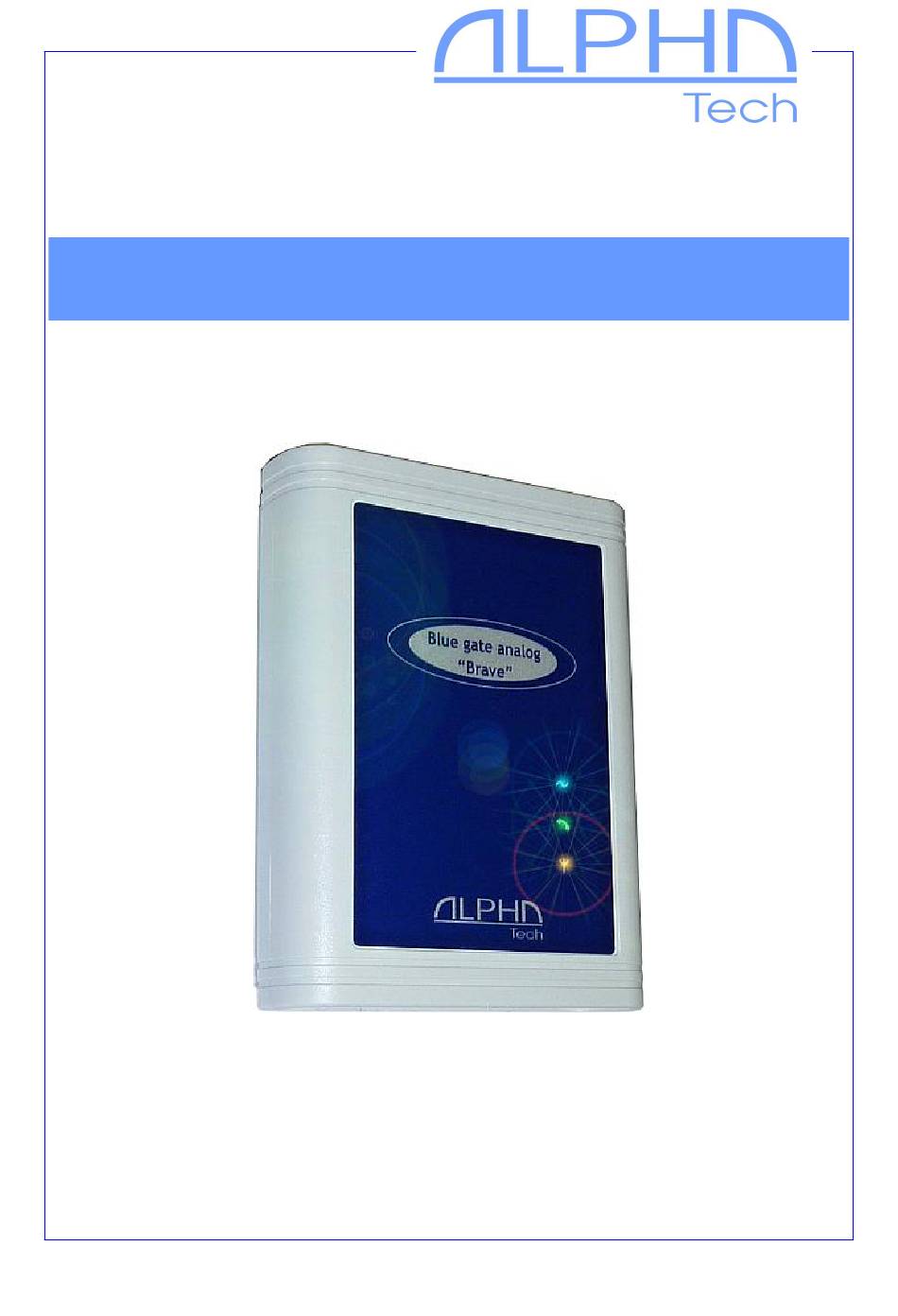

  • Page 1 A T E Blue Gate A Brave Installation guide V 2.5...

  • Page 2: Basic Features

    Basic features: Blue Gate A Brave is GSM Gate based on Telit GL865 equipped by a lot of adjustable features increased comfort of service. been designed network 850/900/1800/1900Mhz.  Polarity reversal of telephone line allows exact detection of start and end of call.
  • Page 3 INSTALLATION antenna telephone line Power supply USB option telephone line MiniUSB...

  • Page 4: Quality Of Gsm Signal

    Insert the SIM card up the picture and by press fix it in operation position. Before inserting the SIM card we recommend checking at various mobile phone state of the SIM card (logging with or without PIN, PIN, etc.) and set logging without PIN.

  • Page 5: Connection Of Antenna

    Connection of antenna When you connect magnetic antenna keep on mounting at bigger iron subject. This subject makes „against-weight“ at its depends the power of radiated signal When you inserted SIM card as same as all cables are connected (do not forget that Blue gate is connected on external line not on extension) connect device to main 230V.
  • Page 6 requires PIN, which is not preprogrammed or is preprogrammed wrongly.  The LED „communication to GSM„ is flash shortly one for 2 sec. After calling to BlueGate you are hearing busy tone. BlueGate is not log into GSM network – bad signal. ...
  • Page 7 You can purchase USB tool for PC configuration of the unit. It is optional. This tool is connected via 6 wire cable to the units in middle of phone line. (via picture on page 2). You can control GSM modul directly via virtual COM port. The Gate you can further use ordinary GSM modem for data transmission, internet connection or for SMS messages.
  • Page 8 CONFIGURATION The programming mode is set after acknowledgement dialing to Blue Gate.In the analogue phone is waiting tone. After password inserting is tone changing to programming tone. Then you can programming each features of Blue Gate (via table of programming) Progress of programming: ...
  • Page 9 Notes to each parametres: 11 - 19 When you programm some prefixes the BlueGate A Bravellows outgoing calls starts by those prefixes only. The others will get busy tone. When memories will be empty the calling wont be restricted (default). Memory of prefixes can content 1 digit only.
  • Page 10 into any mobile phone or by software GGset (folder "Phone Book") Notes: Changes are valid after hang up only (finishing of  programming mode). It is very important especially in acknowledge character changes- till hang up you must use previous acknowledgement. After numbers dialing you must wait for confirming ...
  • Page 11 Table of programming    0 0 n n n n Password nnnn to programming mode access 0 0 0 0 1 1 n n n n Memory x for permitted fix number (1 to 4 digits) 1 2 n n n n 1 3 n n n n 1 4 n n n n 1 5 n n n n...
  • Page 12 7 1 x x y y Xx= 00 No charging pulses Xx= 12 12 kHz charging pulses Xx= 16 16 kHz charging pulses Yy= 00 1 pulse only at the moment of connection Yy= 01 to 99 seconds. Pulses each 01 up 99 seconds 7 2 n Amplification of sound in incoming direction (1 to 4) 7 3 n...
  • Page 13 Table of tones   Dial tone (up setting)    Busy tone – short tone repeated   Ringing tone – long tone and pause repeated   Waiting tone – short tone repated with quick cadence.  ...

  • Page 14: Led Signalling

    LED signalling Permanent light    Permanent light   Doesnt light  Flashing in rhytm of busy  tone  Flashing in rhytm of busy tone    1- 5 flashes with period 4 sec.   ...
  • Page 15 ACU pack installation Backup battery 9.6 V/800mAh 1. Open Gateway cabinet 2. Remove cover of glue tape at bottom part of ACU pack...
  • Page 16 3. Fix the ACU pack into Gateway cabinet. CAUTION for holes for signalling LEDs! DO NOT COVER! 4. Rechargeable batteries may not be delivered in a charged state. Start the gateway first and wait for network log in. Then connect cable from ACU pack to appropriate connector..

  • Page 17: Technical Parametres

    Technical parametres: Type BlueGate A Brave Operating position various Operating conditions temperature: -20 C ÷ +40 C, humidity: 10% ÷ 80% at 30 C Dimensions (mm) 100mm x 130mm × 37mm Weight Part of power supply Power supply ( adapter) 8-12VAC/DC, 500mA Protection thermal fuse in adapter Safety group...
  • Page 18 Functionality:  Waiting for dial after pick up 1 - 99 sec or unlimited - If set 1, service Direct Call (Baby Call)  Waiting for last digit of dial 1 - 15 sec  Dial after preprogrammed number of digits 1 - 19 ...
  • Page 19 Alphatech spol. s r.o. Jeremenkova 88 140 00 Praha 4 tel. 272 103 335, fax. 272 103 334 e-mail: alphatech@alphatech.cz internet: http://www.alphatech.cz naše souřadnice GPS (WGS 84) N 500235.5 E 142542.0 21.4.2017...
