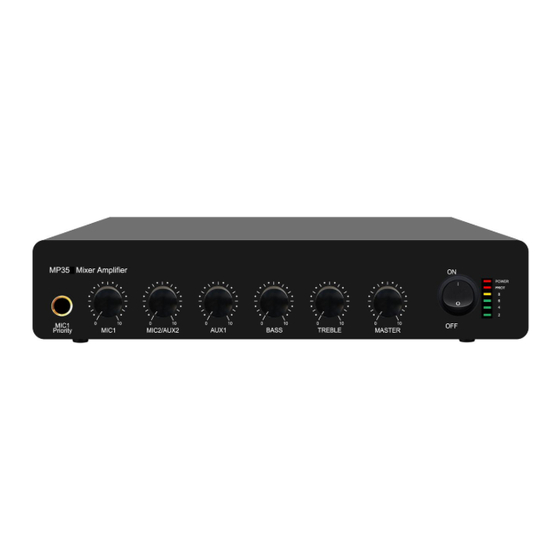

- Page 1 Public Address System Mini Mixer Amplifier MP35 MP60 User’s Manual For the better use of this product, please read this instruction carefully prior to use.
- Page 2 About the User’s Manual This User Manual is available and effective upon completion of development of the mixer amplifier MP35/MP60. The User’s Manual includes system description, things needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center. Please read this User’s Manual carefully before any connection, installation and use, and operate in...
-
Page 3: Product Description
1. Product Description 1.1 Introduction MP35/MP60 is a small mixer amplifier, compact, cost-effective. Suitable for small-sized broadcast system, the background music in supermarket, and public address in the classroom. 1.2 Introduction 2-channel microphone input, 1-channel emergency microphone input, 2-channel cable input, 1-channel cable output;... - Page 4 5. BASS adjustment On the basis of central location,clockwise rotation is for Bass+, anticlockwise rotation is for Bass -. 6. TREBLE adjustment On the basis of central location,clockwise rotation is for Bass+,anticlockwise rotation is for Bass -. 7. MASTER Vol Adjustment Adjust electrical level of all signals, clockwise rotation is for Vol+,anticlockwise is for Vol-.
-
Page 5: Safety Precautions
Safety Precautions 1. Safety Precautions Please do NOT connect this device to the power source before the system is correctly wired. It is important to ensure that input voltage to the device is the same as required voltage of the device; otherwise the device may be damaged. -
Page 6: Packing List
Packing list List Quantity MP35 or MP60 Manual Guarantee card Certificate Power line wire /1500mm/ audio line Green plug/2ERJK3.81-2P With lock green plug/2ERJK5.08-4P Performance index Model MP35 MP60 Rated power Input sensitivity 350mV AUX、EMC ≥60 dB Noise ≥70 dB AUX、EMC... - Page 7 Caution ● The device is not completely disconnected from power source when it is just switched "OFF". For safety, please disconnect the device from the socket if it is not in use. ● Please keep this device off water drops or splash or vase filled with water or any other articles of similar nature.
