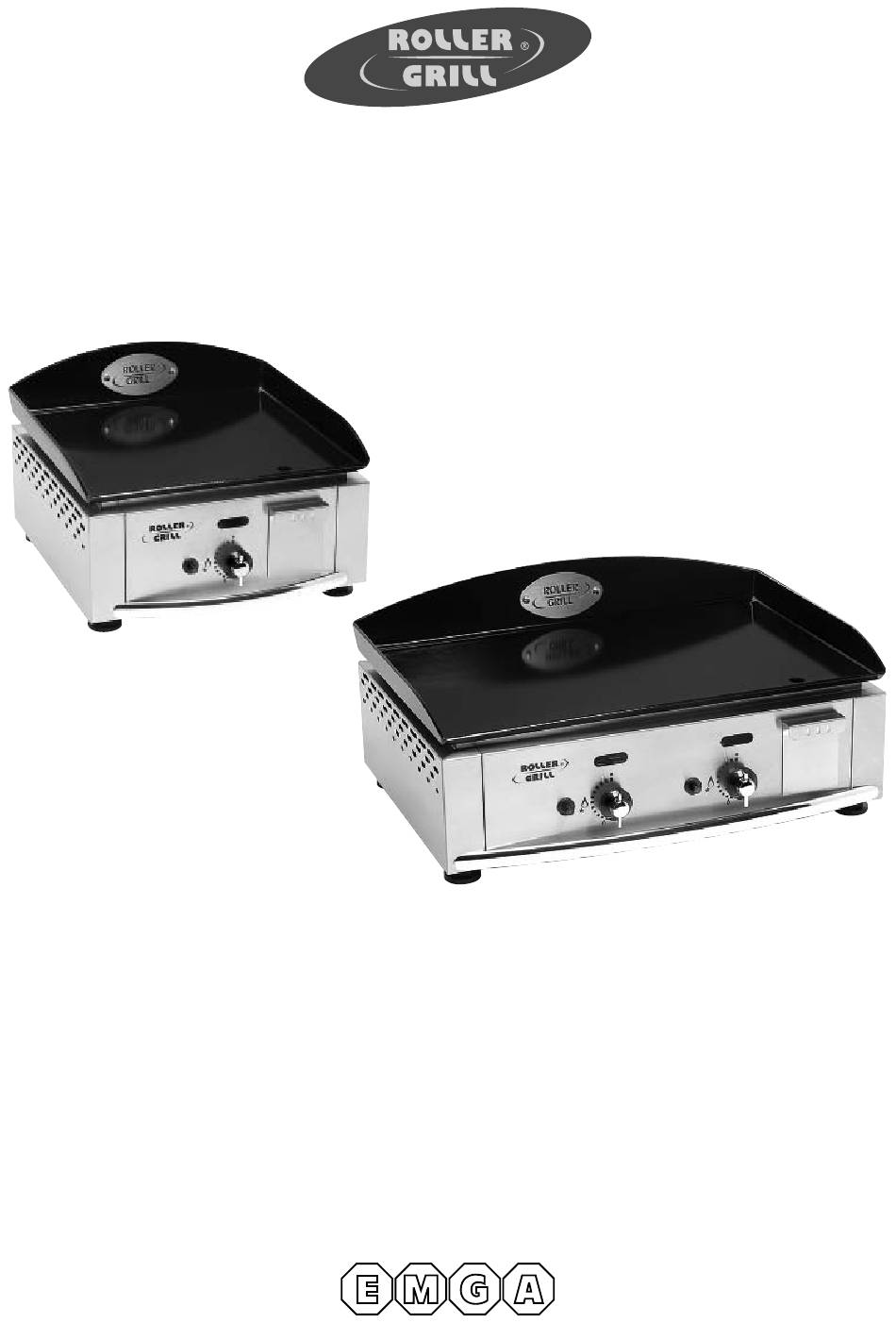

- Page 1 USER INSTRUCTIONS including exploded view & part list FRY-TOPS GAS (*304.145 - *304.165) You should read these user instructions carefully before using the appliance...
-
Page 2: Table Of Contents
CONTENTS Safety instructions 2. Contents of the cardboard box 3. Conformity of use 4. Usage instructions 5. Functioning / Handling 6. Cleaning and maintenance 7. Technical features 9 - 10 Annexes: Nomenclatures and exploded views 11-14 2/14 304145-165 en ma 2012-06... -
Page 3: Safety Instructions
GAS PLANCHA *304.145 - *304.165 Congratulations on your purchase of this top-of-the-line cooking appliance manufactured in France. You have selected an appliance that combines the best technical features with great user-friendliness. We hope that you derive the maximum possible satisfac- tion. -
Page 4: Conformity Of Use
Opening for lighting with a matchstick Utensil holder with anodised curved handle Refer to detailed exploded view of PL 400 G and PL 600 G at the end of the docu- ment. 3. CONFORMITY OF USE Use the appliance to grill and quickly sear meat, sausages, fish, shellfish, vegeta- bles, onions as well as for fried eggs or even an omelette. -
Page 5: Functioning / Handling
The appliances run on the following gases: Butane G30 and Propane G31. The appli- ances are originally delivered with a Butane/Propane injector corresponding to the cate- gory I 3+. The heat release rate of the appliance is PL 400 G 2.75 kW PL 600 G 5.50 kW 5/14... - Page 6 Check the supply pressure using a manometer when all the burners are lit. It must be equal to the indications on the rating plate. The fresh air flow required for combustion air supply is: - PL 400 G 5.5 m3/h - PL 600 G 11.0 m3/h...
- Page 7 Air regulation The injectors have been designed in order to avoid any air regulation, irrespective of the type of gas used. c) Use of the appliance: Control and display elements Control/Display Function Piezo Switches on the appliance (simultaneously with the set knob) (No.
-
Page 8: Cleaning And Maintenance
When you contact the maintenance department of your Distributor or shop, provide full reference of your appliance (commercial description, type and serial number). This information is given on the rating plate that can be seen behind the appliance. 6. CLEANING AND MAINTENANCE Cut the gas supply. -
Page 9: Technical Features
7. TECHNICAL FEATURES Models PL 400 G PL 600 G 410x450x280 mm 610x450x280 mm External dimensions Cooking surface 390x380 mm 590x380 mm Weight 14.5 Kgs. 20.5 Kgs. 2,750 W 5,500 W Power Number of burners 8. WARRANTY Conditions of warranty The warranty that is applicable for the whole appliance is the commercial warranty of the distributor or dealer. - Page 10 The damage caused due to shocks and bad weather is not covered by the war- ranty. The material is transported at the risk of the user; in case of delivery by car- rier, the recipient must issue reservations vis-à-vis the carrier before any delivery of the appliance.
-
Page 11: Annexes: Nomenclatures And Exploded Views
Nomenclature PL 400 G Spare parts PL 400 G S.No. Code Spare part B02057SE1 Enamelled steel plate 53143 Burner holder 53138SE Casing 53142SER Front panel A14112 Knob E02215 Piezo A15058 Handle 53135SE Drip tray A13017 Foot E01007 Burner E02075 Injector BP 85... - Page 12 12/14 304145-165 en ma 2012-06...
- Page 13 Nomenclature PL 600 G Spare parts PL 600 G Square part S.No. Code Qty. Enamelled steel plate B02058SE1 Burner holder 53150 Casing 53146SE Front panel 53149SER Knob A14112 Piezo E02215 Handle A15059 Drip tray 53135SE Foot A13017 Left burner E01009 Injector BP 85 E02075 Right burner...
- Page 14 14/14 304145-165 en ma 2012-06...
