TVHUNTER +
ISDB-T/T
FRONT VIEW
1
2
3
4
1
Input RF connector
2
Display
3
DETECTION/CONFIGURATION key
SCREEN ICONS REFERENCE
STATUS BAR
T
ISDB-T/T signal not locked.
B
B
T
ISDB-T/T signal locked.
B
B
Manual power off enabled.
5/12/15/24/OFF
SWITCHING ON/OFF
Switch on the TVHUNTER + pressing
If you press
or
TVHUNTER +
ISDB-T/T
QUICK START GUIDE
B
RF
4
5
6
External voltage supplied through the RF connector (5V/12V/15V/24V/OFF)
,
for more than eight seconds when starting, it enables manual power off mode.
B
USB
IDENTIFICATION key
Power input connector
USB connector
USB
or
for four seconds.
TestEquipmentDepot.com
7
ADJUST key
Power supply connected.
Battery power level.
Connected to PC through the USB port.
5
6
7
Advertisement
Related Manuals for Promax TVHUNTER+ ISDB-T/TB
Summary of Contents for Promax TVHUNTER+ ISDB-T/TB
-
Page 1: Front View

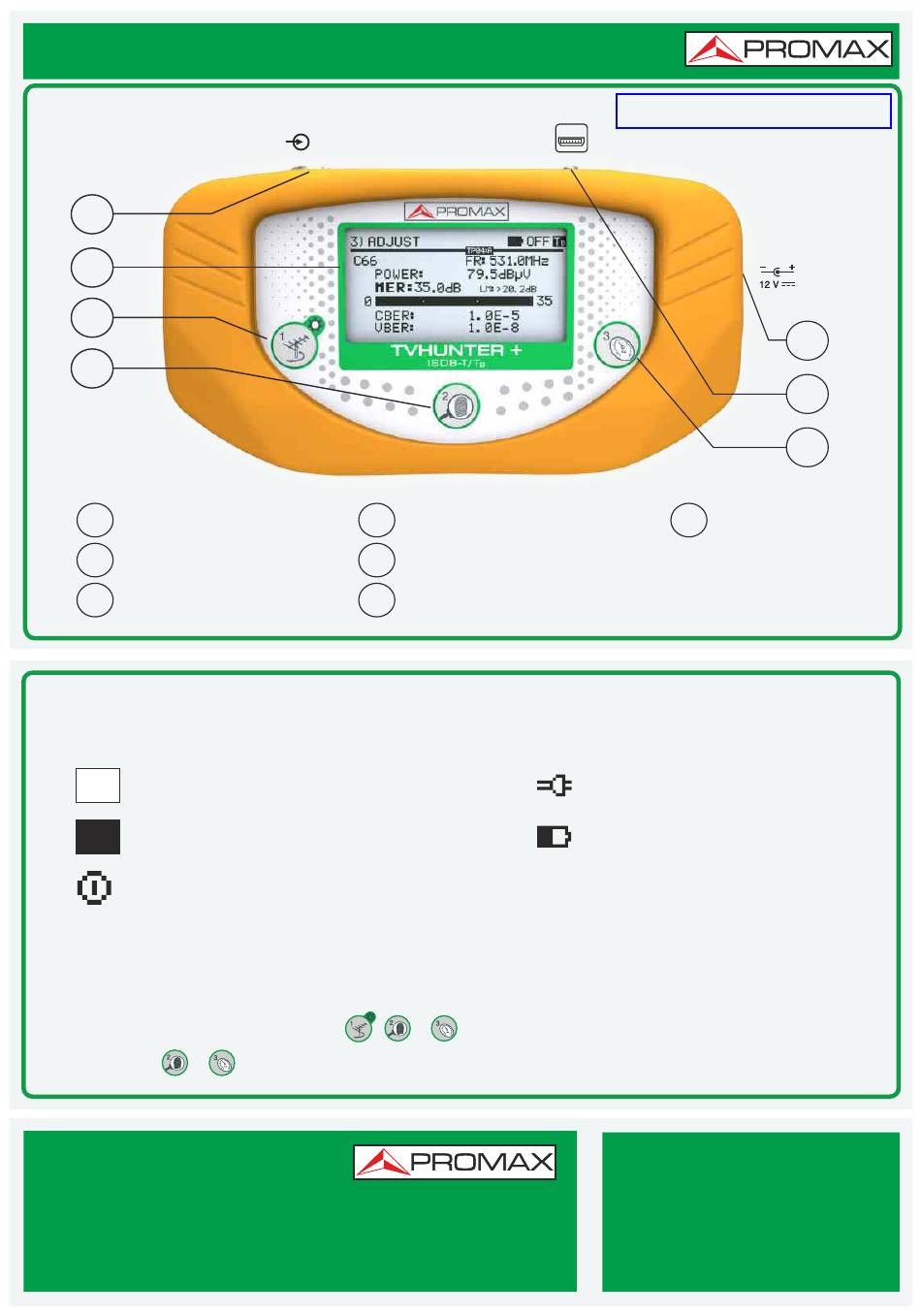

TVHUNTER + QUICK START GUIDE ISDB-T/T TestEquipmentDepot.com FRONT VIEW Input RF connector IDENTIFICATION key ADJUST key Display Power input connector DETECTION/CONFIGURATION key USB connector SCREEN ICONS REFERENCE STATUS BAR Power supply connected. ISDB-T/T signal not locked. Battery power level. ISDB-T/T signal locked. Manual power off enabled. - Page 2 TVHUNTER + QUICK START GUIDE ISDB-T/T DETECTION Plug the TVHUNTER + to the antenna socket and turn the antenna until the TVHUNTER + shows the maximum power on the display. To avoid damage to other devices, when switching on the equipment, the external power supply is always OFF by default.
