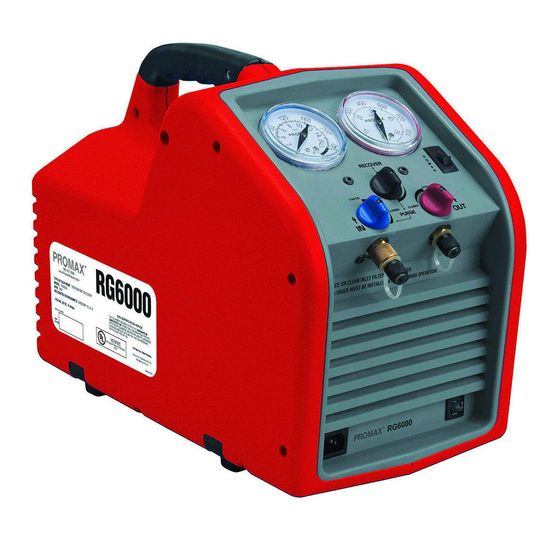

- Page 1 Refrigerant Recovery Machine RG6000 Operating Manual Manuel d’utilisation Bedienungsanleitung Manual de operaciones...
-
Page 2: Safety Precautions
afety recautionS WARNING : TO pReveNT peRsONAl INjuRy ANd / OR equIpMeNT dAMAGe, AllOW ONly quAlIFIed peRsONNel TO OpeRATe THIs uNIT. Before operating the unit, read and follow the instructions and warnings in this manual. The operator must be familiar with air conditioning and refrigeration systems, refrigerants, and the dangers of pressurized components. -
Page 3: Table Of Contents
Recovery Procedure ......6 Purge the RG6000 Unit ......6 Operating Instructions for Bulk Liquid Systems . -
Page 4: Understanding Refrigerant Recovery
This unit has an internal, high-pressure, shut-off switch. be serviced. If system pressure rises above 550 psi, the unit shuts The RG6000 unit is approved for use with the following off. The shut-off switch automatically resets itself after category III, IV, and V refrigerants (per ARI-740) : pressure drops below 400 psi. -
Page 5: Standard Operating Instructions
WARNING : A storage cylinder is full when setup procedure it reaches 80% volume. dO NOT OveRFIll. due 1. Place the RG6000 unit on a flat, level surface. to liquid expansion, the cylinder could explode if filled to more than 80% volume, possibly 2. -
Page 6: Recovery Procedure
9. Run the RG6000 until the desired vacuum is achieved. 10. Close the vapor and liquid valves on the manifold gauge set. 11. Turn the inlet valve on the RG6000 to the CLOSED position. 12. Toggle the power switch OFF. -
Page 7: Operating Instructions For Bulk Liquid Systems
Recovery 1. Place the RG6000 unit on a flat, level surface. 6. Verify inlet and outlet valves on unit are closed. 2. Connect a hose from the outlet fitting of the unit 7. -
Page 8: Vapor Recovery
Recovery 1. Place the RG6000 unit on a flat, level surface. 2. Connect a hose from the inlet side of the unit to Tech Tip the liquid port of the system being serviced. 3. Connect a hose from the outlet side of the unit For a faster recovery procedure, recover from both to the liquid port on a recovery cylinder. -
Page 9: Recovery Cylinder Information
DOT remaining 20% is called head pressure room.) specs. 4BW or 4BA. Do not exceed 80% of cylinder capacity. PROMAX NEVER use a standard disposable 30 lb. cylinder recommends the use of the TIF9010A Refrigerant (the type of container in which new refrigerant is Scale for monitoring cylinder capacity. -
Page 10: Troubleshooting
roubleShooting WARNING: TO pReveNT peRsONAl INjuRy ANd / OR equIpMeNT dAMAGe, AllOW ONly quAlIFIed peRsONNel TO OpeRATe ANd RepAIR THIs uNIT. Before operating or repairing the unit, read and follow the instructions and warnings in this manual. The technician must be familiar with air conditioning and refrigeration systems, refrigerants, and the dangers of pressurized components. -
Page 11: Replacement Parts
GA1000 Gauge Lens (1 ea.) high-side gauge, lens) 100124 Manifold Knob (red) sK-6016 Manifold Kit (includes manifold 100123 Manifold Knob (blue) assembly, hardware) 100122 Manifold Knob (black) 549977 Tank Connection Harness sK-6014 Condenser Kit (includes condenser (RG6000-KT only) assembly, hardware) -
Page 12: Rebuild Kits And Accessories
ebuild itS and cceSSorieS part description sK-5001 80% Tank Shut-off Kit sK-6001 Filter Screen Replacement Kit sK-6002 Filter / Drier Kit (includes filter / drier, 6 inch hose) sK-6005 Motor Replacement Kit sK-6006 Compressor Rebuild Kit (includes piston seals, valves, springs, o-rings) sK-6007 Valve Rebuild / Replacement Kit (includes inlet /oulet valves and springs, o-rings) sK-6008... -
Page 13: Maintenance
1. Use two high-acid capacity filter / driers in series when recovering from a “burned-out” system. Promax recommends Alco type EK-162-F or Sporlan type C-162-F filters. When you have finished recovering from the system, flush the RG6000 with a small amount of clean refrigerant and refrigerant oil to purge any foreign substances left in the unit. - Page 14 À l’extérieur des États-Unis, communiquez avec le concessionnaire Promax de votre Fuera de los Estados Unidos de América, contacte a su distribuidor de Promax local. région. Dentro de los Estados Unidos de América, llame al 1-800-327-5060 para obtener un Aux États-Unis, composez le 1-800-327-5060 pour obtenir un numéro d’autorisation...
- Page 15 OwatOnna, Mn 55060 PhOne : 800.327.5060 Fax: 866.287.7222 www.PrOMaxrecOvery.cOM Designed & Engineered in the USA Entworfen und entwickelt in den USA Manufactured in China Hergestellt in China © 2008 SPX Form No. 551691 Conçu et mis au point aux États-Unis Diseñado en EE.UU.
