Rotary Tillers
RTA2064, RTA2072, RTR2064 & RTR2072
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!

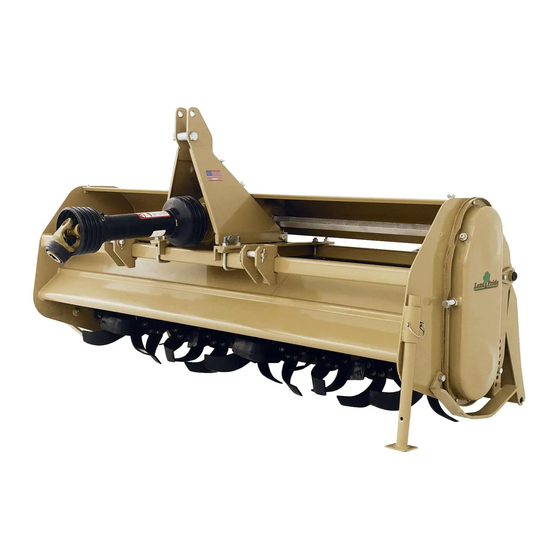

Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
19461
311-328M
Operator's Manual
Printed 12/19/18
