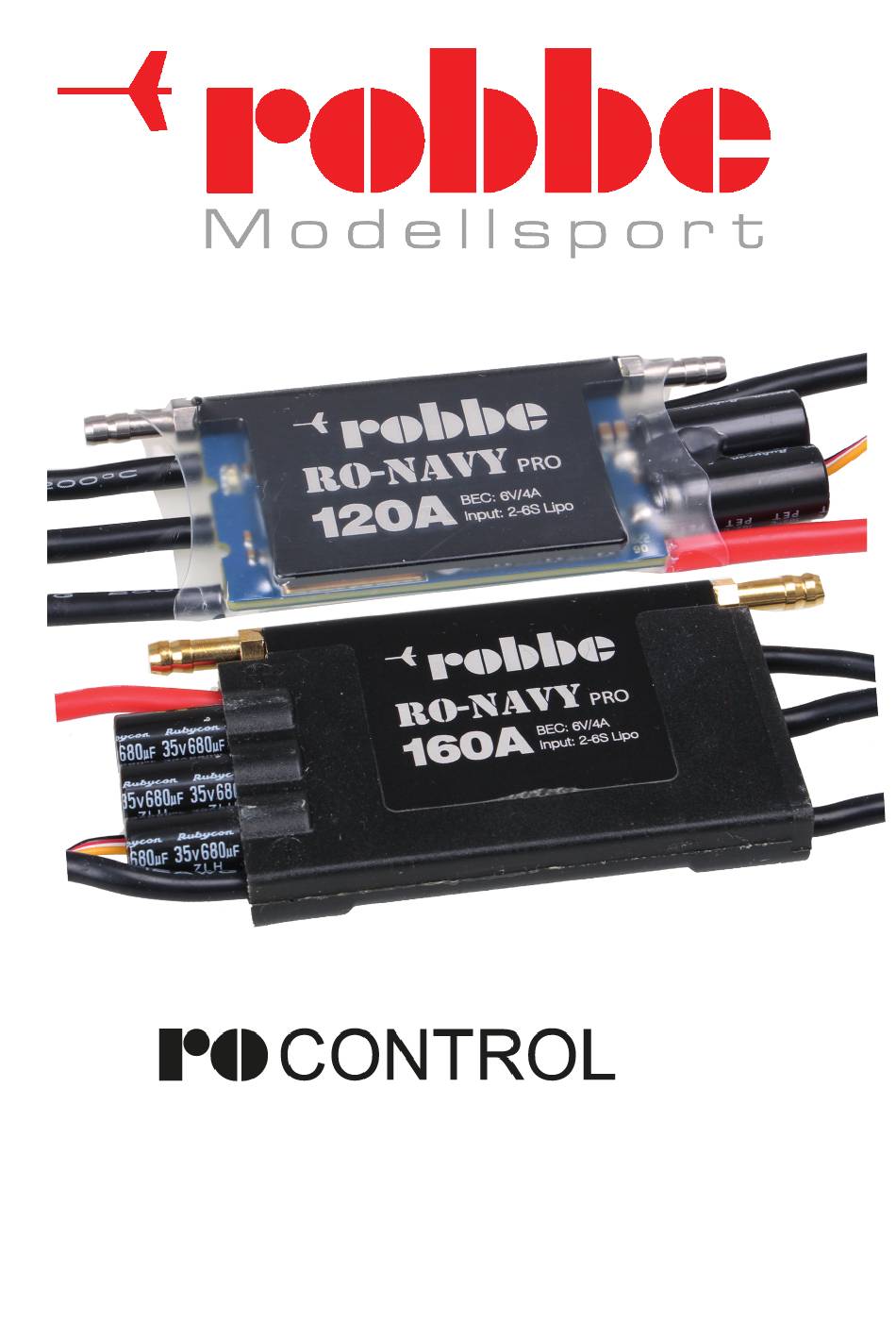

  • Page 2 Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series Operating Manual RO-CONTROL Navy Pro 120/160A Brushless Electronic Speed Controller Art.-Nr.: 8725 Ro-Control Navy Pro 120 Art.-Nr.: 8726 Ro-Control Navy Pro 160 Dear customer, we are pleased that you have chosen a RO-Control Navy speed controller for brushless motors from our range.
  • Page 3 No.8725 No.8726 RO-Control NAVY Pro Series Make sure that you do not reverse the polarity of the battery, that you avoid short circuits, that the drive motor is effectively suppressed and that the air can circulate freely. Use plug systems that are protected against polarity reversal.

  • Page 4: Technical Specifications

    Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series 03. Features Lightweight design and therefore perfectly suited for competitive models • • No additional precautions against splash water are necessary, the regulator, however, is excellently protected by a nano coating, it can be immersed in water.
  • Page 5 Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series 2. Motor connections: The motor connections can be connected to the motor as required. If the motor runs upside down, any two motor connections must be replaced 3. Receiver connection: 1. Connect the throttle channel by connecting the servo cable for the input signals to the output of the receiver that outputs the gas signal.
  • Page 6 No.8725 No.8726 RO-Control NAVY Pro Series 1. Switch on the transmitter and controller, set the parameters for the gas channel such as Dual rate or the travel setting to 100 %. Set the throttle trim to "0". For transmitters without LC display, set the encoder to maximum and the mechanical trim to the center.
  • Page 7 Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series Normal Start Process Move the throttle or throttle control stick to the "engine off" position and switch on the transmitter. 1. Connect the battery to the controller. The motor emits a series of tones indicating the number of LiPo cells.
  • Page 8 Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series Option 2: Forward / Backward The "Forward/Reverse" mode also offers the reverse driving function. This mode is well suited for most applications. (Note: Make sure that your boat can go backwards. If the drive is equipped with a flexible shaft, it can only move in one direction, the reversal of direction can damage a flexible shaft.

  • Page 9: Programming The Controller

    Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series 7. Timing / General Timing: This function has three aspects: The controller can be configured for operation with different motors. The default setting of • 15 degrees is suitable for many motors, but special motors require different values. Set the optimal timing level for your engine.
  • Page 10 Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series Step 1: Activate programming mode 1) Switch on the transmitter and bring the throttle stick into full throttle position, then connect the drive battery, a signal sounds (beep, beep). It indicates that the full throttle position has been detected.
  • Page 11 Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series B B B B B B B---- B---- B B---- B B---- B Running for- back- Mode wards wards auto- LiPo Cells matic 2,8 V 3,0 V 3,2 V 3,4 V deact.

  • Page 12: Restore To Factory Settings

    Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series • You can also use the WiFi module (HOBBYWING WIFI is RO-Control Navy compatible). You need a smartphone with the "HOBBYWING WiFi LINK Software" installed. Before programming, the WiFi module must be connected via a Y-cable.

  • Page 13: Problem Solutions

    Operating Manual No.8725 No.8726 RO-Control NAVY Pro Series The red LED flashes whenever you move the throttle to the neutral position. Overtemperature protection • The ESC constantly monitors the internal temperature. The temperature protection is activated, the output power is reduced to half (50%) when the temperature threshold is exceeded.

  • Page 14: Disclaimer Of Liability

    Telefon: +43(0)7582/81313-0 , info@robbe.com, UID Nr.: ATU69266037 12. Garantie „robbe Modellsport“ ist eingetragenes Markenzeichen der Modellbau Lindinger GmbH Ce produit est accompagné d'une garantie de 24 mois. Notre facture sert de preuve pour le début Irrtum, Druckfehler und technische Änderungen vorbehalten. Copyright Modellbau Lindinger 2018 et la fin de l'expiration de cette garantie.
