Summary of Contents for ROBBE RO-Control NAVY Series

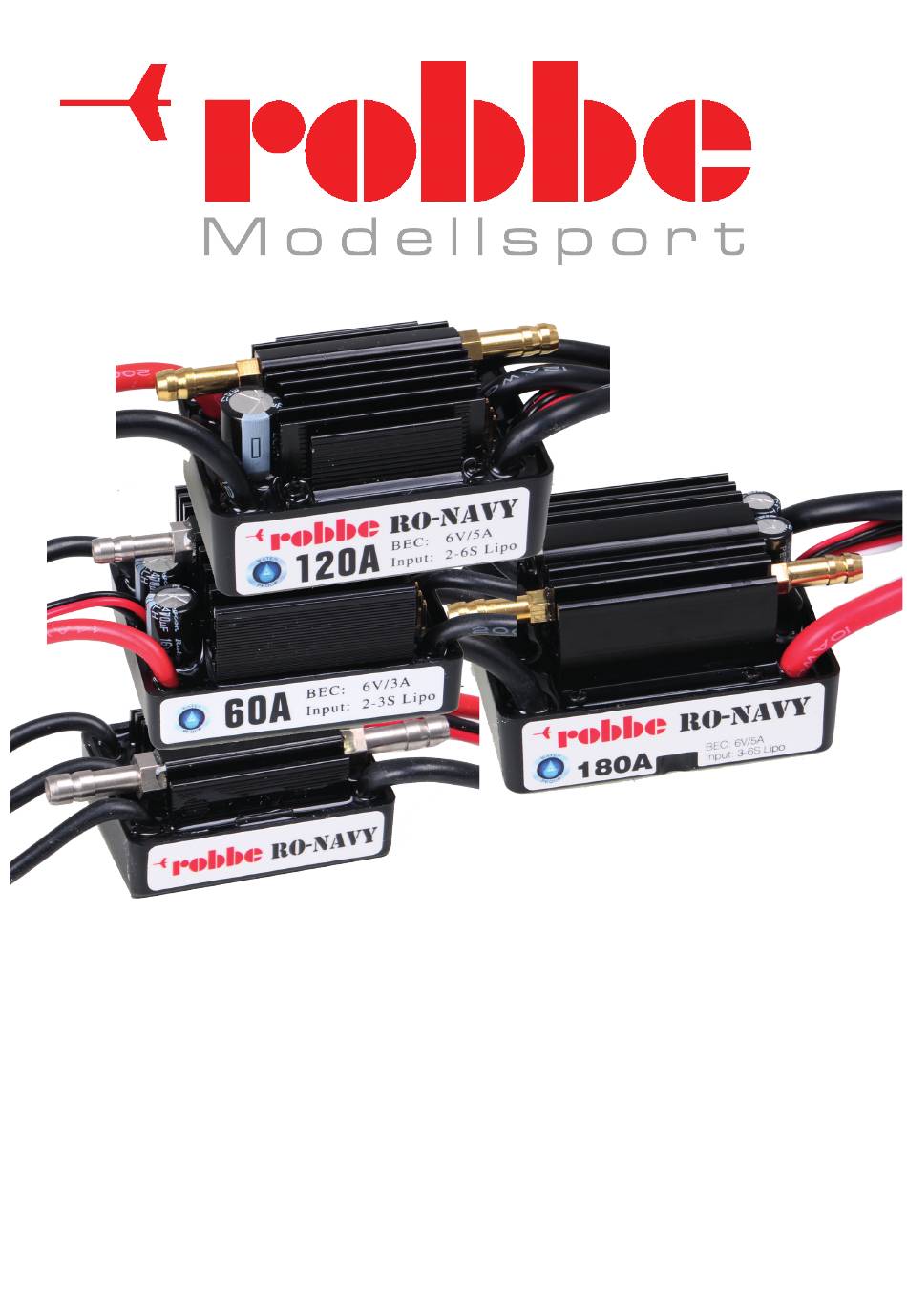

- Page 1 ro-navy Operating Manual...

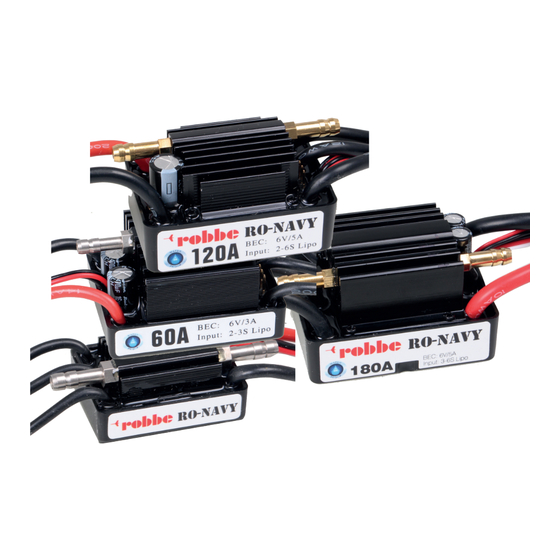

- Page 2 No.8721 Operating Manual No.8722 No.8723 RO-Control NAVY Serie No.8724 Operating Manual RO-Control Navy Serie 30 / 60 / 120 / 180 A Brushless Electronic Speed Controller No.8721 Art.-Nr.: xxxxxxxxxxxx No.8722 Art.-Nr.: xxxxxxxxxxxx Art.-Nr.: xxxxxxxxxxxx No.8723 Art.-Nr.: xxxxxxxxxxxx No.8724 Dear customer, we are pleased that you have chosen a RO-Control Navy speed controller for brushless motors from our range.
- Page 3 No.8721 Operating Manual No.8722 No.8723 RO-Control NAVY Series No.8724 All cables and connections should be well insulated. The regulator must not come into contact with grease or oil. Only use the connectors, original parts and accessories recommended by us. Always set the throttle to "Stop"...
- Page 4 No.8721 Operating Manual No.8722 No.8723 RO-Control NAVY Series No.8724 • With a copper cooling head for good heat dissipation with a water cooling system and MOSFETs with extremely low internal resistance, this greatly improves overcurrent resistance. • Innovative software especially for the use of RC boats, with excellent starting and acceleration behaviour, in connection with an excellent suitability for applications where rapid load changes occur.
-
Page 5: Technical Specifications
No.8721 Operating Manual No.8722 No.8723 RO-Control NAVY Series No.8724 Figure 1: For the types RO-Control For safety reasons, always keep Navy 30, RO-Control Navy 60 or other yourself and other objects away controllers that work with a LiPo battery. from the ship's propeller. - Page 6 No.8721 Operating Manual No.8722 No.8723 RO-Control NAVY Series No.8724 2. Calibrate the throttle on a pistol grip transmitter: a) a) Pull the throttle back to full throttle position and hold it in this position, then connect the battery to the regulator and switch it on, 2 seconds later the engine will emit two short beeps (beep, beep), the full throttle position has been accepted.
- Page 7 No.8721 Operating Manual No.8722 No.8723 RO-Control NAVY Series No.8724 03. Promgrammable parameters of the controller The following table shows the changeable parameters, the fields marked with * indicate the factory settings. Opti- LiPo cells Mode of operation Low-voltage protection Timing autom.*...
-
Page 8: Programming The Controller
No.8721 Operating Manual No.8722 No.8723 RO-Control NAVY Series No.8724 04. Programming the controller Programming the ESC with your transmitter Programming is carried out in four steps. → → Activate programming mode Determine parameters to be changed → adjust the selected parameter... - Page 9 No.8721 Operating Manual No.8722 No.8723 RO-Control NAVY Serie No.8724 B B B B B B B---- B---- B B---- B B---- B Running forward backward Mode LiPo Cells autom. 2,8 V 3,0 V 3,2 V 3,4 V Undervoltage deact. cut-off Cell Cell Cell...
-
Page 10: Led Indications
No.8721 Operating Manual No.8722 No.8723 RO-Control NAVY Series No.8724 3. Protection against signal loss: If no valid signal is registered by the receiver for a time of 0.1 sec. the controller switches the motor off. The controller will not restart until valid input signals are detected again. We recommend activating a Fail Safe function for the gas channel on the transmitter, which should be set so that the engine is switched off. -
Page 11: Disclaimer Of Liability
Über Ihren Fachhändler oder: gratuite n'est pas possible, nous vous rembourserons les frais de port par la suite. Modellbau Lindinger GmbH, Industriestraße 10, 4565 Inzersdorf im Kremstal, service@lindinger. at,43(0)7582-81313-0 www.robbe.com www.robbe.com Page "robbe Modellsport" est une marque déposée de Modellbau Lindinger GmbH...
