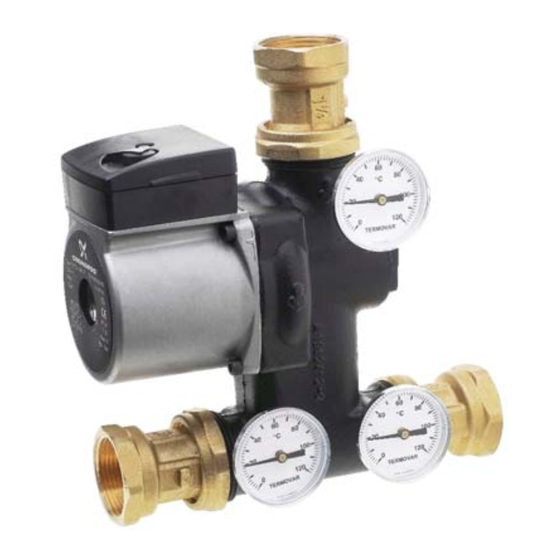

- Page 1 TERMOVAR LU (EN) 06.12 TERMOVAR LOADING UNIT MOUNTING AND OPERATING INSTRUCTIONS Sizes Rp 25 – Rp 32 – 28 mm With EPP Insulation With Backflow Preventer Without Backflow Preventer 1 (7)
-
Page 2: Main Parts
TERMOVAR LU (EN) 06.12 GENERALLY TERMOVAR is an automatic loading unit for sold-fuel boiler/storage tank installations. The loading unit ensures a minimum return-water temperature into the heating boiler, which encreases the boiler efficency, prevents tarring and considerably prolongs the lifetime of the heating boiler. TERMOVAR eliminates the risk of destructive thermal shock caused by surges of cold return water and renders a more effective burning. - Page 3 TERMOVAR LU (EN) 06.12 MOUNTING The valve unit is mounted upright either on the right or left hand side of the heating boiler. After pipework the thermometers are pressed onto the front side of the unit. When starting a new heating installation a very common problem is air in the pipe system. For a trouble free system the pipework has to be made without air pockets.
- Page 4 TERMOVAR LU (EN) 06.12 2. Loading phase The thermostic element in the loading unit is affected by the temperature of the water flowing from the boiler to the loading unit. The element starts to open and allows return water from the storage tank to be mixed with supply water before it returns back to the boiler.
-
Page 5: Circulating Pump
TERMOVAR LU (EN) 06.12 CIRCULATING PUMP TERMOVAR loading unit has a Grundfos UPS 15-60 CIL circulating pump. Flow and capacity according to the diagram below. Pump speed III is recommended. In a normal installation with pump speed III the flow will be 40 – 46 l/m. THERMOSTATIC ELEMENTS Every thermostatic element has a code on the copper body. -
Page 6: Spare Parts
TERMOVAR LU (EN) 06.12 SPARE PARTS 9 10 23 6 7 21 22 25 18 13 14 Part No. Art.No Part Part No. Art.No Part 4899 Grundfos pump UPS 15 – 60 CIL 6, 16, 21 4919 O-ring EPDM Ø 36,2mm x 3mm 2, 12 ,14 4902 Thermometer 51 x 7 mm... - Page 7 TERMOVAR LU (EN) 06.12 Heating boiler Right-hand mounting Storage tank Storage tank Left-hand mounting Heating boiler 7 (7)
