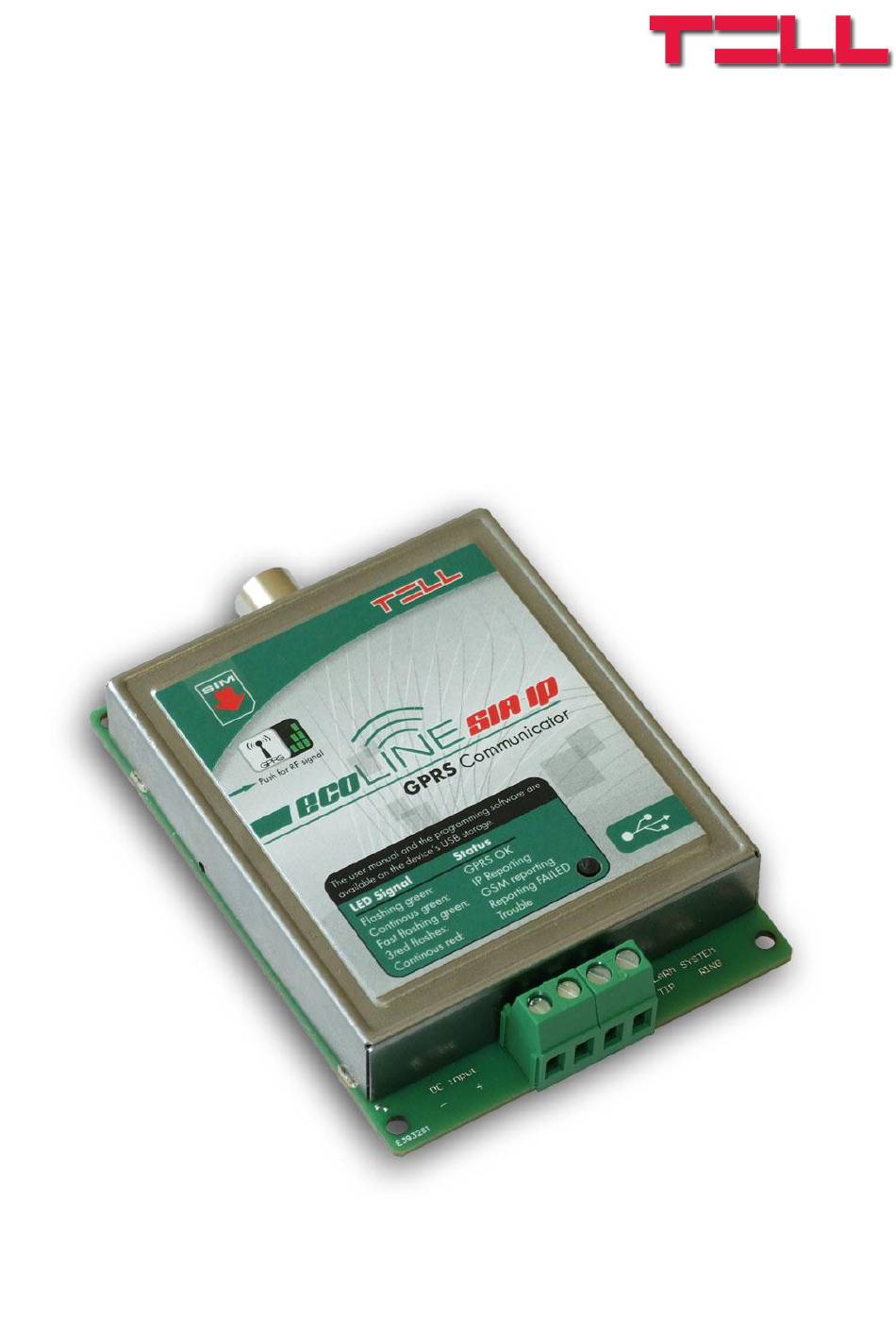

ecoLINE SIA IP Adapter
INSTALLATION AND APPLICATION MANUAL
for module version v5.02 and higher
Rev. 1.6 15.09.2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ecoLINE SIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for tell ecoLINE SIA

Summary of Contents for tell ecoLINE SIA

  • Page 1 SIA IP Adapter INSTALLATION AND APPLICATION MANUAL for module version v5.02 and higher Rev. 1.6 15.09.2015...

  • Page 2: Table Of Contents

    Table of contents 1 Application area ....................3 2 Functions ......................3 3 Settings ....................... 4 3.1 Configuring through USB connection ............4 3.1.1 GPRS settings .................. 4 3.1.2 SIA settings ..................4 3.1.3 Automatic IP selection ..............5 3.1.4 SIA user ID ..................5 3.1.5 Dialed numbers for backup GSM call ..........

  • Page 3: Application Area

    1 Application area GPRS communicator for alarm control panels, which converts the Contact ID communication into SIA IP format and forwards the events towards the monitoring station’s receiver using IP channel over mobile GPRS network. Can be used with any alarm system which is able to report to monitoring station in Contact ID format using PSTN landline.

  • Page 4: Settings

    3 Settings 3.1 Configuring through USB connection The product’s programming software and manual is available on the USB storage of the device. If the microswitch found under the hole on the left side of the module is pushed shortly with an appropriate tool after connected to the computer via USB, the USB storage of the device will appear for 2 minutes among the computer’s drives.

  • Page 5: Automatic Ip Selection

     Dialed number: when the alarm control panel dials the number entered here, the signals will be forwarded to the IP address assigned to this number. The number set here must be exactly the same as the one dialed by the alarm control panel, otherwise the module will not emit the handshake signal.

  • Page 6: Modification Of The Settings By Sms

    3.1.6 Modification of the settings by SMS A superuser phone number can be configured in this section, which is authorized to modify the settings by sending commands by SMS. Details about the SMS commands “Configuring by SMS can be found in the commands”...
  • Page 7 Setting the supervision test report sending frequency assigned to IP addresses: substitute "X" with the ordinal TSTFRX=frequency# number of the IP address. The frequency value should be entered in seconds. Setting the number dialed by the alarm control panel for AUTOIP=dialed number# the “Automatic IP selection”...
  • Page 8 Settings query: For settings query insert a question mark after the command. This can be applied for all configuring commands in the spreadsheet above. Example: PH2?# : querying the second dialed number assigned to the second IP address IP3?# : querying the third IP address SPH3?# : querying the third backup GSM phone number SFW?#...

  • Page 9: Volume Adjusting Application

    4 Volume adjusting application The volume adjusting application (Volsetter.exe) is available on the manufacturer’s website (www.tell.hu). You can use this software to adjust the in-call volume levels if necessary and justified. Adjusting may be necessary if voice quality or volume problems are experienced, caused by the circumstances in the given place of installation.

  • Page 10: Module Status

    Reporting failed Red is continuously lit Trouble 5.2 Status On the “Status” page the connected ecoLINE SIA IP Adapter’s state can be monitored (version information, system timer, GSM status, GPRS network, communication, event monitoring). Available status information:  Version information:...

  • Page 11: Installation Guide

    6 Installation guide 6.1 Mounting  Test the GSM signal strength with your mobile phone and then repeat this using the module after the installation. It may happen that the signal strength is not sufficient in the desired place of mounting. In this case the planned installation place can be changed before mounting the device.

  • Page 12: Technical Details

    20 mA Line impedance: 600 Ohm ±72V (25 Hz) Ring voltage: Tone: 400 Hz 7.3 Contents of the package  ecoLINE SIA IP module  GSM 900/1800 MHz antenna (0dB)  Velcro fastener  Installation and application manual  Warranty card...
