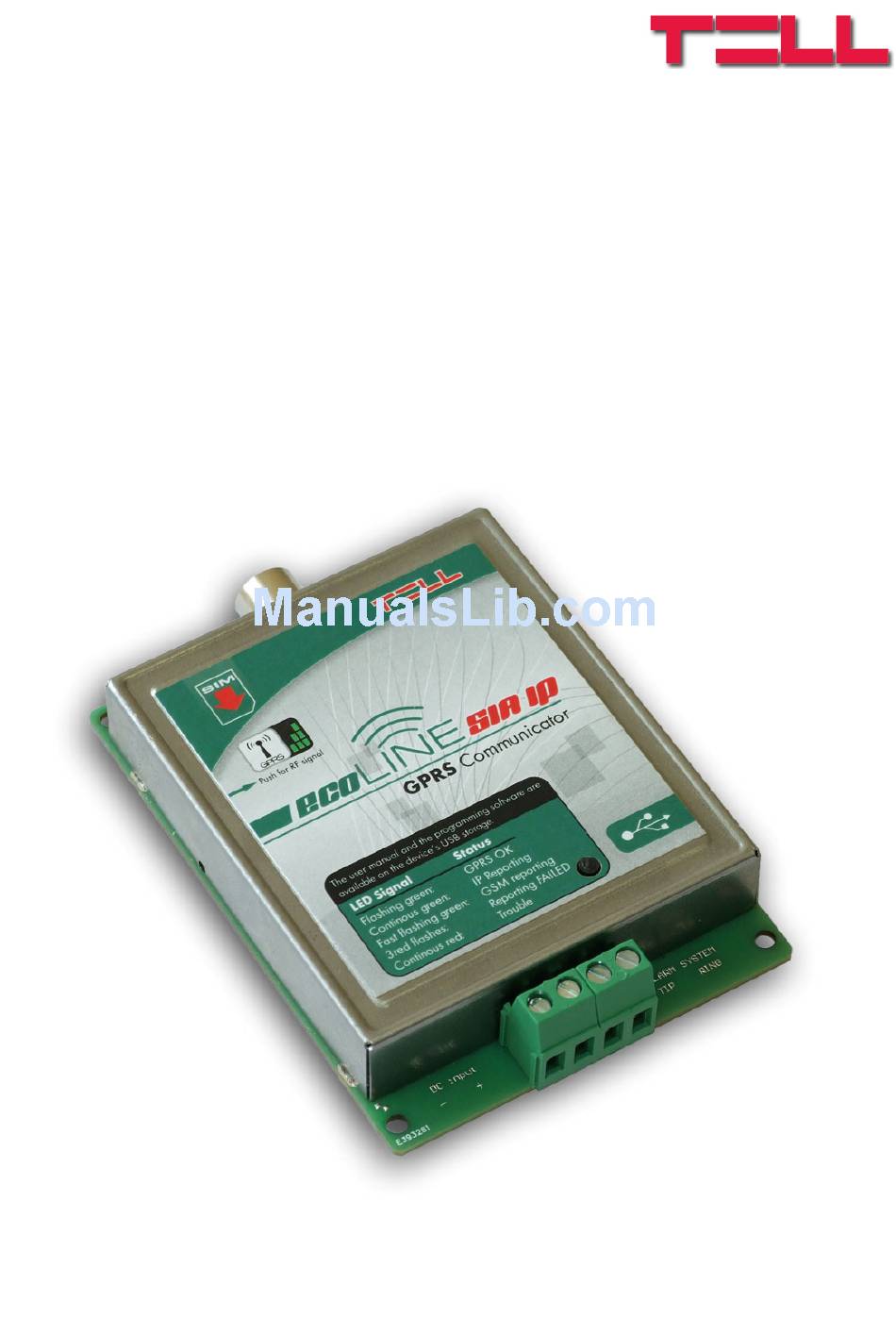

- Page 1 SIA IP Adapter INSTALLATION AND APPLICATION MANUAL for module version v2.25 and higher Rev. 1.5 21.06.2012...
-
Page 2: Table Of Contents
Table of contents 1 Application ......................3 2 Functions ......................3 3 Settings ........................ 4 3.1 Configuring through USB connection............4 3.1.1 GPRS settings .................. 4 3.1.2 SIA settings..................4 3.1.3 Automatic IP selection ..............5 3.1.4 SIA user ID..................5 3.1.5 Dialed numbers for backup GSM call .......... -
Page 3: Application
ANSI/SIA DC-09-2007 standard. No need for a central server, only an IP receiver with internet connection is necessary. The list of the supported receivers is available on www.tell.hu website. 2 Functions Converting Contact ID format and signal transferring in SIA IP format ... -
Page 4: Settings
3 Settings 3.1 Configuring through USB connection The module acts as a standard USB drive among PC’s drives, and also creates a USB HID device. The programming software runs on the following operation systems: Windows XP SP2 Windows 7 Using the programming software („Drive letter”:\Software\Remoter\Remoter.exe) you can configure the parameters for the proper operation of the device. -
Page 5: Automatic Ip Selection
Test report sending: if this option is enabled, the module will always check the IP connection using the configured test frequency. If this option is disabled, the module will check the specified IP address if it is absolutely necessary, that is the high priority IP addresses are not available. -
Page 6: Configuring By Sms Commands
3.2 Configuring by SMS commands It is possible to configure the module and receive status information by sending the appropriate command in SMS to the module’s phone number. First set the SUPERUSER phone number from which the module will accept further SMS commands: SMS command Operation The module sets the sender’s phone number as... - Page 7 Querying “Outgoing data traffic” counter. The value is in TROUT?# the response message is specified in Bytes. Querying “Incoming data traffic” counter. The value in the TRIN?# response message is specified in Bytes. Querying “All data traffic” counter. The value in the TRALL?# response message is specified in Bytes.
-
Page 8: Volume Adjusting Application
4 Volume adjusting application The volume adjusting application (Volsetter.exe) is available on the manufacturer’s website (www.tell.hu). You can use this software to adjust the in-call volume levels if necessary and justified. Adjusting may be necessary if voice quality or volume problem is experienced while using the module with the given GSM service provider’s SIM card. -
Page 9: Module Status
Reporting failed Red is continuously lit Trouble 5.2 Status On the “Status” page the connected ecoLINE SIA IP Adapter’s state can be monitored (version information, system timer, GSM status, GPRS network, communication, event monitoring). Available status information: Version information:... -
Page 10: Installation Guide
6 Installation guide 6.1 Mounting Test the GSM signal strength with your mobile phone and then repeat this using the module after the installation. It may happen that the signal strength is not sufficient in the desired mounting place. In this case the planned installation place can be changed before mounting the device. -
Page 11: Technical Details
20 mA Line impedance: 600 Ohm Ring voltage: ±72V (25 Hz) Tone: 400 Hz 7.3 Contents of the package ECOLINE SIA IP module GSM 900/1800 MHz antenna Plastic spacer User manual USB cable Warranty card...
