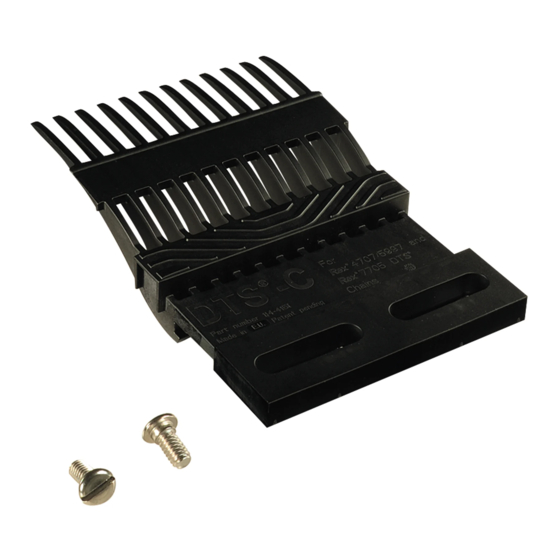

DTS-C is a brand new system which improves self-clearing of the infeed and discharge in
combination with 2" Raised Rib modular belts. The system is designed for cans & PET, it can be used
at the infeed of machines with glass. It is not recommended to use DTS-C at the outfeed of
machines with glass. For optimum performance of the DTS-C transfer system please follow these
guidelines carefully.
Overview comb – sprocket position
Sprocket size
Pitchdiameter
10 t
12 t
13 t
16 t
*) Dimension A has to be adjustable for "fine tuning" after installation. Use Part 362 as wearstrip.
Technical Support Department: fax +31 174 445 222, mail: Flattopeurope@rexnord.com
ENGINEERING MANUAL
DTS-C 2000 – 1005 construction
for RR(HD) 2000 belt in combination with FFTP 1005
A*
164.4
55.7
196.4
71.8
212.2
79.9
260.4
104.0
www.rexnordflattop.com
D
E
73.7
97.7
89.8
113.8
97.9
121.9
122.0
146.0
Advertisement
Table of Contents
Related Manuals for Rexnord DTS-C 2000
Summary of Contents for Rexnord DTS-C 2000
- Page 1 13 t 212.2 79.9 97.9 121.9 16 t 260.4 104.0 122.0 146.0 *) Dimension A has to be adjustable for “fine tuning” after installation. Use Part 362 as wearstrip. Technical Support Department: fax +31 174 445 222, mail: Flattopeurope@rexnord.com www.rexnordflattop.com...
- Page 2 These screws are supplied with the combs (2 each). Do not overtighten the bolts (max. 13 Nm). Note: For belts wider then 5500mm or temperatures above 90°C at the in/outfeed, please contact our Techical Support Department for calculating the recommended pitch of the screws. Technical Support Department: fax +31 174 445 222, mail: Flattopeurope@rexnord.com www.rexnordflattop.com...
- Page 3 Lowering the comb decreases the dead plate, but will also decrease the product flow stability, due to the chordal action. Optimum performance of the DTS-C is achieved by fine-tuning when running the machine with the actual products. Technical Support Department: fax +31 174 445 222, mail: Flattopeurope@rexnord.com www.rexnordflattop.com...
