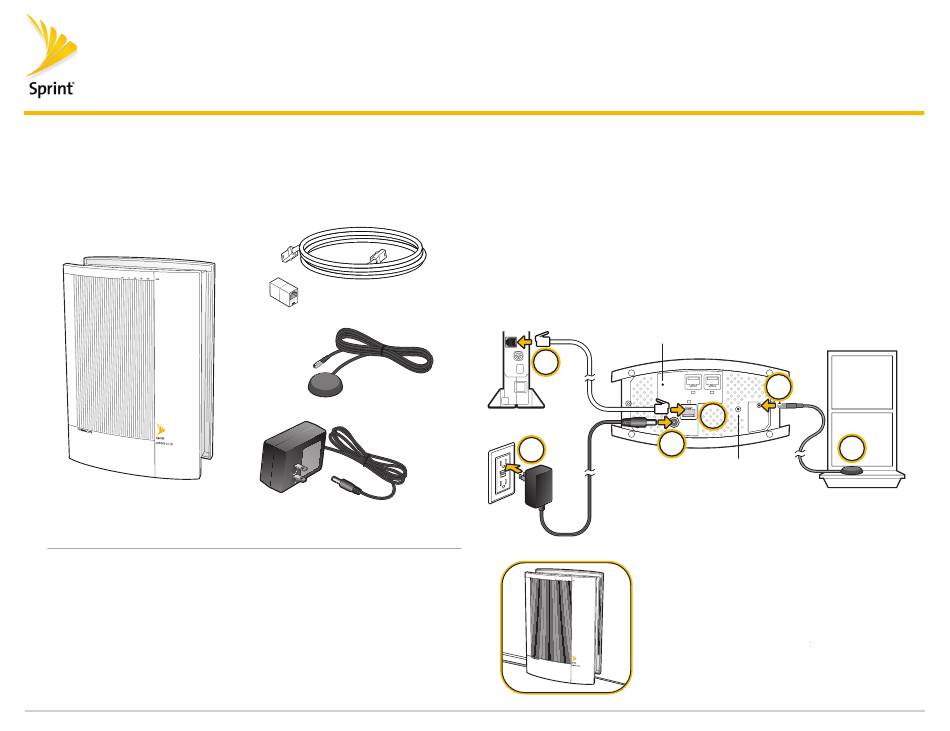

CommScope Sprint AIRAVE 3 LTE Getting Started Manual

AIRAVE 3 LTE Small Cell
Setup Instructions
Check that all these components are in the box:
•
AIRAVE 3 LTE Small Cell Device
• Ethernet Cable
• External GPS Antenna
• Power Supply
• Ethernet Coupler
AIRAVE 3 LTE
Small Cell Device
Place the Unit
Place your device:
• In an elevated location, such as the top of a bookshelf or tall cabinet
• Within 10 to 20 feet of a clear view of the sky
• Within reach of your broadband modem or router
• Within reach of an electrical outlet
NOTE: You will also need
a working electrical outlet
Ethernet Cable
Ethernet
Coupler
(optional)
External GPS
Antenna
Power Supply
Getting Started Guide
Install your AIRAVE 3 LTE
Follow these steps to set up your AIRAVE 3 LTE inside your office or other location.
Place the unit on its side to expose the bottom of the unit.
1 Connect one end of the Ethernet cable to an available LAN port on your
broadband connection device, or to a LAN port on your network. If on network:
• Open UDP ports 53, 67, 500 and 4500 bi-directionally
• Contact your IT administrator for assistance
2 Place the other end of the Ethernet cable to the WAN port.
3 Connect the GPS antenna to the GPS port.
4 Plug the power supply connector into the black power port.
Voice Services
Reset
1
RESET
6
Stand the unit upright and carefully move all
cables so they come out of either long end of
the unit.
NOTE: There is room for cables to come out
LAN LAN
3
2 RESET
12VDC
GPS
WAN
4
Data Services
Reset
from beneath the unit once it is
placed upright.
5
