thomann Pyrit 10A User Manual

thomann Pyrit 10A User Manual

Active 2-way fullrange speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

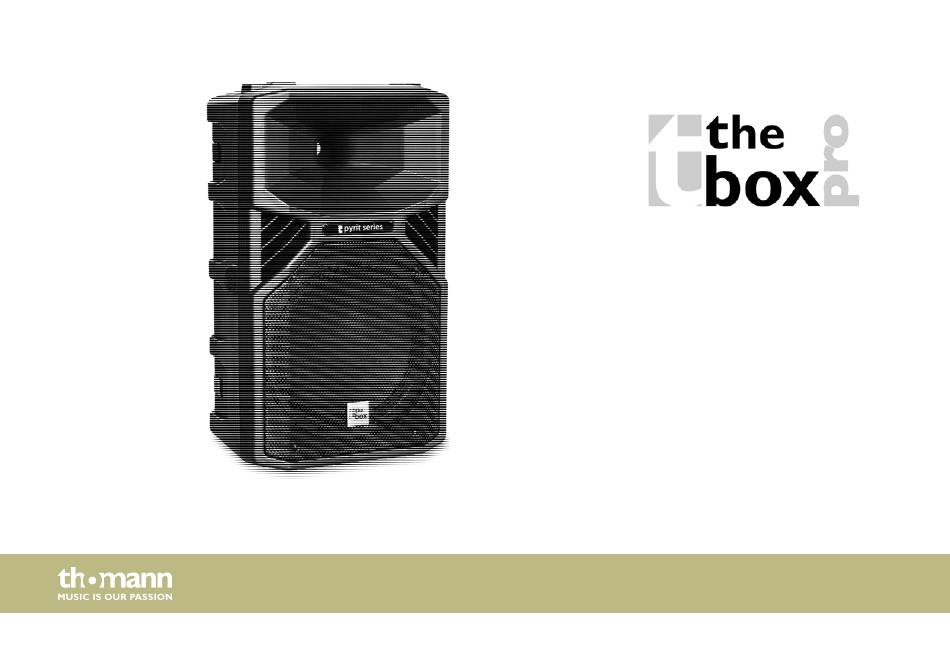

Pyrit 10A, 12A, 15A
active 2-way full-
range speaker
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pyrit 10A and is the answer not in the manual?

Questions and answers

Related Manuals for thomann Pyrit 10A

Summary of Contents for thomann Pyrit 10A

  • Page 1 Pyrit 10A, 12A, 15A active 2-way full- range speaker user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 05.07.2019, ID: 299659, 299658, 299657 (V2)

  • Page 3: Table Of Contents

    General notes............................... 4 Safety instructions............................. 7 Features............................... 12 Installation..............................13 4.1 Tips on handling speakers......................15 4.2 Hanging the speaker box......................16 4.3 Pin assignment..........................16 Connections and operating elements................... 20 Technical specifications........................26 Protecting the environment......................28 Pyrit 10A, 12A, 15A...

  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual.
  • Page 5 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Pyrit 10A, 12A, 15A...
  • Page 6 General notes Warning signs Type of danger Warning – high-voltage. Warning – suspended load. Warning – danger zone. active 2-way full-range speaker...

  • Page 7: Safety Instructions

    Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. Pyrit 10A, 12A, 15A...
  • Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 9 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. Pyrit 10A, 12A, 15A...
  • Page 10 Safety instructions NOTICE! Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. NOTICE! Risk of fire Do not block areas of ventilation.
  • Page 11 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Pyrit 10A, 12A, 15A...

  • Page 12: Features

    Features Features The device is particularly suitable for use in churches, conference rooms and multi-purpose halls. Special features of the device: Item no. 299659: 10-inch woofer, 1.4-inch tweeter Item no. 299658: 12-inch woofer, 1.7-inch tweeter Item no. 299657: 15-inch woofer, 1.7-inch tweeter Class D amplifier for LF Class AB amplifier for HF Built-in sound processor (DSP) with 3 modes (Music, Flat, Low Cut)

  • Page 13: Installation

    Block access under the work area. Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Pyrit 10A, 12A, 15A...
  • Page 14 Installation WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐...

  • Page 15: Tips On Handling Speakers

    Always use high grade cable to connect your equipment. Otherwise you won't reach max‐ imum sound quality. If you notice distortion during operation, the active speaker is overloaded. This may perma‐ nently damage the device. Always reduce the volume as soon as you hear distortion. Pyrit 10A, 12A, 15A...

  • Page 16: Hanging The Speaker Box

    Installation 4.2 Hanging the speaker box To hang the speaker box on special mounting devices (aka ‘flying’), top, bottom and sides of the box have M6 threads (item no. 299659) or M8 threads (item no. 299657 and 299658). Safety eyes can be screwed into these threads. Check the secure connection of the safety eyelets with the box carefully, before you use it in ‘flying mode’.
  • Page 17 XLR panel sockets are provided for signal inputs. XLR panel plugs are provided for signal out‐ inputs/outputs puts. The figure and the table show the XLR pin assignment. Balanced pinout: Ground Positive signal (+) Negative signal (–) Unbalanced pinout: Ground Signal Jumpered with pin 1 Pyrit 10A, 12A, 15A...
  • Page 18 Installation Jack plug for signal in and out‐ The figure and the table show the pin assignment for ¼-inch jack plugs. puts Unbalanced wiring (jack plug, mono): Signal Ground Unbalanced wiring (jack plug, stereo): Signal 2, 3 Ground active 2-way full-range speaker...
  • Page 19 Installation Balanced wiring (jack plug, stereo): 1 (tip) Positive signal (+) 2 (ring) Negative signal (–) 3 (sleeve) Ground Pyrit 10A, 12A, 15A...

  • Page 20: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Rear panel Pyrit 10A active 2-way full-range speaker...
  • Page 21 Connections and operating elements Rear panel Pyrit 12A Pyrit 10A, 12A, 15A...
  • Page 22 Connections and operating elements Rear panel Pyrit 15A active 2-way full-range speaker...
  • Page 23 Line signal output, designed as XLR panel plug. 5 Slide switch for selecting the input sensitivity of the amplifier (line or microphone) on signal input A. Depending on the selected input sensitivity, the corresponding LED (LINE, MIC) lights up. Pyrit 10A, 12A, 15A...
  • Page 24 Connections and operating elements 6 MODE Slide switch for operating mode selection: MUSIC, FLAT, LOW CUT. LEDs indicate the selected mode. Before you change the mode, please turn off the unit. This will avoid damages. 7 LED PWR Indicates that operating voltage is present. 8 LED SIG Indicates that the input signal is present.
  • Page 25 Connections and operating elements 12 POWER ON/OFF Use this switch (power switch) to turn the unit on and off. 13 MIX OUT Line signal output (e. g. for a mixer). Provides both signal outputs A and B. Pyrit 10A, 12A, 15A...

  • Page 26: Technical Specifications

    Technical specifications Technical specifications Pyrit 10A, item no. 299659 Pyrit 12A, item no. 299658 Pyrit 15A, item no. 299657 System 2-way full-range powered 2-way full-range powered 2-way full-range powered speaker box speaker box speaker box Speaker 1 × 10" woofer 1 ×...
  • Page 27 Technical specifications Pyrit 10A, item no. 299659 Pyrit 12A, item no. 299658 Pyrit 15A, item no. 299657 Output power RMS: 250 W RMS: 300 W RMS: 350 W Peak: 1000 W Peak: 1200 W Peak: 1400 W Frequency range 55 Hz… 20 kHz, –3 dB 50 Hz…...

  • Page 28: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 29 Notes Pyrit 10A, 12A, 15A...
  • Page 30 Notes active 2-way full-range speaker...
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
