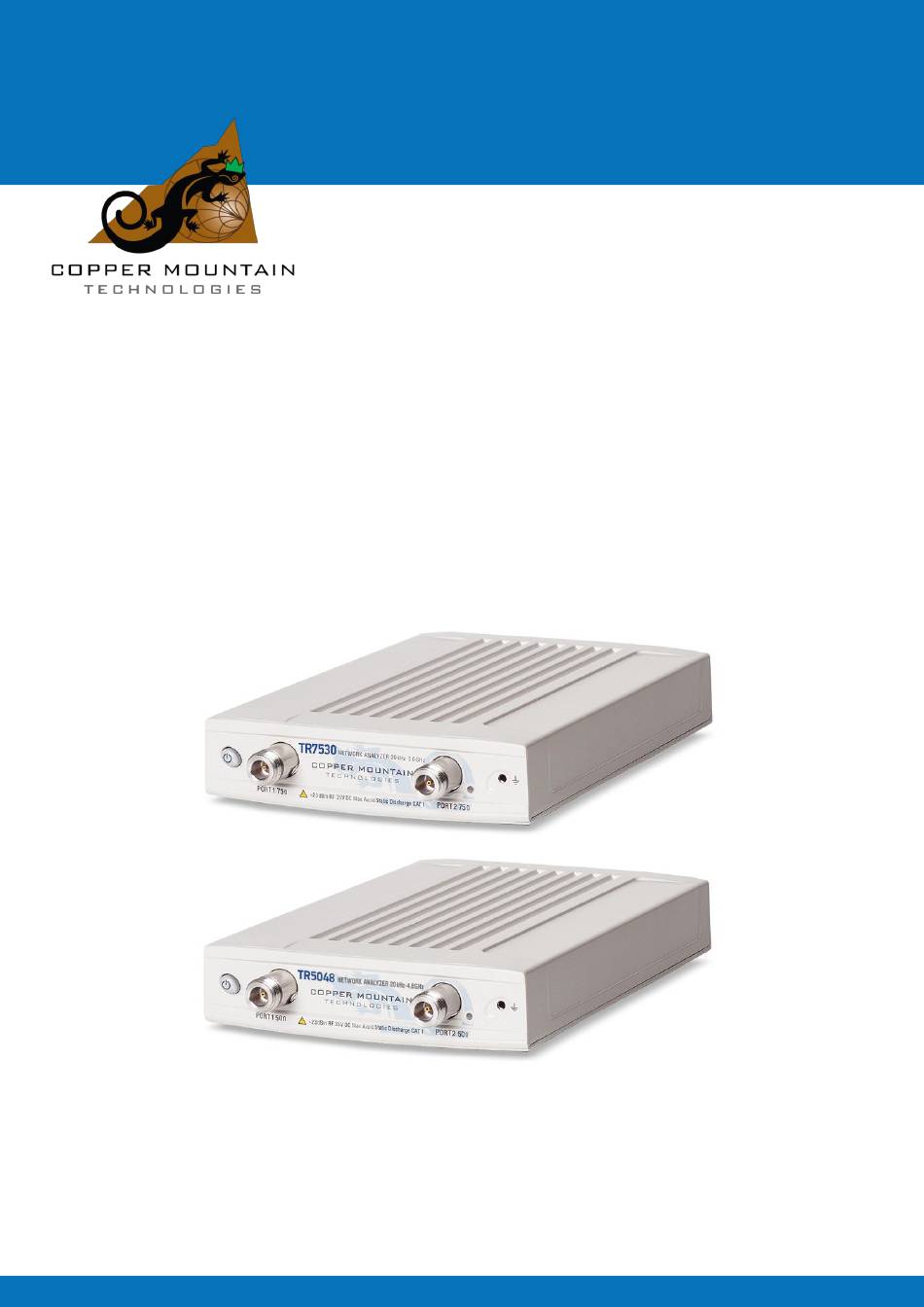

Page 1 TR Series Planar TR1300/1, TR5048, TR7530 Vector Network Analyzer Programming Manual COM/DCOM Software version: 18.3.0 December 2018...
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ......................... 11 1 Registering COM Server ..................11 2 COM Technology Overview ..................11 3 Automation Server ....................12 4 Automation Controllers ................... 12 5 Local and Remote Server..................13 6 Structure of COM Objects ..................14 7 Accessing the Application Object ................
Page 3 SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.SPAN ..........43 SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.STARt ..........44 SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.STATe ..........45 SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.STOP ..........46 SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.TYPE ..........47 SCPI.CALCulate(Ch).SELected.FORMat ................48 SCPI.CALCulate(Ch).SELected.FUNCtion.DATA ..............49 SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.COUPle .......... 50 SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.STARt ..........51 SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.STATe ..........52 SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.STOP ..........53 SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute ............54 SCPI.CALCulate(Ch).SELected.FUNCtion.PEXCursion ............ 55 SCPI.CALCulate(Ch).SELected.FUNCtion.POINts ............. 56 SCPI.CALCulate(Ch).SELected.FUNCtion.PPOLarity ............
Page 4 SCPI.CALCulate(Ch).SELected.MARKer(Mk).STATe ............88 SCPI.CALCulate(Ch).SELected.MARKer(Mk).X ..............89 SCPI.CALCulate(Ch).SELected.MARKer(Mk).Y ..............90 SCPI.CALCulate(Ch).SELected.MARKer.COUNt ..............91 SCPI.CALCulate(Ch).SELected.MATH.DELete ..............91 SCPI.CALCulate(Ch).SELected.MATH.FUNCtion ............... 92 SCPI.CALCulate(Ch).SELected.MATH.MEMorize .............. 93 SCPI.CALCulate(Ch).SELected.MAXhold.STATe ............... 93 SCPI.CALCulate(Ch).SELected.MSTatistics.DATA ............94 SCPI.CALCulate(Ch).SELected.MSTatistics.DOMain.MARKer.STARt ......95 SCPI.CALCulate(Ch).SELected.MSTatistics.DOMain.MARKer.STOP ......96 SCPI.CALCulate(Ch).SELected.MSTatistics.DOMain.STATe ......... 97 SCPI.CALCulate(Ch).SELected.MSTatistics.STATe ............98 SCPI.CALCulate(Ch).SELected.RLIMit.DATA ..............99 SCPI.CALCulate(Ch).SELected.RLIMit.DISPlay.LINE ............
Page 5 SCPI.DISPlay.SPLit ........................130 SCPI.DISPlay.UPDate_.IMMediate ..................131 SCPI.DISPlay.WINDow(Ch).ACTivate ................. 131 SCPI.DISPlay.WINDow(Ch).ANNotation.MARKer.ALIGn.TYPE ........132 SCPI.DISPlay.WINDow(Ch).ANNotation.MARKer.SINGle.STATe ......133 SCPI.DISPlay.WINDow(Ch).MAXimize ................133 SCPI.DISPlay.WINDow(Ch).SPLit ..................134 SCPI.DISPlay.WINDow(Ch).TITLe.DATA ................135 SCPI.DISPlay.WINDow(Ch).TITLe.STATe ................136 SCPI.DISPlay.WINDow(Ch).TRACe(Tr).ANNotation.MARKer.MEMory ....136 SCPI.DISPlay.WINDow(Ch).TRACe(Tr).ANNotation.MARKer.POSition.X ....137 SCPI.DISPlay.WINDow(Ch).TRACe(Tr).ANNotation.MARKer.POSition.Y ....138 SCPI.DISPlay.WINDow(Ch).TRACe(Tr).MEMory. STATe ..........139 SCPI.DISPlay.WINDow(Ch).TRACe(Tr).STATe ..............
Page 6 SCPI.MMEMory.STORe.CALibration ................... 166 SCPI.MMEMory.STORe.FDATa ..................... 167 SCPI.MMEMory.STORe.IMAGe ..................... 168 SCPI.MMEMory.STORe.LIMit ....................169 SCPI.MMEMory.STORe.RLIMit ..................... 170 SCPI.MMEMory.STORe.SEGMent ..................171 SCPI.MMEMory.STORe.SNP.DATA ..................172 SCPI.MMEMory.STORe.SNP.FORMat ................. 173 SCPI.MMEMory.STORe.SNP.TYPE.S1P ................174 SCPI.MMEMory.STORe.SNP.TYPE.S2P ................175 SCPI.MMEMory.STORe.STATe ....................176 SCPI.MMEMory.STORe.STYPe ....................177 SCPI.OUTPut.STATe ......................... 178 SCPI.SENSe(Ch).AVERage.CLEar ..................178 SCPI.SENSe(Ch).AVERage.COUNt ..................
Page 7 SCPI.SENSe(Ch).CORRection.COLLect.CLEar ..............208 SCPI.SENSe(Ch).CORRection.COLLect.DATA.LOAD(Pt) ..........209 SCPI.SENSe(Ch).CORRection.COLLect.DATA.OPEN(Pt) ..........210 SCPI.SENSe(Ch).CORRection.COLLect.DATA.SHORt(Pt) ..........211 SCPI.SENSe(Ch).CORRection.COLLect.DATA.THRU.MATCh (Pt_r, Pt_s) ....212 SCPI.SENSe(Ch).CORRection.COLLect.DATA.THRU. TRANsmission (Pt_r, Pt_s) 213 SCPI.SENSe(Ch).CORRection.COLLect.ECAL.INFormation ........214 SCPI.SENSe(Ch).CORRection.COLLect.ECAL.CHECK.Execute ........215 SCPI.SENSe(Ch).CORRection.COLLect.ECAL.ORIenation.Execute ......215 SCPI.SENSe(Ch).CORRection.COLLect.ECAL.ORIenation.STATe ......216 SCPI.SENSe(Ch).CORRection.COLLect.ECAL.PATH(Pt) ..........217 SCPI.SENSe(Ch).CORRection.COLLect.ECAL.SOLT1 ............ 218 SCPI.SENSe(Ch).CORRection.COLLect.ECAL.SOLT2 ............
Page 8 SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.DATA ..........252 SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.DIVisor ..........253 SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.MULTiplier ........254 SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.OFFSet ..........255 SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.STARt ..........256 SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.STOP ..........257 SCPI.SENSe(Ch).OFFSet.STATe.................... 258 SCPI.SENSe(Ch).ROSCillator.SOURce ................259 SCPI.SENSe(Ch).SEGMent.DATA ..................260 SCPI.SENSe(Ch).SWEep.POINt.TIME .................. 261 SCPI.SENSe(Ch).SWEep.POINts ................... 262 SCPI.SENSe(Ch).SWEep.REVerse.STATe ................263 SCPI.SENSe(Ch).SWEep.TYPE ....................264 SCPI.SENSe(Ch).VVM.DATA ....................265 SCPI.SENSe(Ch).VVM.FORMat ....................
Page 9 SCPI.STATus.OPERation.EVENt ................... 287 SCPI.STATus.OPERation.NTRansition ................287 SCPI.STATus.OPERation.PTRansition ................288 SCPI.STATus.PRESet ........................ 288 SCPI.STATus.QUEStionable.CONDition ................289 SCPI.STATus.QUEStionable.ENABle .................. 289 SCPI.STATus.QUEStionable.EVENt ..................290 SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).CONDition ........290 SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).ENABle ........... 291 SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).EVENt ..........291 SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).NTRansition ......... 292 SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).PTRansition ........293 SCPI.STATus.QUEStionable.LIMit.CONDition ..............294 SCPI.STATus.QUEStionable.LIMit.ENABle ..............294 SCPI.STATus.QUEStionable.LIMit.EVENt .................
Page 10 SCPI.TRIGger.SEQuence.SINGle ..................319 SCPI.TRIGger.SEQuence.SOURce ..................320 SCPI.TRIGger.SEQuence.STATe ................... 321 Appendix 1. Error Codes ..................322 Appendix 2. Programming Examples ..............323...
Page 11: Introduction
Introduction This Programming Manual contains information on remote control over Planar TR1300/1, TR5048 or TR7530 Vector Network Analyzer (Analyzer) and its data communication by means of user programs written with COM/DCOM technology. COM technology is used when a user program runs together with an external measurement instrument program on one PC.
Page 12: Automation Server
3 Automation Server The network analyzer executable module contains a built-in COM server that enables other programs to access its functionality. The COM server was developed in conformity with the COM automation specification. COM automation is a technology allowing control over the COM server by the programs written in both traditional compiling programming languages and interpreting programming languages, such as VBScript.
Page 13: Local And Remote Server
5 Local and Remote Server The network analyzer executable module can function either as a local server or as a remote server of COM automation. Local server runs on the same PC with the automation controller and each of the programs is executed as an individual application in a separate window.
Page 14: Structure Of Com Objects
6 Structure of COM Objects COM server contains several objects, which provide different functionality of the server. The COM objects of the network analyzer executable module are organized in a hierarchical structure. Figure 3 shows the main COM objects, which comprise the first three levels of the hierarchical structure of the COM server.
Page 15: Accessing The Application Object
7 Accessing the Application Object To establish connection with the COM server application, create an object reference in the client program. In COM programming the object reference needs to be acquired preliminarily, to be used later to access the object functionality. To define an object in Visual Basic perform the following: 1) Declare a variable as an object;...
Page 16 Accessing the Application Object To allow access to the objects of a lower level of the hierarchy, these objects are specified after the reference to the higher level object and separated from it by a dot. For example: Dim SystObj Set SystObj = app.SCPI.SYSTem COM objects can have indices.
Page 17: Object Methods
8 Object Methods Objects have methods. Methods are actions that can be applied to objects. The object methods are specified after the object name and separated from it by a dot. The following example shows the PRESet method of SYSTem object. This method performs setting of the Analyzer to the preset condition: app.SCPI.SYSTem.PRESet 9 Object Properties...
Page 18: 10 Error Handling
10 Error Handling You can use different approaches to error handling in VB program:  check the value of Err.Number variable after execution of VB operator, which contains the call to COM server object;  use On Error GoTo VB operator. These approaches are represented in the examples below.
Page 19 Error Handling In the second example, On Error GoTo ErrHandler directive instructs VB to interrupt the program execution when the error is detected and to pass control to ErrHandler label. Dim app Public Sub HandleError2() Set app = CreateObject("TRVNA.Application") On Error GoTo ErrHandler app.SCPI.PARameter.DEFine = "S13"...
Page 20: 11 Com Automation Data Types
11 COM Automation Data Types In COM automation, there are the following data types, which can be used for client-to-server communication: Long 32-bit signed integer, value range from –2147483648 to 2147483647 Double 64-bit double-precision floating point, value range from –1.79769313486232E308 –4.94065645841247E–324 negative values,...
Page 21: 12 Measurement Data Arrays
12 Measurement Data Arrays Measurement data can be either complex values or real values. This depends on the format selected by the user. For example, the data is real in logarithmic magnitude format and the data is complex in polar format. The measurement data is transferred in a Variant type variable, which represents an array of Double type.
Page 22: Com Server Commands
13 COM Server Commands NAME Object Type Property (read only) Data Type String Instrument information string. String format: manufacturer, model, Description serial number, number of firmware version and number of software version. Range up to 40 characters Dim ID As String Syntax ID = app.NAME Equivalent...
Page 23: Scpi.abort
COM Server Commands SCPI.ABORt Object Type Method Aborts the sweep. Switches trigger mode from Single to Hold, or from Description Continuous to waiting for a trigger. If the trigger source is set to Internal, starts a new sweep. Syntax app.SCPI.ABORt Equivalent None Softkeys...
Page 24 COM Server Commands Table 1. Ch: Channel Number Data Type Long Description Channel number. Range from 1 to 4 Out of Range An error occurs. Error code: 201. Table 2. Pt: Port Number Data Type Long Description Port number. Range from 1 to 2 Out of Range An error occurs.
Page 25: Scpi.calculate(Ch).Fsimulator.sended.deembed.port(Pt).State
COM Server Commands SCPI.CALCulate(Ch).FSIMulator.SENDed.DEEMbed.PORT(Pt).STATe Object Type Property (read/write) Data Type Boolean Port Pt of channel Ch, Table 1 channel number 1–9 (see Target Table 2 port number 1–2 (see Description The ON/OFF state of the e-embedding function. True De-embedding function ON Allowable Values False...
Page 26: Scpi.calculate(Ch).Fsimulator.sended.pmcircuit.port(Pt).User. Filename
COM Server Commands SCPI.CALCulate(Ch).FSIMulator.SENDed.PMCircuit.PORT(Pt).USER. FILename Object Type Property (read/write) Data Type String Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see Embedding function file name (*.s2p). The file contains the circuit S– Description parameters in Touchstone format.
Page 27: Scpi.calculate(Ch).Fsimulator.sended.pmcircuit.port(Pt).State
COM Server Commands SCPI.CALCulate(Ch).FSIMulator.SENDed.PMCircuit.PORT(Pt).STATe Object Type Property (read/write) Data Type Boolean Port Pt of channel Ch, Table 1 channel number 1–9 (see Target Table 2 port number 1–2 (see Description The ON/OFF state of the embedding function. True Embedding function ON Allowable Values False...
Page 28: Scpi.calculate(Ch).Fsimulator.sended.zconversion.port(Pt).Z0.R
COM Server Commands SCPI.CALCulate(Ch).FSIMulator.SENDed.ZCONversion.PORT(Pt).Z0.R Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 channel number 1–9 (see Target Table 2 port number 1–2 (see Description The value of the impedance for port impedance conversion function. Range from 1e–6 to 1e6 Out of Range...
Page 29: Scpi.calculate(Ch).Fsimulator.sended.zconversion.state
COM Server Commands SCPI.CALCulate(Ch).FSIMulator.SENDed.ZCONversion.STATe Object Type Property (read/write) Data Type Boolean Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the port impedance conversion function. True Port Z conversion function ON Allowable Values False Port Z conversion function OFF Preset Value False...
Page 30: Scpi.calculate(Ch).Parameter.count
COM Server Commands SCPI.CALCulate(Ch).PARameter.COUNt Object Type Property (read/write) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The number of traces in the channel. Range from 1 to 8 Out of Range Sets the value of the limit, which is closer to the specified value. Preset Value Dim TraceNum As Long Syntax...
Page 31: Scpi.calculate(Ch).Parameter(Tr).Define
COM Server Commands SCPI.CALCulate(Ch).PARameter(Tr).DEFine Object Type Property (read/write) Data Type String Trace Tr of channel Ch, Table 1 channel number 1–9 (see Target Table 3 trace number 1–8 (see Description The measurement parameter of the trace. "S11" S11 parameter "S21" S21 parameter Allowable "A"...
Page 32: Scpi.calculate(Ch).Parameter(Tr).Select
COM Server Commands Table 3. Tr: Trace Number Data Type Long Description Trace number Range from 1 to 8 Out of Range An error occurs. Error code: 202. Notes If the trace number is not specified, it is taken as equal to 1. SCPI.CALCulate(Ch).PARameter(Tr).SELect Object Type Method...
Page 33: Scpi.calculate(Ch).Parameter(Tr).Sport
COM Server Commands SCPI.CALCulate(Ch).PARameter(Tr).SPORt Object Type Property (read/write) Data Type Long Trace Tr of channel Ch, Table 1 Target channel number 1–9 (see Table 3 trace number 1–8 (see Description The number of the source port for absolute measurements. Range From 1 to 2 Out of range An error occurs..
Page 34: Scpi.calculate(Ch).Selected.conversion.function
COM Server Commands SCPI.CALCulate(Ch).SELected.CONVersion.FUNCtion Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The S–parameter conversion function type. "IMPedance" Reflection or Transmission equivalent impedance according to the trace measurement parameter (S11 or S21) "ADMittance"...
Page 35: Scpi.calculate(Ch).Selected.conversion.state
COM Server Commands SCPI.CALCulate(Ch).SELected.CONVersion.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the S-parameter conversion function. True S–parameter conversion function ON Allowable Values False S–parameter conversion function OFF...
Page 36: Scpi.calculate(Ch).Selected.correction.edelay.time
COM Server Commands SCPI.CALCulate(Ch).SELected.CORRection.EDELay.TIME Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The value of the electrical delay. Range from –10 to 10 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 37: Scpi.calculate(Ch).Selected.correction.offset.phase
COM Server Commands SCPI.CALCulate(Ch).SELected.CORRection.OFFSet.PHASe Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The value of the phase offset. Range from –360 to 360 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 38: Scpi.calculate(Ch).Selected.data.fdata
COM Server Commands SCPI.CALCulate(Ch).SELected.DATA.FDATa Object Type Property (read only) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The formatted data array. The array elements contain measurements in the current format, for example, in logarithmic magnitude format (Log Mag).
Page 39: Scpi.calculate(Ch).Selected.data.fmemory
COM Server Commands SCPI.CALCulate(Ch).SELected.DATA.FMEMory Object Type Property (read only) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The formatted memory array. The array elements contain saved measurements in the current format, for example, in logarithmic magnitude format (Log Mag).
Page 40: Scpi.calculate(Ch).Selected.data.sdata
COM Server Commands SCPI.CALCulate(Ch).SELected.DATA.SDATa Object Type Property (read only) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The corrected data array. The corrected measurements are complex numbers. Also, see section 12. The array size is 2N, where N is the number of measurement points.
Page 41: Scpi.calculate(Ch).Selected.filter.gate.time.center
COM Server Commands SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.CENTer Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The gate center value of the gating function. Range Varies depending on the frequency span and the number of points. Out of Range Sets the value of the limit, which is closer to the specified value.
Page 42: Scpi.calculate(Ch).Selected.filter.gate.time.shape
COM Server Commands SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.SHAPe Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The gate shape of the gating function. "MAXimum" Maximum shape "WIDE" Wide shape Range "NORMal"...
Page 43: Scpi.calculate(Ch).Selected.filter.gate.time.span
COM Server Commands SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.SPAN Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The gate span value of the gating function. Range Varies depending on the frequency span and the number of points. Out of Range Sets the value of the limit, which is closer to the specified value.
Page 44: Scpi.calculate(Ch).Selected.filter.gate.time.start
COM Server Commands SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.STARt Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The gate start value of the gating function. Range Varies depending on the frequency span and the number of points. Out of Range Sets the value of the limit, which is closer to the specified value.
Page 45: Scpi.calculate(Ch).Selected.filter.gate.time.state
COM Server Commands SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the gating function. True Gating function ON Allowable Values False Gating function OFF Preset Value False...
Page 46: Scpi.calculate(Ch).Selected.filter.gate.time.stop
COM Server Commands SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.STOP Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The gate stop value of the gating function. Range Varies depending on the frequency span and the number of points. Out of Range Sets the value of the limit, which is closer to the specified value.
Page 47: Scpi.calculate(Ch).Selected.filter.gate.time.type
COM Server Commands SCPI.CALCulate(Ch).SELected.FILTer.GATE.TIME.TYPE Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The gate type of the gating function. "BPASs" Bandpass type Range "NOTCh" Notch type The short format of the parameter is indicated by upper case letters.
Page 48: Scpi.calculate(Ch).Selected.format
COM Server Commands SCPI.CALCulate(Ch).SELected.FORMat Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description Data format. "MLOGarithmic" Logarithmic magnitude "PHASe" Phase "GDELay" Group delay time "SLINear" Smith chart format (Lin) "SLOGarithmic"...
Page 49: Scpi.calculate(Ch).Selected.function.data
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.DATA Object Type Property (read only) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The data array of analysis executed by the SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute method. The array size is 2N, where N is the number of points defined by the SCPI.CALCulate(Ch).SELected.FUNCtion.POINts property.
Page 50: Scpi.calculate(Ch).Selected.function.domain.couple
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.COUPle Object Type Property (read/write) Data Type Boolean All traces of channel Ch, Target Table 1 Ch channel number 1–9 (see The ON/OFF coupling state of the analysis range for the Description SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute method. True Coupling state ON Allowable Values False...
Page 51: Scpi.calculate(Ch).Selected.function.domain.start
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.STARt Object Type Property (read/write) Data Type Double All traces of channel Ch (if the coupling is set to OFF by the SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.COUPle Target property), the active trace of channel Ch (if otherwise), Table 1 Ch channel number 1–9 (see The start value of the analysis range set by the Description SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute method.
Page 52: Scpi.calculate(Ch).Selected.function.domain.state
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.STATe Object Type Property (read/write) Data Type Boolean All traces of channel Ch (if the coupling is set to OFF by the SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.COUPle Target property), the active trace of channel Ch (if otherwise), Table 1 Ch channel number 1–9 (see The ON/OFF state of the arbitrary range when executing the analysis by Description the SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute...
Page 53: Scpi.calculate(Ch).Selected.function.domain.stop
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.STOP Object Type Property (read/write) Data Type Double All traces of channel Ch (if the coupling is set to OFF by the SCPI.CALCulate(Ch).SELected.FUNCtion.DOMain.COUPle Target property), the active trace of channel Ch (if otherwise), Table 1 Ch channel number 1–9 (see The stop value of the analysis range set by the Description SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute method.
Page 54: Scpi.calculate(Ch).Selected.function.execute
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute Object Type Method The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Executes the analysis specified with the SCPI.CALCulate(Ch).SELected.FUNCtion.TYPE property. Description The analysis result can then be read out with the SCPI.CALCulate(Ch).SELected.FUNCtion.DATA property.
Page 55: Scpi.calculate(Ch).Selected.function.pexcursion
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.PEXCursion Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The lower limit for the peak excursion value when executing the peak Description search by the SCPI.CALCulate(Ch).SELected.FUNCtion. EXECute method.
Page 56: Scpi.calculate(Ch).Selected.function.points
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.POINts Object Type Property (read only) Data Type Long The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The number of points (data pairs) of the analysis result by the SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute method. Always equal to 1, when the search is executed for the maximum, Description minimum, mean, standard deviation, peak, and peak–to–peak values.
Page 57: Scpi.calculate(Ch).Selected.function.ppolarity
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.PPOLarity Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The polarity selection when performing the peak search by the Description SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute method. "POSitive" Positive peaks Range "NEGative"...
Page 58: Scpi.calculate(Ch).Selected.function.target
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.TARGet Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The target level when performing the search for the trace and the Description target level crosspoints by the SCPI.CALCulate(Ch).SELected. FUNCtion.EXECute method.
Page 59: Scpi.calculate(Ch).Selected.function.ttransition
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.TTRansition Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The transition type selection when performing the search for the trace Description and the target level crosspoints by the SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute method.
Page 60: Scpi.calculate(Ch).Selected.function.type
COM Server Commands SCPI.CALCulate(Ch).SELected.FUNCtion.TYPE Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The selection of the type of analysis executed by the Description SCPI.CALCulate(Ch).SELected.FUNCtion.EXECute method. "PTPeak" Peak–to–peak (difference between the maximum value and the minimum value) "STDEV"...
Page 61: Scpi.calculate(Ch).Selected.limit.data
COM Server Commands SCPI.CALCulate(Ch).SELected.LIMit.DATA Object Type Property (read/write) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The data array, which is the limit line in the limit test function. The array size is 1 + 5N, where N is the number of measuring points.
Page 62: Scpi.calculate(Ch).Selected.limit.display.state
COM Server Commands SCPI.CALCulate(Ch).SELected.LIMit.DISPlay.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the limit line display of the limit test function. True Limit line display ON Allowable Values...
Page 63: Scpi.calculate(Ch).Selected.limit.offset.amplitude
COM Server Commands SCPI.CALCulate(Ch).SELected.LIMit.OFFSet.AMPLitude Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The value of the limit line offset along Y–axis. Range Varies depending on the trace format. Out of Range No limitation Preset Value...
Page 64: Scpi.calculate(Ch).Selected.limit.offset.stimulus
COM Server Commands SCPI.CALCulate(Ch).SELected.LIMit.OFFSet.STIMulus Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The value of the limit line offset along X–axis. From the stimulus current start value to the stimulus current stop Range value.
Page 65: Scpi.calculate(Ch).Selected.limit.report.all
COM Server Commands SCPI.CALCulate(Ch).SELected.LIMit.REPort.ALL Object Type Property (read only) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The data array, which is the limit test results. The array size is 4N, where N is the number of measurement points.
Page 66: Scpi.calculate(Ch).Selected.limit.report.data
COM Server Commands SCPI.CALCulate(Ch).SELected.LIMit.REPort.DATA Object Type Property (read only) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The data array, which is the stimulus values at all the measurement points that failed the limit test.
Page 67: Scpi.calculate(Ch).Selected.limit.report.points
COM Server Commands SCPI.CALCulate(Ch).SELected.LIMit.REPort.POINts Object Type Property (read only) Data Type Long The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The number of the measurement points that failed the limit test. The array of stimulus values of the points can be read out by the Description SCPI.CALCulate(Ch).SELected.LIMit.REPort.DATA property.
Page 68: Scpi.calculate(Ch).Selected.limit.state
COM Server Commands SCPI.CALCulate(Ch).SELected.LIMit.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the limit test function. True Limit test function ON Allowable Values False Limit test function OFF...
Page 69: Scpi.calculate(Ch).Selected.marker(Mk).Activate
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).ACTivate Object Type Method Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 Sets the active marker. If a marker is OFF this function will turn it ON. Turning ON a marker with the number from 1 to 15 will turn ON all the Description markers of smaller numbers.
Page 70: Scpi.calculate(Ch).Selected.marker(Mk).Bwidth.data
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).BWIDth.DATA Object Type Property (read only) Data Type Variant (Double array) Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 The bandwidth search result.
Page 71: Scpi.calculate(Ch).Selected.marker.bwidth.reference
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer.BWIDth.REFerence Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The selection of the reference point for the bandwidth search function: Description reference marker or absolute maximum value of the trace. "MARKer"...
Page 72: Scpi.calculate(Ch).Selected.marker.bwidth.state
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer.BWIDth.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the bandwidth search function. True Bandwidth search function ON Allowable Values False Bandwidth search function OFF...
Page 73: Scpi.calculate(Ch).Selected.marker.bwidth.threshold
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer.BWIDth.THReshold Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The bandwidth definition value. Range Varies depending on the trace format. Out of Range No limitation Preset Value –3...
Page 74: Scpi.calculate(Ch).Selected.marker.bwidth.type
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer.BWIDth.TYPE Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The type of the bandwidth search function. "BPASs" Bandpass Range "NOTCh" Notch The short format of the parameter is indicated by upper case letters. There is no distinction between upper and lower case letters when the Notes property is written.
Page 75: Scpi.calculate(Ch).Selected.marker.couple
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer.COUPle Object Type Property (read/write) Data Type Boolean All traces of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the marker coupling function. True Marker coupling ON Allowable Values False Marker coupling OFF True Preset Value...
Page 76: Scpi.calculate(Ch).Selected.marker(Mk).Function.domain. Start
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.DOMain. STARt Object Type Property (read/write) Data Type Double All traces of channel Ch (if the marker search range coupling is set to OFF by the SCPI.CALCulate(Ch).SELected.FUNCtion. DOMain.COUPle property), the active trace of channel Ch (if Target otherwise), Table 1 Ch channel number 1–9 (see...
Page 77: Scpi.calculate(Ch).Selected.marker(Mk).Function.domain. State
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.DOMain. STATe Object Type Property (read/write) Data Type Boolean All traces of channel Ch (if the marker search range coupling is set to OFF by the SCPI.CALCulate(Ch).SELected.MARKer. FUNCtion.DOMain.COUPle property), the active trace of channel Ch Target (if otherwise), Table 1 Ch channel number 1–9 (see The ON/OFF state of the arbitrary range when executing the marker...
Page 78: Scpi.calculate(Ch).Selected.marker(Mk).Function.domain. Stop
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.DOMain. STOP Object Type Property (read/write) Data Type Double All traces of channel Ch (if the marker search range coupling is set to OFF by the SCPI.CALCulate(Ch).SELected.MARKer. FUNCtion.DOMain.COUPle property), the active trace of channel Ch Target (if otherwise), Table 1 Ch channel number 1–9 (see Description...
Page 79: Scpi.calculate(Ch).Selected.marker(Mk).Function.execute
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.EXECute Object Type Method Marker Mk of the active trace of channel Ch, channel number 1–9 (see Table 1) Target marker number 1–15, or reference marker number 16 (see Table 4 Executes the marker search according to the specified criterion. The Description type of the marker search is set by the SCPI.CALCulate(Ch).
Page 80: Scpi.calculate(Ch).Selected.marker(Mk).Function.pexcursion
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.PEXCursion Object Type Property (read/write) Data Type Double Marker Mk of the active trace of channel Ch, channel number 1–9 (see Table 1) Target marker number 1–15, or reference marker number 16 (see Table 4 The peak excursion value, when the marker search for peak is Description performed by the SCPI.CALCulate(Ch).SELected.
Page 81: Scpi.calculate(Ch).Selected.marker(Mk).Function.ppolarity
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.PPOLarity Object Type Property (read/write) Data Type String Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 The peak polarity selection, when the marker search for peak is Description performed by the SCPI.CALCulate(Ch).SELected.
Page 82: Scpi.calculate(Ch).Selected.marker(Mk).Function.target
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.TARGet Object Type Property (read/write) Data Type Double Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 The target value, when the marker search for target is performed by the SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.
Page 83: Scpi.calculate(Ch).Selected.marker(Mk).Function.tracking
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.TRACking Object Type Property (read/write) Data Type Boolean Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 Description The ON/OFF state of the marker search tracking function. True Marker search tracking ON Allowable...
Page 84: Scpi.calculate(Ch).Selected.marker(Mk).Function.ttransition
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.TTRansition Object Type Property (read/write) Data Type String Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 The selection of the type of the target transition, when the marker Description search for transition is performed by the SCPI.CALCulate(Ch).
Page 85: Scpi.calculate(Ch).Selected.marker(Mk).Function.type
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).FUNCtion.TYPE Object Type Property (read/write) Data Type String Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 The selection of the type of the marker search, which is performed by Description the SCPI.CALCulate(Ch).SELected.MARKer(Mk).
Page 86: Scpi.calculate(Ch).Selected.marker.reference.state
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer.REFerence.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The ON/OFF state of the reference marker. When the reference marker Description is turned ON, all the values of the other markers turn to relative values. True Reference marker ON Allowable...
Page 87: Scpi.calculate(Ch).Selected.marker(Mk).Set
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).SET_ Object Type Property (write only) Data Type String Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 The setting of the value of the specified item to the value of the Description position of the marker.
Page 88: Scpi.calculate(Ch).Selected.marker(Mk).State
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).STATe Object Type Property (read/write) Data Type Boolean Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 The ON/OFF state of a marker. Turning ON a marker with the number from 1 to 15 will turn ON all the markers of smaller numbers.
Page 89: Scpi.calculate(Ch).Selected.marker(Mk).X
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).X Object Type Property (read/write) Data Type Double Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 Description The stimulus value of the marker. From the stimulus current start value to the stimulus current stop Range value.
Page 90: Scpi.calculate(Ch).Selected.marker(Mk).Y
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer(Mk).Y Object Type Property (read only) Data Type Variant (Double array) Marker Mk of the active trace of channel Ch, Table 1 channel number 1–9 (see Target marker number 1–15, or reference marker number 16 (see Table 4 The response value of the marker.
Page 91: Scpi.calculate(Ch).Selected.marker.count
COM Server Commands SCPI.CALCulate(Ch).SELected.MARKer.COUNt Object Type Property (read/write) Data Type Long The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The number of the turned ON markers excluding the reference marker. Range from 0 to 15 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 92: Scpi.calculate(Ch).Selected.math.function
COM Server Commands SCPI.CALCulate(Ch).SELected.MATH.FUNCtion Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The selection of the math operation between the measurement data Description and the memory trace data. The math result replaces the data trace. If the data trace is not saved, the command is ignored.
Page 93: Scpi.calculate(Ch).Selected.math.memorize
COM Server Commands SCPI.CALCulate(Ch).SELected.MATH.MEMorize Object Type Method The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Saves the measurement data to the memory trace. Automatically turns Description on the display of the memory trace. Syntax app.SCPI.CALCulate(Ch).SELected.MATH.MEMorize Equivalent Trace >...
Page 94: Scpi.calculate(Ch).Selected.mstatistics.data
COM Server Commands SCPI.CALCulate(Ch).SELected.MSTatistics.DATA Object Type Property (read only) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The math statistics data array. The statistics function is applied either over the whole range (for all the trace), or within the range specified by the SCPI.CALCulate(Ch).SELected.MSTatistics.DOMain.
Page 95: Scpi.calculate(Ch).Selected.mstatistics.domain.marker.start
COM Server Commands SCPI.CALCulate(Ch).SELected.MSTatistics.DOMain.MARKer.STARt Object Type Property (read/write) Data Type Long The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The number of the marker, which specifies the start frequency of the Description math statistics range. Range from 1 to 16 Out of Range...
Page 96: Scpi.calculate(Ch).Selected.mstatistics.domain.marker.stop
COM Server Commands SCPI.CALCulate(Ch).SELected.MSTatistics.DOMain.MARKer.STOP Object Type Property (read/write) Data Type Long The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The number of the marker, which specifies the stop frequency of the Description math statistics range. Range from 1 to 16 Out of Range...
Page 97: Scpi.calculate(Ch).Selected.mstatistics.domain.state
COM Server Commands SCPI.CALCulate(Ch).SELected.MSTatistics.DOMain.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the math statistics range. True Statistics range ON Allowable Values False Statistics range OFF Preset Value...
Page 98: Scpi.calculate(Ch).Selected.mstatistics.state
COM Server Commands SCPI.CALCulate(Ch).SELected.MSTatistics.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the math statistics display. True Statistics display ON Allowable Values False Statistics display OFF Preset Value...
Page 99: Scpi.calculate(Ch).Selected.rlimit.data
COM Server Commands SCPI.CALCulate(Ch).SELected.RLIMit.DATA Object Type Property (read/write) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The data array, which is the limit line for the ripple limit function. The array size is 1 + 4N, where N is the number of limit line segments.
Page 100: Scpi.calculate(Ch).Selected.rlimit.display.line
COM Server Commands SCPI.CALCulate(Ch).SELected.RLIMit.DISPlay.LINE Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the ripple limit line display. True Ripple limit line ON Allowable Values False...
Page 101: Scpi.calculate(Ch).Selected.rlimit.report.data
COM Server Commands SCPI.CALCulate(Ch).SELected.RLIMit.REPort.DATA Object Type Property (read only) Data Type Variant (Double array) The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The data array, which is the ripple limit test results. The array size is 1+3N, where N is the number of ripple limit bands.
Page 102: Scpi.calculate(Ch).Selected.rlimit.state
COM Server Commands SCPI.CALCulate(Ch).SELected.RLIMit.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the ripple limit test. True Ripple limit test ON Allowable Values False Ripple limit test OFF...
Page 103: Scpi.calculate(Ch).Selected.smoothing.aperture
COM Server Commands SCPI.CALCulate(Ch).SELected.SMOothing.APERture Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The smoothing aperture for the smoothing function. Range from 0.01 to 20 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 104: Scpi.calculate(Ch).Selected.smoothing.state
COM Server Commands SCPI.CALCulate(Ch).SELected.SMOothing.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the trace smoothing function. True Trace smoothing ON Allowable Values False Trace smoothing OFF False...
Page 105: Scpi.calculate(Ch).Selected.transform.time.center
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.CENTer Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Еhe time domain center value, when the time domain transformation Description function is turned ON. Varies depending on the specified frequency range and the number of Range points.
Page 106: Scpi.calculate(Ch).Selected.transform.time.impulse.width
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.IMPulse.WIDTh Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The impulse width (time domain transformation resolution), coupled with the Kaiser–Bessel window shape β parameter. The impulse width Description setting changes the β...
Page 107: Scpi.calculate(Ch).Selected.transform.time.kbessel
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.KBESsel Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The β parameter, which controls the Kaiser–Bessel window shape, Description when performing time domain transformation. Range from 0 to 13 Out of Range...
Page 108: Scpi.calculate(Ch).Selected.transform.time.lpfrequency
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.LPFRequency Object Type Method The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Changes the frequency range to match with the lowpass type of the Description time domain transformation function. app.SCPI.CALCulate(Ch).SELected.TRANsform.TIME. Syntax LPFRequency Equivalent Analysis >...
Page 109: Scpi.calculate(Ch).Selected.transform.time.reflection.type
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.REFLection.TYPE Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The selection of the reflection type for the time domain transformation Description function. "RTRip" Round Trip Range "OWAY"...
Page 110: Scpi.calculate(Ch).Selected.transform.time.span
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.SPAN Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The time domain span value, when the time domain transformation Description function is turned ON. Varies depending on the specified frequency range and the number of Range points.
Page 111: Scpi.calculate(Ch).Selected.transform.time.start
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.STARt Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The start value used for the transformation function of the time domain Description function. Varies depending on the specified frequency range and the number of Range points.
Page 112: Scpi.calculate(Ch).Selected.transform.time.state
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.STATe Object Type Property (read/write) Data Type Boolean The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the time domain transformation function. True Time domain transformation ON Allowable Values False...
Page 113: Scpi.calculate(Ch).Selected.transform.time.step.rtime
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.STEP.RTIMe Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The rise time of the step signal (time domain transformation resolution), coupled with the Kaiser–Bessel window shape β parameter. Description The impulse width setting changes the β...
Page 114: Scpi.calculate(Ch).Selected.transform.time.stimulus
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.STIMulus Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The selection of the stimulus type for the time domain transformation Description function: impulse or step. "IMPulse"...
Page 115: Scpi.calculate(Ch).Selected.transform.time.stop
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.STOP Object Type Property (read/write) Data Type Double The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The time domain stop value, when the time domain transformation Description function is turned ON. Varies depending on the specified frequency range and the number of Range points.
Page 116: Scpi.calculate(Ch).Selected.transform.time.type
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.TYPE Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see The selection of the transformation type for the time domain Description transformation function: bandpass response or direct current circuit. "BPASs"...
Page 117: Scpi.calculate(Ch).Selected.transform.time.unit
COM Server Commands SCPI.CALCulate(Ch).SELected.TRANsform.TIME.UNIT Object Type Property (read/write) Data Type String The active trace of channel Ch, Target Table 1 Ch channel number 1–9 (see Description The selection of the unit for the time domain transformation function. "SEC" Seconds Range "MET"...
Page 118: Scpi.calculate(Ch).Trace(Tr).Data.fdata
COM Server Commands SCPI.CALCulate(Ch).TRACe(Tr).DATA.FDATa Object Type Property (read only) Data Type Variant (Double array) The specified trace Tr of channel Ch, Table 3 Target trace number 1–8 (see Table 1 channel number 1–9 (see The formatted data array. The array elements contain measurements in the current format, for example, in logarithmic magnitude format (Log Mag).
Page 119: Scpi.calculate(Ch).Trace(Tr).Data.fmemory
COM Server Commands SCPI.CALCulate(Ch).TRACe(Tr).DATA.FMEMory Object Type Property (read only) Data Type Variant (Double array) The specified trace Tr of channel Ch, Table 3 trace number 1–8 (see Target Table 1 channel number 1–9 (see The formatted memory array. The array elements contain saved measurements in the current format, for example, in logarithmic magnitude format (Log Mag).
Page 120: Scpi.calculate(Ch). Trace(Tr).Data.sdata
COM Server Commands SCPI.CALCulate(Ch). TRACe(Tr).DATA.SDATa Object Type Property (read only) Data Type Variant (Double array) The specified trace Tr of channel Ch, Target trace number 1–8 (see Table 3) channel number 1–9 (see Table 1) The corrected data array. The corrected measurements are complex numbers.
Page 121: Scpi.calculate(Ch). Trace(Tr).Data.smemory
COM Server Commands SCPI.CALCulate(Ch). TRACe(Tr).DATA.SMEMory Object Type Property (read only) Data Type Variant (Double array) The specified trace Tr of channel Ch, Table 3 trace number 1–8 (see Target Table 1 channel number 1–9 (see The corrected memory array. The corrected measurements are complex numbers.
Page 122: Scpi.display.annotation.frequency.state
COM Server Commands SCPI.DISPlay.ANNotation.FREQuency.STATe Object Type Property (read/write) Data Type Boolean Target Instrument The ON/OFF state of the frequency or time label on the channel Description window. True Frequency label display ON Allowable Values False Frequency label display OFF Preset Value True Dim Status As Boolean Status =...
Page 123: Scpi.display.color.back
COM Server Commands SCPI.DISPlay.COLor.BACK Object Type Property (read/write) Data Type Variant (Long array) Target Instrument The background color for trace display. The array contains 3 elements: Data(0) Red value R; Description Data(1) Green value G; Data(2) Blue value B. Range For all the array elements from 0 to 255.
Page 124: Scpi.display.color.graticule
COM Server Commands SCPI.DISPlay.COLor.GRATicule Object Type Property (read/write) Data Type Variant (Long array) Target Instrument The grid and the graticule label color for trace display. The array contains 3 elements: Data(0) Red value R; Description Data(1) Green value G; Data(2) Blue value B.
Page 125: Scpi.display.color.reset
COM Server Commands SCPI.DISPlay.COLor.RESet Object Type Method Target Instrument Description Restores the display settings to the default values. Syntax app.SCPI.DISPlay.COLor.RESet Equivalent Display > Set Defaults Softkeys SCPI.DISPlay.COLor.TRACe(Tr).DATA Object Type Property (read/write) Data Type Variant (Long array) Trace number Tr in all channels, Target Table 3 trace number 1–8 (see...
Page 126: Scpi.display.color.trace(Tr).Memory
COM Server Commands SCPI.DISPlay.COLor.TRACe(Tr).MEMory Object Type Property (read/write) Data Type Variant (Long array) Trace number Tr in all channels Target Table 3 trace number 1–8 (see The memory trace color. The array contains 3 elements: Data(0) Red value R; Description Data(1) Green value G;...
Page 127: Scpi.display.fsign
COM Server Commands SCPI.DISPlay.FSIGn Object Type Property (read/write) Data Type Boolean Target Instrument The ON/OFF state of the Fail sign display, when performing limit test or Description ripple limit test. True Fail sign display ON Allowable Values False Fail sign display OFF Preset Value False Dim Status As Boolean...
Page 128: Scpi.display.image
COM Server Commands SCPI.DISPlay.IMAGe Object Type Property (read/write) Data Type String Target Instrument Description The inverted color display of the data traces. "NORMal" Normal display Range "INVert" Inverted color display The short format of the parameter is indicated by upper case letters. There is no distinction between upper and lower case letters when the Notes property is written.
Page 129: Scpi.display.maximize
COM Server Commands SCPI.DISPlay.MAXimize Object Type Property (read/write) Data Type Boolean Target Active Channel Description The ON/OFF maximize state of the active channel window. True Maximize active chanel state ON Allowable Values False Maximize active chanel state OFF False Preset Value Dim Status As Boolean Status = app.SCPI.DISPlay.MAXimize Syntax...
Page 130: Scpi.display.split
COM Server Commands SCPI.DISPlay.SPLit Object Type Property (read/write) Data Type Long Target Instrument The number and layout of the channel windows on the screen. The channel window layout is in Description Table 5 below. Range from 1 to 10 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 131: Scpi.display.update_.Immediate
COM Server Commands SCPI.DISPlay.UPDate_.IMMediate Object Type Method Target Instrument Updates the display once, when the display update is set to OFF Description (SCPI.DISPlay.ENABle property is set to False). Syntax app.SCPI.DISPlay.UPDate_.IMMediate Equivalent None Softkeys SCPI.DISPlay.WINDow(Ch).ACTivate Object Type Method Channel Ch, Target Table 1 Ch channel number 1–9 (see Description...
Page 132: Scpi.display.window(Ch).Annotation.marker.align.type
COM Server Commands SCPI.DISPlay.WINDow(Ch).ANNotation.MARKer.ALIGn.TYPE Object Type Property (read/write) Data Type String Channel Ch, Target Table 1 Ch channel number 1–9 (see The alignment mode of the marker display position of each trace, when the only active trace display feature is turned OFF Description (SCPI.DISPlay.WINDow(Ch).ANNotation.MARKer.SINGle.S TATe property is set to False).
Page 133: Scpi.display.window(Ch).Annotation.marker.single.state
COM Server Commands SCPI.DISPlay.WINDow(Ch).ANNotation.MARKer.SINGle.STATe Object Type Property (read/write) Data Type Boolean Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the marker display for the active trace only. True Only active trace markers display ON Allowable Values False...
Page 134: Scpi.display.window(Ch).Split
COM Server Commands SCPI.DISPlay.WINDow(Ch).SPLit Object Type Property (read/write) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see The number and layout of the trace on the channel window. The trace Description Table 6 layout is in below.
Page 135: Scpi.display.window(Ch).Title.data
COM Server Commands SCPI.DISPlay.WINDow(Ch).TITLe.DATA Object Type Property (read/write) Data Type String Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The channel title label. Range up to 254 characters Preset Value "" Dim Text As String Syntax Text = app.SCPI.DISPlay.WINDow(Ch).TITLe.DATA app.SCPI.DISPlay.WINDow(Ch).TITLe.DATA = "Example1"...
Page 136: Scpi.display.window(Ch).Title.state
COM Server Commands SCPI.DISPlay.WINDow(Ch).TITLe.STATe Object Type Property (read/write) Data Type Boolean Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the title label display. True Title label display ON Allowable Values False Title label display OFF False Preset Value Dim Status As Boolean...
Page 137: Scpi.display.window(Ch).Trace(Tr).Annotation.marker.position.x
COM Server Commands SCPI.DISPlay.WINDow(Ch).TRACe(Tr).ANNotation.MARKer.POSition.X Object Type Property (read/write) Data Type Double Trace Tr of channel Ch, Table 1 Target channel number 1–9 (see Table 3 trace number 1–8 (see The display position of the marker value on the X–axis by a percentage Description of the display width.
Page 138: Scpi.display.window(Ch).Trace(Tr).Annotation.marker.position.y
COM Server Commands SCPI.DISPlay.WINDow(Ch).TRACe(Tr).ANNotation.MARKer.POSition.Y Object Type Property (read/write) Data Type Double Trace Tr of channel Ch, Table 1 Target channel number 1–9 (see Table 3 trace number 1–8 (see The display position of the marker value on the Y–axis by a percentage Description of the display height.
Page 139: Scpi.display.window(Ch).Trace(Tr).Memory. State
COM Server Commands SCPI.DISPlay.WINDow(Ch).TRACe(Tr).MEMory. STATe Object Type Property (read/write) Data Type Boolean Trace Tr of channel Ch, Table 1 Target channel number 1–9 (see Table 3 trace number 1–8 (see Description The ON/OFF state of the memory trace display. True Memory trace display ON Allowable Values...
Page 140: Scpi.display.window(Ch).Trace(Tr).State
COM Server Commands SCPI.DISPlay.WINDow(Ch).TRACe(Tr).STATe Object Type Property (read/write) Data Type Boolean Trace Tr of channel Ch, Table 1 Target channel number 1–9 (see Table 3 trace number 1–8 (see Description The ON/OFF state of the data trace display. True Data trace display ON Allowable Values False...
Page 141: Scpi.display.window(Ch).Trace(Tr).Y.scale.auto
COM Server Commands SCPI.DISPlay.WINDow(Ch).TRACe(Tr).Y.SCALe.AUTO Object Type Method Trace Tr of channel Ch, Table 1 Target channel number 1–9 (see Table 3 trace number 1–8 (see Description Executes the auto scale function for the trace. Syntax app.SCPI.DISPlay.WINDow(Ch).TRACe(Tr).Y.SCALe.AUTO Equivalent Scale > Auto Scale Softkeys...
Page 142: Scpi.display.window(Ch).Trace(Tr).Y.scale.pdivision
COM Server Commands SCPI.DISPlay.WINDow(Ch).TRACe(Tr).Y.SCALe.PDIVision Object Type Property (read/write) Data Type Double Trace Tr of channel Ch, Table 1 Target channel number 1–9 (see Table 3 trace number 1–8 (see The trace scale. Sets the scale per division, when the data format is the Description rectangular format.
Page 143: Scpi.display.window(Ch).Trace(Tr).Y.scale.rlevel
COM Server Commands SCPI.DISPlay.WINDow(Ch).TRACe(Tr).Y.SCALe.RLEVel Object Type Property (read/write) Data Type Double Trace Tr of channel Ch, Table 1 Target channel number 1–9 (see Table 3 trace number 1–8 (see The value of the reference line (response value on the reference line). Description For the rectangular format only.
Page 144: Scpi.display.window(Ch).Trace(Tr).Y.scale.rposition
COM Server Commands SCPI.DISPlay.WINDow(Ch).TRACe(Tr).Y.SCALe.RPOSition Object Type Property (read/write) Data Type Long Trace Tr of channel Ch, Table 1 Target channel number 1–9 (see Table 3 trace number 1–8 (see Description The position of the reference line. For the rectangular format only. From 0 to the number of the scale divisions (set by the Range SCPI.DISPlay.WINDow(Ch).Y.SCALe.DIVisions property, 10...
Page 145: Scpi.display.window(Ch).Y.scale.divisions
COM Server Commands SCPI.DISPlay.WINDow(Ch).Y.SCALe.DIVisions Object Type Property (read/write) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see The number of the vertical scale divisions. For the rectangular format Description only. Range from 4 to 20 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 146: Scpi.hcopy.abort
COM Server Commands SCPI.HCOPy.ABORt Object Type Method Target Analyzer Description Aborts the printout Syntax app.SCPI.HCOPy.ABORt Equivalent None Softkeys SCPI.HCOPy.DATE.STAMp Object Type Property (read/write) Data Type Boolean Target Instrument The ON/OFF state of the current date and time printout in the upper Description right corner.
Page 147: Scpi.hcopy.image
COM Server Commands SCPI.HCOPy.IMAGe Object Type Property (read/write) Data Type String Target Instrument Description The inverted color image printout. "NORMal" Normal printout Range "INVert" Inverted color printout The short format of the parameter is indicated by upper case letters. There is no distinction between upper and lower case letters when the Notes property is written.
Page 148: Scpi.hcopy.paint
COM Server Commands SCPI.HCOPy.PAINt Object Type Property (read/write) Data Type String Target Instrument Description The color chart for the image printout. "COLor" Color printout Range "GRAY" Grayscale printout "BW" Black&white printout The short format of the parameter is indicated by upper case letters. There is no distinction between upper and lower case letters when the Notes property is written.
Page 149: Scpi.ieee4882.Cls
COM Server Commands SCPI.IEEE4882.CLS Object Type Method Target Status Reporting System Clears the following • Error Queue • Status Byte Register • Standard Event Status Register Description • Operation Status Event Register • Questionable Status Event Register • Questionable Limit Status Event Register •...
Page 150: Scpi.ieee4882.Idn
COM Server Commands SCPI.IEEE4882.IDN Object Type Property (read only) Data Type String Target Instrument The instrument information string. The string format: ''{manufacturer}, Description {model}, {serial number}, {software version/firmware version}''. Range up to 40 characters Dim ID As String Syntax ID = app.NAME Equivalent None Softkeys...
Page 151: Scpi.ieee4882.Trg
COM Server Commands SCPI.IEEE4882.TRG Object Type Method Target Instrument If the trigger source is set to LAN (SCPI.TRIGger.SEQuence. SOURce property is set to ''BUS'' ), triggers a sweep. Description If the trigger source is not set to the bus (SCPI.TRIGger. SEQuence.SOURce property is not set to ''BUS'' ) or the instrument is not waiting for a trigger, the method is ignored.
Page 152: Scpi.initiate.continuous
COM Server Commands SCPI.INITiate.CONTinuous Object Type Property (read/write) Data Type Boolean Target Instrument The ON/OFF state of the continuous trigger initiation mode. If the Description continuous trigger initiation mode is set to OFF, the channel turns to the hold state. True Continuous trigger initiation mode ON Allowable...
Page 153: Scpi.initiate.immediate
COM Server Commands SCPI.INITiate.IMMediate Object Type Method Target Instrument Sets the channel to the single trigger mode. Before this method is called, the channel must be in hold state, otherwise an error occurs Description (error code 213) and the method is ignored. On completion of the sweep, the channel goes back into the hold state.
Page 154: Scpi.mmemory.delete(File)
COM Server Commands SCPI.MMEMory.DELete(File) Object Type Method Target Instrument Description Deletes a file. Syntax app.SCPI.MMEMory.DELete(File) Parameter File – File name. String data type. Equivalent None Softkeys SCPI.MMEMory.LOAD.CHANnel.STATe Object Type Property (write only) Data type String Target Active channel Recalls the analyzer state for the active channel, saved in one of the Description four memory registers by the SCPI.MMEMory.STORe.CHANnel.STATe property...
Page 155: Scpi.mmemory.load.ckit(Ck)
COM Server Commands SCPI.MMEMory.LOAD.CKIT(Ck) Object Type Property (write only) Data Type String Calibration kit Ck, Target Table 7 Ck calibration kit number 1–11 (see Recalls the definition file for the calibration kit. The file must be saved Description by the SCPI.MMEMory.STORe.CKIT(Ck) property. Range up to 254 characters app.SCPI.MMEMory.LOAD.CKIT(Ck) = File...
Page 156: Scpi.mmemory.load.calibration
COM Server Commands SCPI.MMEMory.LOAD.CALibration Object Type Property (write only) Data Type String Target User calibration of the active channel. Recalls the specified calibration file. The file must be saved by the Description SCPI.MMEMory.STORe.CALibration property. Range up to 254 characters app.SCPI.MMEMory.LOAD.CALibration = File Syntax If the full path to the file is not specified, the \State subdirectory of the Notes...
Page 157: Scpi.mmemory.load.limit
COM Server Commands SCPI.MMEMory.LOAD.LIMit Object Type Property (write only) Data Type String Target Active trace of the active channel. Recalls the specified limit table file. The file must be saved by the Description SCPI.MMEMory.STORe.LIMit property. Range up to 254 characters app.SCPI.MMEMory.LOAD.LIMit = File Syntax If the full path to the file is not specified, the \Limit subdirectory of the...
Page 158: Scpi.mmemory.load.rlimit
COM Server Commands SCPI.MMEMory.LOAD.RLIMit Object Type Property (write only) Data Type String Target Active trace of the active channel. Recalls the ripple limit table file. The file must be saved by the Description SCPI.MMEMory.STORe.RLIMit property. Range up to 254 characters Syntax app.SCPI.MMEMory.LOAD.RLIMit = File If the full path to the file is not specified, the \Limit subdirectory of the...
Page 159: Scpi.mmemory.load.segment
COM Server Commands SCPI.MMEMory.LOAD.SEGMent Object Type Property (write only) Data Type String Target Active channel Recalls the segment table file. The file must be saved by the Description SCPI.MMEMory.STORe.SEGMent property. Range up to 254 characters app.SCPI.MMEMory.LOAD.SEGMent = File Syntax If the full path to the file is not specified, the \Segment subdirectory of Notes the main directory will be searched for the file.
Page 160: Scpi.mmemory.load.snp.data
COM Server Commands SCPI.MMEMory.LOAD.SNP.DATA Object Type Property (write only) Data Type String Target Active channel Loads the Touchstone file with the specified name to the measured S– parameters of the active channel. The Touchstone file types *.s1p (1– port) and *.s2p (2–port) are supported. *.s1p file loads the S11 Description parameter only.
Page 161: Scpi.mmemory.load.snp.trace(Tr).Memory
COM Server Commands SCPI.MMEMory.LOAD.SNP.TRACe(Tr).MEMory Object Type Property (write only) Data Type String The specified memory trace Tr of active channel Table 3 trace number 1–9 (see Target Active channel set by command SCPI.DISPlay.WINDow(Ch).ACTivate Loads the Touchstone file with the specified name to the memory trace. The Touchstone file types *.s1p (1–port) and *.s2p (2–port) are supported.
Page 162: Scpi.mmemory.load.state
COM Server Commands SCPI.MMEMory.LOAD.STATe Object Type Property (write only) Data Type String Target Instrument Recalls the specified instrument state file. The file must be saved by Description the SCPI.MMEMory.STORe.STATe property. Range up to 254 characters Syntax app.SCPI.MMEMory.LOAD.STATe = File If the full path to the file is not specified, the \State subdirectory of the Notes main directory will be searched for the file.
Page 163: Scpi.mmemory.mdirectory
COM Server Commands SCPI.MMEMory.MDIRectory Object Type Property (write only) Data Type String Target Instrument Creates a new directory (folder). Contains the full path to the folder Description being created. Range up to 254 characters Syntax app.SCPI.MMEMory.MDIRectory = Path Equivalent None Softkeys SCPI.MMEMory.STORe.CHANnel.CLEar Object Type...
Page 164: Scpi.mmemory.store.channel.state
COM Server Commands SCPI.MMEMory.STORe.CHANnel.STATe Object Type Property (write only) Data Type String Target Active channel Saves the analyzer state of the items set for the active channel into one Description of the four memory registers. "A" Save to register A "B"...
Page 165: Scpi.mmemory.store.ckit(Ck)
COM Server Commands SCPI.MMEMory.STORe.CKIT(Ck) Object Type Property (write only) Data Type String Calibration kit Ck, Target Table 7 Ck calibration kit number 1–11 (see Description Saves the definition file for the calibration kit parameters. Range up to 254 characters app.SCPI.MMEMory.STORe.CKIT(Ck) = File Syntax If the full path to the file is not specified, the file will be saved to the Notes...
Page 166: Scpi.mmemory.store.calibration
COM Server Commands SCPI.MMEMory.STORe.CALibration Object Type Property (write only) Data Type String Target User calibration of the active channel. Description Save the specified calibration file. Range up to 254 characters Syntax app.SCPI.MMEMory.STORe.CALibration = File If the full path to the file is not specified, the \State subdirectory of the Notes main directory will be used for the file.
Page 167: Scpi.mmemory.store.fdata
COM Server Commands SCPI.MMEMory.STORe.FDATa Object Type Property (write only) Data Type String Target Active trace of the active channel Description Saves the CSV formatted data into a file. Range up to 254 characters Syntax app.SCPI.MMEMory.STORe.FDATa = File If the full path to the file is not specified, the file will be saved to the Notes \CSV subdirectory of the main directory.
Page 168: Scpi.mmemory.store.image
COM Server Commands SCPI.MMEMory.STORe.IMAGe Object Type Property (write only) Data Type String Target Instrument Description Saves the display image in BMP or PNG format into a file. Range up to 254 characters Syntax app.SCPI.MMEMory.STORe.IMAGe = File If the full path to the file is not specified, the file will be saved to the \Image subdirectory of the main directory.
Page 169: Scpi.mmemory.store.limit
COM Server Commands SCPI.MMEMory.STORe.LIMit Object Type Property (write only) Data Type String Target Active trace of the active channel Description Saves the limit table into a file with the specified name. Range up to 254 characters Syntax app.SCPI.MMEMory.STORe.LIMit = File If the full path to the file is not specified, the file will be saved to the Notes \Limit subdirectory of the main directory.
Page 170: Scpi.mmemory.store.rlimit
COM Server Commands SCPI.MMEMory.STORe.RLIMit Object Type Property (write only) Data Type String Target Active trace of the active channel Description Saves the ripple limit table into a file with the specified name. Range up to 254 characters Syntax app.SCPI.MMEMory.STORe.RLIMit = File If the full path to the file is not specified, the file will be saved to the Notes \Limit subdirectory of the main directory.
Page 171: Scpi.mmemory.store.segment
COM Server Commands SCPI.MMEMory.STORe.SEGMent Object Type Property (write only) Data Type String Target Active channel Description Saves the segment table in a file with the specified name. Range up to 254 characters Syntax app.SCPI.MMEMory.STORe.SEGMent = File If the full path to the file is not specified, the file will be saved to the Notes \Segment subdirectory of the main directory.
Page 172: Scpi.mmemory.store.snp.data
COM Server Commands SCPI.MMEMory.STORe.SNP.DATA Object Type Property (write only) Data Type String Target Active channel Saves the measured S–parameters of the active channel into a Touchstone file with the specified name. The file type (1–port or 2– port) is set by the SCPI.MMEMory.STORe.SNP.TYPE.S1P and Description SCPI.MMEMory.STORe.SNP.TYPE.S2P properties.
Page 173: Scpi.mmemory.store.snp.format
COM Server Commands SCPI.MMEMory.STORe.SNP.FORMat Object Type Property (read/write) Data Type String Target Active channel The data format for the S–parameters saving by the Description SCPI.MMEMory.STORe.SNP.DATA property. "MA" Logarithmic Magnitude / Angle format Range "DB" Linear Magnitude / Angle format "RI" Real part /Imaginary part format Out of Range The value is ignored.
Page 174: Scpi.mmemory.store.snp.type.s1P
COM Server Commands SCPI.MMEMory.STORe.SNP.TYPE.S1P Object Type Property (read/write) Data Type Long Target Active channel Selects 1-port measurements and sets port numbers (selects S11 Description parameter) when saving the measured S-parameters by the SCPI.MMEMory.STORe.SNP.DATA property. Range from 1 to 2 Out of Range An error occurs.
Page 175: Scpi.mmemory.store.snp.type.s2P
COM Server Commands SCPI.MMEMory.STORe.SNP.TYPE.S2P Object Type Property (read/write) Data Type Variant (Long array) Target Active channel Selects 2-port measurements and sets port numbers when saving the measured S-parameters by the SCPI.MMEMory.STORe.SNP.DATA property. The array contains 2 elements: Description Data(0) First port number (reads out 1, ignored when written); Data(1) Second port number (reads out 2, ignored when written).
Page 176: Scpi.mmemory.store.state
COM Server Commands SCPI.MMEMory.STORe.STATe Object Type Property (write only) Data Type String Target Instrument Description Saves the instrument state into a file with the specified name. Range up to 254 characters Syntax app.SCPI.MMEMory.STORe.STATe = File If the full path to the file is not specified, the file will be saved to the Notes \State subdirectory of the main directory.
Page 177: Scpi.mmemory.store.stype
COM Server Commands SCPI.MMEMory.STORe.STYPe Object Type Property (read/write) Data Type String Target Instrument Selects the type of the instrument or channel state saving by the Description SCPI.MMEMory.STORe.STATe or SCPI.MMEMory.STORe. CHANnel.STATe property. "STATe" Measurement conditions "CSTate" Measurement conditions and calibration tables Range "DSTate"...
Page 178: Scpi.output.state
COM Server Commands SCPI.OUTPut.STATe Object Type Property (read/write) Data Type Boolean Target Instrument Sets the ON/OFF state of the stimulus signal output. Measurements Description cannot be performed when the stimulus signal output is set to OFF. True Stimulus signal output ON Allowable Values False...
Page 179: Scpi.sense(Ch).Average.count
COM Server Commands SCPI.SENSe(Ch).AVERage.COUNt Object Type Property (read/write) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see The averaging factor, when the averaging function is set to ON by the Description SCPI.SENSe(Ch).AVERage.STATe property. Range from 1 to 999 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 180: Scpi.sense(Ch).Average.current
COM Server Commands SCPI.SENSe(Ch).AVERage.CURRent Object Type Property (read only) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The current step of averaging. Range from 1 to Averaging Factor Dim Value As Long Syntax Value = app.SCPI.SENSe(Ch).AVERage.CURRent Equivalent None Softkeys...
Page 181: Scpi.sense(Ch).Bandwidth.resolution
COM Server Commands SCPI.SENSe(Ch).BANDwidth.RESolution Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The IF bandwidth value. Range from 10 to 30000 Resolution In steps of 3. (10, 30, 100, 300, 1000, 3000, 10000, 30000) Out of Range Sets the value of the limit, which is closer to the specified value.
Page 182: Scpi.sense(Ch).Correction.clear
COM Server Commands SCPI.SENSe(Ch).CORRection.CLEar Object Type Method Channel Ch, Target Table 1 Ch channel number 1–9 (see Description Clears the calibration coefficient table. Syntax app.SCPI.SENSe(Ch).CORRection.CLEar Equivalent None Softkeys...
Page 183: Scpi.sense(Ch).Correction.coefficient.data(Str, Pt_R, Pt_S)
COM Server Commands SCPI.SENSe(Ch).CORRection.COEFficient.DATA(Str, Pt_r, Pt_s) Object Type Property (read) Data Type Variant (Double array) Channel Ch, Target Table 1 Ch channel number 1–9 (see The calibration coefficient data array set by the type of the corrected error Str, the number of the receiver port Pt_r and the number of the source port Pt_s, error type (see below) Pt_r...
Page 184: Scpi.sense(Ch).Correction.coefficient.method.eresponse
COM Server Commands SCPI.SENSe(Ch).CORRection.COEFficient.METHod.ERESponse Selects the port numbers and sets the 1–path 2–port calibration type, when the written calibration coefficients are made effective by the SCPI.SENSe(Ch).CORRection.COEFficient.SAVE method. Description The array contains 2 elements: Data(0) the number of the receiver port; Data(1) the number of the source port.
Page 185: Scpi.sense(Ch).Correction.coefficient.method.response.open
COM Server Commands SCPI.SENSe(Ch).CORRection.COEFficient.METHod.RESPonse.OPEN Selects the port and sets the response calibration (Open) type, when the written calibration coefficients are made effective by the Description SCPI.SENSe(Ch).CORRection.COEFficient.SAVE method. Type Long (write only) Range Port number is 1 or 2. (see Table 2) Out of Range An error occurs.
Page 186: Scpi.sense(Ch).Correction.coefficient.method.response.thru
COM Server Commands SCPI.SENSe(Ch).CORRection.COEFficient.METHod.RESPonse.THRU Selects the ports and sets the response calibration (Thru) type, when the written calibration coefficients made effective SCPI.SENSe(Ch).CORRection.COEFficient.SAVE method. Description The array contains 2 elements: Data(0) the number of the receiver port; Data(1) the number of the source port. Type Variant: array of long (write only) Port number is 1 to 2.
Page 187: Scpi.sense(Ch).Correction.coefficient.method.solt1
COM Server Commands SCPI.SENSe(Ch).CORRection.COEFficient.METHod.SOLT1 Selects the port and sets the full 1–port calibration type, when the written calibration coefficients made effective Description SCPI.SENSe(Ch).CORRection.COEFficient.SAVE method. Type Long (write only) Range Port number is 1 or 2. (see Table 2) Out of Range An error occurs.
Page 188: Scpi.sense(Ch).Correction.coefficient.save
COM Server Commands SCPI.SENSe(Ch).CORRection.COEFficient.SAVE Enables the written calibration coefficients depending on the selected calibration type. On completion of the method the written calibration coefficients are Description cleared, the error correction automatically turns ON. At the attempt to execute this method before all the needed calibration coefficients are written, an error occurs and the method is ignored.
Page 189: Scpi.sense(Ch).Correction.collect.acquire.load
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ACQuire.LOAD Object Type Property (write only) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Measures the calibration data of the load standard for the specified Description port. Range Port number is 1 or 2. Out of Range An error occurs (error code: 222).
Page 190: Scpi.sense(Ch).Correction.collect.acquire.open
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ACQuire.OPEN Object Type Property (write only) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Measures the calibration data of the open standard for the specified Description port. Range Port number is 1 or 2. Out of Range An error occurs.
Page 191: Scpi.sense(Ch).Correction.collect.acquire.short
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ACQuire.SHORt Object Type Property (write only) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Measures the calibration data of the short standard for the specified Description port. Range Port number is 1 or 2. Out of Range An error occurs.
Page 192: Scpi.sense(Ch).Correction.collect.acquire.thru
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ACQuire.THRU Object Type Property (write only) Data Type Variant (Long array) Channel Ch, Target Table 1 Ch channel number 1–9 (see Measures the calibration data of the thru standard between the source port and the receiver port. The array contains 2 elements: Description Data(0)
Page 193: Scpi.sense(Ch).Correction.collect.ckit.label
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.LABel Object Type Property (read/write) Data Type String Calibration kit, selected for channel Ch, Target Table 1 Ch channel number 1–9 (see Description The calibration kit label. Range up to 254 characters Varies depending on the number of the calibration kit. 1: Not Def 50Ohm 2: Not Def 75Ohm 3: 05CK10A-150 –F–...
Page 194: Scpi.sense(Ch).Correction.collect.ckit.reset
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.RESet Object Type Method Calibration kit, selected for channel Ch, Target Table 1 Ch channel number 1–9 (see Description Resets the calibration kit to the factory settings. Syntax app.SCPI.SENSe(Ch).CORRection.COLLect.CKIT.RESet Equivalent Calibration > Restore Cal Kit Softkeys...
Page 195: Scpi.sense(Ch).Correction.collect.ckit.select
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.SELect Object Type Property (read/write) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The selected calibration kit for the channel. Range from 1 to 16 Out of Range An error occurs. Error code: 222. Preset Value Dim Value As Long Value =...
Page 196: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).C0
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).C0 Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The C0 value of the open calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 197: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).C1
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).C1 Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The C1 value of the open calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 198: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).C2
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).C2 Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The C2 value of the open calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 199: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).C3
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).C3 Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The C3 value of the open calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 200: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).Delay
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).DELay Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The offset delay value of the calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 201: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).L0
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).L0 Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The L0 value of the short calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 202: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).L1
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).L1 Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The L1 value of the short calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 203: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).L2
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).L2 Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The L2 value of the short calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 204: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).L3
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).L3 Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The L3 value of the short calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 205: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).Label
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).LABel Object Type Property (read) Data Type String Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The label of the calibration standard. Range up to 254 characters Preset Value...
Page 206: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).Loss
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).LOSS Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The offset loss value of the calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 207: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).Type
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).TYPE Object Type Property (read only) Data Type String Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The type of the calibration standard. "OPEN"...
Page 208: Scpi.sense(Ch).Correction.collect.ckit.stan(Std).Z0
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.CKIT.STAN(Std).Z0 Object Type Property (read/write) Data Type Double Standard Std of the calibration kit specified for channel Ch, Table 1 Target channel number 1–9 (see Table 8 standard number (see Description The offset Z0 value of the calibration standard. Range from –1E18 to 1E18 Out of Range...
Page 209: Scpi.sense(Ch).Correction.collect.data.load(Pt)
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.DATA.LOAD(Pt) Object Type Property (read/write) Data Type Variant (array of double) Channel Ch, Target Table 1 channel number 1–9 (see The array of the load calibration standard measurements for the port port number 1 The array elements are complex numbers. Also see section 12. The array size is 2N, where N is the number of measurement points.
Page 210: Scpi.sense(Ch).Correction.collect.data.open(Pt)
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.DATA.OPEN(Pt) Object Type Property (read/write) Data Type Variant (array of double) Channel Ch, Target Table 1 channel number 1–9 (see The array of the open calibration standard measurements for the port port number 1 The array elements are complex numbers. Also see section 12. The array size is 2N, where N is the number of measurement points.
Page 211: Scpi.sense(Ch).Correction.collect.data.short(Pt)
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.DATA.SHORt(Pt) Object Type Property (read/write) Data Type Variant (array of double) Channel Ch, Target Table 1 channel number 1–9 (see The array of the short calibration standard measurements for the port port number 1 The array elements are complex numbers. Also see section 12. The array size is 2N, where N is the number of measurement points.
Page 212: Scpi.sense(Ch).Correction.collect.data.thru.match (Pt_R, Pt_S)
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.DATA.THRU.MATCh (Pt_r, Pt_s) Object Type Property (read/write) Data Type Variant (array of double) Channel Ch, Target Table 1 channel number 1–9 (see The array of the reflection measurements of the thru standard connected between the receiver port Pt_r and the source port Pt_s, Pt_r: the number of the receiver port 2 Pt_s:...
Page 213: Scpi.sense(Ch).Correction.collect.data.thru. Transmission (Pt_R, Pt_S)
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.DATA.THRU. TRANsmission (Pt_r, Pt_s) Object Type Property (read/write) Data Type Variant (array of double) Channel Ch, Target Table 1 channel number 1–9 (see The array of the transmission measurements performed between the receiver port Pt_r and the source port Pt_s, using the thru standard, Pt_r: the number of the receiver port 2 Pt_s:...
Page 214: Scpi.sense(Ch).Correction.collect.ecal.information
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ECAL.INFormation Object Type Property (read only) Data Type String Target AutoCal module (Ch – arbitrary number 1 to 9) Gets information about the AutoCal Module connected to the Network Analyzer in a string with comma separated fields. Autocal Module Information: ...
Page 215: Scpi.sense(Ch).Correction.collect.ecal.check.execute
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ECAL.CHECK.Execute Object Type Method Target AutoCal module (Ch – arbitrary number 1 to 9) Description Executing confidence check app.SCPI.SENSe(Ch).CORRection.COLLect.ECAL.CHECK. Syntax Execute Equivalent Calibration > Autocalibration > Confidence Check Softkeys SCPI.SENSe(Ch).CORRection.COLLect.ECAL.ORIenation.Execute Object Type Method Target AutoCal module (Ch – arbitrary number 1 to 9) Description Executing AutoCal orientation to the ports Rcv, Src app.SCPI.SENSe.CORRection.COLLect.ECAL.
Page 216: Scpi.sense(Ch).Correction.collect.ecal.orienation.state
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ECAL.ORIenation.STATe Object Type Property (read/write) Data Type Boolean Target AutoCal (Ch – arbitrary number 1 to 9) The ON/OFF state of the Auto-Orientation function used when Description executing AutoCal. True Auto-Orientation function ON Allowable Values False Auto-Orientation function OFF Preset Value False Dim Status As Boolean...
Page 217: Scpi.sense(Ch).Correction.collect.ecal.path(Pt)
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ECAL.PATH(Pt) Object Type Property (read/write) Data Type Long Target AutoCal (Ch – arbitrary number 1 to 9) Sets or reads out the AutoCal module port number which is connected Description to a selected Network Analyzer port (Pt). Port A of AutoCal Module Port B of AutoCal Module Allowable...
Page 218: Scpi.sense(Ch).Correction.collect.ecal.solt1
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ECAL.SOLT1 Object Type Property (write only) Data Type Long Channel Ch, Target Table 1 Ch: channel number 1–9 (see Executes Full 1-port calibration of the specified port of specified Description channel (Ch) using the AutoCal module. Allowable Port number = 1 Values Dim Port As Long...
Page 219: Scpi.sense(Ch).Correction.collect.ecal.solt2
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ECAL.SOLT2 Object Type Property (write only) Data Type Variant: array of long Channel Ch, Target Table 1 Ch: channel number 1–9 (see Executes One Path 2-Port Calibration of the specified 2 ports of Description specified channel (Ch) using the AutoCal module. Allowable Available Array values only (2, 1) Values...
Page 220: Scpi.sense(Ch).Correction.collect.ecal.uchar
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.ECAL.UCHar Object Type Property (read/write) Data Type String Target AutoCal (Ch – arbitrary number 1 to 9) Sets or reads out the Characteristic used when executing AutoCal Description (factory or user characterization). "CHAR0" Factory characterization "CHAR1" User characterization 1 Range "CHAR2"...
Page 221: Scpi.sense(Ch).Correction.collect.method.eresponse
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.METHod.ERESponse Object Type Property (write only) Data Type Variant (Long array) Channel Ch, Target Table 1 Ch channel number 1–9 (see Selects the ports and sets the one path 2–port calibration type for the calculation of the calibration coefficients on completion of the calibration executed by the SCPI.SENSe(Ch).CORRection.
Page 222: Scpi.sense(Ch).Correction.collect.method.response.open
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.METHod.RESPonse.OPEN Object Type Property (write only) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Selects the port and sets the response calibration (Open) type for the calculation of the calibration coefficients on completion of the Description calibration executed by the SCPI.SENSe(Ch).CORRection.
Page 223: Scpi.sense(Ch).Correction.collect.method.response.short
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.METHod.RESPonse.SHORt Object Type Property (write only) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Selects the port and sets the response calibration (Short) type for the calculation of the calibration coefficients on completion of the Description calibration executed by the SCPI.SENSe(Ch).CORRection.
Page 224: Scpi.sense(Ch).Correction.collect.method.response.thru
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.METHod.RESPonse.THRU Object Type Property (write only) Data Type Variant (Long array) Channel Ch, Target Table 1 Ch channel number 1–9 (see Selects the ports and sets the response calibration (Thru) type for the calculation of the calibration coefficients on completion of the calibration executed by the SCPI.SENSe(Ch).CORRection.
Page 225: Scpi.sense(Ch).Correction.collect.method.solt1
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.METHod.SOLT1 Object Type Property (write only) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Selects the port and sets the full 1–port calibration type for the calculation of the calibration coefficients on completion of the Description calibration executed by the SCPI.SENSe(Ch).CORRection.
Page 226: Scpi.sense(Ch).Correction.collect.method.type
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.METHod.TYPE Object Type Property (read only) Data Type String Channel Ch, Target Table 1 Ch channel number 1–9 (see The calibration type selected for calculating of the calibration Description coefficients on completion of the calibration executed by the SCPI.SENSe(Ch).CORRection.COLLect.SAVE method.
Page 227: Scpi.sense(Ch).Correction.collect.save
COM Server Commands SCPI.SENSe(Ch).CORRection.COLLect.SAVE Object Type Method Channel Ch, Target Table 1 Ch channel number 1–9 (see Calculates the calibration coefficients from the calibration standards measurements depending on the selected calibration type. On completion of the method, all the calibration standards Description measurements are cleared and the error correction automatically turns At the attempt to execute this method before all the needed standards...
Page 228: Scpi.sense(Ch).Correction.extension.port(Pt).Frequency(Ls)
COM Server Commands SCPI.SENSe(Ch).CORRection.EXTension.PORT(Pt).FREQuency(Ls) Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see The value of the frequency at the point number Ls for calculation of the loss for the port extension function, Description Table 9...
Page 229: Scpi.sense(Ch).Correction.extension.port(Pt).Include(Ls).State
COM Server Commands SCPI.SENSe(Ch).CORRection.EXTension.PORT(Pt).INCLude(Ls).STATe Object Type Property (read/write) Data Type Boolean Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see The ON/OFF state of the loss compensation at the point number Ls to calculate the loss for the port extension function, Description Table 9...
Page 230: Scpi.sense(Ch).Correction.extension.port(Pt).Ldc
COM Server Commands SCPI.SENSe(Ch).CORRection.EXTension.PORT(Pt).LDC Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see The loss value at DC for the loss calculation of the port extension Description function.
Page 231: Scpi.sense(Ch).Correction.extension.port(Pt).Loss(Ls)
COM Server Commands SCPI.SENSe(Ch).CORRection.EXTension.PORT(Pt).LOSS(Ls) Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see The loss value at the point number Ls to calculate the loss for the port extension function, Description Table 9...
Page 232: Scpi.sense(Ch).Correction.extension.port(Pt).Time
COM Server Commands SCPI.SENSe(Ch).CORRection.EXTension.PORT(Pt).TIME Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see Description The electrical delay value for the port extension function. Range from -10 to 10 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 233: Scpi.sense(Ch).Correction.extension.state
COM Server Commands SCPI.SENSe(Ch).CORRection.EXTension.STATe Object Type Property (read/write) Data Type Boolean Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the port extension function. True Port extension function ON Allowable Values False Port extension function OFF False Preset Value Dim Status As Boolean...
Page 234: Scpi.sense(Ch).Correction.impedance.input.magnitude
COM Server Commands SCPI.SENSe(Ch).CORRection.IMPedance.INPut.MAGNitude Object Type Property (read/write) Data Type Double Target Instrument Description The system impedance Z0. Range from 0.001 to 1000 Out of Range Sets the value of the limit, which is closer to the specified value. Preset Value Unit Ω...
Page 235: Scpi.sense(Ch).Correction.state
COM Server Commands SCPI.SENSe(Ch).CORRection.STATe Object Type Property (read/write) Data Type Boolean Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the error correction. True Error correction ON Allowable Values False Error correction OFF False Preset Value Dim Status As Boolean Syntax...
Page 236: Scpi.sense(Ch).Correction.transform.time.frequency
COM Server Commands SCPI.SENSe(Ch).CORRection.TRANsform.TIME.FREQuency Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see The Value of Frequency specified for Cable Loss in Time Domain Description measurements. Range from 1.0 to 10000.0 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 237: Scpi.sense(Ch).Correction.transform.time.loss
COM Server Commands SCPI.SENSe(Ch).CORRection.TRANsform.TIME.LOSS Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The Value of Cable Loss for Time Domain measurements. Range from 0.0 to 1000.0 Out of Range Sets the value of the limit, which is closer to the specified value. Preset Value Unit dB/m...
Page 238: Scpi.sense(Ch).Correction.transform.time.rvelocity
COM Server Commands SCPI.SENSe(Ch).CORRection.TRANsform.TIME.RVELocity Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The Value of Velocity Factor for Time Domain measurements. Range from 0.01 to 1.0 Out of Range Sets the value of the limit, which is closer to the specified value. Preset Value Unit None...
Page 239: Scpi.sense(Ch).Correction.transform.time.state
COM Server Commands SCPI.SENSe(Ch).CORRection.TRANsform.TIME.STATe Object Type Property (read/write) Data Type Boolean The channel Ch, Target Table 1 Ch channel number 1–9 (see The ON/OFF state of Cable Loss correction in Time Domain Description measurements. True Cable Loss correction ON Allowable Values False Cable Loss correction OFF...
Page 240: Scpi.sense(Ch).Correction.type(Tr)
COM Server Commands SCPI.SENSe(Ch).CORRection.TYPE(Tr) Object Type Property (read only) Data Type Variant (Variant array) Trace Tr of channel Ch, Table 1 channel number 1–9 (see Target Table 3 trace number 1–8 (see The information about the applied calibration type and the port numbers for the specified trace.
Page 241: Scpi.sense(Ch).Frequency.center
COM Server Commands SCPI.SENSe(Ch).FREQuency.CENTer Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see The stimulus center value of the sweep range for linear or logarithmic Description sweep types. From the minimum value to the maximum value of the analyzer Range frequency range.
Page 242: Scpi.sense(Ch).Frequency.cw
COM Server Commands SCPI.SENSe(Ch).FREQuency.CW Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see The value of the fixed frequency for the power sweep. Description Before this method is called, the sweep type must be set to power sweep, otherwise the method is ignored.
Page 243: Scpi.sense(Ch).Frequency.data
COM Server Commands SCPI.SENSe(Ch).FREQuency.DATA Object Type Property (read only) Data Type Variant (Double array) Channel Ch, Target Table 1 Ch channel number 1–9 (see The array of the measurement points frequency for linear, logarithmic or segment sweep type. Description The array size is N, where N is the number of measurement points. For the n–th point, where n from 1 to N: Data(n–1) the frequency value at the n–th measurement point.
Page 244: Scpi.sense(Ch).Frequency.span
COM Server Commands SCPI.SENSe(Ch).FREQuency.SPAN Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see The stimulus span value of the sweep range for linear or logarithmic Description sweep types. Range From 0 to the maximum span of the analyzer frequency range. Out of Range Sets the value of the limit, which is closer to the specified value.
Page 245: Scpi.sense(Ch).Frequency.start
COM Server Commands SCPI.SENSe(Ch).FREQuency.STARt Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see The stimulus start value of the sweep range for linear or logarithmic Description sweep types. From the minimum value to the maximum value of the analyzer Range frequency range.
Page 246: Scpi.sense(Ch).Frequency.stop
COM Server Commands SCPI.SENSe(Ch).FREQuency.STOP Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see The stimulus stop value of the sweep range for linear or logarithmic Description sweep types. From the minimum value to the maximum value of the analyzer Range frequency range.
Page 247: Scpi.sense(Ch).Offset.adjust.continuous.period
COM Server Commands SCPI.SENSe(Ch).OFFSet.ADJust.CONTinuous.PERiod Object Type Property (read/write) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Selects the period for continuous offset adjust feature: 1 – 3 sec; 2 – 10 sec; Description 3 – 30 sec. 4 –...
Page 248: Scpi.sense(Ch).Offset.adjust.continuous.state
COM Server Commands SCPI.SENSe(Ch).OFFSet.ADJust.CONTinuous.STATe Object Type Property (read/write) Data Type Boolean Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the continuous frequency offset adjust feature. True continuous offset adjust feature is ON Allowable values False continuous offset adjust feature is OFF False...
Page 249: Scpi.sense(Ch).Offset.adjust.port
COM Server Commands SCPI.SENSe(Ch).OFFSet.ADJust.PORT Object Type Property (read/write) Data Type Long Channel Ch, Target Ch channel number 1–9 (see Table 1) Description Selects the port number for frequency offset adjust feature Range from 1 to 2 Out of range Sets the value of the limit, which is closer to the specified value. Unit Dim Value As Long Value = app.SCPI.SENSe(Ch).OFFset.ADJust.PORT...
Page 250: Scpi.sense(Ch).Offset.adjust.state
COM Server Commands SCPI.SENSe(Ch).OFFSet.ADJust.STATe Object Type Property (read/write) Data Type Boolean Channel Ch, Target Ch channel number 1–9 (see Table 1) Description The ON/OFF state of the frequency offset adjust feature. True offset adjust feature is ON Allowable Values False offset adjust feature is OFF Preset Value False...
Page 251: Scpi.sense(Ch).Offset.adjust.value
COM Server Commands SCPI.SENSe(Ch).OFFSet.ADJust.Value Object Type Property (read/write) Data Type Double Channel Ch, Target Ch channel number 1–9 (see Table 1) Description The frequency offset adjust value of the offset adjust feature Range from –5E5 to 5E5 Out of range Sets the value of the limit, which is closer to the specified value.
Page 252: Scpi.sense(Ch).Offset.port(Pt).Frequency.data
COM Server Commands SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.DATA Object Type Property (read only) Data Type Variant (array of double) Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see Reads the frequency data for the selected port Pt when the frequency offset feature is ON and offset type is "PORT", for the selected channel Description The array size is N, where N is the number of measurement points.
Page 253: Scpi.sense(Ch).Offset.port(Pt).Frequency.divisor
COM Server Commands SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.DIVisor Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see The basic frequency range divisor when the frequency offset feature is Description ON and offset type is "PORT"..
Page 254: Scpi.sense(Ch).Offset.port(Pt).Frequency.multiplier
COM Server Commands SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.MULTiplier Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see The basic range frequency multiplier when the frequency offset feature Description is ON and offset type is "PORT".
Page 255: Scpi.sense(Ch).Offset.port(Pt).Frequency.offset
COM Server Commands SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.OFFSet Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see The basic frequency range offset when the frequency offset feature is Description ON and offset type is "PORT".
Page 256: Scpi.sense(Ch).Offset.port(Pt).Frequency.start
COM Server Commands SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.STARt Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see The frequency sweep start when the frequency offset feature is ON and Description offset type is "PORT".
Page 257: Scpi.sense(Ch).Offset.port(Pt).Frequency.stop
COM Server Commands SCPI.SENSe(Ch).OFFSet.PORT(Pt).FREQuency.STOP Object Type Property (read/write) Data Type Double Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see The frequency sweep stop when the frequency offset feature is ON and Description offset type is "PORT".
Page 258: Scpi.sense(Ch).Offset.state
COM Server Commands SCPI.SENSe(Ch).OFFSet.STATe Object Type Property (read/write) Data Type Boolean Channel Ch, Target Ch channel number 1–9 (see Table 1) Description The ON/OFF state of the frequency offset feature. True frequency offset feature is ON Allowable Values False frequency offset feature is OFF Preset Value False Dim Status As Boolean...
Page 259: Scpi.sense(Ch).Roscillator.source
COM Server Commands SCPI.SENSe(Ch).ROSCillator.SOURce Object Type Property (read/write) Data Type String Target Instrument Selects the internal or external source of the reference frequency of 10 Description MHz. "INTernal" Internal source of the reference frequency Range "EXTernal" External source of the reference frequency The short format of the parameter is indicated by upper case letters.
Page 260: Scpi.sense(Ch).Segment.data
COM Server Commands SCPI.SENSe(Ch).SEGMent.DATA Object Type Property (read/write) Data Type Variant (Double array) Channel Ch, Target Ch: channel number 1–9 (see Table 1 on page 21) The array of the segment sweep table. The array has the following format: {<Buf>, <Flag1>, <Flag2>, <Flag3>, <Flag4>, <Flag5>, <N>, <Start(1)>, <Stop(1)>, <NOP(1)>...
Page 261: Scpi.sense(Ch).Sweep.point.time
COM Server Commands SCPI.SENSe(Ch).SWEep.POINt.TIME Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see The value of the delay before measurement in each measurement Description point. Range from 0 to 0.3 Resolution 5E-6 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 262: Scpi.sense(Ch).Sweep.points
COM Server Commands SCPI.SENSe(Ch).SWEep.POINts Object Type Property (read/write) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The number of measurement points. from 2 to 16001 (Planar TR1300) Range from 2 to 200001 (TR5048, TR7530) Out of Range Sets the value of the limit, which is closer to the specified value.
Page 263: Scpi.sense(Ch).Sweep.reverse.state
COM Server Commands SCPI.SENSe(Ch).SWEep.REVerse.STATe Object Type Property (read/write) Data Type Boolean Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The ON/OFF state of the reverse scan. True Reserse Scan ON Allowable Values False Reverse Scan OFF "False" Preset Value Dim Status As Boolean Syntax...
Page 264: Scpi.sense(Ch).Sweep.type
COM Server Commands SCPI.SENSe(Ch).SWEep.TYPE Object Type Property (read/write) Data Type String Channel Ch, Target Table 1 Ch channel number 1–9 (see Description Sets the sweep type. "LINear" Linear frequency sweep "LOGarithmic" Logarithmic frequency sweep "SEGMent" Segment frequency sweep Range "POWer " Power sweep "VVM"...
Page 265: Scpi.sense(Ch).Vvm.data
COM Server Commands SCPI.SENSe(Ch).VVM.DATA Object Type Property (read only) Data Type Variant (Double array) Channel Ch, Target Table 1 Ch channel number 1–9 (see Reads out the value of the vector voltmeter measurement (query only). If a reference value is specified, the return value is read relatively to it. The data include 2 elements: Description <numeric 1>...
Page 266: Scpi.sense(Ch).Vvm.format
COM Server Commands SCPI.SENSe(Ch).VVM.FORMat Object Type Property (read/write) Data Type String Channel Ch, Target Table 1 Ch channel number 1–9 (see the data format Description Sets or reads out in Vector Voltmeter mode. Log magnitude and phase "LOGP" Linear magnitude and phase "LINP"...
Page 267: Scpi.sense(Ch).Vvm.frequency.cw
COM Server Commands SCPI.SENSe(Ch).VVM.FREQuency.CW Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Sets or reads out the operating frequency in the Vector Voltmeter Description mode. Out of Range Sets the value of the limit, which is closer to the specified value. Unit Hz (Hertz) Dim Value As Double...
Page 268: Scpi.sense(Ch).Vvm.reference.memorize
COM Server Commands SCPI.SENSe(Ch).VVM.REFerence.MEMorize Object Type Method Channel Ch, Target Table 1 Ch channel number 1–9 (see Memorizes the reference value of the vector voltmeter . Description Syntax app.SCPI.SENSe(Ch).VVM.REFerence.CLEar Equivalent Stimulus > Vector Voltmeter > Save Reference Softkeys SCPI.SENSe(Ch).VVM.REFerence.DATA? Object Type Property (read only) Data Type Variant (Double array)
Page 269: Scpi.sense(Ch).Vvm.table.clear
COM Server Commands SCPI.SENSe(Ch).VVM.TABLe.CLEar Object Type Method Channel Ch, Target Table 1 Ch channel number 1–9 (see Clears all data from the vector voltmeter measurement table. Description Syntax app.SCPI.SENSe(Ch).VVM.TABLe.CLEar Equivalent Stimulus > Vector Voltmeter > Data Table > Clear Table Softkeys SCPI.SENSe(Ch).VVM.TABLe.DATA Object Type...
Page 270: Scpi.sense(Ch).Vvm.table.insert(Index)
COM Server Commands SCPI.SENSe(Ch).VVM.TABLe.INSert(Index) Object Type Method (Index as long) Channel Ch, Target Table 1 Ch channel number 1–9 (see Inserts a row of data into the table with the current measurement of a vector voltmeter Description <numeric> The row number in the table where new data will be inserted.
Page 271: Scpi.sense(Ch).Vvm.table.remove(Index)
COM Server Commands SCPI.SENSe(Ch).VVM.TABLe.REMove(Index) Object Type Method (Index as long) Channel Ch, Target Table 1 Ch channel number 1–9 (see Removes a table row with a vector voltmeter measurement index Description <numeric> The row number in the table which will be removed.
Page 272: Scpi.sense(Ch).Vvm.display.resolution
COM Server Commands SCPI.SENSe(Ch).VVM.DISPlay.RESolution Object Type Property (Read and write) Data Type Long) number of indication symbols in the vector Sets or reads out Description voltmeter mode Dim Data As Long Syntax Data = app.SCPI.SENSe(Ch).VVM.DISPlay.RESolution app.SCPI.SENSe(Ch).VVM.DISPlay.RESolution = 8 Equivalent Stimulus > Vector Voltmeter > Properties > Response Digits Softkeys SCPI.SENSe(Ch).VVM.DISPlay.FONT.SIZE Object Type...
Page 273: Scpi.sense(Ch).Vvm.type
COM Server Commands SCPI.SENSe(Ch).VVM.TYPE Object Type Property (read/write) Data Type String Channel Ch, Target Table 1 Ch channel number 1–9 (see Description Sets or reads out the smeasured parameter in Vector Voltmeter mode. Eflection parameter "S11" Transmission parameter "S21" The ratio of the receivers signals A to B, an Range "A/B external frequency generator is used.
Page 274: Scpi.service.channel.active
COM Server Commands SCPI.SERVice.CHANnel.ACTive Object Type Property (read only) Data Type Long Target Instrument Description The number of the active channel. Dim Value As Long Syntax Value = app.SCPI.SERVice.CHANnel.ACTive Equivalent None Softkeys SCPI.SERVice.CHANnel.COUNt Object Type Property (read only) Data Type Long Target Instrument...
Page 275: Scpi.service.channel(Ch).Trace.active
COM Server Commands SCPI.SERVice.CHANnel(Ch).TRACe.ACTive Object Type Property (read only) Data Type Long Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The active trace number of the channel. Dim Value As Long Syntax Value = app.SCPI.SERVice.CHANnel(Ch).TRACe.ACTive Equivalent None Softkeys SCPI.SERVice.CHANnel.TRACe.COUNt Object Type...
Page 276: Scpi.service.port.count
COM Server Commands SCPI.SERVice.PORT.COUNt Object Type Property (read only) Data Type Long Target Instrument Description The number of the ports. Dim Value As Long Syntax Value = app.SCPI.SERVice.PORT.COUNt Equivalent None Softkeys SCPI.SERVice.SWEep.FREQency.MAXimum Object Type Property (read only) Data Type Double Target Instrument Description...
Page 277: Scpi.service.sweep.freqency.minimum
COM Server Commands SCPI.SERVice.SWEep.FREQency.MINimum Object Type Property (read only) Data Type Double Target Instrument Description The lower limit of the measurement frequency. Dim Value As Double Syntax Value = app.SCPI.SERVice.SWEep.FREQency.MINimum Equivalent None Softkeys SCPI.SERVice.SWEep.POINts Object Type Property (read only) Data Type Double Target Instrument...
Page 278: Scpi.source(Ch).Power.center
COM Server Commands SCPI.SOURce(Ch).POWer.CENTer Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The center value of the power sweep range. From the minimum value to the maximum value of the analyzer power Range range Resolution...
Page 279: Scpi.source(Ch).Power.level.immediate.amplitude
COM Server Commands SCPI.SOURce(Ch).POWer.LEVel.IMMediate.AMPLitude Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The power level for the frequency sweep. From the minimum value to the maximum value of the analyzer power Range range Resolution...
Page 280: Scpi.source(Ch).Power.level.slope.data
COM Server Commands SCPI.SOURce(Ch).POWer.LEVel.SLOPe.DATA Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The power slope value for the frequency sweep. Range from 0 to 2 Resolution 0.05 Out of Range Sets the value of the limit, which is closer to the specified value.
Page 281: Scpi.source(Ch).Power.port(Pt).Correction.data
COM Server Commands SCPI.SOURce(Ch).POWer.PORT(Pt).CORRection.DATA Object Type Property (read only) Data Type Variant (Double array) Port Pt of channel Ch, Table 1 Target channel number 1–9 ( Table 2 port number 1–2 (see The power correction table. The array size is 1+2N, where N is the number of the table rows. For the n–th point, where n from 1 to N: Description Data(0)
Page 282: Scpi.source(Ch).Power.port(Pt).Correction.state
COM Server Commands SCPI.SOURce(Ch).POWer.PORT(Pt).CORRection.STATe Object Type Property (read/write) Data Type Boolean Port Pt of channel Ch, Table 1 Target channel number 1–9 (see Table 2 port number 1–2 (see Description The ON/OFF state of the power correction function. True Power correction ON Allowable Values False...
Page 283: Scpi.source(Ch).Power.span
COM Server Commands SCPI.SOURce(Ch).POWer.SPAN Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The power span for the power sweep. Range From 0 to the maximum span of the analyzer power range. Resolution 0.05 Out of Range...
Page 284: Scpi.source(Ch).Power.start
COM Server Commands SCPI.SOURce(Ch).POWer.STARt Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The power sweep start for the power sweep. From the minimum value to the maximum value of the analyzer power Range range.
Page 285: Scpi.source(Ch).Power.stop
COM Server Commands SCPI.SOURce(Ch).POWer.STOP Object Type Property (read/write) Data Type Double Channel Ch, Target Table 1 Ch channel number 1–9 (see Description The power sweep stop for the power sweep. From the minimum value to the maximum value of the analyzer power Range range.
Page 286: Scpi.status.operation.condition
COM Server Commands SCPI.STATus.OPERation.CONDition Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Description Operation Status Condition Register. Dim Value As Long Syntax Value = app.SCPI.STATus.OPERation.CONDition Equivalent None Softkeys SCPI.STATus.OPERation.ENABle Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System...
Page 287: Scpi.status.operation.event
COM Server Commands SCPI.STATus.OPERation.EVENt Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Description Operation Status Event Register Dim Value As Long Syntax Value = app.SCPI.STATus.OPERation.EVENt Equivalent None Softkeys SCPI.STATus.OPERation.NTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System...
Page 288: Scpi.status.operation.ptransition
COM Server Commands SCPI.STATus.OPERation.PTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Description Positive Transition Filter of the Operation Status Register. Range from 0 to 65535 Preset Value 65535 Dim Value As Long Syntax Value = app.SCPI.STATus.OPERation.PTRansition app.SCPI.STATus.OPERation.PTRansition = Value Equivalent None...
Page 289: Scpi.status.questionable.condition
COM Server Commands SCPI.STATus.QUEStionable.CONDition Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Description Questionable Status Condition Register Dim Value As Long Syntax Value = app.SCPI.STATus.QUEStionable.CONDition Equivalent None Softkeys SCPI.STATus.QUEStionable.ENABle Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System...
Page 290: Scpi.status.questionable.event
COM Server Commands SCPI.STATus.QUEStionable.EVENt Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Description Questionable Status Event Register Dim Value As Long Syntax Value = app.SCPI.STATus.QUEStionable.EVENt Equivalent None Softkeys SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).CONDition Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System...
Page 291: Scpi.status.questionable.limit.channel(Ch).Enable
COM Server Commands SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).ENABle Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Questionable Limit Channel Status Enable Register for channel Ch, Description Table 1 Ch channel number 1–9 (see Dim Value As Long Value = app.SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch). Syntax ENABle app.SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).
Page 292: Scpi.status.questionable.limit.channel(Ch).Ntransition
COM Server Commands SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).NTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Negative Transition Filter of the Questionable Limit Channel Status Register for channel Ch, Description Table 1 Ch channel number 1–9 (see Range from 0 to 65535 Preset Value Dim Value As Long Value =...
Page 293: Scpi.status.questionable.limit.channel(Ch).Ptransition
COM Server Commands SCPI.STATus.QUEStionable.LIMit.CHANnel(Ch).PTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Positive Transition Filter of the Questionable Limit Channel Status Register for channel Ch, Description Table 1 Ch channel number 1–9 (see Range from 0 to 65535 Preset Value 65535 Dim Value As Long...
Page 294: Scpi.status.questionable.limit.condition
COM Server Commands SCPI.STATus.QUEStionable.LIMit.CONDition Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Description Questionable Limit Status Condition Register. Dim Value As Long Syntax Value = app.SCPI.STATus.QUEStionable.LIMit.CONDition Equivalent None Softkeys SCPI.STATus.QUEStionable.LIMit.ENABle Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System...
Page 295: Scpi.status.questionable.limit.event
COM Server Commands SCPI.STATus.QUEStionable.LIMit.EVENt Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Description Questionable Limit Status Event Register. Dim Value As Long Syntax Value = app.SCPI.STATus.QUEStionable.LIMit.EVENt Equivalent None Softkeys SCPI.STATus.QUEStionable.LIMit.NTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System...
Page 296: Scpi.status.questionable.limit.ptransition
COM Server Commands SCPI.STATus.QUEStionable.LIMit.PTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Description Positive Transition Filter of the Questionable Limit Status Register. Range from 0 to 65535 Preset Value 65535 Dim Value As Long Value = app.SCPI.STATus.QUEStionable.LIMit.PTRansition Syntax app.SCPI.STATus.QUEStionable.LIMit.PTRansition =...
Page 297: Scpi.status.questionable.ntransition
COM Server Commands SCPI.STATus.QUEStionable.NTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Description Negative Transition Filter of the Questionable Status Register. Range from 0 to 65535 Preset Value Dim Value As Long Syntax Value = app.SCPI.STATus.QUEStionable.NTRansition app.SCPI.STATus.QUEStionable.NTRansition = Value Equivalent None...
Page 298: Scpi.status.questionable.ptransition
COM Server Commands SCPI.STATus.QUEStionable.PTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Description Positive Transition Filter of the Questionable Status Register. Range from 0 to 65535 Preset Value 65535 Dim Value As Long Syntax Value = app.SCPI.STATus.QUEStionable.PTRansition app.SCPI.STATus.QUEStionable.PTRansition = Value Equivalent None...
Page 299: Scpi.status.questionable.rlimit.channel(Ch).Condition
COM Server Commands SCPI.STATus.QUEStionable.RLIMit.CHANnel(Ch).CONDition Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Questionable Ripple Limit Channel Status Condition Register for channel Ch, Description Table 1 Ch channel number 1–9 (see Dim Value As Long Value = Syntax app.SCPI.STATus.QUEStionable.RLIMit.CHANnel(Ch).
Page 300: Scpi.status.questionable.rlimit.channel(Ch).Enable
COM Server Commands SCPI.STATus.QUEStionable.RLIMit.CHANnel(Ch).ENABle Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Questionable Ripple Limit Channel Status Enable Register for channel Description Table 1 Ch channel number 1–9 (see Range from 0 to 65535 Preset Value Dim Value As Long Value = app.SCPI.STATus.QUEStionable.RLIMit.CHANnel(Ch).
Page 301: Scpi.status.questionable.rlimit.channel(Ch).Event
COM Server Commands SCPI.STATus.QUEStionable.RLIMit.CHANnel(Ch).EVENt Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Questionable Ripple Limit Channel Status Event Register for channel Description Table 1 Ch channel number 1–9 (see Dim Value As Long Value = Syntax app.SCPI.STATus.QUEStionable.RLIMit.CHANnel(Ch).
Page 302: Scpi.status.questionable.rlimit.channel(Ch).Ntransition
COM Server Commands SCPI.STATus.QUEStionable.RLIMit.CHANnel(Ch).NTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Negative Transition Filter of the Questionable Ripple Limit Channel Status Register for channel Ch, Description Table 1 Ch channel number 1–9 (see Range from 0 to 65535 Preset Value Dim Value As Long Value =...
Page 303: Scpi.status.questionable.rlimit.channel(Ch).Ptransition
COM Server Commands SCPI.STATus.QUEStionable.RLIMit.CHANnel(Ch).PTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Positive Transition Filter of the Questionable Ripple Limit Channel Status Register for channel Ch, Description Table 1 Ch channel number 1–9 (see Range from 0 to 65535 Preset Value 65535 Dim Value As Long...
Page 304: Scpi.status.questionable.rlimit.condition
COM Server Commands SCPI.STATus.QUEStionable.RLIMit.CONDition Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Description Questionable Ripple Limit Status Condition Register. Dim Value As Long Syntax Value = app.SCPI.STATus.QUEStionable.RLIMit.CONDition Equivalent None Softkeys SCPI.STATus.QUEStionable.RLIMit.ENABle Object Type Property (read/write) Data Type Long Target...
Page 305: Scpi.status.questionable.rlimit.event
COM Server Commands SCPI.STATus.QUEStionable.RLIMit.EVENt Object Type Property (read only) Data Type Long Target IEE488.2 Status Reporting System Description Questionable Ripple Limit Status Event Register. Dim Value As Long Syntax Value = app.SCPI.STATus.QUEStionable.RLIMit.EVENt Equivalent None Softkeys SCPI.STATus.QUEStionable.RLIMit.NTRansition Object Type Property (read/write) Data Type Long Target...
Page 306: Scpi.status.questionable.rlimit.ptransition
COM Server Commands SCPI.STATus.QUEStionable.RLIMit.PTRansition Object Type Property (read/write) Data Type Long Target IEE488.2 Status Reporting System Positive Transition Filter of the Questionable Ripple Limit Status Description Register. Range from 0 to 65535 Preset Value 65535 Dim Value As Long Value = app.SCPI.STATus.QUEStionable.RLIMit.PTRansition Syntax app.SCPI.STATus.QUEStionable.RLIMit.PTRansition =...
Page 307: Scpi.system.communicate.ecal.temperature.sensor
COM Server Commands SCPI.SYSTem.COMMunicate.ECAL.TEMPerature.SENSor Object Type Property (read only) Data Type Double Target AutoCal module Reads out the temperature of the AutoCal module connected to the Description instrument. Unit °C (Celsius) Dim Value As Double Value = Syntax app.SCPI.SYSTem.COMMunicate.ECAL.TEMPerature.SENSor Equivalent None Softkeys...
Page 308: Scpi.system.correction.state
COM Server Commands SCPI.SYSTem.CORRection.STATe Object Type Property (read/write) Data Type Boolean Target Instrument Description The ON/OFF state of the system error correction. True System error correction ON Allowable Values False System error correction OFF True Preset Value Dim Status As Boolean Status = app.SCPI.SYSTem.CORRection.STATe Syntax app.SCPI.SYSTem.CORRection.STATe = False...
Page 309: Scpi.system.date
COM Server Commands SCPI.SYSTem.DATE Object Type Property (read/write) Data Type Variant (Long array) Target Instrument The current date. The array consists of three elements: Data(0) year from 1900 to 2100; Description Data(1) month from 1 to 12; Data(2) day from 1 to 31. Dim Data As Variant Data = app.SCPI.SYSTem.DATE...
Page 310: Scpi.system.local
COM Server Commands SCPI.SYSTem.LOCal Object Type Method Target Instrument Sets the instrument to the local operation mode, when all the keys on Description the front panel, mouse and the touch screen are active. app.SCPI.SYSTem.LOCal Syntax Related SCPI.SYSTem.RWLock Commands Equivalent None Softkeys SCPI.SYSTem.PRESet Object Type...
Page 311: Scpi.system.remote
COM Server Commands SCPI.SYSTem.REMote Object Type Method Target Instrument Sets the instrument to the remote operation mode, when all the keys on the front panel, mouse and the touch screen are not active, except Description for one key labeled Return to Local. Pushing this button will reset the instrument to the local operation mode.
Page 312: Scpi.system.show
COM Server Commands SCPI.SYSTem.SHOw Object Type Method Target Instrument Description Return the main form of a application to visible state. app. SCPI.SYSTem.SHOw Syntax Related SCPI.SYSTem.HIDe Commands Equivalent None Softkeys SCPI.SYSTem.TEMPerature.SENSor(Idx) Object Type Property (read only) Data Type Double Target Instrument Description Reads out the specified sensor (Idx) temperature inside the analyzer.
Page 313: Scpi.system.terminate
COM Server Commands SCPI.SYSTem.TERMinate Object Type Method Target Instrument Description Close the COM server application. Syntax app. SCPI.SYSTem.TERMinate Equivalent System > Exit > Ok Softkeys SCPI.SYSTem.TIME Object Type Property (read/write) Data Type Variant (Long array) Target Instrument The current time. The array consists of three elements: Data(0) hours from 0 to 23;...
Page 314: Scpi.trigger.sequence.external.delay
COM Server Commands SCPI.TRIGger.SEQuence.EXTernal.Delay Object Type Property (read/write) Data Type Double Target External Trigger Description Sets the response delay with respect to the external trigger signal. Range From 0 to 100 sec Resolution 0.1 usec Out of Range Sets to the nearest bound. Preset Value Dim Param As Double Syntax...
Page 315: Scpi.trigger.sequence.external.position
COM Server Commands SCPI.TRIGger.SEQuence.EXTernal.POSition Object Type Property (read/write) Data Type String Target External trigger Selects the position of the external trigger. The Analyzer waits for external trigger: Before sampling, when the frequency of the stimulus port have been set. The frequency change of the stimulus port begins after sampling. Before the frequency setup and subsequent measurement.
Page 316: Scpi.trigger.sequence.external.slope
COM Server Commands SCPI.TRIGger.SEQuence.EXTernal.SLOPe Object Type Property (read/write) Data Type String Target External trigger Description Selects the edge of the external trigger. "POSitive" Positive edge Range "NEGative" Negative edge Out of Range An error occurs. Preset Value "NEG" Dim Param As String Syntax Param = app.SCPI.TRIGger.SEQuence.EXTernal.SLOPe app.SCPI.TRIGger.SEQuence.EXTernal.SLOPe = "POS"...
Page 317: Scpi.trigger.sequence.immediate
COM Server Commands SCPI.TRIGger.SEQuence.IMMediate Object Type Method Target Instrument Generates a trigger, independently of the trigger source setting (except for the External). If the trigger source is set to External, an error occurs and the command is ignored. Description If the instrument is not in the waiting for a trigger state (sweep is in progress or all the channels are set to Hold), an error occurs and the command is ignored.
Page 318: Scpi.trigger.sequence.point
COM Server Commands SCPI.TRIGger.SEQuence.POINt Object Type Property (read/write) Data Type Boolean Target Instrument The ON/OFF state of the point trigger feature. When the point trigger feature is turned ON, the external trigger Description response is single point. When the point trigger feature is turned OFF, the external trigger response is single sweep.
Page 319: Scpi.trigger.sequence.single
COM Server Commands SCPI.TRIGger.SEQuence.SINGle Object Type Method Target Instrument Generates a trigger, independently of the trigger source setting (except for the External). If the trigger source is set to External, an error occurs and the command is ignored. If the instrument is not in the waiting for a trigger state (sweep is in Description progress or all the channels are set to Hold), an error occurs and the command is ignored.
Page 320: Scpi.trigger.sequence.source
COM Server Commands SCPI.TRIGger.SEQuence.SOURce Object Type Property (read/write) Data Type String Target Instrument Description Selects the sweep trigger source. "INTernal" Internal Range "EXTernal" External "BUS" The short format of the parameter is indicated by upper case letters. There is no distinction between upper and lower case letters when the Notes property is written.
Page 321: Scpi.trigger.sequence.state
COM Server Commands SCPI.TRIGger.SEQuence.STATe Object Type Property (read only) Data Type String Target Instrument Description Returns the status of the scanner. "HOLD" scanning is stopped Range "WAIT" waiting for the start "MEAS" is scanning Notes The short format of the parameter is indicated by upper case letters. Out of Range An error occurs.
Page 322: Appendix 1. Error Codes
Appendix 1. Error Codes "Header suffix out of range" "Execution error" "Trigger ignored" "Init ignored" "Parameter Error" "Data out of range" "Illegal parameter value" "Invalid channel index" "Invalid trace index" "Invalid marker index" "Marker is not active" "Invalid save type specifier" "Invalid sweep type specifier"...
Page 323: Appendix 2. Programming Examples
– the Name property of the COM object. The string contains the following fields: Manufacturer, Model, Serial Number, Software Version/Firmware Version For example: Copper Mountain Technologies, TR5048, 00000001, 15.4.0/2.0 Dim app As Object Sub Example1() Set app = CreateObject("TRVNA.Application") ID = app.Name...
Page 324 Appendix 2. Programming Examples Example 2. Checking the Instrument Ready State Normally, the user control program starts when the analyzer executable module is running, the instrument booting is completed, and the instrument is ready for use. In some cases, it is recommended to check if the instrument is ready for use. The instrument may be not ready for use if it is not connected to PC via USB cable.
Page 325 Appendix 2. Programming Examples Example 3. Setting the Measurement Parameters The following program shows the setting of some measurement parameters. First, the instrument is reset to the factory settings. Then the following parameters are set:  Two channel windows are opened and allocated one above the other. ...
Page 326 Appendix 2. Programming Examples app.SCPI.Calculate(1).Selected.Format = "SMIT" app.SCPI.Calculate(2).Parameter(1).DEFine = "S21" app.SCPI.Calculate(2).Parameter(1).Select app.SCPI.Calculate(2).Selected.Format = "MLOG" app.SCPI.DISPlay.Window(2).TRACe(1).Y.SCALe.AUTO End Sub...
Page 327 Appendix 2. Programming Examples Example 4. Measurement Data Acquisition The following program shows data array acquisition with further writing into a file. The program also shows the method of a sweep triggering and waiting for the sweep completion. Three variables F, M, P are declared in the second string of the code. They are used for arrays of frequency values (Hz), magnitude values (dB), and phase values (degree) respectively.
Page 328 Appendix 2. Programming Examples Dim app As Object Dim app As Object Dim F, M, P Public Sub Example4() Set app = CreateObject("TRVNA.Application") app.SCPI.SYSTem.PRESet app.SCPI.TRIGger.SEQuence.Source = "BUS" app.SCPI.TRIGger.SEQuence.Single F = app.SCPI.SENSe(1).Frequency.Data app.SCPI.Calculate(1).Selected.Format = "MLOG" M = app.SCPI.Calculate(1).Selected.Data.FDATa app.SCPI.Calculate(1).Selected.Format = "PHASe" P = app.SCPI.Calculate(1).Selected.Data.FDATa Open "TESTFILE"...
Page 329 Appendix 2. Programming Examples Example 5. Program Written in C++ The following C++ program represents an example of the measurement parameter setting, as well as acquisition and display of the measurement data array. The program also shows a method of the sweep triggering and waiting for the sweep completion. //--------------------------------------------------------------------------- // Simple example of using COM object of TRVNA.exe application.
